hd sdi cmos camera module HD 130MP With SONY Cmos 3100 1100 CHIP Board SDI Module

Share on (60308838484):


Price:

Quantity:


Product Overview

Description


Product Description

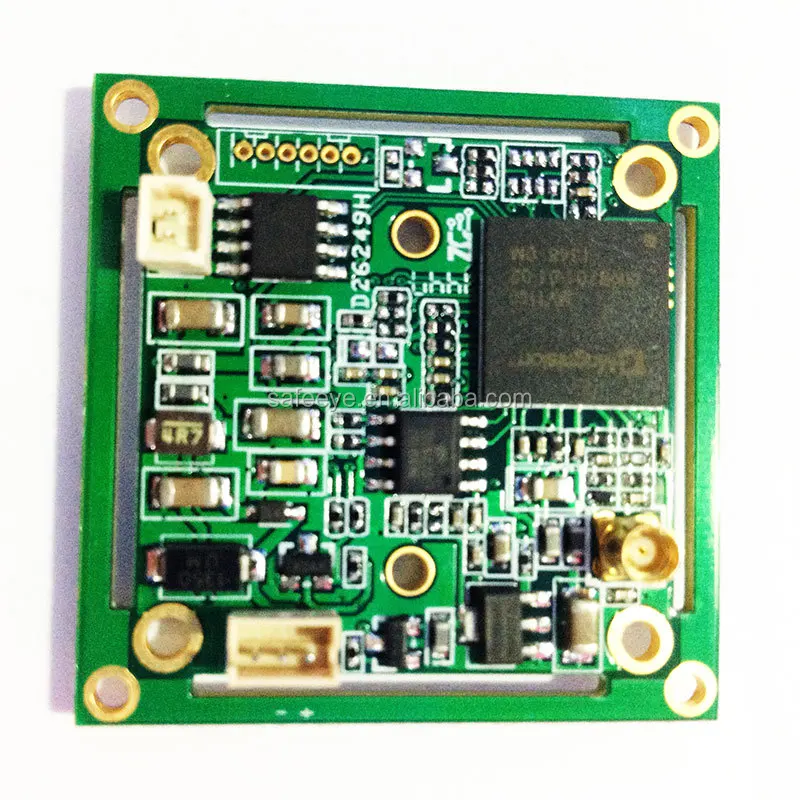

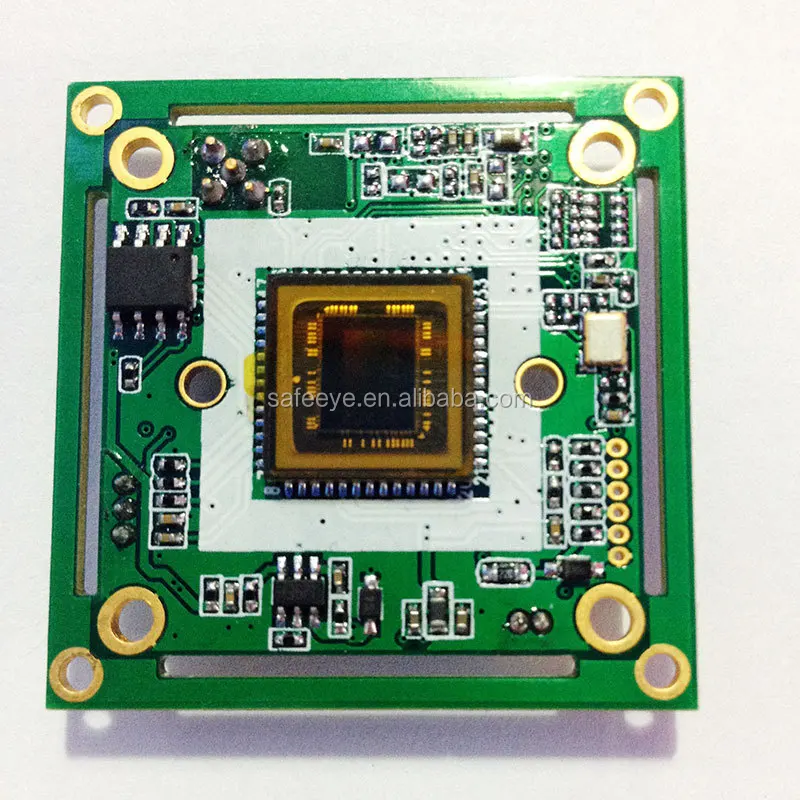

960P HD SDI camera module HD 130MP



Specifications



1,1.3 megapixel SONY CMOS sensor, 960p

2,960P high resolution
3,support alarm function,
4,HD-SDI video output
5,support EXT External signal synchronization to black
6,Support PIP function
7, support  2D-DNR and 3D-DNR function

960P HD SDI camera module HD 130MP
Specifications:



SpecificationDescriptionDetails
Image Sensorpanasonic34227+NVP24211/3" inch progressive CMOS, 1.3Megapixel
Effective Pixels1920(H)x960(V)=2,122,848 Pixel
Total Pixels1920(H)x960(V)=2,227,080 Pixel
Scanning SystemProgressive Scan
Lens ControlDC IRISAutomatic by PWM control
Shutter Speed1/30(25)~1/60,000
ResolutionHorizontal TVL1300TVL
Vertical TVL1200TVL
PictureS/N RatioMore than 50dB
Min,Illumination0.1Lux(@50IRE/F1.2)
0.1Lux(Sense-Upx4)
Video ModeFrame-Rate1080P(30P,25P),720P(30P,25P)
(H)x (V)1920(H)x1080(V)/1280(H)x720(V)
Output FormatDigital OutputBT.1120
Analog OutputHD-SDI(SMPTE274M) NTSC/PAL(960H)
PowerSupplied VoltageDC12V(6V~18V)
TemperatureOperating Temperature-10°C~50°C
Storage Temperature-20°C~70°C
DimensonPCB SIZE:(W)x(H)38(L)mmx38(W)mmx1BOARD PCB 1.0(T)mm
AccessoriesPlate FFC Cable0.5mmx30Pinx120mmxC
LENS &Lens Mount OPTIONC/CS Mount&FIX Type M12,M14



SDI Security camera 960P HD SDI camera module HD 130MP
 Photos






Optional accessories:





Company Information



SafeEye Technology Corporation  owns well-known brands: SafeEye

 has over 10 year experience in the security(CCTV) industrial field. As a national high-tech enterprise in shenzhen,passed the ISO9001 and ISO14001 certification, CE, FCC, RoHS and the like.

Our products are widely applied in government, finance, telecom, traffic, airport, seaport, post office, electric power and intelligent building,SafeEye Technology products have enjoyed high reputation in local China market and have been sold to more than 40 countries and regions, our customers mostly from United States, Europe,Japan, Israel, SouthKorea .

some of our series camera as below:

The IP function,

The fisheye camera and Panoramic cameras (130 degree,180 degree,360 degree),

The Low Lux (Day & night color) function( illumination: 0.00001Lux),

The SWDR function (Backlight)

The HD-AHD function, (BNC connect, 2.0 megapixel)

The License Plate Recognition function(parking Lot and highway etc)

The Motorized Zoom Lens function(Motor adjustable zoom to 4x or more)

You can choose one or more function are combined in the product. For example, IP and panorama. IP and LPR. IP and Motorized Zoom Lens and Low Lux, etc





Packaging & Shipping



1.The package will be shipped from China via Express air or by sea as your request. The tracking number will E-mail to you when the item sent, usually it takes 4~5 working days to arrive by air;it takes 10~45 days to arrive by sea depending on the port.



2. Air freight (we have strong cooperation with DHL, TNT, FEDEX, EMS, you can also choose your own shipping forwarder)

  DHL is the most popular delivery choice for it's fast speed and cheaper price. You also can choosing your own shipping forwarder.

shipping







Our Services

  1. The product is based on Ex-works for 1-50pcs, FCA shenzhen for 50-500pcs, FOB shenzhen for above 500pcs.
2. Payment term:100% payment in advance before shIpment (T/T, Western Union ,paypal,cash or any other means at your convenience)
3. Delivery Time:sample order: 1-3 working day, Normal order:longer than 3 working days according to the order quanity
4. All the above products have CE ,FCC and ROHS certificates
5. Welcome OEM & ODM order,MOQ for OEM is 50pcs/model
6. Power adapter isn't included in above prices, it's optional
7. Price Validity: 30 days from issuing date.
8. Warranty: 3 years after receiving goods,unlimited lifetime Technique support.
9.If quanity more than 100pcs one model, we will free supply some camera parts for preapre exchange
Warranty Policy
1,We provide 3 years of warranty period for cameras and DVRs start from the shipment date,we take all the responsibility for the defective rate!
2,Professional technical support team to support our customers all the time!





FAQ



How to choose a suitable CCTV camera for your needs?
1) Location: Indoor or outdoor application
2) Requirement for day and night surveillance
3) The angle of view Lens requirement . Wide angle coverage or a narrow field
4)Budget

How to order security camera rohs :
1. Tell us the models and quantity with all the specific requests.
2. Proforma invoice will be sent to you to confirm after inquiries were soleved, order will be arranged when payment cleared.
3. We trace the status of order with you by tracking number until you get it safely.

What the Payment terms:
T/T,Western Union,VISA,Mastercard,Escrow, paypal and so on; L/C is welcome.
1. We can arrange to produce in advance once we get the bank slip of deposit.
2. Order value less than 20,000USD, 100% payment before production;
3. Order value more than 20,000USD, 30% deposit. 100% paid before shipment.

Q.May I print our company logo on package box and Camera?
A:Of course,buyer logo is welcome in our company.We have one production line for printing buyer logo.
Q.Do you provide warranty for your products?
A:Yes,we promise Three years warranty for all our products.
Q.What is Minimum Order Quantity?
A:Min Order Quantity is 10pcs,but sample order is welcome.
Q.What is Carton box quantity?
A: Big carton box size: 74*39*56cm max quantity: 20pcs
Q: Can We to be your Agency in our Country?
A: Of Course, welcome to be SafeEye Security Products agency in your country, we will try best support for you.
