Sound Proof Acoustic Foam Panels Baffle Ceiling
- Category: Soundproofing Materials >>>
- Supplier: Jiangyin Dego Building Materials Co. Ltd.
Share on (60308943691):
Product Overview
Description
BAFFLUE2022
Degofon Solo Baffle Ceiling NRC0.85

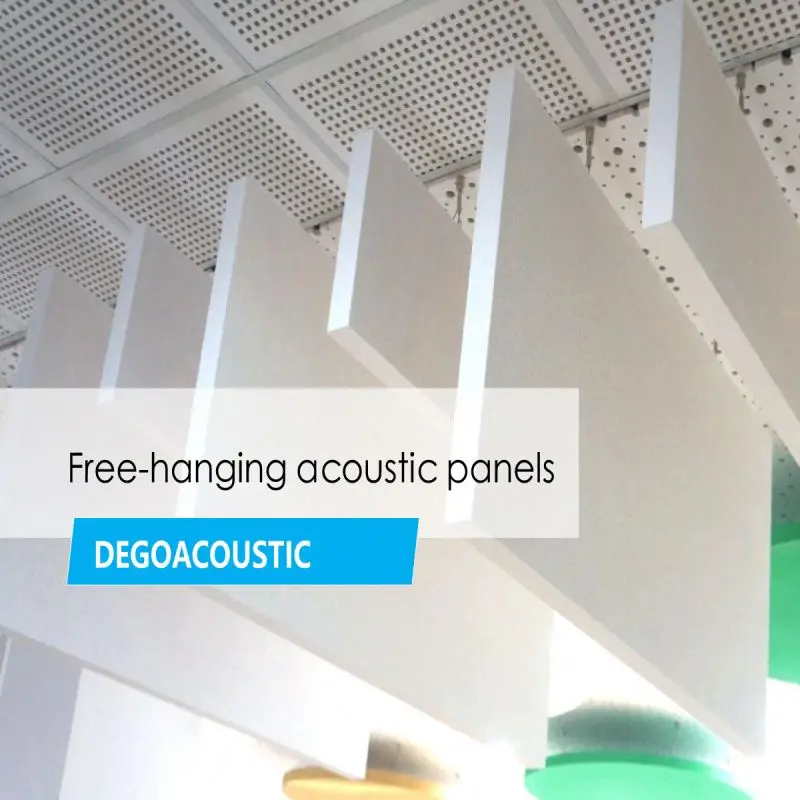

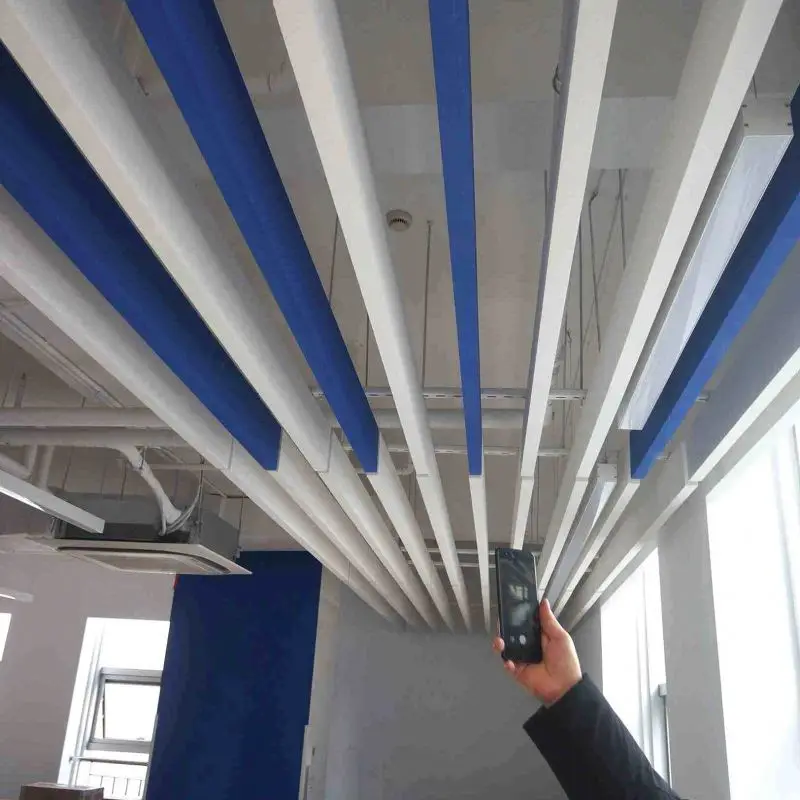

Linear Suspended Absorbing Baffles
smooth texture Fiber glass wool Panels

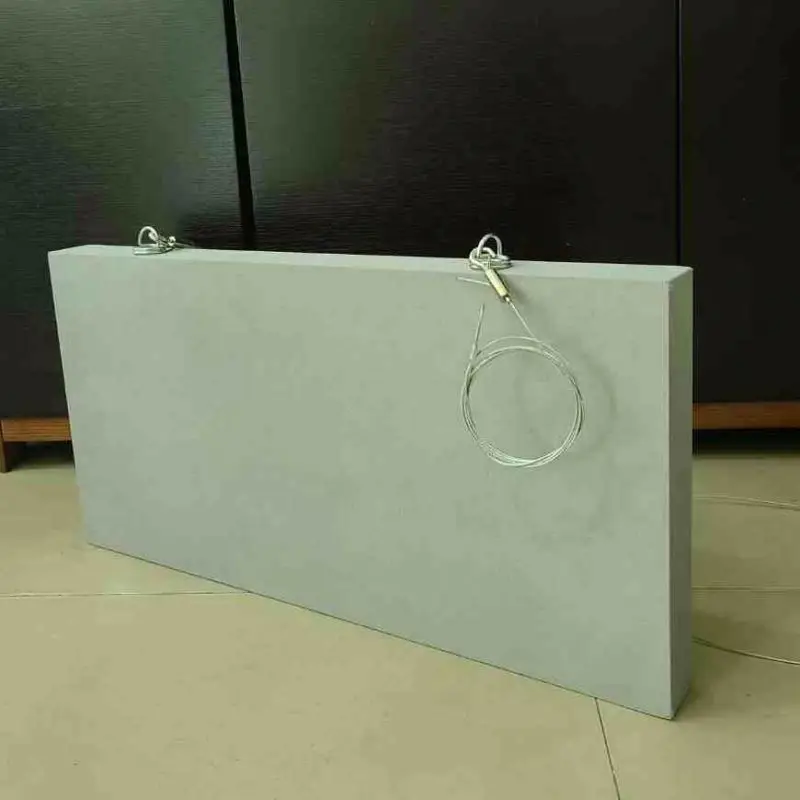

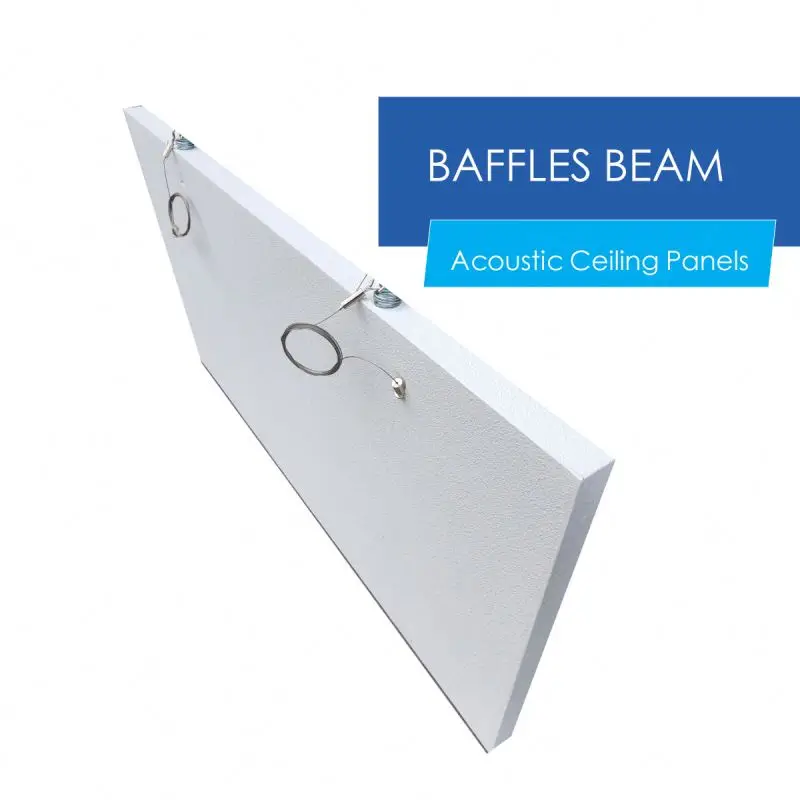

DEGOACOUSTIC™ is a lightweight acoustic baffle manufactured from high density fibre glass with a white painted speckled finish with excellent sound absorption characteristics. Our baffles come in standard sizes of
1200 x 600 x 40mm and 1200 x 300 x 40mm. They are frameless by design to offer a pleasing aesthetic alternative to the common suspended ceiling system. They have a plain white speckled painted surface
which ensures good light reflection and are used in high activity noisy environments.
DEGOACOUSTIC™ provides superb acoustic performance whilst allowing the concrete soffit to be fully exposed for energy-efficient natural cross ventilation cooling. The baffles offer a dual function of acting as solar
shading by diffusing natural daylight from the reflective surface in large atria applications.
Product introduction
DEGOACOUSTIC™ has been designed to offer the ideal solution for correcting
echo and reverberation in areas where vertical suspension is required.
With its minimalistic design and clean white finish, the DEGOACOUSTIC™
vertical acoustic baffles are ideally suited for open plan offices, schools,
restaurants, corridors, atriums, reception areas and showrooms, etc.
PRODUCT ADVANTAGES
• High level of sound absorption performance - CLASS A
• Can be painted or fabricated in a range of colours
• Quick and simple installation
• Ideal for acoustic solution for open, exposed interiors and thermal mass cooling
• Easy access to services due to simple installation method of baffles
• Can be installed in various heights and angles as a design feature
• Various sizes can be used to create an aesthetic design

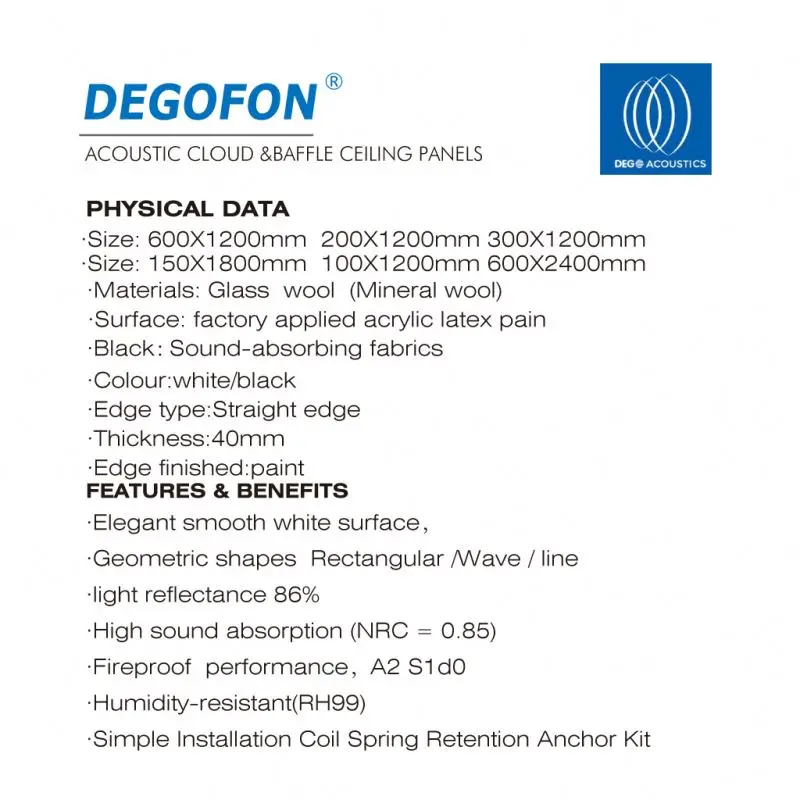

Physical Data
| MATERIAL | Fiberglass wool with acoustically |
| SURFACE FINIS | Factory applied acrylic latex paint, |
| Thickness | 30 40 50 75 100mm |
| COLOR | White black |
| Acoustic absorption | NRC0.85/0.95 |
| CAC | Minimun 33 |
| Dimensions | 1200 x 600 x 40mm thick |
| SIZE(s) | Item606012(600mm×600mm×15mm),Item606015(600mm×600mm×12mm), |
| WEIGHT | ·2.25kgs/m2(Items606015 ) ·3.2kgs/m2 (Items606020) ·4.5kgs/m2(Item12024025 ) |
| EDGE EDTAIL | ·A15 Square |
| LIGHT REFLECTANCE | LR 0.85 |
| FIRE CLASS | A2 |
| Baffle spacings | 100 mm, 200 mm |
| Design: | Constellation (Others on request) |
| Baffle spacings | 100 mm, 200 mm 300 |

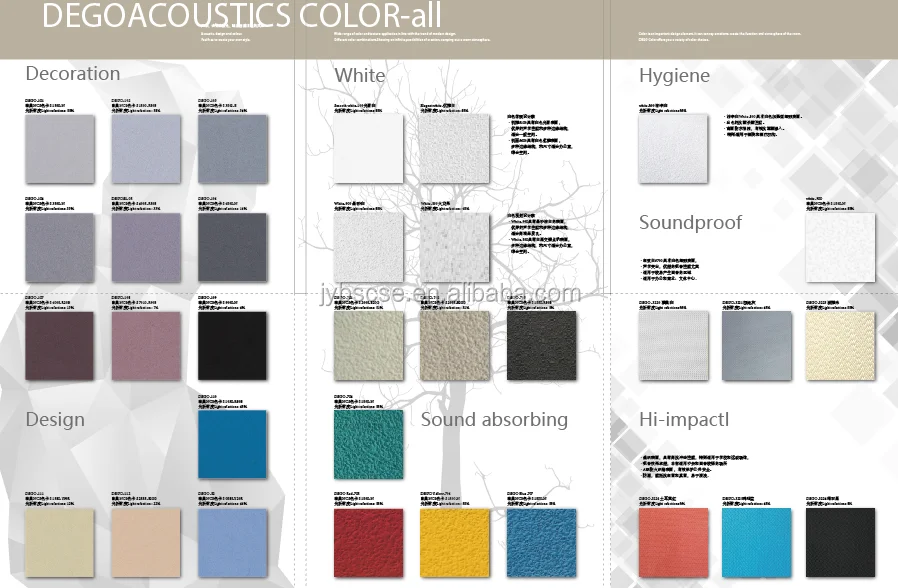

Colours and Fabric options
Sound Absorbing Baffle Beams are supplied in white and Black as standard. Baffle Beams can also be wrapped in selected fabrics for decorative effect.

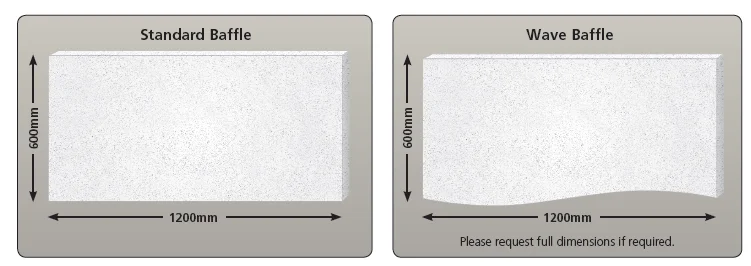

BAFFLES TYPE
ectangular Vertical panel Two versions of DEGOFON Baffles are available:

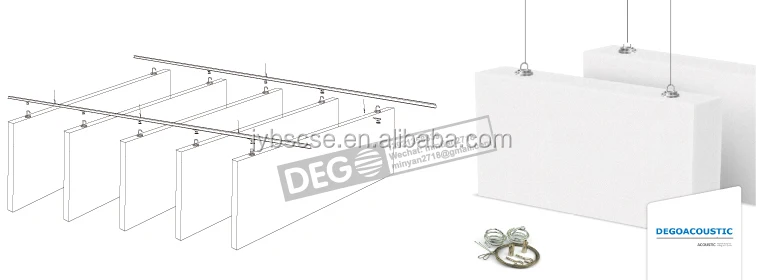

INSTALL
DEGO is dedicated to the manufacturing of sound-absorbing panel system solutions. We are pursuing technological innovations,Obtained multiple patents and continuously launching superior, safe and environmentally friendly acoustic products, providing ashortcut to creating a beautiful and comfortable space for ceiling and wall solutions.
Welcome to our website
www.degoacoustic.com
FAQ
Q: Is it possible to customization for special size?Can you produce according to the samples?
Yes, support to produce the special size if bulk order and we can produce by your samples
Q. What is your terms of packing?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q. How about your delivery time?
A: Generally, it will take 14 to21days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
before you pay the balance.
Q. How about your delivery time?
A: Generally, it will take 14 to21days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
Q:Can you offer sample and OEM
A :Yes , sample free
Company Information
DEGO is dedicated to the manufacturing of sound-absorbing panel system solutions. We are pursuing technological innovations,Obtained multiple patents and continuously launching superior, safe and environmentally friendly acoustic products, providing ashortcut to creating a beautiful and comfortable space for ceiling and wall solutions.
The DEGO series products include glass fiber ceilings, rock wool ceilings, acoutical gypsum perforatedplaster, acousitc wall panels system. The entire series of products have excellent acoustic performance. It is well known that these properties include acoustic control, impact resistance, fire rating, moisture resistance and reflectivity, which are sufficient to ensure our best performance, cost-effectiveness and long-lasting.
For 18 years, we have many engineering cases and excellent partners around the world. We will continue to lead and launchinnovative products. Grow our product portfolio.Welcome to our website
www.degoacoustic.com
FAQ
Q: How is DEGOACOUSTIC brand?
A:Deco is a leader in the field of acoustic panels ,Has multiple patents and strong market share in china.: - 20+ years:
manufacturer experience. - 12000 square meters two factory
manufacturer experience. - 12000 square meters two factory
Q: What Quality Assurance do you have?
etc. 100% quality checK,100% and SGS on-site quality inspection service
etc. 100% quality checK,100% and SGS on-site quality inspection service
Q: Is it possible to customization for special size?Can you produce according to the samples?
Yes, support to produce the special size if bulk order and we can produce by your samples
Q. What is your terms of packing?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q. How about your delivery time?
A: Generally, it will take 14 to21days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
before you pay the balance.
Q. How about your delivery time?
A: Generally, it will take 14 to21days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
Q:Can you offer sample and OEM
A :Yes , sample free
