Product Overview

Description

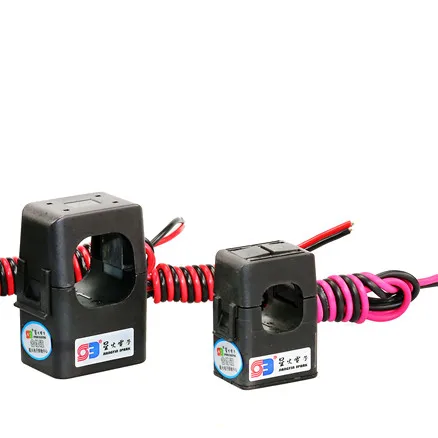

Split core current transformer with high quality and CE UL certification









1,Rated Voltage:0.66KV
2,Insulation Voltage:2KV
3,Rated Frequency:50HZ / 60HZ
4,Operating Temperature:-15 ℃ to 60 ℃
 5,Flame resistance:UL94-V0

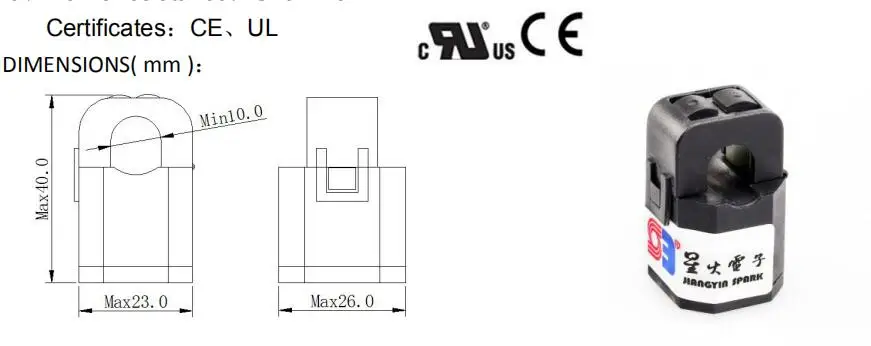

6,Certificates:CE,UL








 SCT-10








 Features

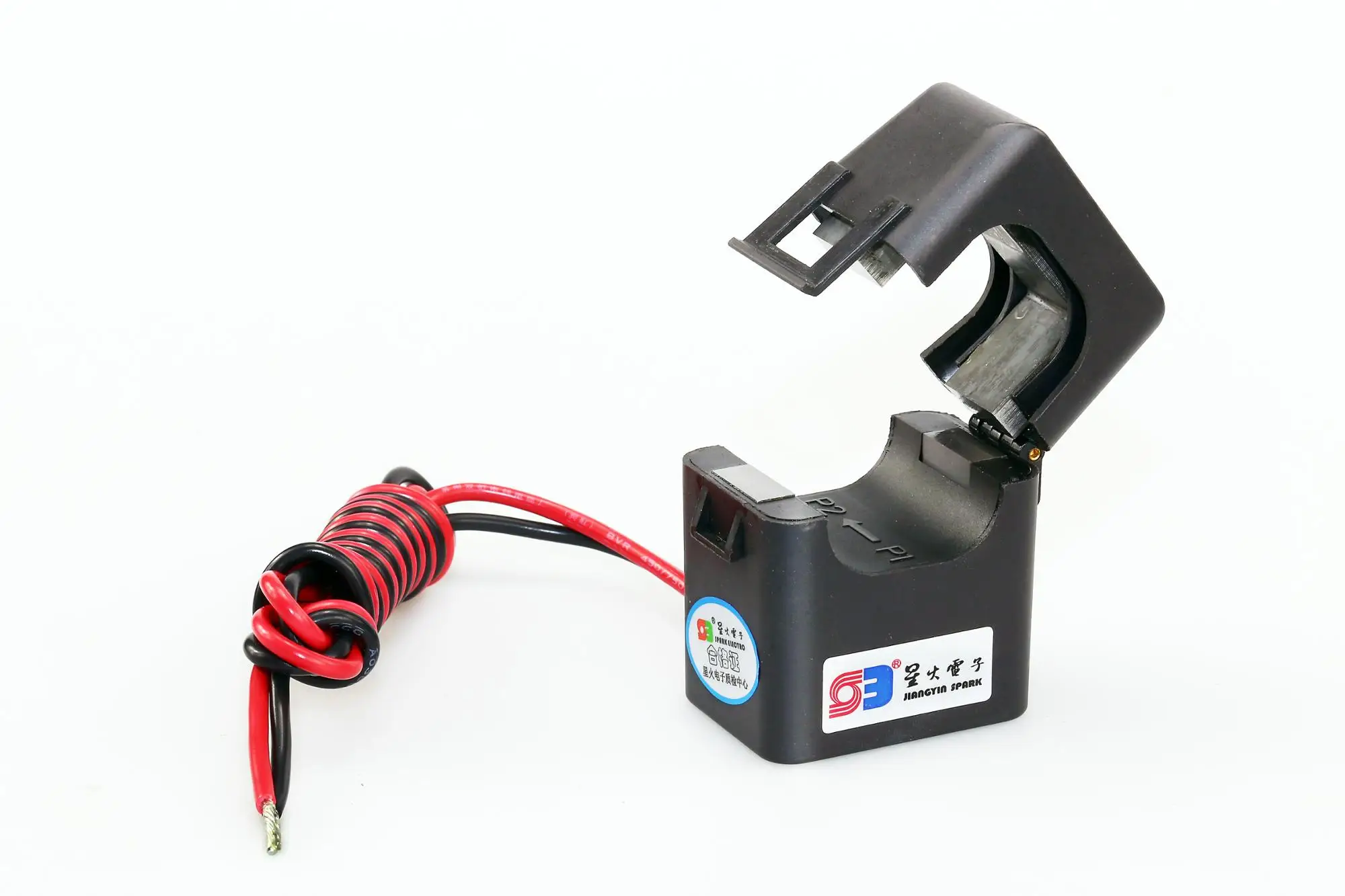

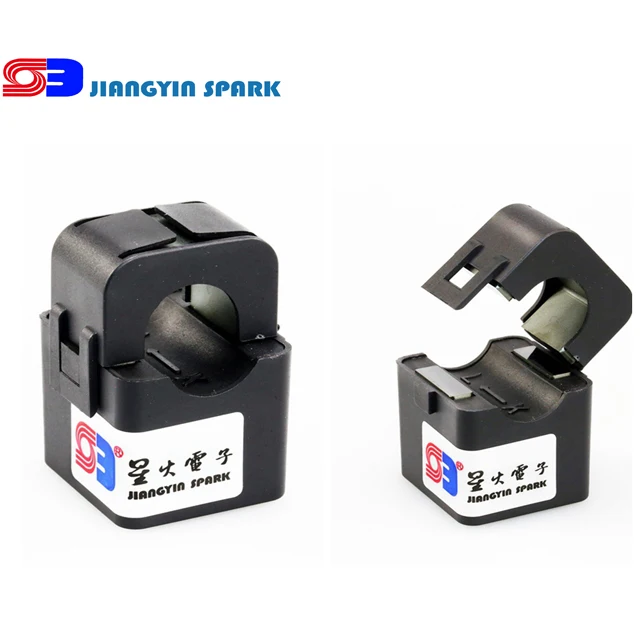

1) The structure of the self-locking, safe, easy to install, portable


2) Wide inner window, allowing clamping of big cables or bus-bars


3) Wide range of sizes to accommodate all the existing installations


4) Isolated plastic case recognized according to UL94-V0





 Specification












































































ModelSCT-10
Current Ratio5A/2.5mA20A/10mA60A/20mA75A/25mA1-80A/0.333V
Primary Current (A)5A20A50A75A1-80A
Max. Current (A)60A60A75A75A1-80A
Output2.5mA10mA20mA25mA0.333V
Load Resistance (Ω)400Ω100Ω50Ω20Ω/
Turns Ration2000:12000:13000:13000:1/
Class0.5/1.0
Insuliation CategoryCATIII
Operating Condition -20℃ ~ +50℃, ≤85%RH, No condensation, IN-house & Any direction installable
Storage Condition -30℃ ~ +50℃, ≤85%RH, No condensation






Graph of split core current transformer





 grap-10


SCT-T10  5-80A current, with 0.33v or mA output Split core current transformers



SCT-T16 5-120A current, with 0.33v or mA output Split core current transformers



SCT-T24 5-300A current, with 0.33v / mA/5A/1A output Split core current transformers



SCT-T36 5-300A current, with 0.33v / mA/5A/1A output Split core current transformers



SCT-T50 100-1000A current, with 0.33v / mA/5A/1A output Split core current transformer



SCT-T70 100-1200A current, with 0.33v / mA/5A/1A output Split core current transformer



FSCT-36 100-800A current, with 5A/1A output Split core current transformer

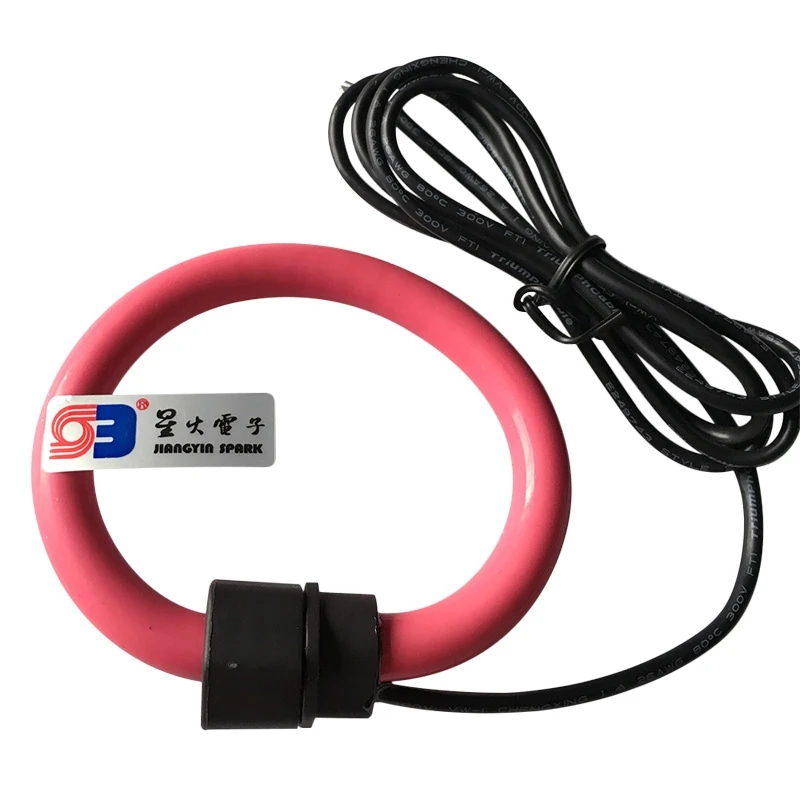

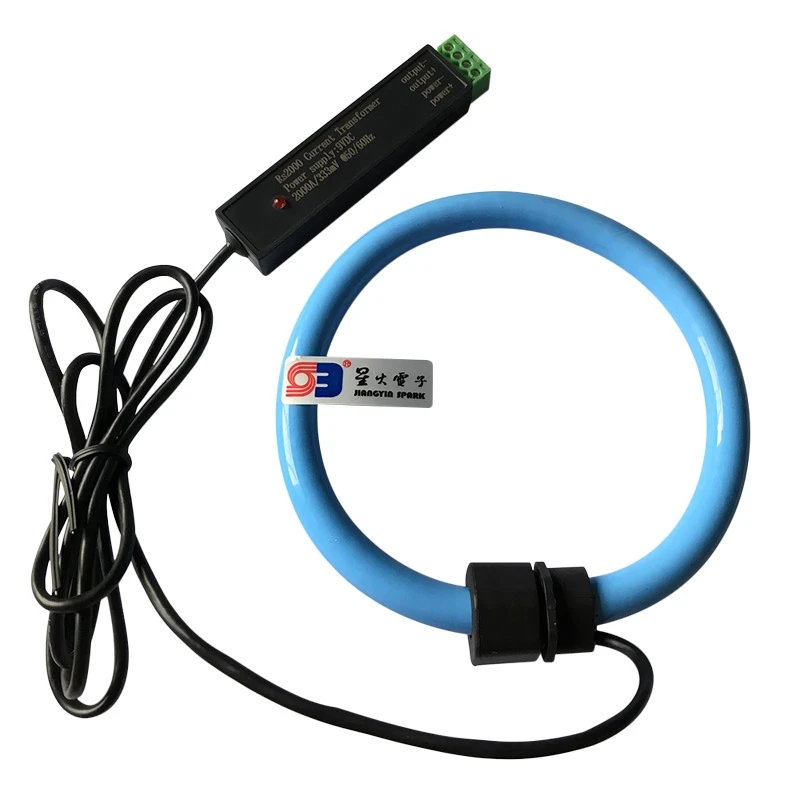

Rogowski coils with 0.33v /5v/4-20mA output
