Electric cable manufacturing machine wire drawing equipment
Product Description
1. Short description

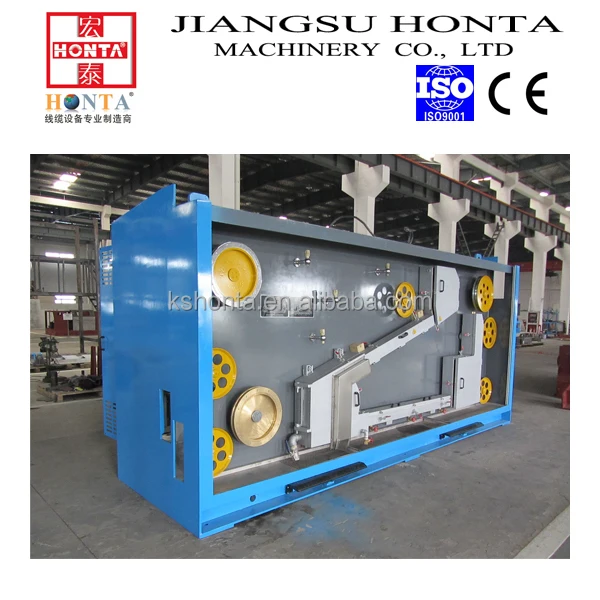

HT-450-9D Rod Breakdown Machine for Copper is used to draw Φ8.0mm copper rod into φ2.2 - 3.5mm.
The line is consisted of the following main parts, i.e. the drawing machine, the annealer, the dancer,
the coiler, emulsion system, tooth wheel lubricating system, electrical control cabinet. The drawing
machine is in fast die change design.

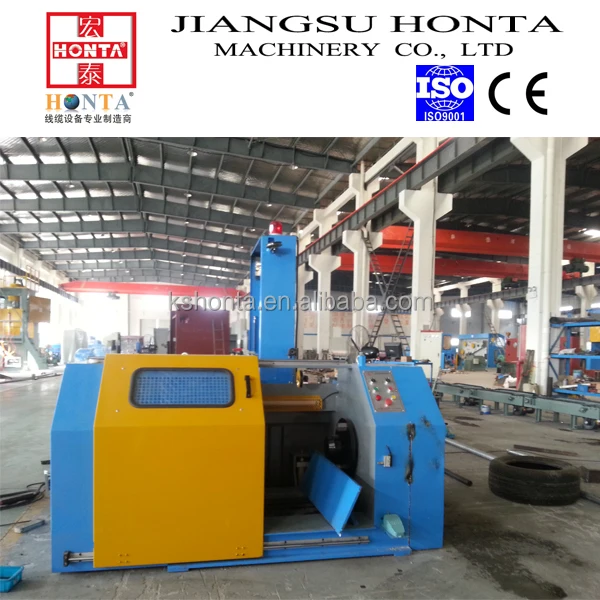

Wire supplied from the jumbo coil (3 to 5 tons) through the payoff, drawn by the drawing machine,
via the annealer and the dancer, finally fall into baskets/ winded into bobbins.
2. Technical specification
Drawing machine
Machine type | HT-450-9D |
Material | Cu Cu alloy |
Machine speed | Max.1500m/min |
No. of wires | 1/2 wires |
Inlet dia. | 8.00 mm |
Finished dia. | 2.20 - 3.50mm |
No. of dies | Max.9 |
Drawing capstan dia. | 450mm |
Finished capstan dia. | 450mm |
Die change system | fast die change design |
Control method | DC/AC |
Drive method | two motors |
Production speed
Wire dia.(mm) | Speed(m/min) | Elongation | |
hard wire | soft wire | ||
1.20 | 1200 | 1200 | ≥30% |
1.78 | 1200 | 1200 | ≥30% |
2.50 | 900 | 900 | ≥30% |
3.00 | 600 | 500 | ≥30% |
3. Packing: well packed on steel pallets in 2x 40HC containers.
Suitable for long distance ocean freight transportation and to change of climate, well protected
against moisture and shocks.
Why Choose Us
·The horizontal and tandem construction;driven by two motors;fast die change design;
·Driven by high precise helical gears;high efficiency;low noise;
·Drawing capstans are in combined structure;
·Drawing capstans immersed lubrication and cooling can ensure high quality of wires;
·DC/AC annealing control,speed tracks to drawing speed automatically;it can ensure uniform and stable
elongation of copper wires
·Double spooler or coiler offered for option. The line is an equipment of high automaticity and high efficiency.
