cooking oil making machine with high technology homemade vegetable 6yl100 screw soya oil press extruder presser

Product Overview

Description

cooking oil making machine with high technology homemade vegetable 6yl100 screw soya oil press extruder presser

Production introduction:

Model HDC-6YL series screw oil press machine boasts strong pressing structure and automatic heating system for highest oil output. Different from traditional small oil screw press, HDC- 6YL adds an automatic heater to increase the oil output rate by hot extrusion. This automatic oil press machine is ideal for vegetable oil making, from small oil pressing workshops to large-scale oil extrusion factory.

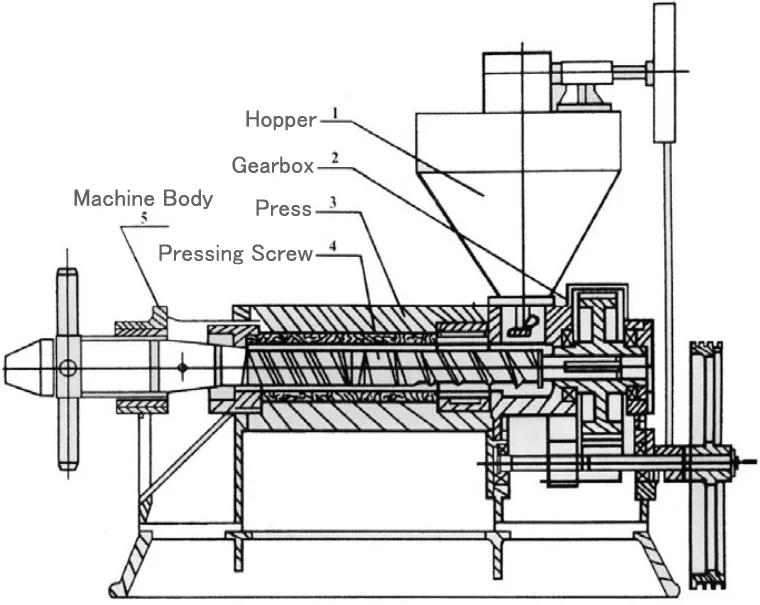

When the oil press is running, the processed material embryo enters the squeezing chamber from the hopper. The helix of the squeezed screw is pushed in and squeezed. The material embryo is carried out in the pressing chamber of the oil press. Under the condition of high pressure, there is a great friction resistance between the material embryo and the squeezing and squeezing chamber. The heat caused by the heat caused the thermal denaturation of the protein in the embryo, destroyed the colloid, increased the plasticity, and also reduced the viscosity of the oil and thus precipitated oil easily. The oil production rate of the oil press is improved.



Machine Details show:

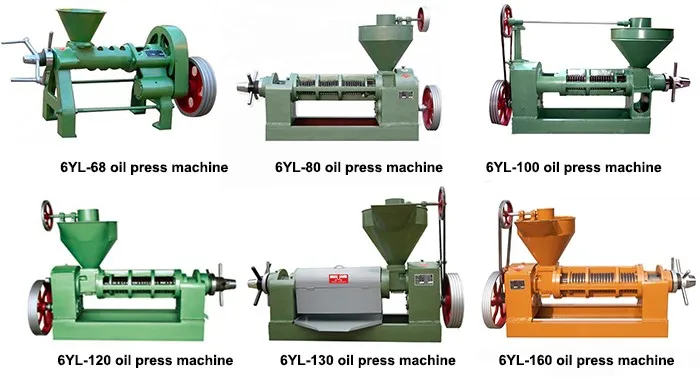

Technical parameters:

Model	Capacity	Power	Electric machinery	Packing size(mm)	Gross and net weight (kg)
6YL-68 oil press machine	40-50Kg/h	5.5KW	380V/50HZ/Triple phase	880*440*770	160/140
6YL-80 oil press machine	80-150Kg/h	5.5KW	380V/50HZ/Triple phase	1510*440*700	350/330
6YL-95/100 oil press machine	150-200Kg/h	7.5KW	380V/50HZ/Triple phase	1910*550*765	450/420
6YL-120 oil press machine	200-300Kg/h	11KW	380V/50HZ/Triple phase	2100*630*770	530/500
6YL-130 oil press machine	300-400Kg/h	15KW	380V/50HZ/Triple phase	2280*700*780	780/750
6YL-160 oil press machine	400-600Kg/h	18.5KW	380V/50HZ/Triple phase	2050*600*850	950/900

Applications:

Although 6YL Screw oil press machine is small in size, it boasts superior oil making capacity.It can be used for various materials such as Peanuts, Rape seeds, Soybeans, cottonseeds, Tea seeds, Tung Tree seeds, Sunflower seeds, Palm kernel, Coconut meat, Corn germ, Rice bran, Almonds, Black cumin, Cacao beans, Coffee beans, Hazelnuts, Hemp seed, Jatropha, Jojoba, Linseed, Mustard seeds, Black seeds, Palm nuts, Poppy seeds, Pumpkin seeds, Shea nuts, ,etc.

 Why choose HDC oil press machine?



Other oil machine
