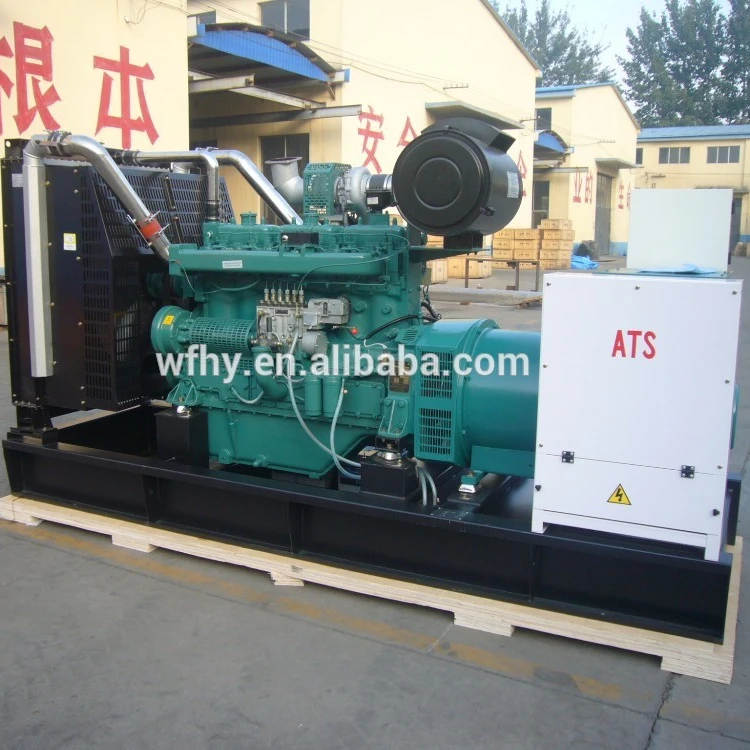

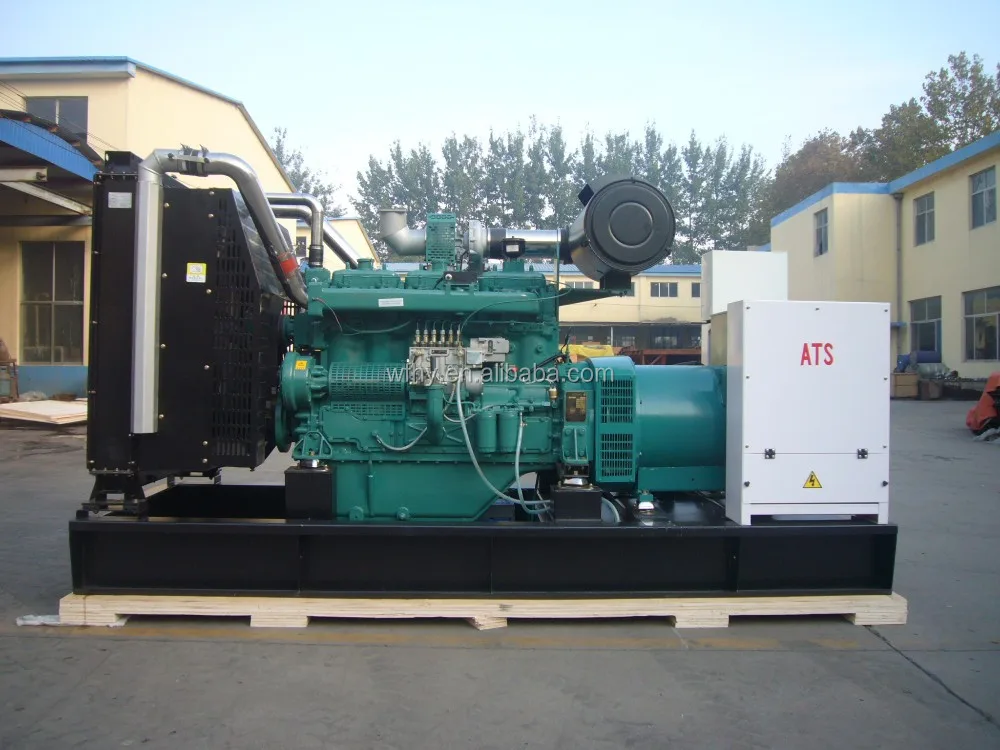

150kw permanent magnet generator powered by Wudong Engine
- Category: >>>
- Supplier: Weifang Huayuan Diesel Engine Manufacture Co. Ltd.
Share on (60309440832):
Product Overview
Description
150KW PERMANENT MAGNET GENERATOR SPECIFICATION
GENERATOR SET | |
Genset model | GF-150 |
Prime power (KW/KVA) | 150//188 |
Standby power (KW/KVA) | 165/206 |
Frequency & voltage | 230/400V, 50HZ |
No. of Phase | 3 |
Genset type | Open skid type |
DIESEL ENGINE | |
Engine brand & Model | Wudong engine, WD129TD17 |
Rated output | 177KW |
Rated Speed | 1500RPM |
No. of cylinder | 6 |
Bore*stroke | 135*150mm |
Displacement(L) | 12.9 |
Fuel Consumption(g/kw.h) | ≤213 |
Oil Consumption(g/kw.h) | ≤1.5 |
Exhaust temp.°C | ≤600 |
FSU | ≤1.5 |
Starting method | Electric starting |
Cooling method | Forced water cooled |
ALTERNATOR | |
Alternator brand & model | Stamford/Leroy Somer/China reputed & equivalent one |
Type | Brushless & self-excited |
No. of phase | 3 |
Voltages | 230/400V |
Frequency | 50HZ |
Power Factor | 0.8 |
Insulation Grade | H |
Protection Grade | IP22/23 |
Altitude | ≤1000m |
| |
150KW PERMANENT MAGNET GENERATOR CONFIGRATION
150KW PERMANENT MAGNET GENERATOR PRODUCTION LINE
150KW PERMANENT MAGNET GENERATOR
SHOW
QUALITY CONTROL
CUSTOMER VISITING
Company Information
FACTORY SHOW
CERTIFICATES
BUSINESS PARTNER
Packaging & Shipping
Our Services
*Reply your enquiry in 24 working hours
*Offer customers the lowest price with highest quality
*Dliver the goods to our customer all over the world with speed and precision
*Supply one year guarantee for whole machine from daye of bill of loading or 1000 hours of running or 12 months from date of bill of loading.
