Hot sale top quality K11 series 3 Jaw Lathe Chuck

Product Overview

Description

Hot sale top quality K11 series 3 Jaw Lathe Chuck:



Description of K11 Series 3 Jaw lathe chuck:

K11 series Three-jaw Self-centring chuck is subdivided into three types, K11, K11A, K11C, Type K11 provides two sets of clutches in different directions, which can be used respectively. Type K11A provides, ISO3442 standard clutches, and Type K11C provides traditional separate clutches. Soft clutches are to be provided on request, higher centring accuracy can be achieved after being rubbed on the machine, so as to satisfy the need for holding.

Specification of  Hot sale top quality K11 series 3 Jaw Lathe Chuck:

Specification	size(D)	D	D1	D2	D3	H	H1	H	Z-D
K1180	6″	160	130	142	40	109	65	6	3-M8
K11100	6″	165	130	145	40	109	65	5	3-M8
K11110	8″	200	165	180	60	120	75	5.6	3-M10
K11125	10″	240	195	215	70	134	80	8	3-M12
K11130	10″	250	206	226	80	134	80	5.5	3-M12
K11160	12″	315	260	285	100	154	90	6	3-M16
K11165	12″	320	270	290	100	154	90	6	3-M16
K11200	12″	325	272	296	100	154	90	6.5	3-M16
K11240	15″	380	325	350	130	169	98	6.5	3-M16
K11250	16″	400	340	368	130	171	100	7.5	3-M16
K11315	12″	315	260	285	100	141	90	6	3-M16
Specification	size(D)	D	D1	D2	D3	H	H1	H	Z-D
K11160A	6″	160	130	142	40	109	65	6	3-M8
K11165A	6″	165	130	145	40	109	65	5	3-M8
K11200A	8″	200	165	180	60	120	75	5.6	3-M10
K11240A	10″	240	195	215	70	134	80	8	3-M12
K11250A	10″	250	206	226	80	134	80	5.5	3-M12
K11315A	12″	315	260	285	100	154	90	6	3-M16
K11320A	12″	320	270	290	100	154	90	6	3-M16
K11325A	12″	325	272	296	100	154	90	6.5	3-M16
K11380A	15″	380	325	350	130	169	98	6.5	3-M16
K11400A	16″	400	340	368	130	171	100	7.5	3-M16
Specification	size(D)	D	D1	D2	D3	H	H1	H	Z-D
K72160	6″	160	130	142	40	109	65	6	4-M10
K72200	8″	165	130	145	40	109	65	5	4-M10
K72250	10″	200	165	180	60	120	75	5.6	4-M12
K72300	12″	240	195	215	70	134	80	8	4-M16
K72315	12″	250	206	226	80	134	80	5.5	4-M16
K72320	12″	315	260	285	100	154	90	6	4-M16
K72350	14″	320	270	290	100	154	90	6	4-M16
K72400	16″	325	272	296	100	154	90	6.5	4-M16
K72500	20″	380	325	350	130	169	98	6.5	4-M20
K72630	25″	400	340	368	130	171	100	7.5	4-M20

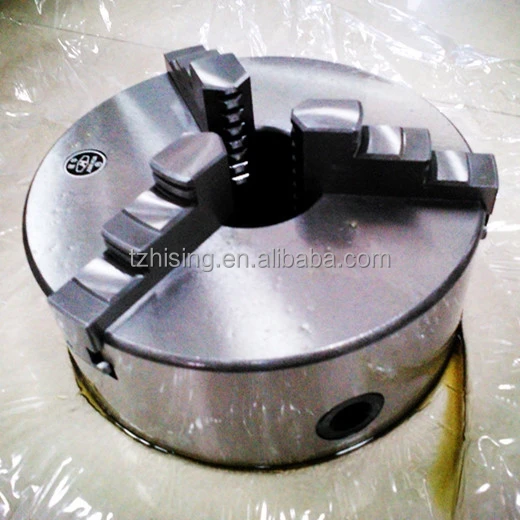

Photos of  Hot sale top quality K11 series 3 Jaw Lathe Chuck:
