BM400D wire electro erosion machine

Product Overview

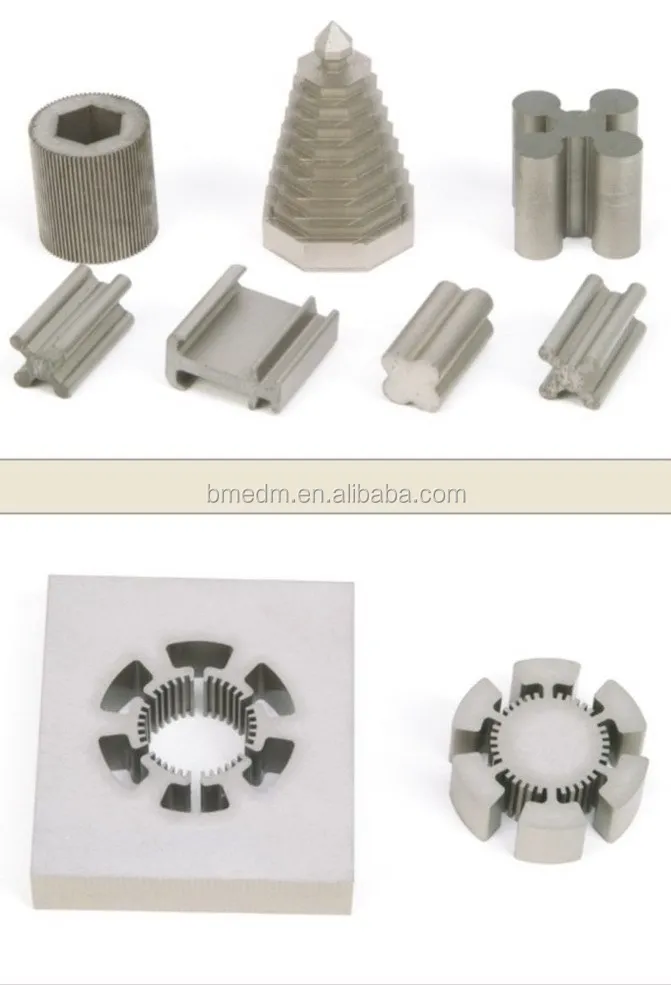

Description

BM400D wire edm/wire cut edm/cut machine/baoma/high precision/high quality/edm machine low price/ BM400D wire electro erosion machine



Specifications:

Max Cutting Speed: 200mm2/Min
Consume: Each 300, 000mm2 wear 0.01mm wire
Accuracy: 0.008mm-0.01m
3 time cutting: 0- 300 mm

Machine Accuracy : ±0.004mm

Max Machining Speed: 200mm2/min

Roughness: Ra ≤0.8um

Thickness for 3 Time Cutting: ≥200mm

Control System: WindowXP With AUTO CAD Software

System Language: English, Russian,Turkish,Chinese...









3. The controller equipped the BMXP Intelligent software, which integrates the program and control and based on Windows XP. This new designed BMXP software is the unique software for WEDM running on the condition of windows XP.
4. Using the PCI slot controller card and the High-tech Industrial computer, which greatly enhanced the stability of control and greatly reduced the computer the failure rate
5. To achieve a fast and convenient computer communication network, through network technology, graphics, data and program transmission, can be directly controlled by the technical design department since the first establishment of a program
6. Embedded Control system can be connected with many design software smoothly.
7. The search function of mechanical origin enable the transmission screw pitch compensation, in order to greatly improve the positioning accuracy, especially in Servo control system.
8. The control parameters of pulse power is directly by the software, in order to not only improve anti-jamming capability in pulse power output, but also increase the roughness of work piece.



9. Variety of pulse power can be chosen, which is suited for a number of processing conditions to improve the cutting ability of the high precision parts.
10. With a large database storage capacity, which accumulated from many experiences. User can choose the suitable parameter according to deferent working conditions. Users can adjust machining parameters to establish a database at any time according to their own experience
11. Three layer filters can prolong the using life of the working solution and improve the finishing, with BAOMA series working solution can achieve a better performance and PRO-environment.
12. Can be equipped with the close-loop control system, use the MITSUBISHI, YASKAWA servo control system and servo motors.
13. The wire moving is controlled by EMERSON transducer, which adopts unlimited adjustment.
14. The processing components involve godet mechanism, the best roughness Ra≤ 1.5μ M (the finishing can be improved greatly by using the BM working solution)
15. Customrized extra-big machine can be manufactured in our company.
Main performance indexes and technical requirements







1, BMXP software Functions:
(1)Coordinate system: Absolute coordinate, incremental coordinate (relative coordinate)
(2)Functions of coordinate transforming, zooming in and zooming out, rotating and tracking display in real time
(3)Functions of interpolation of straight line and circular arc
(4)Function of taper processing
(5)Function of processing different top and bottom abnormities parts
(6)Auto-handle for short circuit and wire-break
(7)Functions of memorizing when power was cut and auto-stop after processing
(8)Functions of auto edge-touching position and auto center finding
(9)Function of auto-adding transitional arc (Arbitrary angle)
(10)Function o Functions of menu technology and auto-programming ward
(11)Functions of menu technology and auto-programming
(12)AUTOCAD can be used to program directly in the software.







2. CNC system configuration and technical performances
(1) CNC Hardware configuration:
(A) Industrial Computer: P4 or above
(B)EMS memory: 1G
(C)Fixed DisK: 160G
(D)USD and Internet
(E)15" liquid crystal display (LCD)
(F) RS232 and Keyboard and mouse
(1)CNC technical function:



4. Axis processing
(2)Running environment
(A)Temperature: 5-40 degree
Relative humidity: 40%~80%





Servo Control Wire Cut EDM [ BM400 ]
Item		Unit	BM400C	BM400D	BM400E	BM400F
Worktable size (L× W)		mm	635× 415	635× 415	635× 415	635× 415
Table travel(X× Y)		mm	320× 400	320× 400	320× 400	320× 400
Max. workpiece thickness		mm	300	500	300	500
Max. taper angle/plate thickness		degree/mm	± 3° /100	± 3° /100	± 30° /100	± 30° /100
Max. machining speed		mm² /min	120	120	120	120
Precision	Octagon	mm	≤ 0.015	≤ 0.015	≤ 0.015	≤ 0.015
	taper	mm	≤ 0.04	≤ 0.04	≤ 0.1	≤ 0.1
Max. working current		A	6	6	6	6
Roughness, three cutting		μ m	≤ 1.5	≤ 1.5	≤ 1.5	≤ 1.5
Wire diameter		mm	0.15~0.2	0.15~0.2	0.15~0.2	0.15~0.2
Wire travelling speed		m/min	5~11	5~11	5~11	5~11
Load of table		Kg	400	400	400	400
Working solution			working solution BM-2/BM-4 or Saponification Liquid
Working reservoir capacity		L	56	56	56	56
Power supply			3N-380V/50Hz	3N-380V/50Hz	3N-380V/50Hz	3N-380V/50Hz
Power consumption		KVA	3	3	3	3
Wire guide frame			Adjustable
Machine dimensions(L× W× H)		mm	1450× 1000× 1550	1450× 1000× 1750	1450× 1000× 1550	1450× 1000× 1750
Package dimensions(L× W× H)		mm	1800× 1400× 1800	1800× 1400× 2100	1800× 1400× 1800	1800× 1400× 2200
Machine weight		Kg	1700	1700	1700	1700
Controller type			BMW-2008	BMW-2008	BMW-2008	BMW-3000 Optional BMW-5000











FEATURES:

Control System



Pump and Tool Box





PACKING:

Cooperate company:

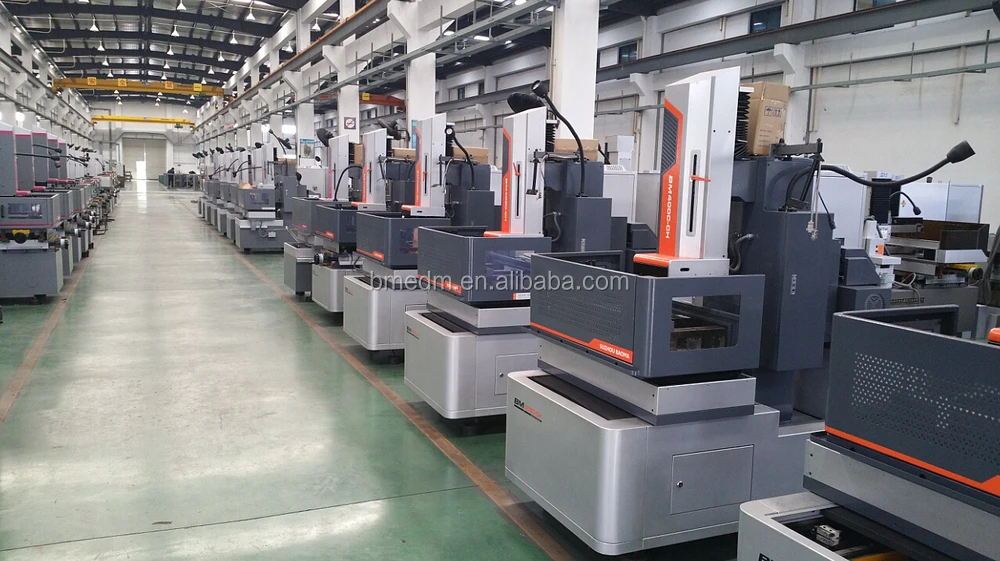

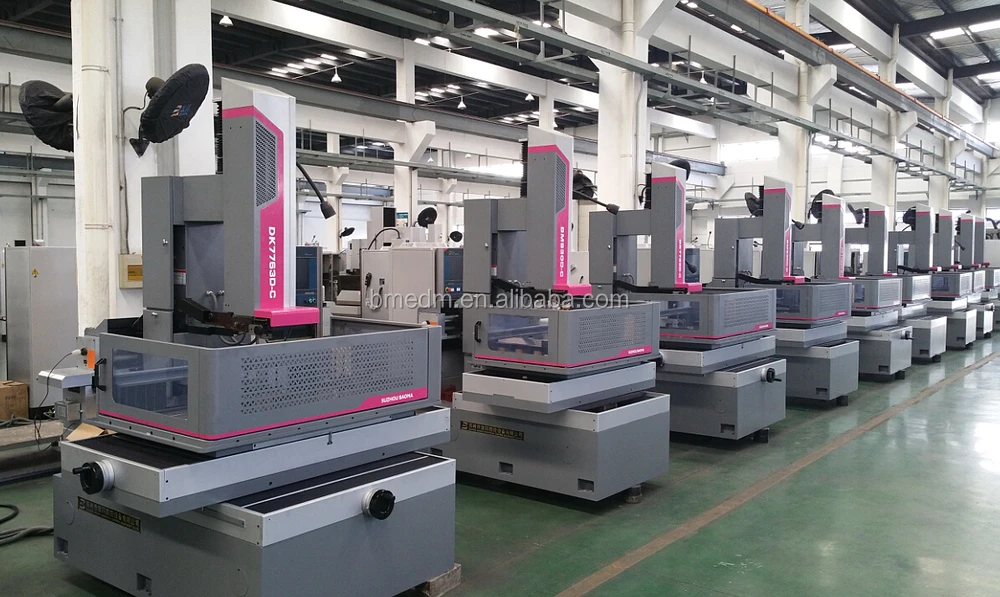

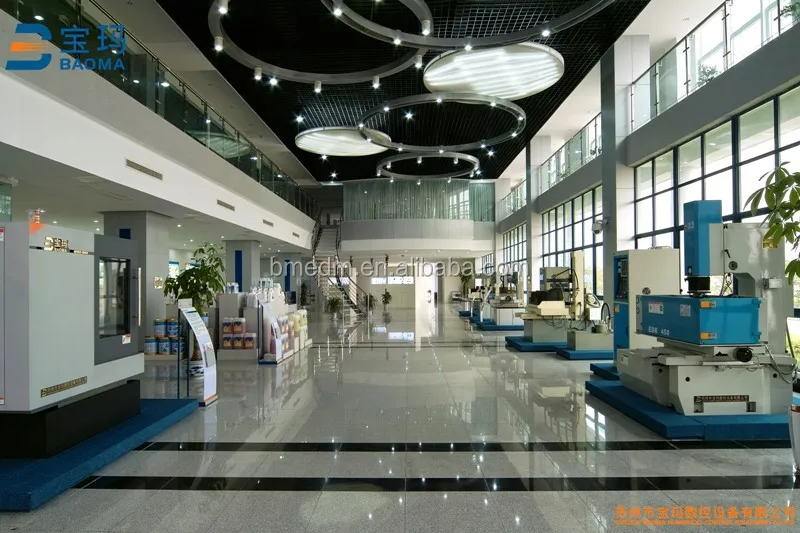

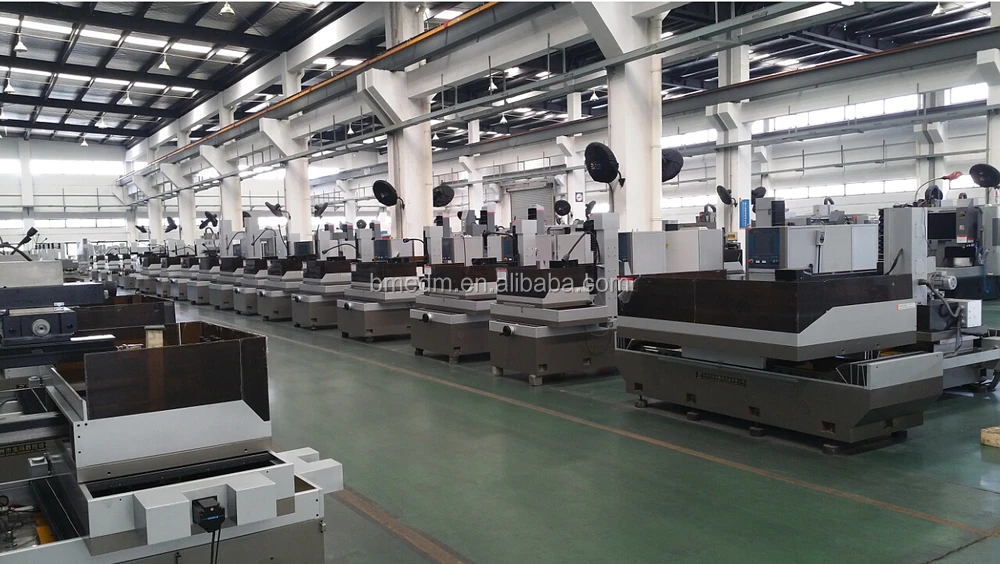

Factory Picture:
