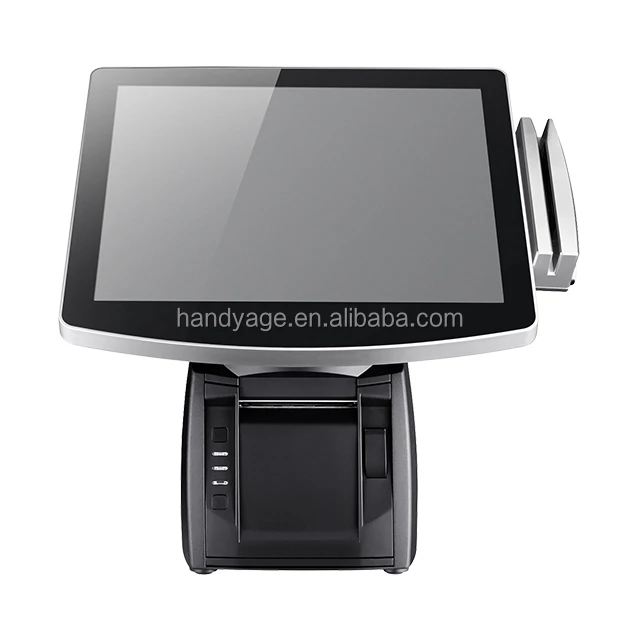

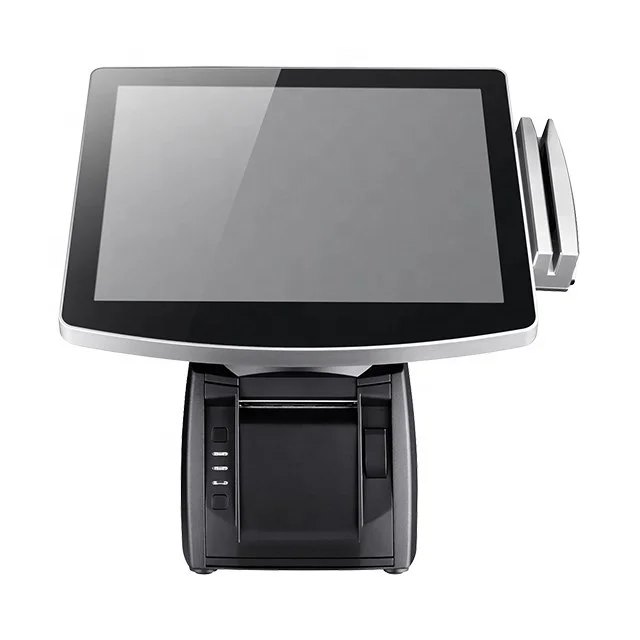

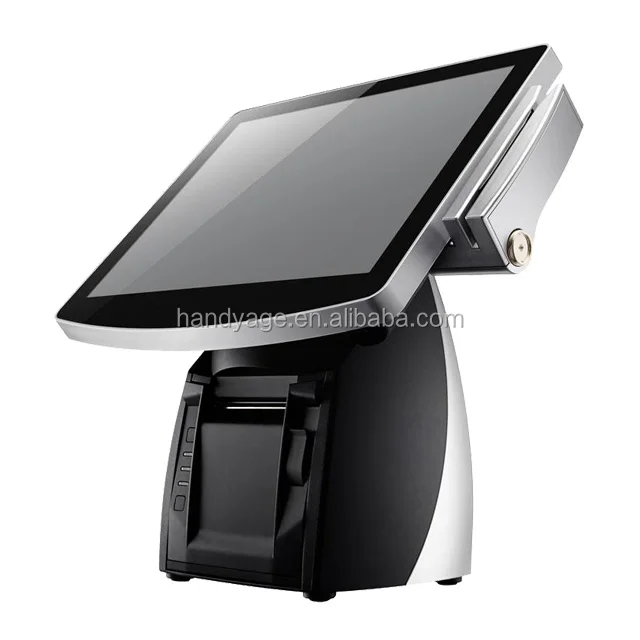

[Handy Age] All in One Full Flat POS System (PO0500 031)

Product Overview

Description

Item: All in One Full Flat POS System (PO0500-031)



Feature

• Fanless all-in-one compact design


• May be equipped with integrated front Printer, VFD rear display and MSR


• Full-Flat 15” Touch Monitor


• Manufactured in Taiwan for superior quality

Description

• Fanless design allows for quieter operation as well as tough working environments.


• Water and spill-proof full-flat screen


• Ideal for areas of limited space


• With die-casting aluminum foot stand to allow steady operation


• Optional foot stands available


• OEM branding welcome

Specification

• CPU: Intel Atom processors D2550 Dual Core (1.86 GHz, 1M Cache)


• System Memory: 1 x 204pin DDR3 SODIMM Socket , up to 4GB


• OS Support: POS Ready 2009, POS Ready 7, XP Pro, Vista, Windows 7, Linux


• HDD Storage: 1 x SATA


• Compact Flash: 1 x mSATA Slot


• Display: TFT LCD, 1024 x 768 Pixel


• Size: 15"


• Brightness: 250 nits


• Tilt Angle: 35°~90° (horizontal)


• Power Input: 12VDC 180W,4-pin Connector with Lock (Internal  Adaptor: 100~240 VAC, 50/60HZ)


• Weight: 8.5 Kg


• Dimension (mm): 391(W) x 395(H) x 266(D)


• Compliance: FCC / CE / WEEE / RoHS


• Interface



  • 3 x COM with Power Selected 5/12V (COM 1/2/6),


  • 1 x COM without Power Output (COM 4) Selected by Jumper


  • 5 x USB 2.0 (External),


  • 3 x USB 2.0 (Internal, reserved for touch screen, Wi-Fi, and MSR)


  • 1 x PS/2 (for PS/2 Keyboard/Mouse)


  • 1 x RJ-45, Giga LAN Support


  • 1 x DB-15, VGA Port


  • 1 x 12VDC Out for Customer Display or 2nd LCD Display (10.4")


  • 1 x 24VDC 3-pin Connector with lock (for base printer module)


  • 1 x RJ-11, 12/24 VDC Selectable


  • 1 x Line Out, 1 x MIC In, 1 x Internal Speaker
