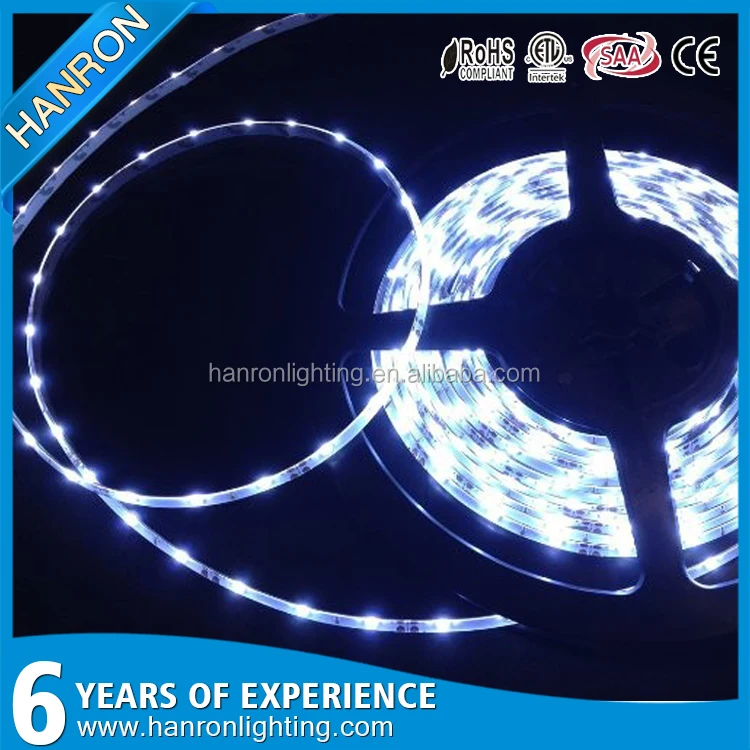

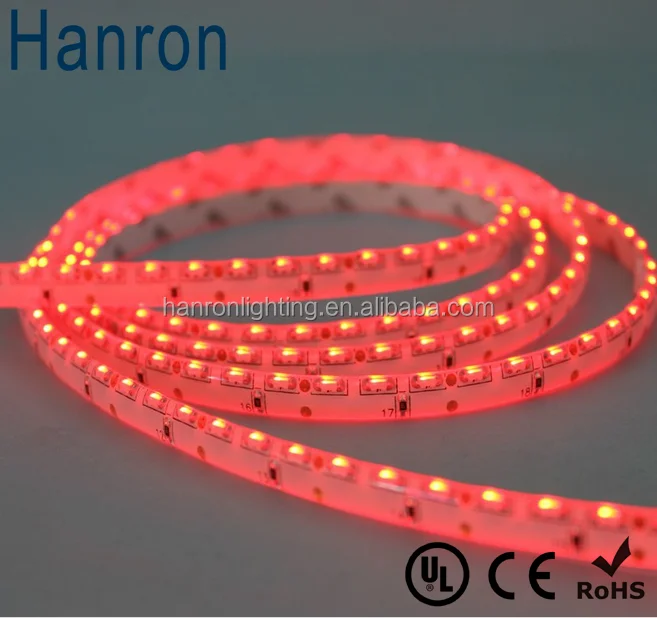

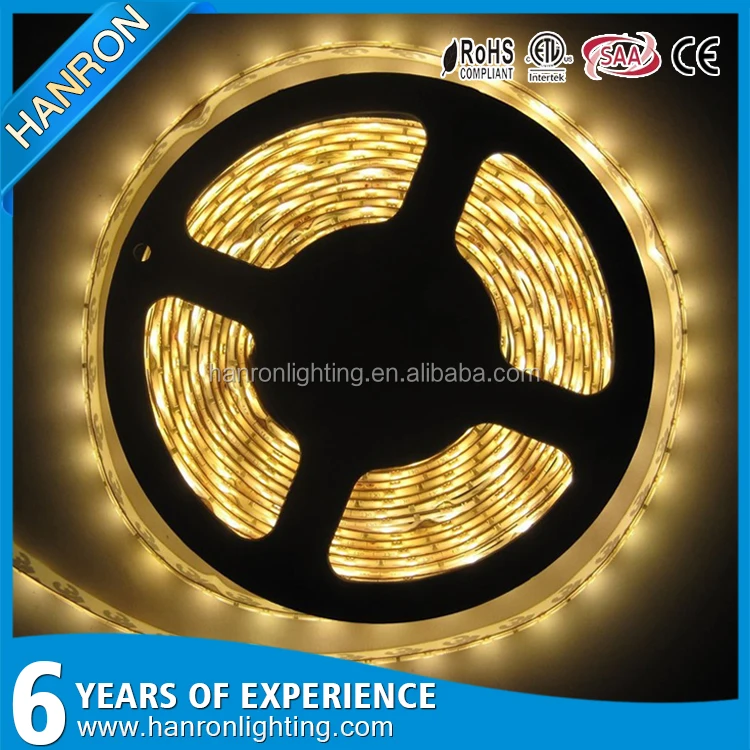

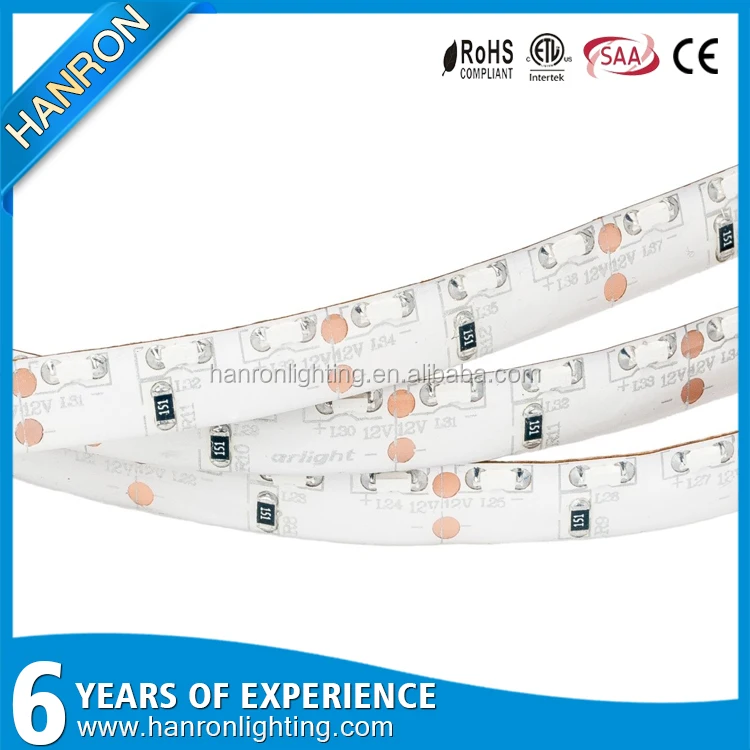

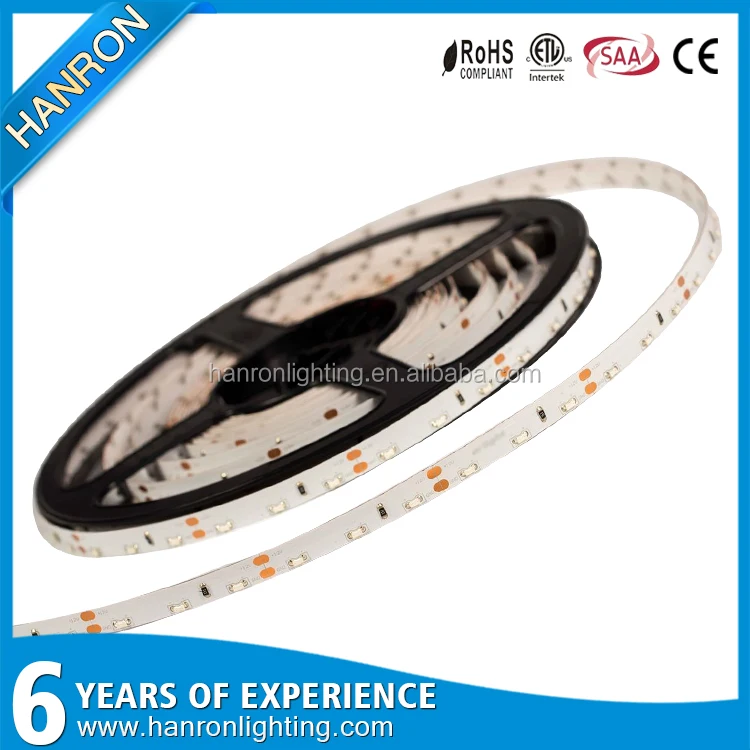

Side lighting smd 335 3014 led flexible strip tape light 12V 120led/m IP65 sicilon glue waterproof

Product Overview

Description

     Side lighting smd 335 led flexible strip tape light 12V 120led/m IP65 sicilon                                                              glue waterproof





Features:



* 335 single color



* Size:1000*8mm



* Beam Angle:120 °



* LED:120leds/m



* 200MP 3M tape in the back



* Working Voltage :DC12V



* Power:9.6W/M



* CE&RoHS Certificated



* Black/white/yellow FPC are optional







Applications:



* Cove lighting



* Architectural lights for canopy, corridor, window, archway



* Backlight or edge lighting for signage



* DIY lights for home use



* Path and contour marking



* Decorative lights for holiday, event, show, exhibition



* Special light effect for art gallery and glass-made items



Electric parameters:



Item No.	LED  (PCS/M)	Voltage                     (V)	Power  (W)	Color	Color Temperature	Package
HR00-H12DR120PB	120	12	9.6	Red	/	5m/roll

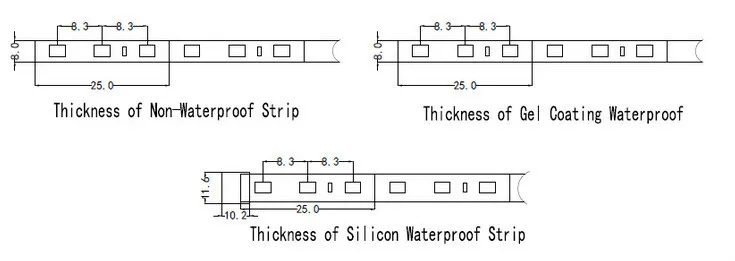

Dimensional Drawing(Unit: mm):

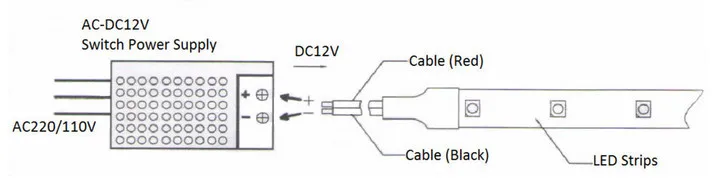

  Installation Instruction:







Notes:



* Connect red cable to positive, black cable to negative; equip safe protector to cable outlet, confirm input    voltage of is 12V before power supply concatenation, working voltage is 12V, Wrong voltage concatenation    will cause permanent damage.



* Max length for concatenation is 5M for one circuit. Make another circuit if length is over 5M. Same cable length for every circuit.



*Ensure cable outlet of strip to be waterproof



* Prohibit touching and operating with static



* Please use qualified SMPS with short circuit protection,overload protection and S.O.P. certificate.



*Diameter of electrical cable depends on actual max output current,product power,cabling length (less 5M)and  low voltage transmission cable.



*Don’t hit,squeeze strip, don’t bend strip overly



* Ensure installed surface tidy, clean and dry.



* Avoid rain and mechanical vibration.



* Place SMPS in ventilated and dry environment



*Usually only80-90% of SMPS total power is consumed
