Iron wire drawing machine/single drum/IVD wire drawing machine for carbon and stainless steel wire
- Category: >>>
- Supplier: Wuxi Pingsheng Science & Technology Co. Ltd.
Share on (60310469720):
Product Overview
Description
Iron wire drawing machine/single drum/IVD wire drawing machine for carbon and stainless steel wire
Product Display
Whole wire drawing machine line for drawing thick steel wire

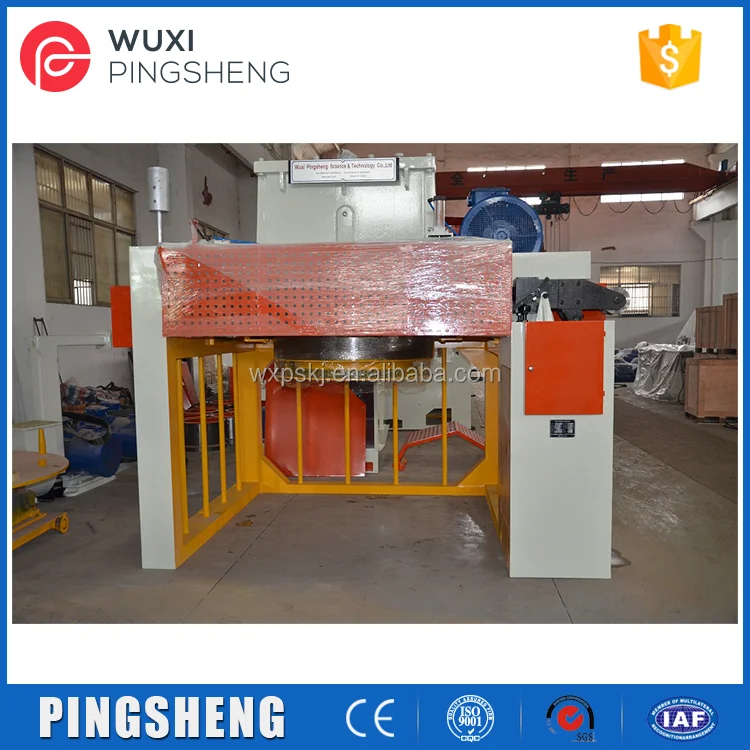

DL700 single drum wire drawing machine
Product Description
| Items | Unit | Specification |
| Capstan diameter | mm | 700 |
| Max Inlet diameter | mm | 18 |
| Drawing speed | m/min | 60 |
| Tensile strength | Mpa(max) | 1800 |
| Compression rate | % | 15-25 |
| Motor Power | Kw | 45 |
| Weight | Kg | 5000 |
| Wire drawing machine type | Inverted vertical |
Medium carbon steel wire drawing machine
Note: Wuxi pingsheng can design the wire drawing machine according to customer's requirements.
