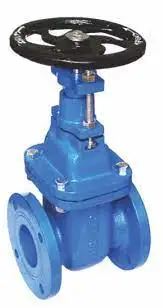

gate valve with long stem wheel handle long extension 2meter gate valve
- Category: >>>
- Supplier: Tianjin Lituo Valve Co. Ltd.
Share on (60310694552):
Product Overview
Description
Product Description
Brief of product:
This model gate valve widely used in petroleum, chemical, pharmaceutical, and electric
power industries. It is also used to open and close the pipeline, through which the medium
is steam, water, oil and the nominal pressure ≤ 1.6Mpa . Compact structure, rational design
of rigid valve, and channel fluid flow resistance coefficient, and sealing surface using
duction iron and cemented ,long service life.
Specification:
Technical Date | Material Specification | ||
Nominal Diameter | DN50-DN600 | Valve Body | Duction iron GGG40 |
Nominal Pressure | PN10/PN16 | Hand Wheel | |
Operation Temperature | -40°C~225°C | Bonnet | |
Flange Driling Standard | EN 1002-2 PN10/16 | Gland Flange | |
Suface Treatment |
Akzo Nobel Fusion Bonded Epoxy | Stem | 2Cr13/ss410 |
Seal Material | EPDM or NBR | ||
Application |
Portable water, water distribution service & feed lines, sewage disposol, irrigation, fire protection pipe systerm, etc. | Wedge Nut | Carbon Steel |
Thrust Washer | Brass | ||
Main dimensions:
model | Nominal diameter DN(mm) | dimension | weight (kg) | |||||||
L | D | D1 | D2 | b-f | z-ød | H | Do | |||
Z41H-16 | 40 | 240 | 145 | 110 | 85 | 18-3 | 4-ø18 | 295 | 200 | 15.5 |
50 | 250 | 160 | 125 | 100 | 20-3 | 4-ø18 | 325 | 240 | 20 | |
65 | 270 | 180 | 145 | 120 | 20-3 | 4-ø18 | 352 | 240 | 25 | |
80 | 280 | 195 | 160 | 135 | 22-3 | 8-ø18 | 399 | 280 | 31 | |
100 | 300 | 215 | 180 | 155 | 24-3 | 8-ø18 | 434 | 280 | 41.5 | |
125 | 325 | 245 | 210 | 185 | 26-3 | 8-ø18 | 525 | 320 | 63.5 | |
150 | 350 | 280 | 240 | 210 | 28-3 | 8-ø23 | 585 | 360 | 84 | |
200 | 400 | 335 | 295 | 265 | 30-3 | 12-ø23 | 715 | 400 | 131 | |
250 | 450 | 405 | 355 | 310 | 32-3 | 12-ø25 | 835 | 450 | 145 | |
300 | 500 | 460 | 410 | 375 | 34-4 | 12-ø25 | 1020 | 500 | 191 | |

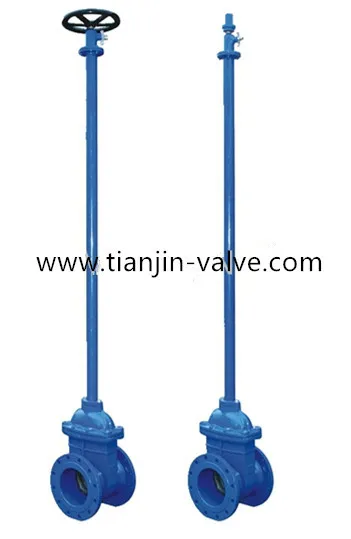

Picture of product:
Packaging & Shipping

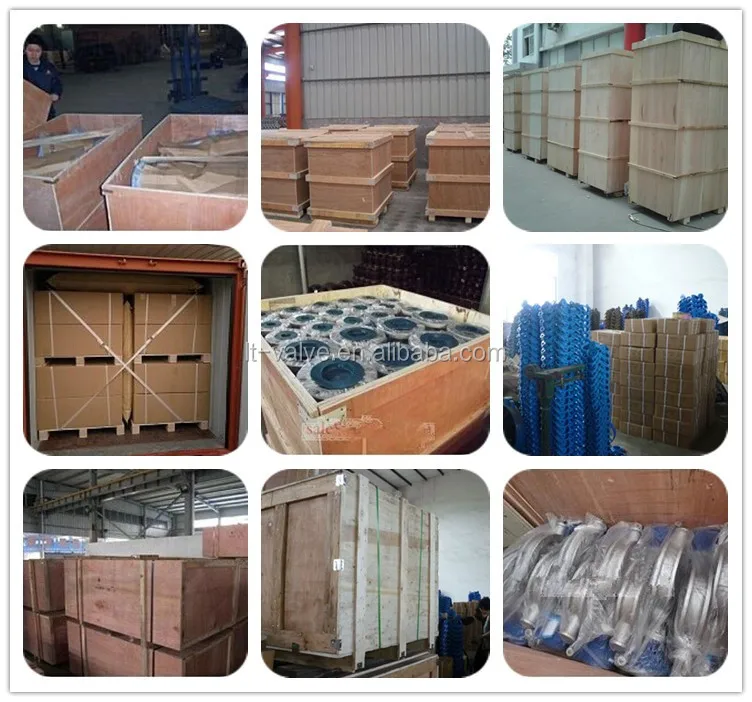

Packing & Delivery:
We could print your logo and make designed packing as per your request.
Packaging Detail | package in wooden cases, also can make the packaeg according to customer's requirement.Custom made is accepted. |
Delivery Detail | 20-30 days after receiving the remittance. |
Company Information

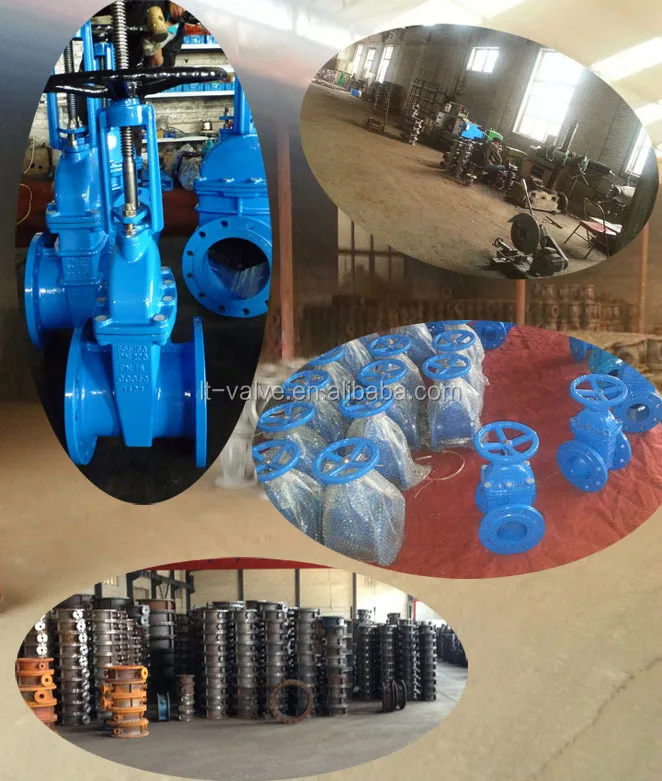

Factory Information:
We have been worked as a valve supplier for many years, so far we have established with
many customers from all over the world, such as : Russia, Ukraine, Malaysia, , UAE... .So we have a big experience to work together with you. And we believe in that our quality
is good and our price is competitive. Hope we can become your reliable and stable supplier in China.
