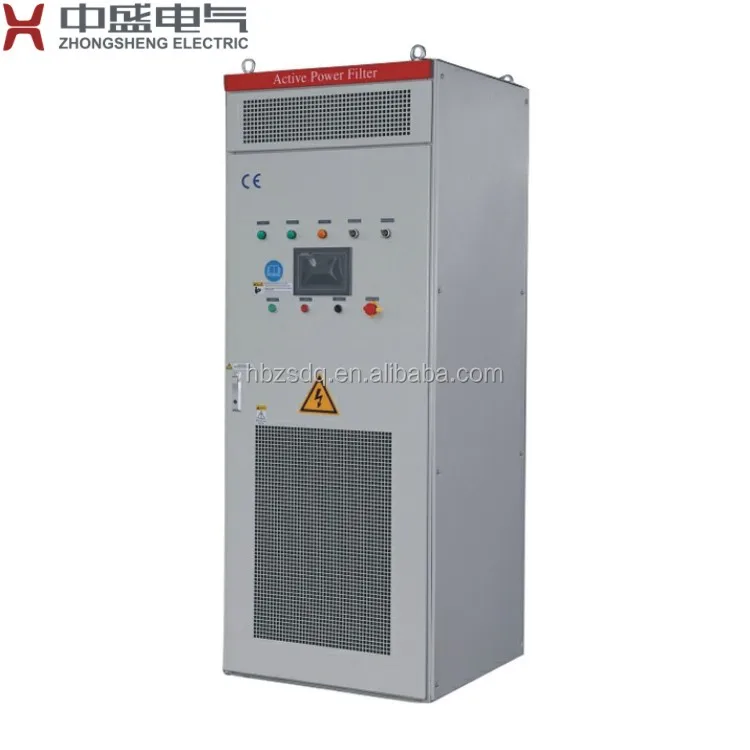

SAPF Active harmonic power filter
- Category: >>>
- Supplier: Hubei Zhongsheng Electric Co. Ltd.
Share on (60310865230):
Product Overview
Description
Product Description
| Product name | Active harmonic filter | ||||
| Three phase, three wire | |||||
| Model no. | SAPF-50/380-I | SAPF-100/380-I | SAPF-150/380-I | SAPF-200/380-I | SAPF-300/380-I |
| Compensate current | 50A | 100A | 150A | 200A | 300A |

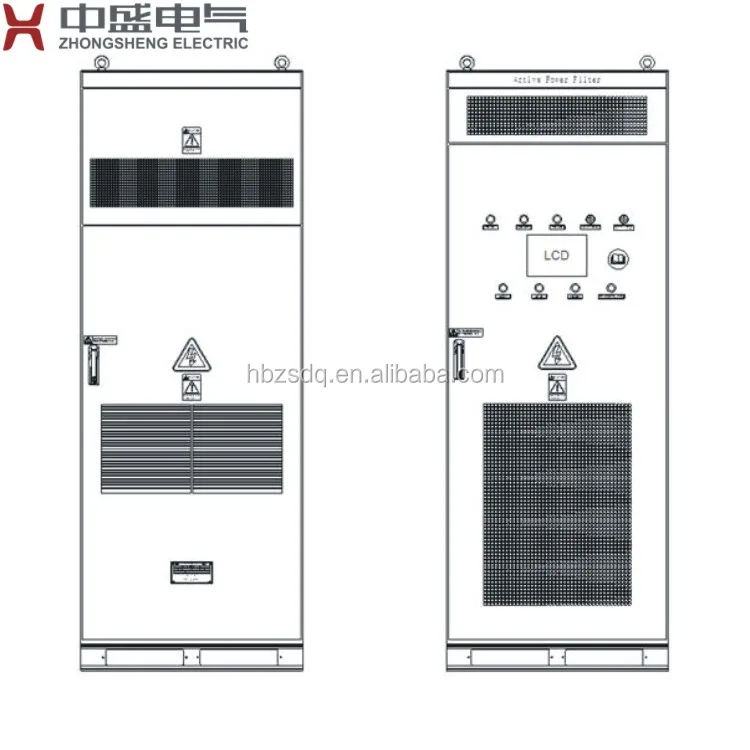

| Dimensions (w*d*h) | 800*600*2200mm | 800*600*2200mm | 800*800*2200mm | 1000*800*2200mm | 1200*800*2200mm |
| Three phase, four wire | |||||
| Model no. | SAPF-50/380-II | SAPF-100/380-II | SAPF-550/380-II | SAPF-200/380-II | SAPF-300/380-II |
| Compensate current | 50A | 100A | 150A | 200A | 300A |
| Dimensions (w*d*h) | 480*650*200mm | 800*600*2200mm | 800*800*2200mm | 1000*800*2200mm | 1200*800*2200mm |
| Rated voltage | 380V | ||||
| Rated frequency | 50Hz | ||||
| Filter tuned to | 2th to 50th, or order of harmonics. | ||||
| Starting time | less than 10ms. | ||||
| Mounting arrangement | indoor | ||||
| Enclosure IP class | IP30 | ||||
| Standards | IEC 60831, GB 7251, GB/T14549 | ||||
| Temperature class | -10℃ to +40℃ | ||||
| Relative humidity | no more than 85%, non condensing. | ||||
| Altitude | no more than 2000m. | ||||
| Installation site | Vertical inclination shall be no more than 5 degree. No fire hazard, explosion risk, conductive dust, corrosive gas and strong vibration exist. | ||||
| Applications | The low voltage active harmonic filter cabinet is widely used in process industries such as cement, metal, chemicals and pharmaceuticals, as well as industries such as textiles, automobiles, health care, petrochemicals, datacenters, and more. | ||||
