Factory price metal sheet recoiler machine with tightening device (RMT-400 )
Product Description

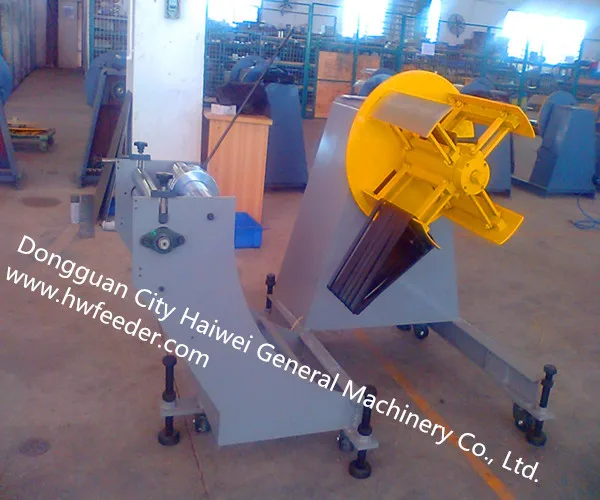

Machine main image
Machine main application fields:
Machine equipped with tensioning device, it was mainly used to roll metal strips, plastic taps etc to coils, it can roll up to coils tightly and neatly.
Machine main configurations:

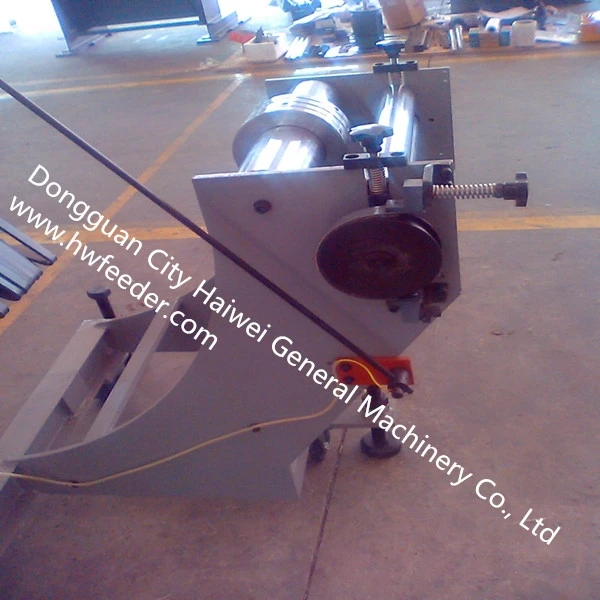

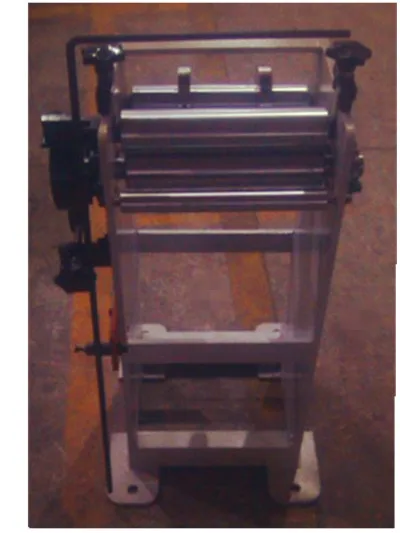

1. Machine equipped with tensioning device, this device was consisted of upper and lower rollers, material guiding device, tensioning gap adjusting device, brake device etc.
2. Press arm device(optional part), when material is thicker than 2.0mm, if the user want to roll strips to coils tightly, it's better to equip with this device, as it can hold strips firmly when the machine rolls strips.
3. Sensor frame device. It was mainly used to control the decoiler to roll strips automatically. When strips touched the sensor frame, the machine will stop to work, on the contrary, when the stips left the strips, the machine will start to work again.
4. Wheels with brake installed at bottom (optional part). Equipping with this device, machine can be removed from one place to another, further more, the wheels equipped with brake, so when you moved to the suitable place, press down the brake, machine will be fixed firmly.
Features of RMT-300 Recoiler:
1. It's suitable for all kinds of material, no matter thin or thick, metal or nonmetal sheets.
2. It's mainly used to coil scraped strips from the punching machine, saving lobour and space.
3. Brake device is adjustable. The principal axis adopts powerful type. It makes the material roll smoothly and increase loading capability.
4. Its a necessary device for auto punching machine working. It can save manpower, reduce cost and increase efficiency.
5.It adopts JAPAN magnetic contactor and electronic components, less trouble and long lifetime.
Specification of RMT series machines:
RMT Series Recoiler Main Specification
Model
Unit
RMT-200
RMT-300
RMT-400
RMT-500
RMT-600
Material width
mm
200
300
400
500
600
Material thickness
mm
0-3.0
0-3.0
0-3.0
0-3.0
0-3.0
Speed reducer
1/60
1/60
1/60
1/60
1/60
Motor
HP
1
1
2
2
2
Coil I.D.
mm
450-530
450-530
450-530
450-530
450-530
Coil O.D.
mm
1200
1200
1200
1200
1200
Material weight
kg
500
1000
2000
2000
2000
Machine weight
kg
320
372
415
450
485
Optional accessories
1. Press arm device 1set
2. Inverter 1 set(Delta, Taiwan)
3. wheels installed at bottom 5 sets(with brake)
Other similar machines
Company Information
Compony Introduction
DONGGUAN CITY HAIWEI INTELLIGENT EQUIPMENT INCORPORATED COMPANY(Dongguan City Haiwei General Machinery Co., Ltd) is a professional manufacturer of peripheral equipment of press machine that integrates design, manufacturing, sales, service and trade. Our products included many kinds of automatic press feeder machine, straightener, uncolier and 2 in 1 Reel straightener, 3 in 1 NC servo uncoiling straightener and feeding machine and so on.
Company Qualification and Honors
Foreign Customs Using Our Products
Our Services
Guarantee And After-sale Service
1. The supplier provide free technical training and consulting services to the buyer.
2. One year guarantee for whole machine , the warranty period of equipment installation and debugging start after the two sides signed acceptance document date.
3.The warranty period of non users caused damage to the equipment, the supplier provides repair services and parts required free of charge.
4.. After the warranty period, the supplier promise to provide life-long service for customer, and provide the most preferential price of the required parts.
Not exactly what you want? Please contact us quickly
