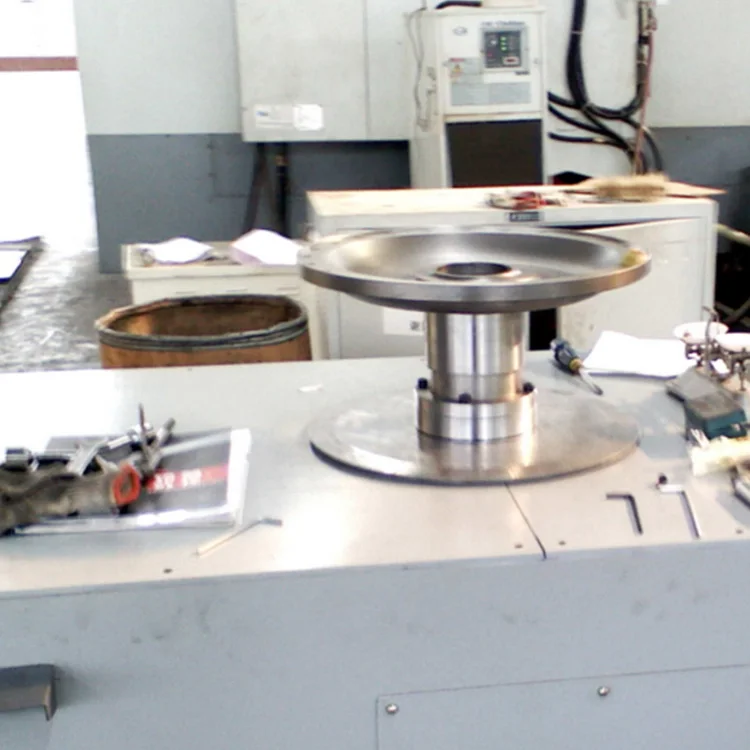

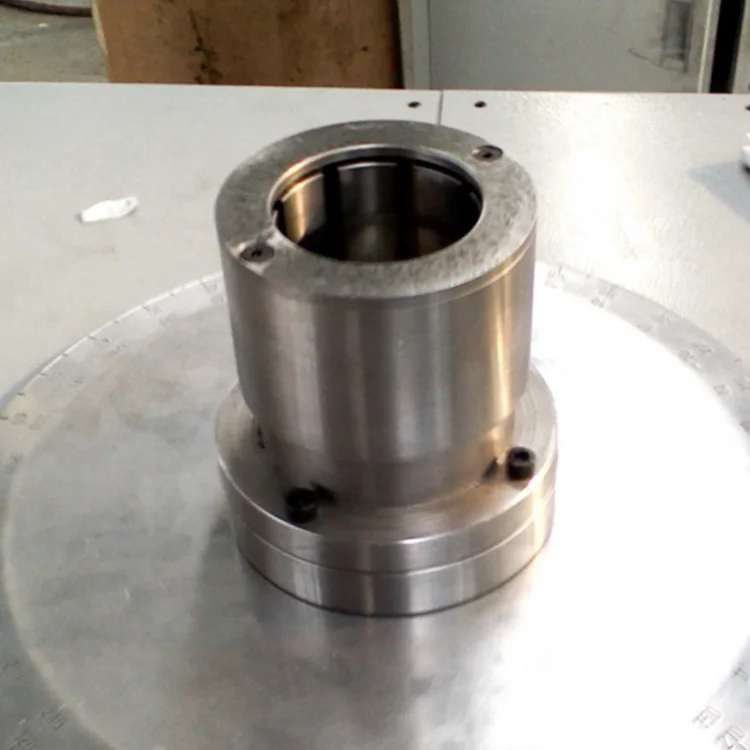

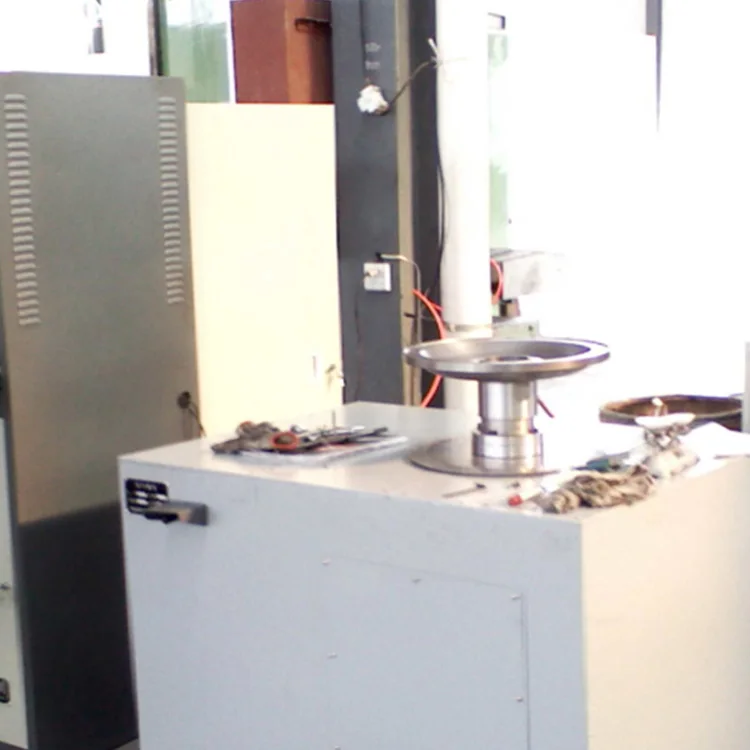

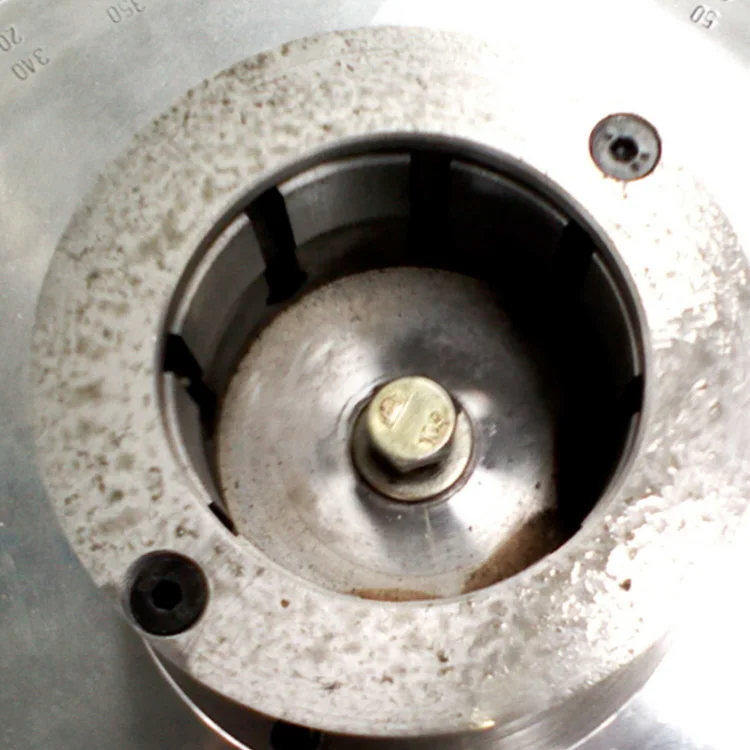

Ceramic Grinding Wheel Balancing Machine
- Category: >>>
- Supplier: Jinan Bodihao Mechanical Equipment Co. Ltd.
Share on (60311057877):
Product Overview
Description
The measuring unit employs GB-2000 microcomputer balance measurement system is a system of top function and precisionIt can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer mainboard which equiped with 15-inch LCD screen and 1G Memory, Electric board 4G, Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments.
Series product
| Model | YLD-1A | YLD-5 | YLD-16 | YLD-16A |
| Max. Weight of workpiece(kg) | 0.05-1 | 0.1-5 | 0.5-5 | 15401 |
| Max.diameter of workpiece(mm) | φ300 | φ500 | φ500 | φ500 |
| Adjusting speed form | Variablefrequency speed regulation | Single speed motor | Two speed motor | Frequency control moor |
| Balanncing speed min(r/mm) | 250-1500 | 900 | 600-900 | 250-2500 |
| Min. achievableresidualun balance(g.mm/kg) | ≤3 | ≤3 | ≤3 | ≤3 |
| Unbvalance reduction ratio(%) | ≥90 | ≥90 | ≥90 | ≥90 |
| Drive power(kw) | 0.12 | 0.37 | 0.65-0.85 | 1.1 |
| Model | YLD-42A | YLD-100A | YLD-200A |
| Max. Weight of workpiece(kg) | 0.3-16 | 5-100 | 10-200 |
| Max.diameter of workpiece(mm) | φ800 | φ800 | φ800 |
| Adjusting speed form | Frequency control moor | Frequency control moor | Frequency control moor |
| Balanncing speed min(r/mm) | 250-2500 | 250-2500 | 250-2500 |
| Min. achievableresidualun balance(g.mm/kg) | ≤3 | ≤3 | ≤3 |
| Unbvalance reduction ratio(%) | ≥90 | ≥90 | ≥90 |
| Drive power(kw) | 1.5 | 4 | 4 |
Product application
The balancing machine is a new and widely-used device which has been available and developed in recent years. It is mainly applied to balance all kinds of discoid parts, such as fan blade, brake disk,brake drum.saw blade.clutch,belt pulley,chuck,pump impeller,flywheel,grinding wheel,range hood fan,brake, torque converter,tool etc .High speed and precision are advanages of this balancing machine.
Product feature
