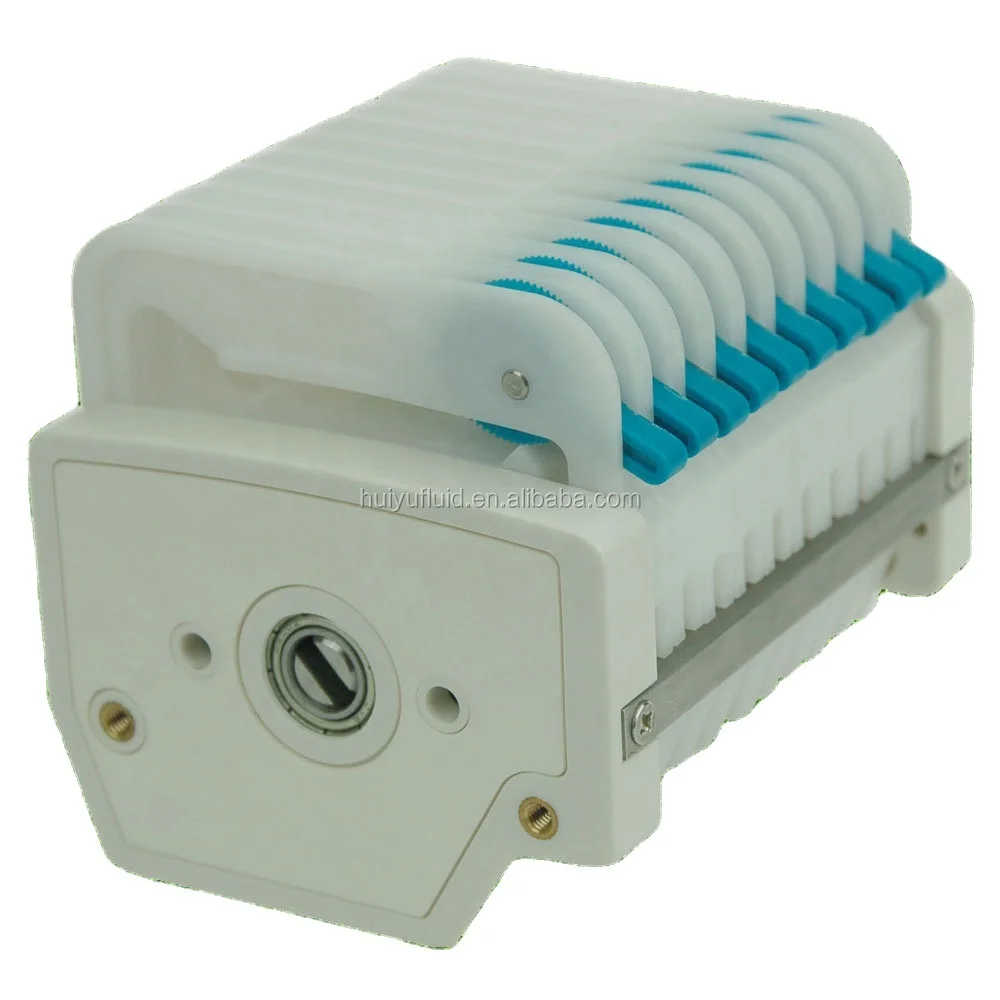

Ismatec multichannel cartridge peristaltic pump head

Product Overview

Description

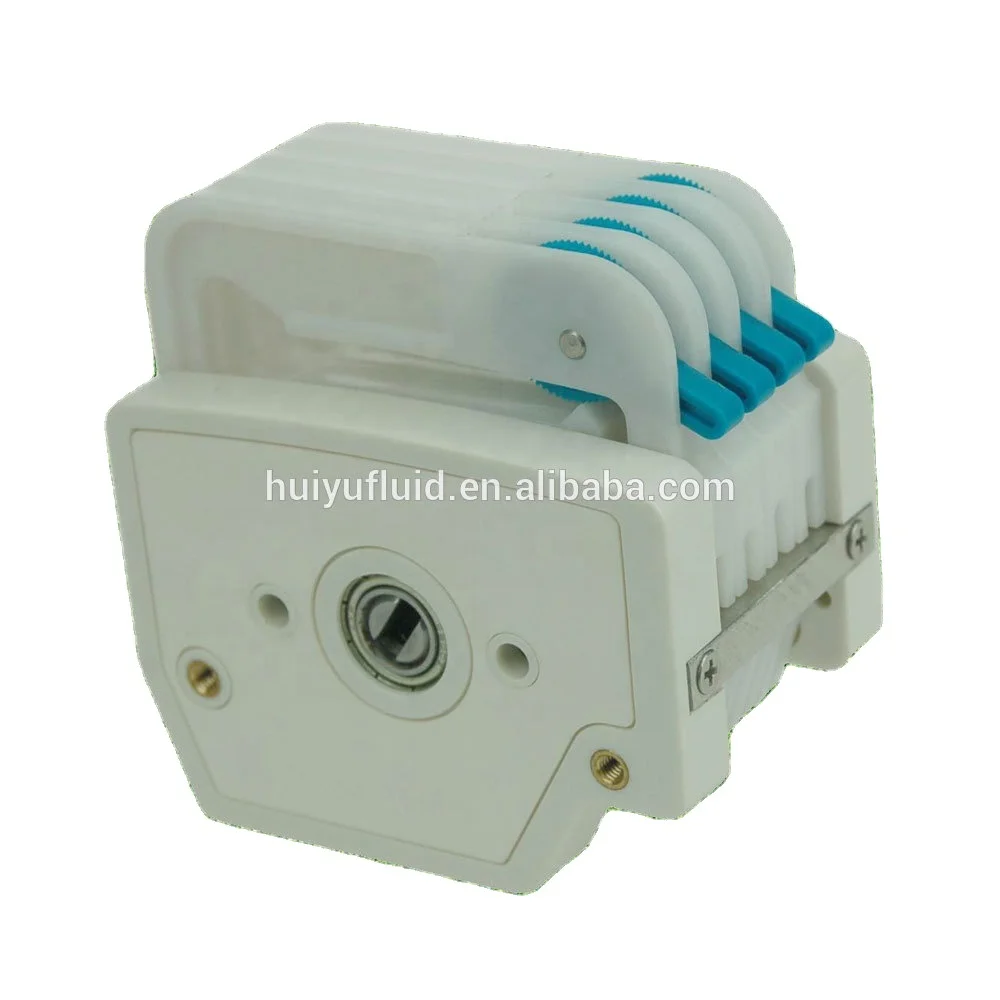

DG series pump heads are designed for micro flow rates, multi-channel fluids transfer and supply high precision. Easy to change and fix the tubing. The trigger and ratchet wheel have been improved to have better function. Users can fix and change tubing easily.

Character:
    Occlusion can be adjusted slightly by ratchet wheel to fit different tubing wall thicknesses requirements.

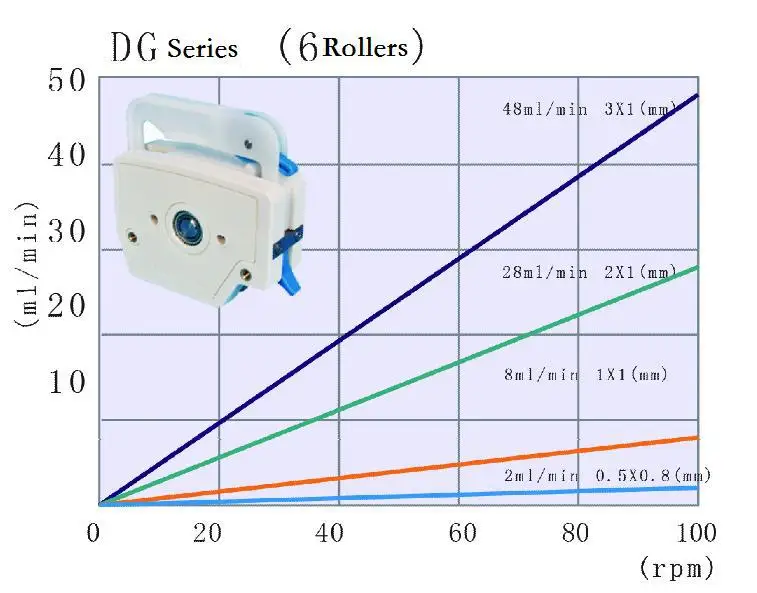

     6-rollers pump head supply more flow rate.

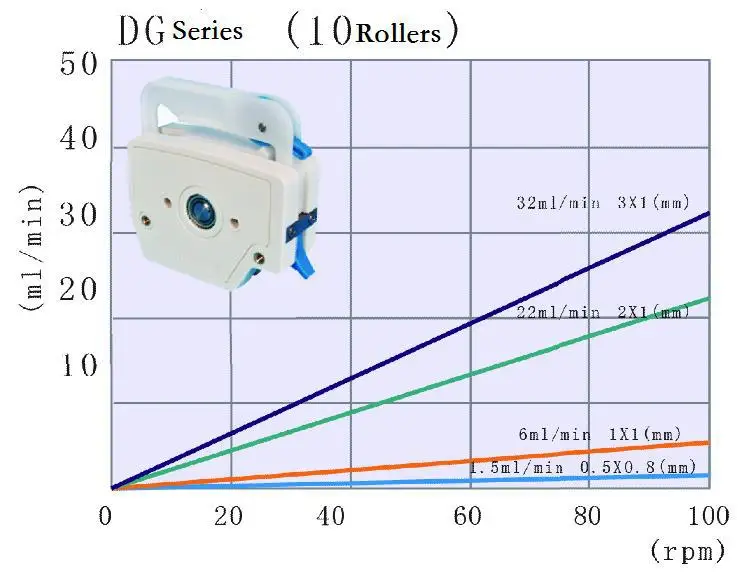

     10-rollers reduce pulse and flow rates slightly.
     Skillful trigger structure, convenient to eject the cartridges (DG-1, DG-2)
     Rollers are made from 304 stainless steel, can resistant acid, soda and organic solvent
     Cartridges are made from POM or PVDF

Technical Parameters

Model	Rollers NO.	Available tubing	Max flowrate(ml/min)	Speed range(rpm)	Cartridge material
DG-1	A Refers to 6 rollers B refers to 10 rollers	ID≤3.17mm;wall thickness 0.8-1.0mm	A:48 B:32	≤100	POM PVDF
DG-2
DG-4
DG-6
DG-8
DG-10
DG-12
