Gravity Gold Ore Concentrating Shaking Table

Product Overview

Description

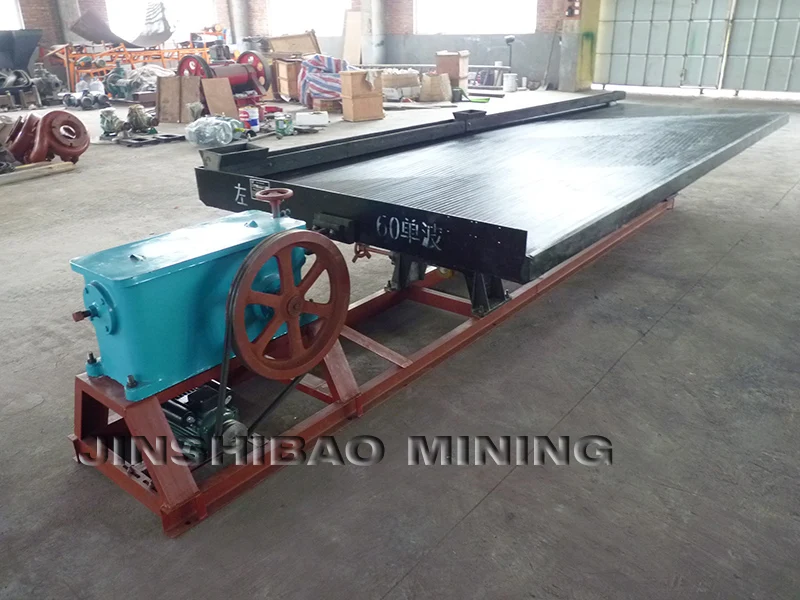

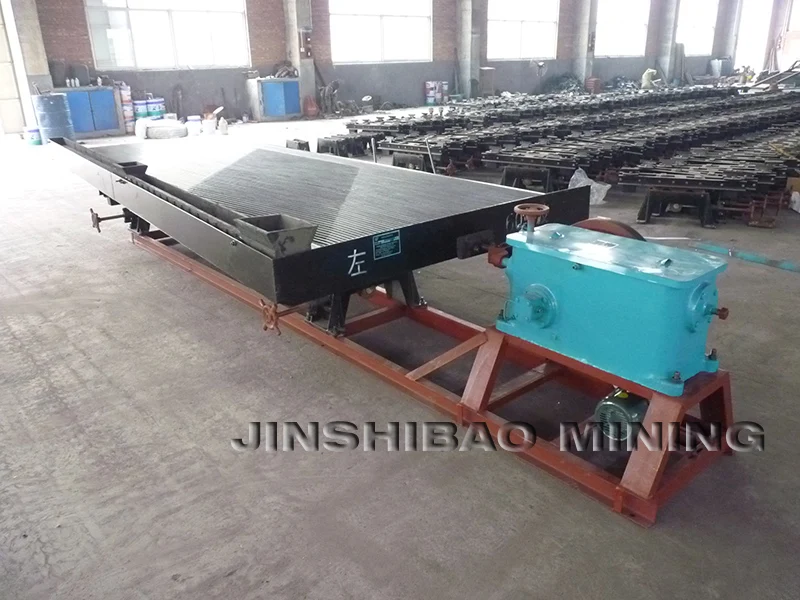

Gravity Gold Ore Concentrating Shaking Table

Jinshibao shaking table is one of the main equipments of gravity concentration. It is not only widely applied on separating tungsten, the tin, the tantalum niobium and other rare metals and the noble metal ore. It is also widely used in separation for Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, etc. The shaker effective recycling granularity scope is 2-0.22 millimeters.



The following drawing shows the structure of the shaking table:





> MAIN COMPONENT

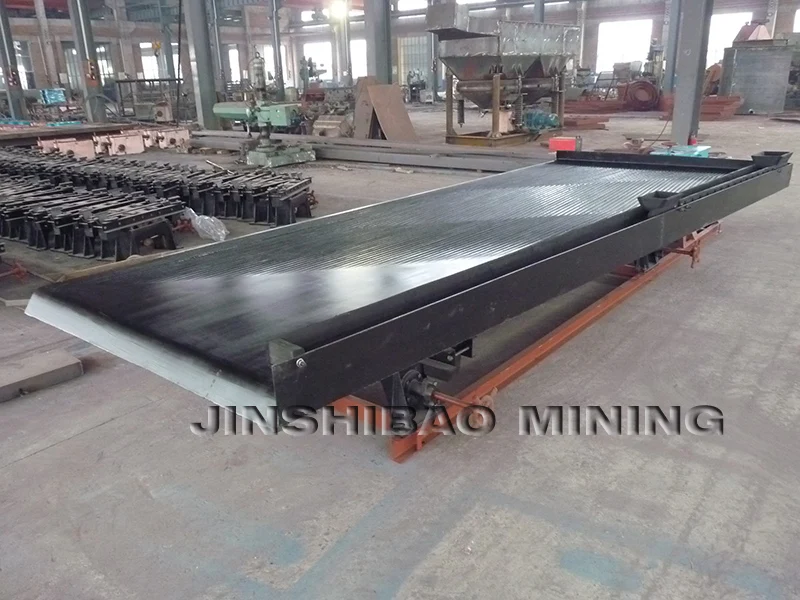

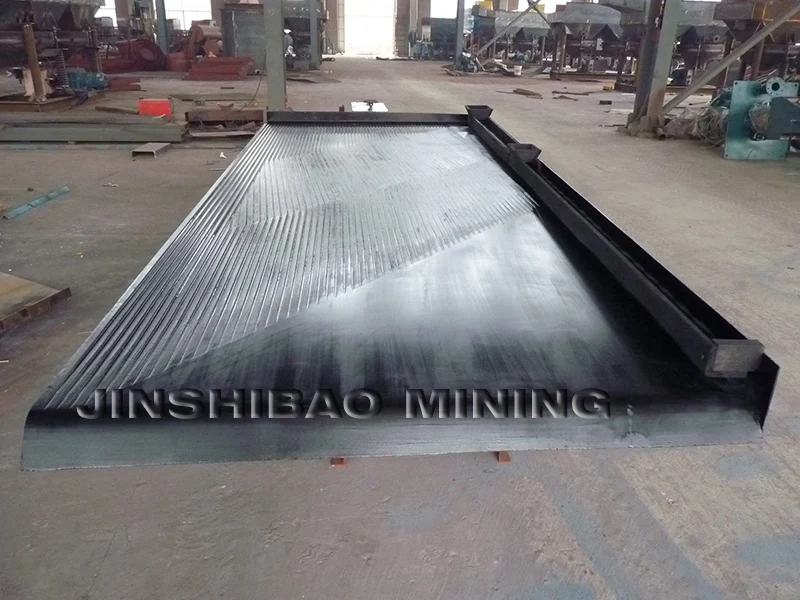

Deck



Our jinshibao shaking table have THREE different deck designs available:

(1) The course ore deck is designed for recovering particles size from 0.5 mm to 2 mm;

(2) The fine sand deck is designed for recovering fine particles in the range of 0.074 mm to 0.5 mm;

(3) The slime deck is designed for recovering super extremely fine particles in the range of 0.05 mm to 0.074 mm.











> TECHNICAL SPECS



Below are the main specifications



Model		LS4500	LY3000	LY2100	LY1100
Screen Size(mm)		4500× 1850× 1560	3000× 1620× 1100	2100× 1050× 850	1100× 500× 430
Feeding Range(mm)	Sand  ore	-2	-2	-2	-2
	slime	-0.074	-0.1	-0.074	-0.074
Capacity (t/h)	Sand ore	0.5-1.8	0.7-1.5	0.4-0.8	0.1-0.2
	slime	0.5-0.8	0.4-1	0.3-0.5	0.05-0.1
Motor power	kw	1.1	1.1	1.1	0.55
Dimension (mm)		5600× 1850× 860	4075× 1320× 780	3040× 1050× 1020	1530× 500× 800



> WEARING PARTS









•  LCL: If the shaking table is shipped by bulk, it is always packed in steel frame.

When the quantity is one set, the machine is installed up and packed in steel frame inside and plywood outside.

When the quantity is more than 1 set, the machines are not installed up and packed in steel frames separately.







•  FCL: If the shaking table is shipped in container, it will be loaded in the container as belows without installation.

The purpose why do not install up them is to save the volume. The volume of one set of installed up LS4500 is about 10 cubic meters.





We could service you the complete line from the raw ore to get the final concentrates as below:







Payment terms

• We usually accept T/T, L/C. WEST UNION etc


• 30% of total amount as deposit, 70% balance payment before delivery.


• We will notice you before the arrival of the goods.



Packing ways

• FCL & LCL export standard container 20/40 feet loading


• FCL: Sea-worthy package.  Machines are fixed in container; spare parts are packed in wooden boxes.


• LCL: Machines are packed in steel frame with plywood boxes. Customized package is available.
