large flow low head 1m3/s water pump

Product Overview

Description

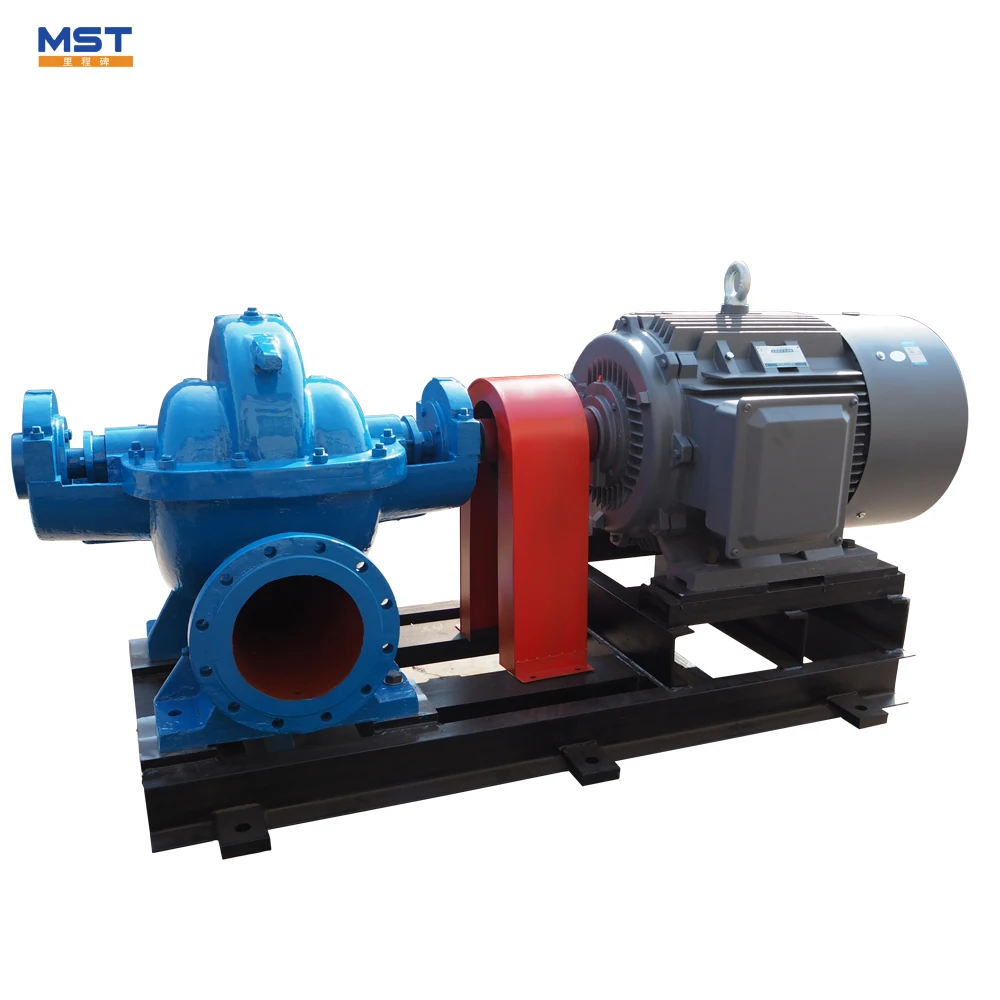

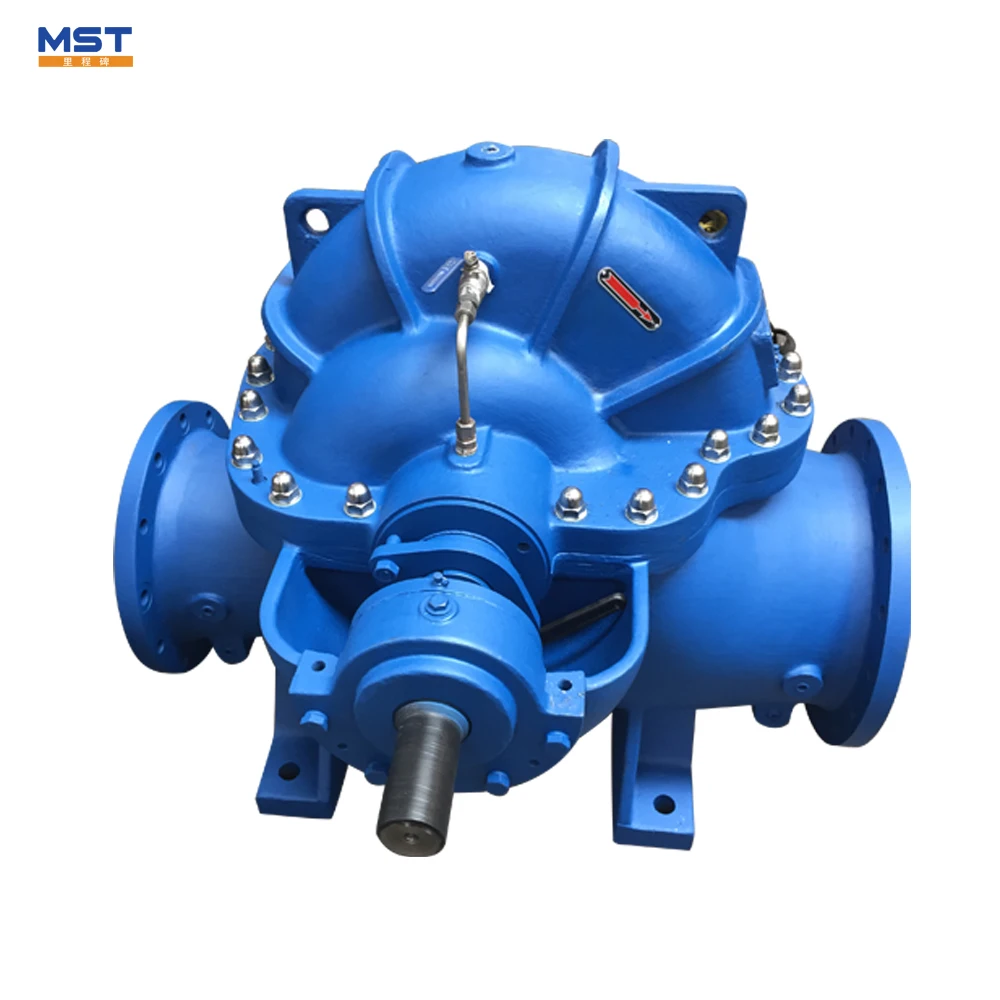

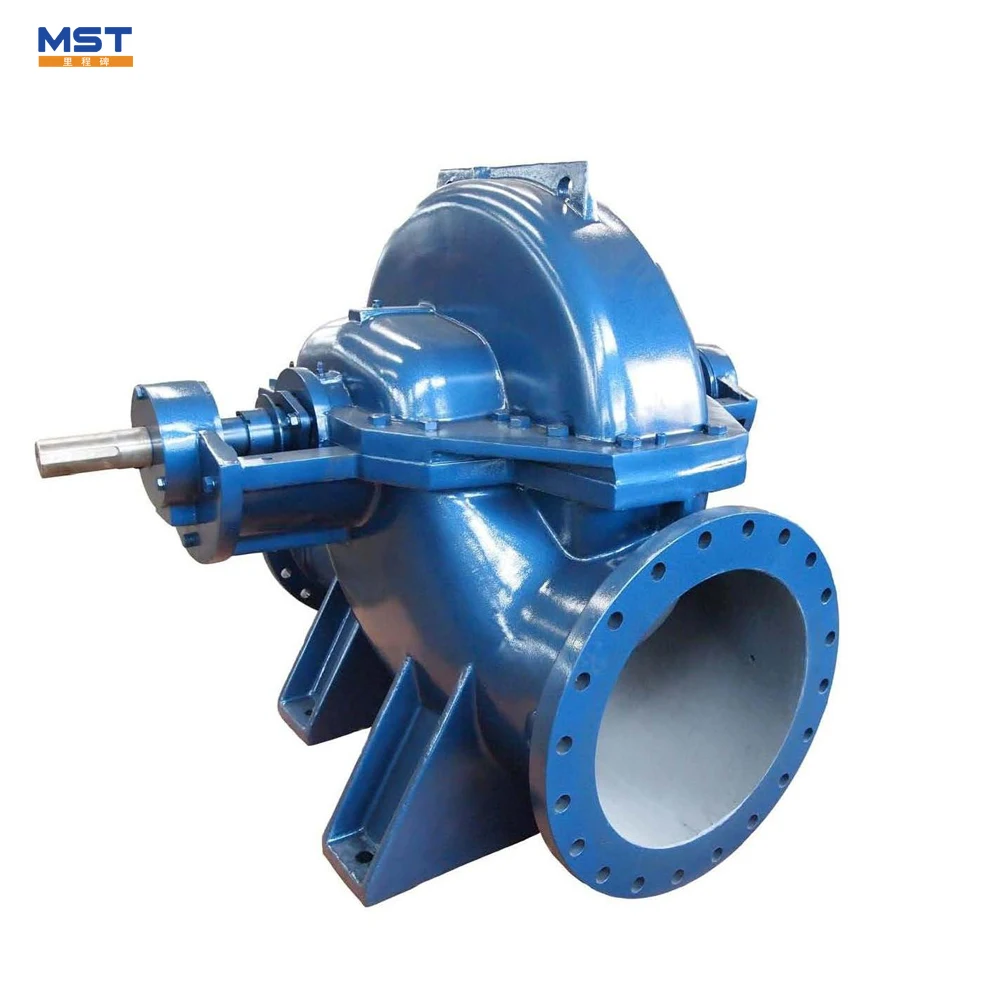

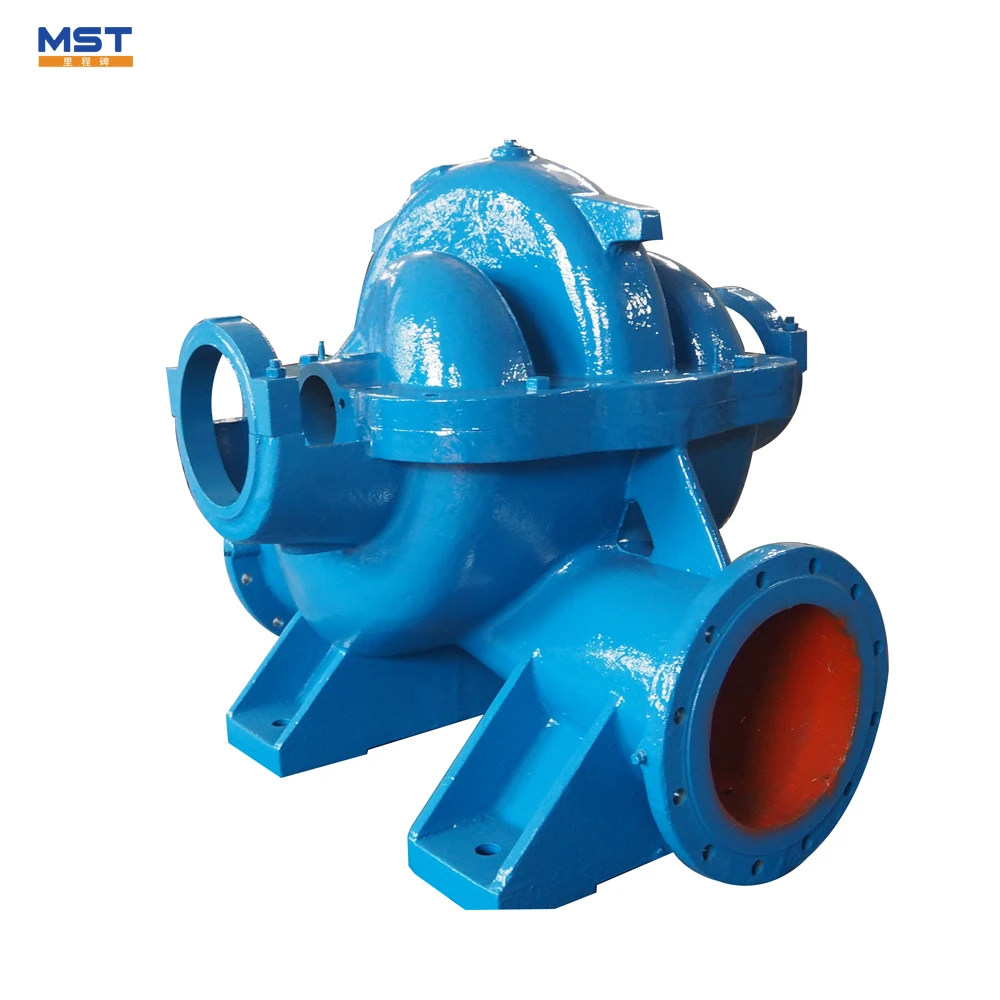

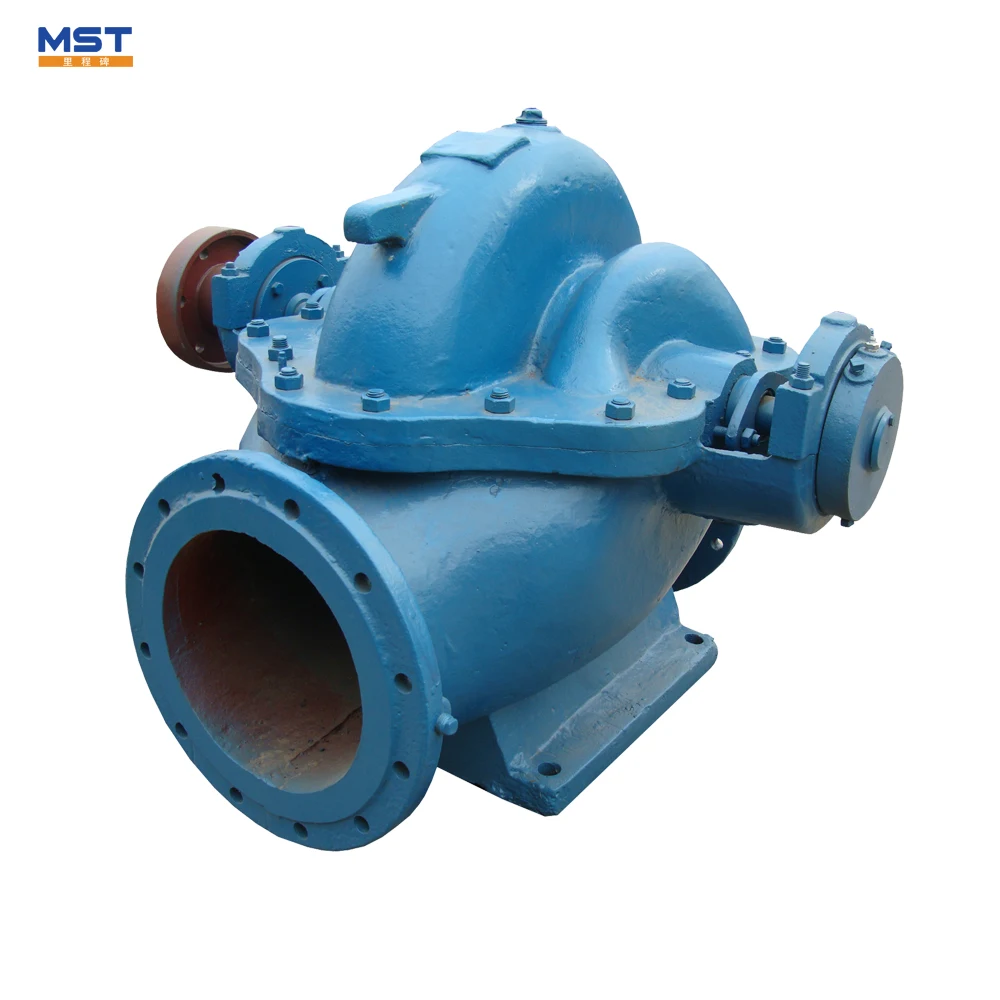

large flow low head 1m3/s water pump

S type pump is a single-stage double suction horizontal split centrifugal water pump.It is used to transport pure water and the liquid which physical and chemical nature is similar with water,the maximum tempreture isn't more than 80 ℃.

Features:

• Compact structure,beautiful outline,stable operation,low noise;


• Both inlet and outlet of this pump are placed under the axial line,so it is unnecessary to remove the inlet and outlet pipeline and motor


• The shaft seal of water pump has fine mechanical seal and soft stuffing seal,which can be selected according to different condition by user


• The impeller is static-balance calibrated,fixed on the shaft with round nut,and its axial position can be adjustedvia the round nut


• The pump is direct drived by motor via resilient coupling,it can be drived by internal combustion engine if it is necessary.

Performance ranges:

Pump outlet:	80-800mm
Capacity:	65-11600m3/h
Head:	7-200m
Max working pressure:	25 bar
Temperature:	Max105℃
Max solids content:	80mg/L

Performance Curve:

Model meaning:

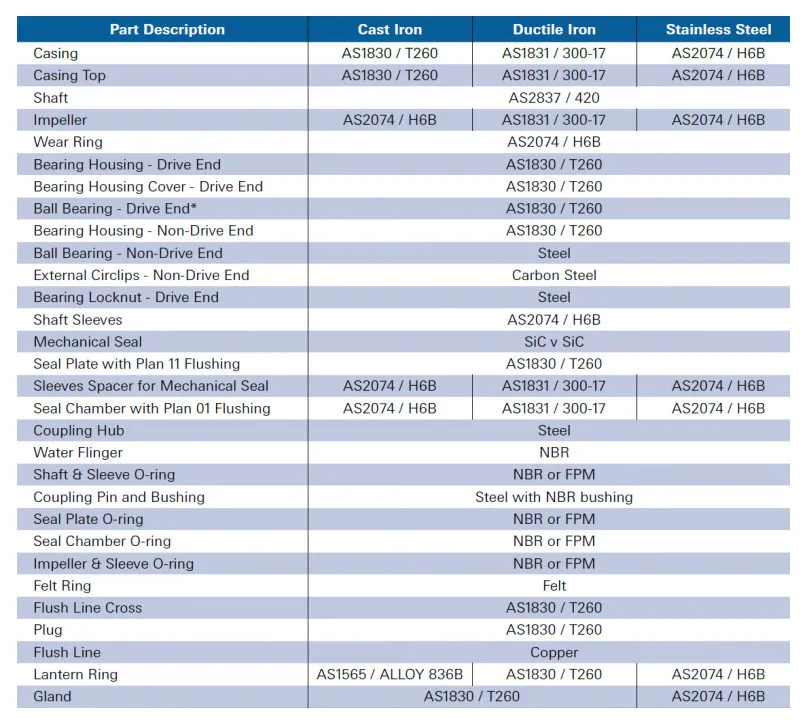

Materal of MS series centrifugal horizontal split case water pump:

Centrifugal water pump spare parts:

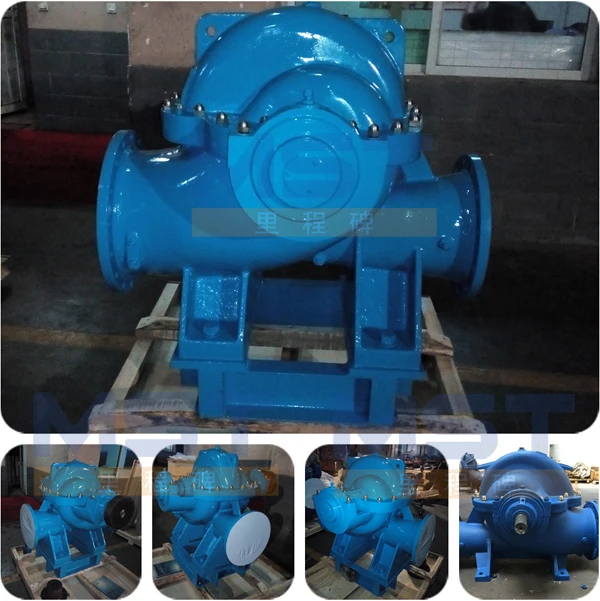

Centrifugal water pump at Site:

This series of pump suitable for water supply and drainage in factories,mines and cities,power station,drainage and irrigation of farming,and kinds of hydraulic projects.







  Milestone (China) Pump Company are involved in various centrigual pump, its product ranges cover MAH SLURRY PUMP, MSP SUMP PUMP, SS SUBMERSIBLE PUMP, IS END SUCTION WATER PUMP, S SPLIT CASE WATER PUMP, D MULTISTAGE WATER PUMP, IH CHEMICAL PUMP &PUMP SPARE PARTS.
