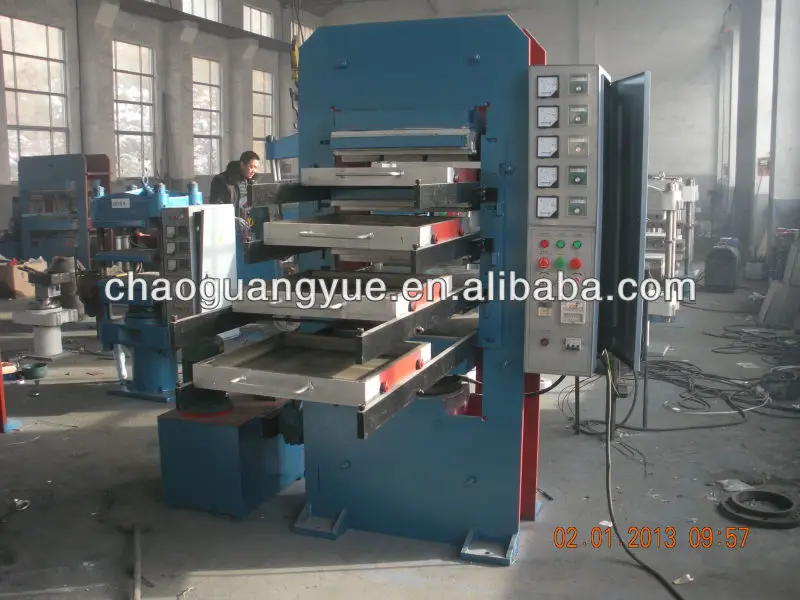

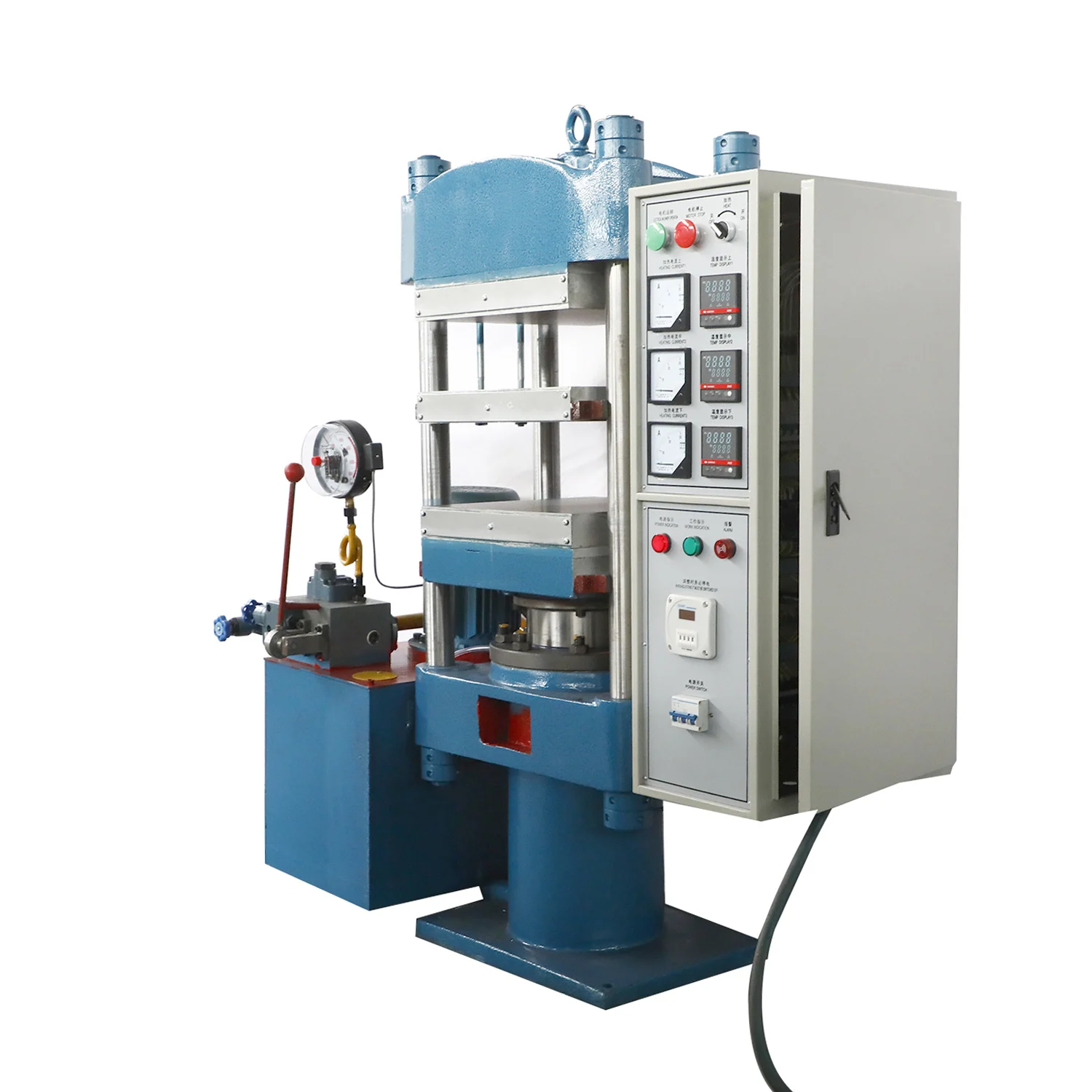

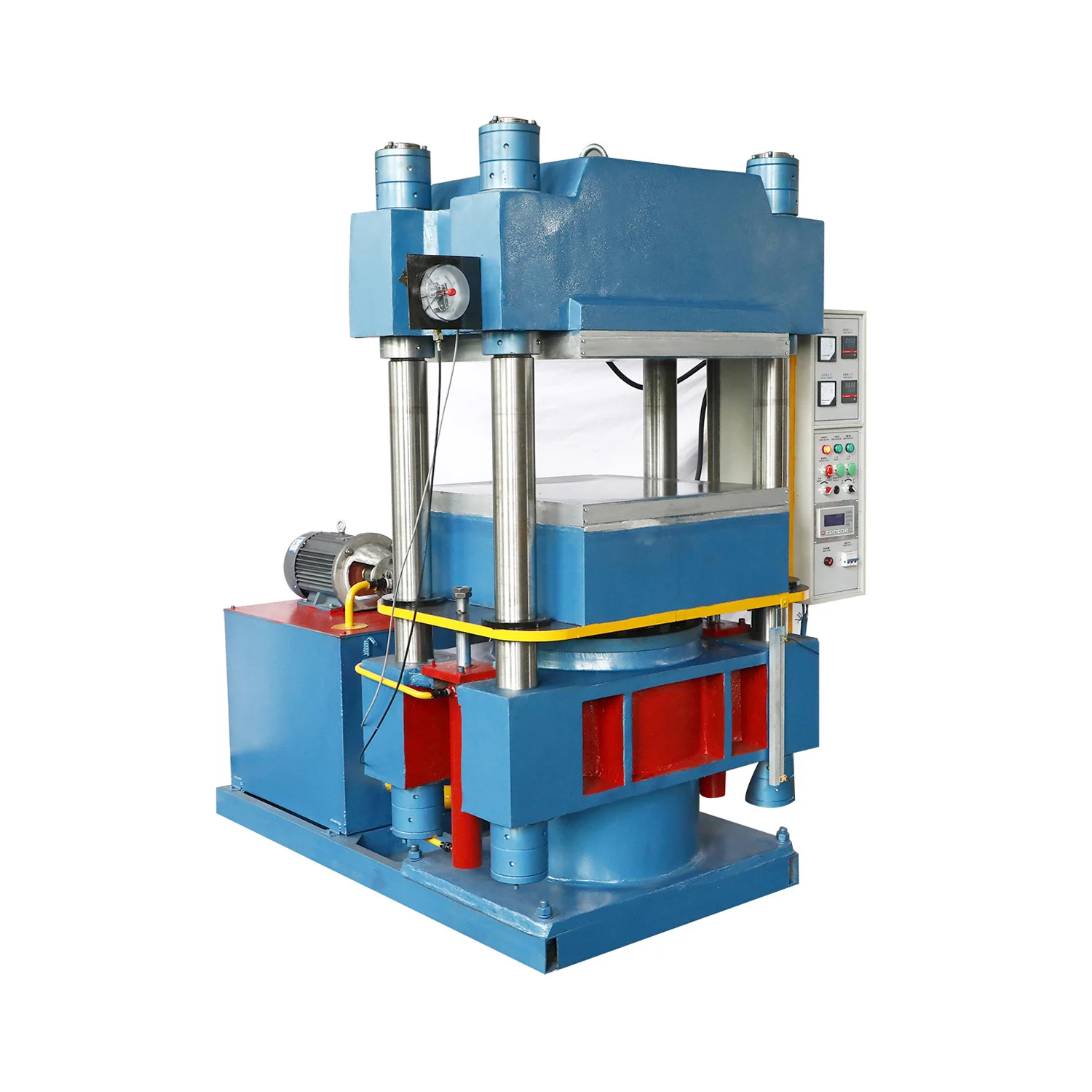

Rubber Plate Vulcanizing Machine Hydraulic Press for Rubber Tile Rubber Mats Vulcanizer

Product Overview

Description

Rubber Plate Vulcanizing Machine Hydraulic Press for Rubber Tile Rubber Mats Vulcanizer



for gym runway,for child playgroud, for community outdoor floor,etc.

Main usage:



 1, The frame type plate vulcanizer applies to vulcanize all kinds of rubber and plastic mould products as well as non-mould products.

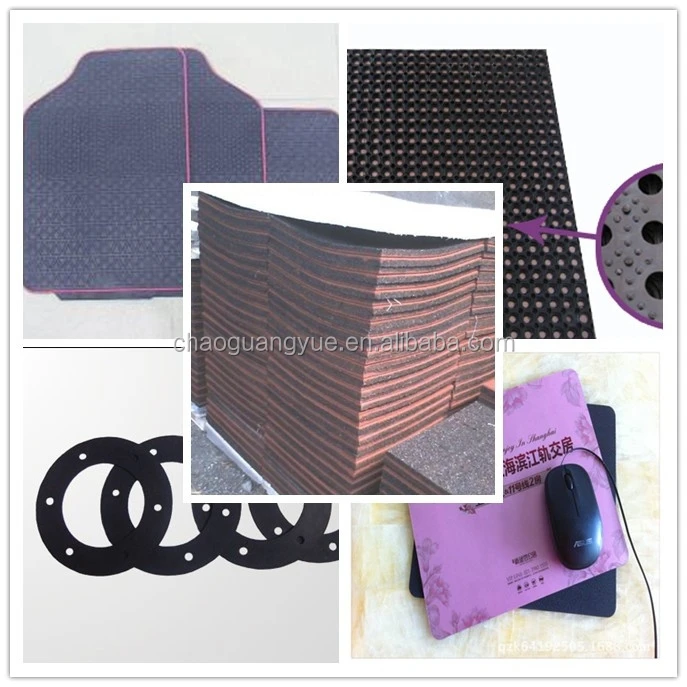

 2,  Applicable line:Rubber Sheet, Oil Seal,O Ring,Gasket, Engine Mountings,Hardware Rubber, Molded Rubber Parts and etc.



Characteristic:



$auto timing, auto exhausting, auto stuffing rubber vulcanization machine.



$adopt PC or manual control, reliable performance, high degree of automation. can automatically identify errors Command, to avoid the operation accidents caused due to an error.





$ It has Lockable pre-preparation process procedures, so that the operator can not be changed without authorization, to guarantee the quality of the pressed products.



$Small temperature difference, reliable pressure performance, automatically pressure compensation during curing process.



$High Efficiency: adopted specific steel pipe to make heating-plate, large thermal conductive area, rapidly heating and cooling and its efficiency is 20% higher than the same kinds of products.



$Material Saving: after grinding the shape-bored steel plate, which is smooth an polished, and 30% of mould release agent can be saved.



$Steam Saving: uses thermal keeping design and a thermal isolation cover is formed around the set, thus 20% of steam can be saved.



$Depressurization and delay opening can be adjusted to match the thickness of product.



$Special designed heating platens for unifying temperature distribution.



intensity and abrade ability, the cylinder is fitted with the sealing washer made of the oil-resisting rubber of sealing purpose.







Mould we hv designed for our customers: be made of upper mould and down mould as one set

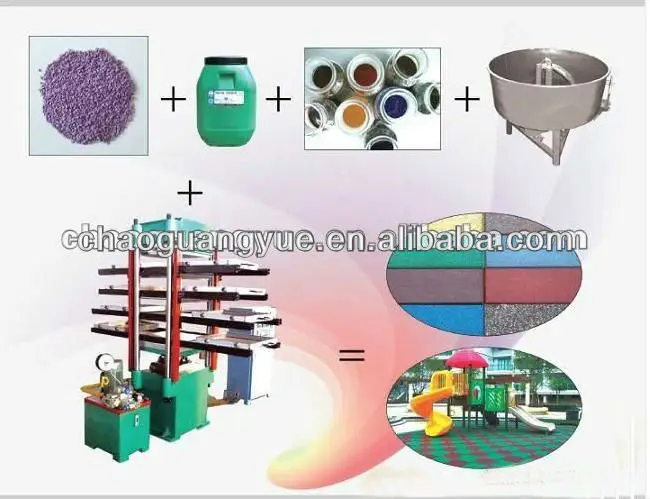

Following is the main processes for rubber tile:



1.conching: Put the rubber granulates and stain into the stirring barrel to stir, and then put into the adhesive to stir, this process requires for 46 minutes ( because the adhesive is easy to cure, so stir it when use ).



2. Weighing raw materials: weight the rubber granulates stirred, according to the granulates' thickness  requirement of the tiles .



3. Paving and pressing: Paving the rubber granulates weighted on the mold, then floated it by trowel. Firstly paving the surface rubber granulates which is fine and color, then the thickness and black.



4. Vulcanization molding: Covering anti adhesion cloth, pushing the mold into vulcanizer to vulcanize, the time of vulcanization accord to the thickness of the rubber tiles, in general, 38inutes finished. After that, Mold separate automatic, then remove floor tile on the shelves to dry.



5. Inspecting: Inspect the surface of the floor tiles formity, no aberration, no flaw, line with the product quality.







Our Services :



1. We will design,manufacture,install and test the machines according to  customers' requirement .Relevant personnel  training for customers,ensure that customers fullygrasp the use and maintenance of technology.



2 .Our service department  listen to customers' feedback at any time and provide spareparts timely.





If our products win your interest, please send us inquires and we will provide detailed information to you. We can also make machines according to your request.
