Energy Saving Band Heater Cover Barrel Insulation Jacket with High Temperature resistance

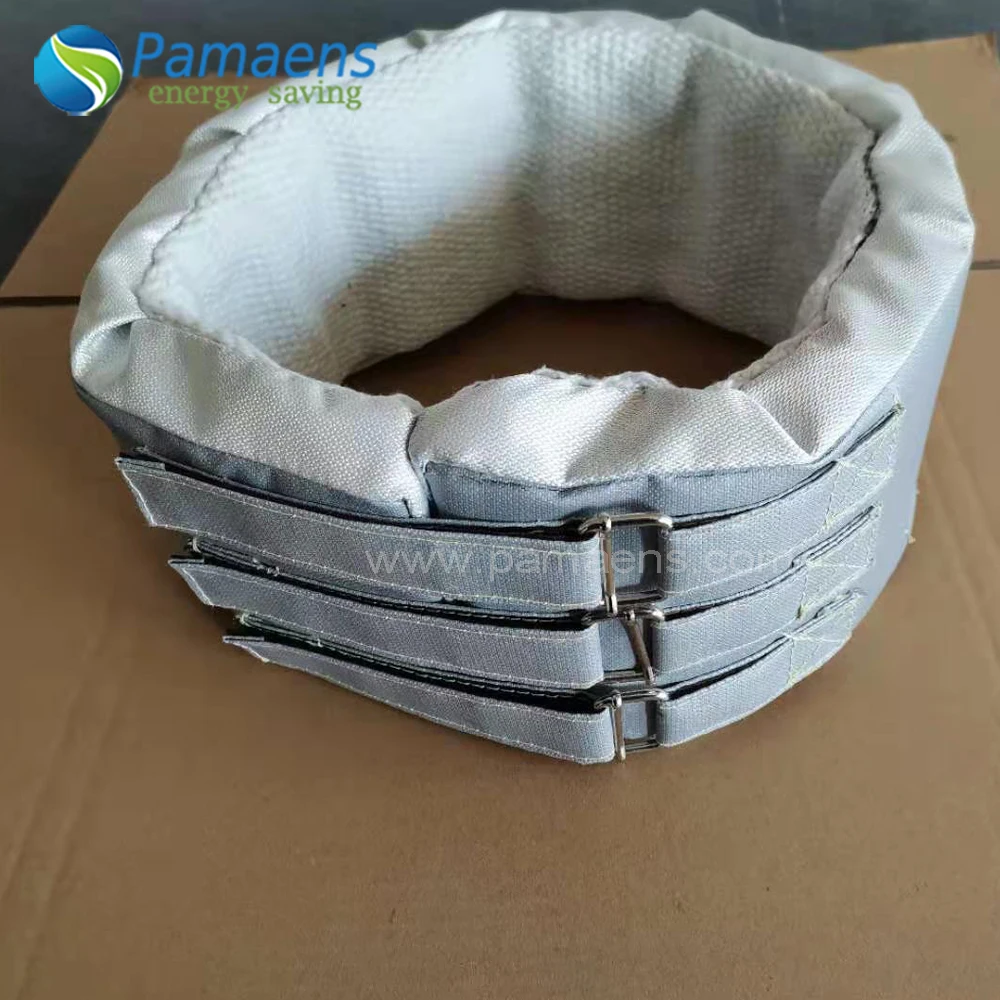

Introduction of Band Heater Cover Barrel Insulation Jacket

Band Heater Cover Barrel Insulation Jackets have three to eight layers, liner is high silica glass fiber cloth, stainless steel braided cloth, ceramic fiber cloth, glass fiber cloth or high-SI aluminum cloth, and insulating layer is ceramic or glass fiber or aerogel blanket, and the protection layer is silicone coated glass fiber cloth, teflon cloth or stainless steel braided cloth, which is water, oil, acid and alkali proof. The thickness is 5-150mm, which could be customized, temperature resistance could be as high as 1000 cent degree. Normal lifetime is more than 5 years. And the energy saving rate is 25% to 40%.

Types of Band Heater Cover Barrel Insulation Jacket

A) Cold insulation type

B) Low temperature insulation type (below 300℃);

C) Standard type (300---600℃).

 D) High temperature insulation type (above 600 C).

Features of Band Heater Cover Barrel Insulation Jacket

•


  Thermal conductivity: 0.035 W/M•K- 0.045 W/M•K±0.005 (Normal temperature)





•


  Temperature tolerance: high temperature tolerance: 1000-280℃, low temperature tolerance 70℃





•


  Inflaming retarding: non flammable (Fireproof A class, GB8624-2006, German standard DIN4102, A1 class)





•


  Density: 110-220Kg/m





•


  Thickness: 5-150MM





•


  Moisture absorption rate:<5%




•

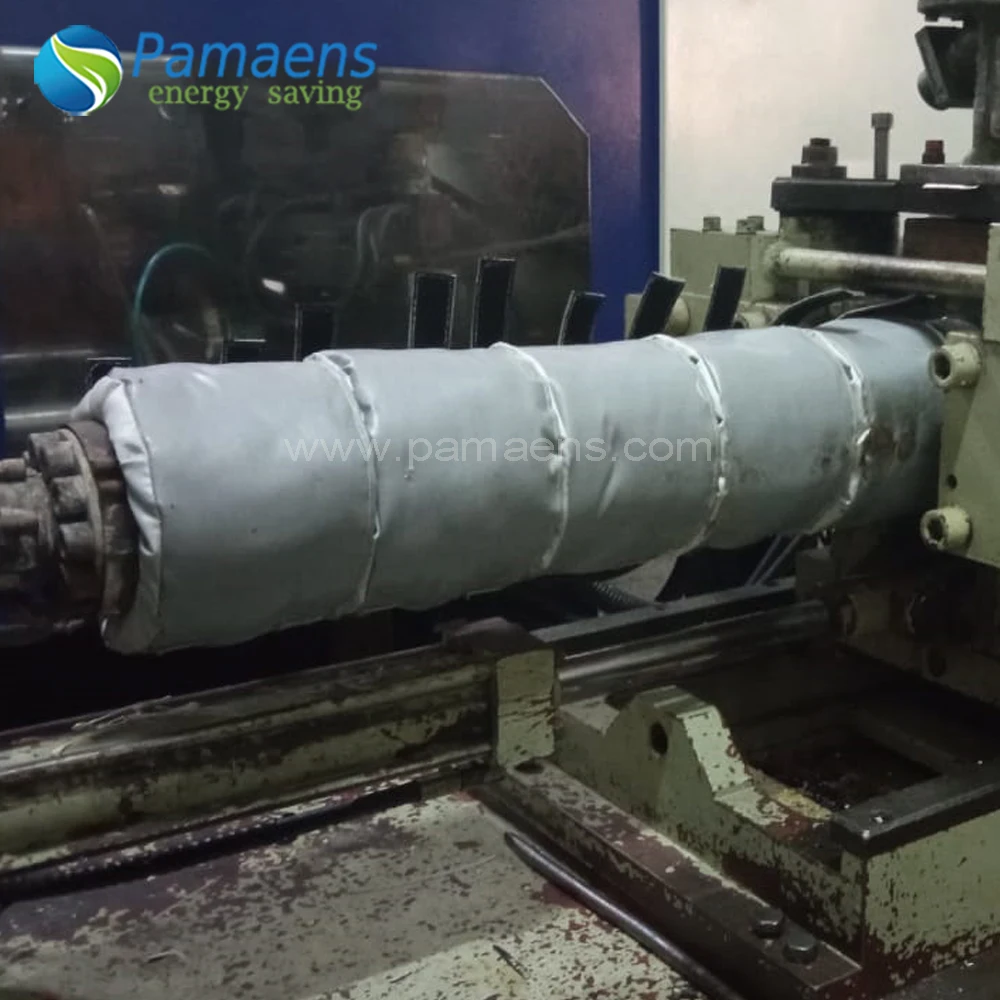

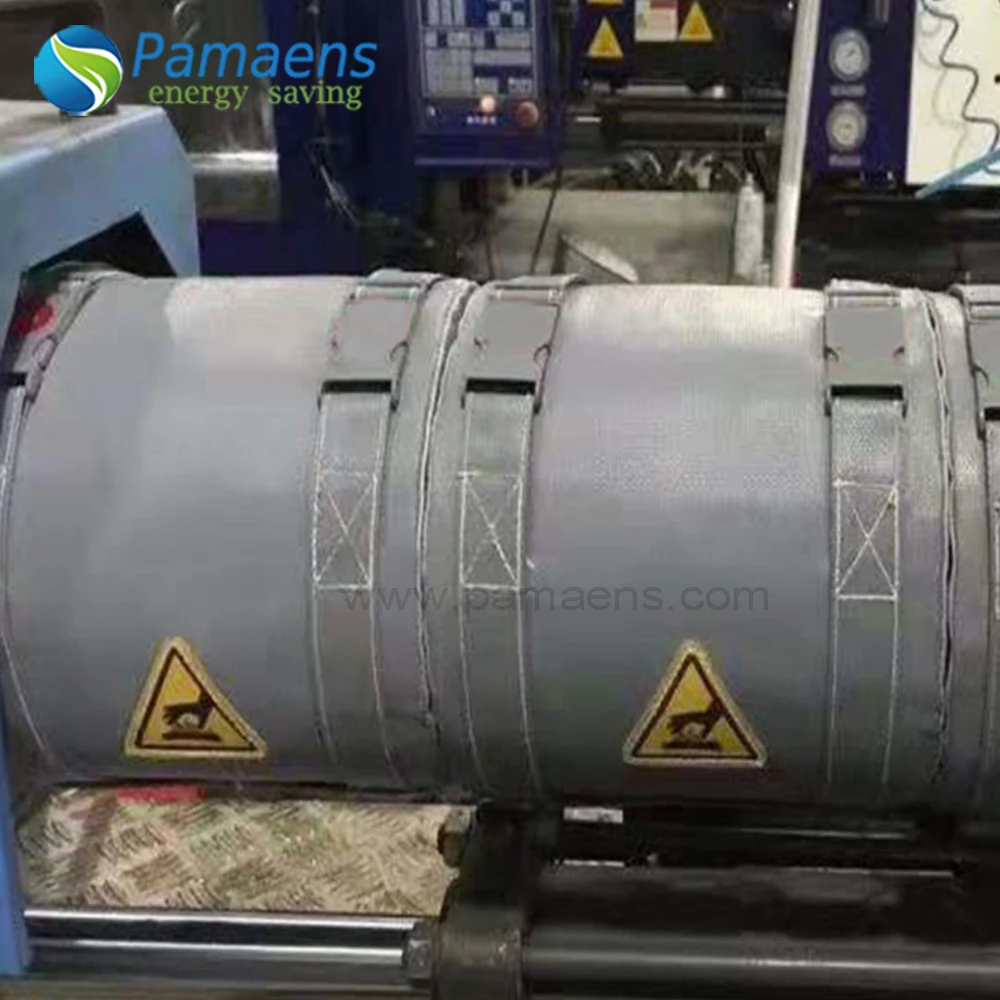

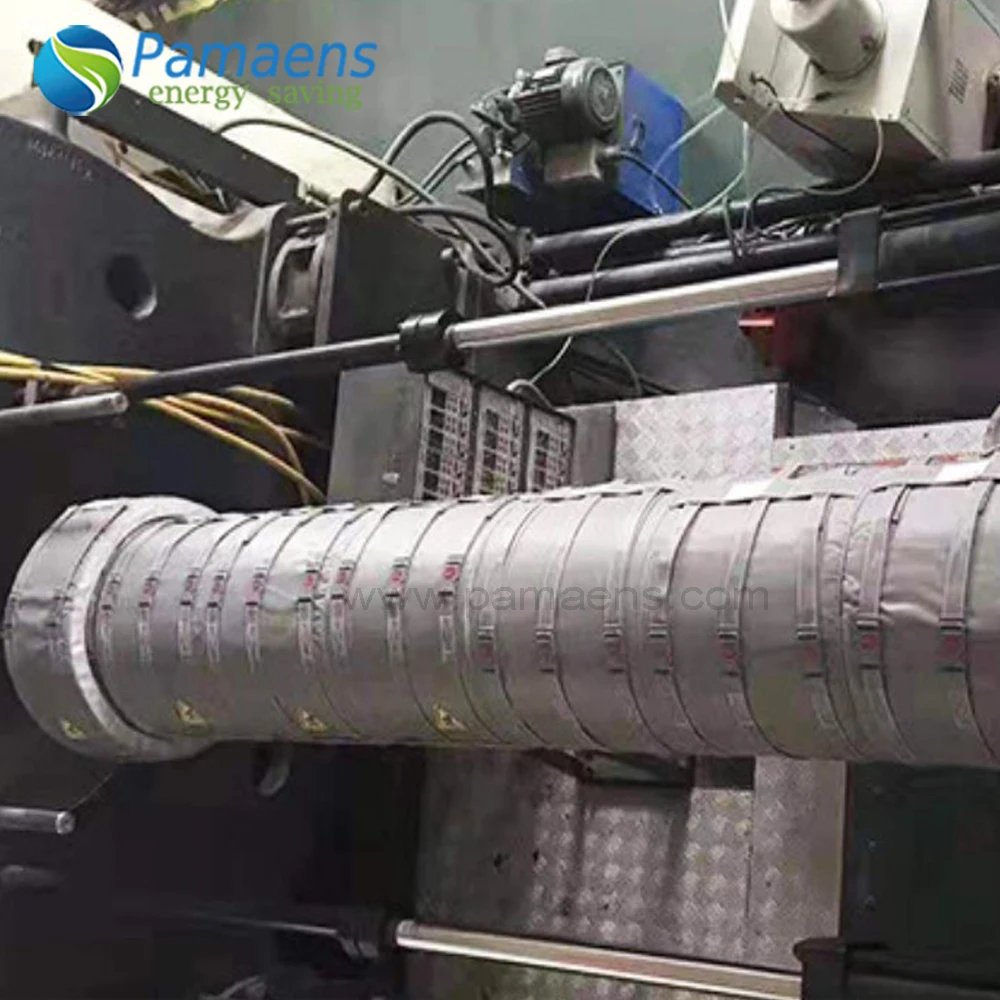

  Barrel heater on injection molding machine, extruder etc.





•


  Molds and dies





•


  Flange, Pipe, Valve





•


  Exhaust Elbow





•


  Heater exchanger





•


  Exhaust pipe of engine





•


  Any other applications needed to reduce heat loss




•


  Minimize heat loss by 20%-40%





•

  The surface temperature can be lowered to 40℃, and thus safe to touch by hands




•

  We support customized design to ensure 100% fit your application




•

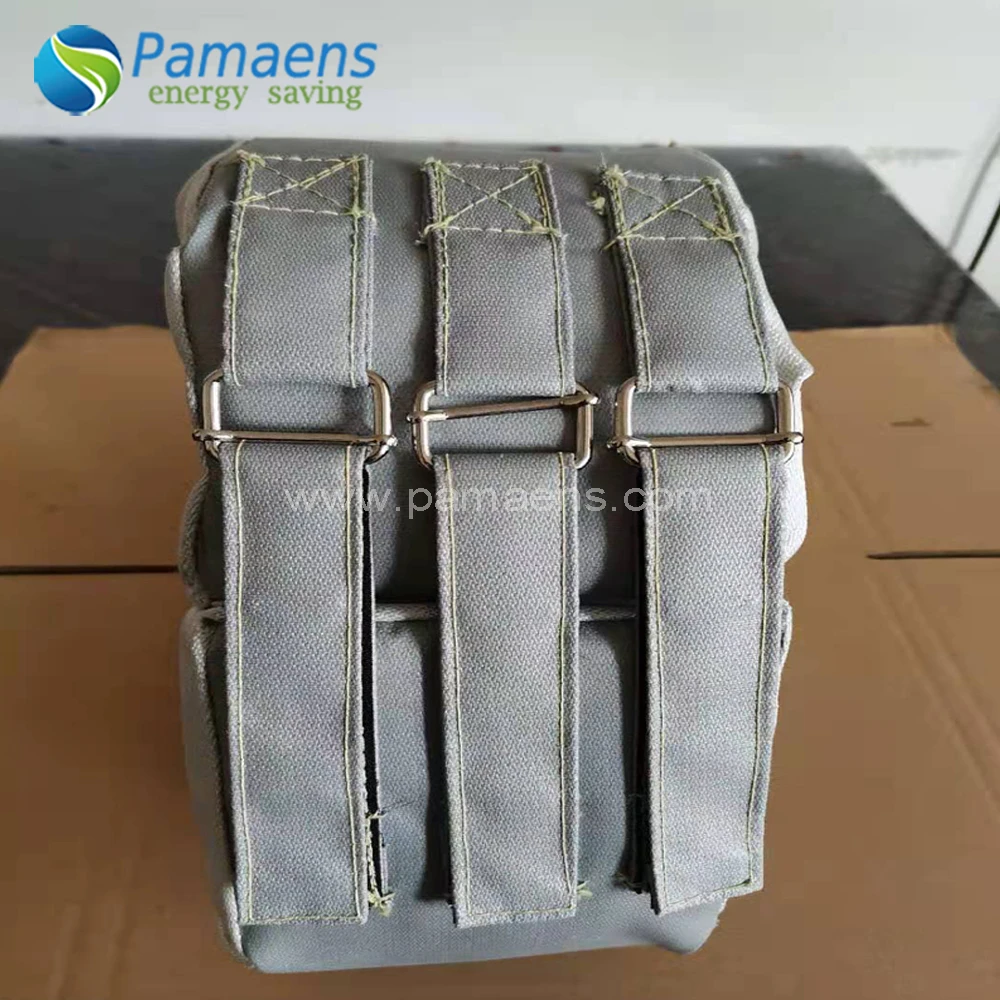

  Easy to install by buckles




•

  Water and oil proof, multi-layer protection, anti-corrosion, easy to clean, easy to bend, pollution free and neat out looking.




•

  Dimension, cut/hole sizes and positions are required for quotation. Drawings and pictures are preferred.
