modern agriculture machine name and uses with low price

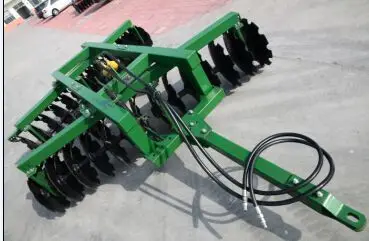

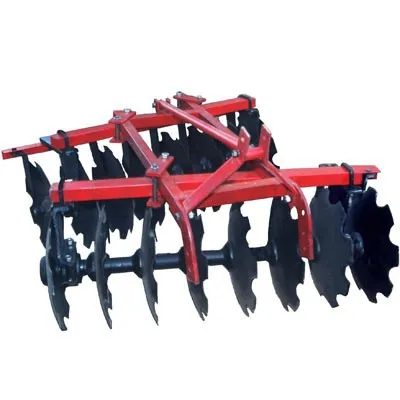

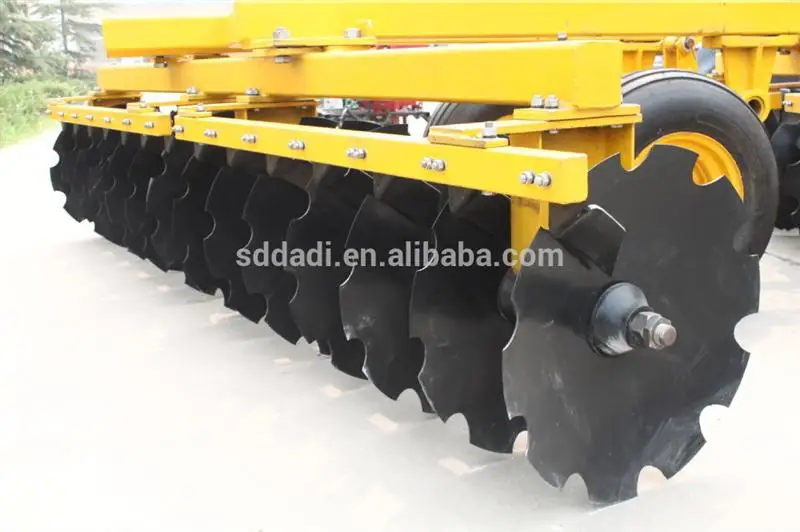

The series heavy-duty offset disc harrow are mainly used for cleaning away stuble of plants before tillage, or crushing clods after tillage on uncultivated land and in stickly heavy clay soil fields, they can also be used as a plough for primary tillage in dry cultivated fields.
The series products are all fitted with hydraulic rubber wheel for transportation, It is easy to be transported and change direction on the edge of fields.
Technical parameters:
Model | unit | 1BZ-1.8 | 1BZ-2.2 | 1BZ-2.5 | 1BZ-3.0 | 1BZ-3.4 |
Overall size | mm | 4800*2000*1340 | 4820*2440*1340 | 5320*2880*1340 | 5320*3320*1340 | 5820*3760*1340 |
Weight | kg | 1050-1100 | 1250-1300 | 1380-1430 | 1500-1550 | 1650-1700 |
Working width | m | 1.8 | 2.2 | 2.5 | 3.0 | 3.4 |
Working depth | mm | 200 | ||||
Disc space | mm | 230 | ||||
Qty. of disc | pc | 16 | 20 | 24 | 28 | 32 |
Dia. Of disc | mm | 660 | ||||
Ground clearance | mm | >160 | ||||
Productivity | ha/h | 1.1 | 1.3 | 1.4 | 1.7 | 1.9 |
Matched power | hp | 44-55 | 50-65 | 55-75 | 60-90 | 65-100 |
Linkage |
| Trailed | ||||
36,40,48,56slice parameter,See the product parameters form | ||||||
