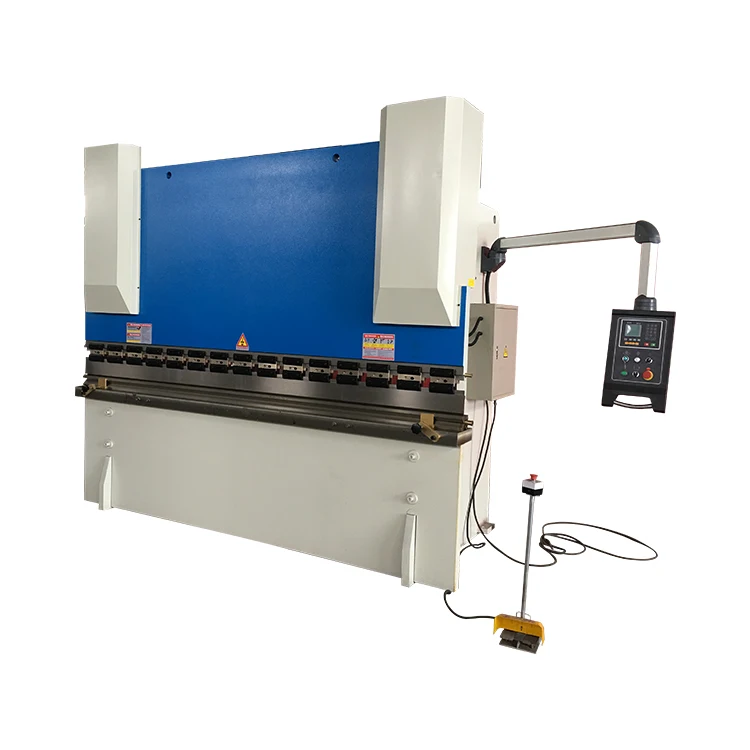

Hydraulic cnc press brake metal bending machine for press tooling

Product Overview

Description

Hydraulic cnc press brake metal bending machine for press tooling

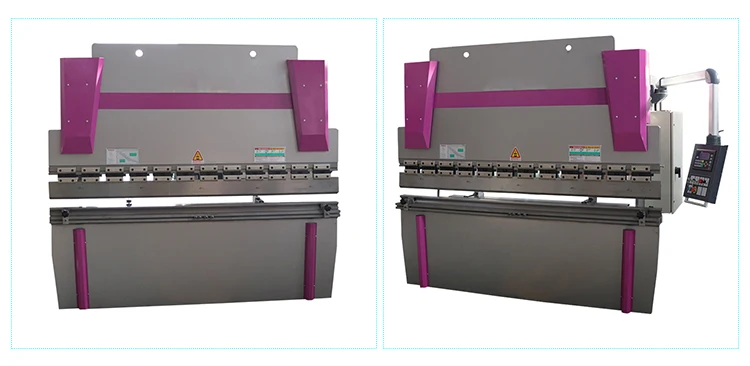

Picture of bending tool for press brake machine:







1,Fully welded steel structure
2,Fast clamping tool
3.Economy and high efficiency



Features of bending tool for press brake machine

1.The whole machine is in sheet plate welded structure, with internal stress eliminated by vibration aging technology, high strength and good rigidity of machine



2.Double hydraulic cylinder is applied for upper transmission, Provided with mechnical limit stopper and sychronous torsinon bar, typical of stable and reliable operation, as well as high precision.



3.Electrical control and manual fine-turuning mode to control the stroke of  Back gauge to slider.and fitted with digital display device, easy and quick in use



4.Upper dies is fiited with deflection compensation device.















Model	Nominal Force	Worktable  Length	Poles Distance	Throat  Depth	Slider  Travel	Max  Open	Power	Dimension
TYPE	KN	(mm)	(mm)	(mm)	(mm)	(mm)	kw	L*W*H(mm)
40t/2200	400	2200	1850	230	100	320	5.5	2250*1200*1910
40t/2500	400	2500	2030	230	100	320	5.5	2550*1200*1910
50t/2500	500	2500	1970	230	100	320	5.5	2550*1210*2000
63t/2500	630	2500	1970	250	100	320	5.5	2550*1300*2210
63t/3200	630	3200	2500	250	100	320	5.5	3250*1300*2210
80t/2500	800	2500	1970	250	100	340	7.5	2550*1450*2300
80t/3200	800	3200	2500	250	100	340	7.5	3250*1450*2300
80t/4000	800	4000	3100	250	100	340	7.5	4050*1450*2400
100t/2500	1000	2500	2000	320	120	370	7.5	2550*1550*2500
100t/3200	1000	3200	2600	320	120	370	7.5	3250*1550*2500
100t/4000	1000	4000	3100	320	120	370	7.5	4050*1550*2500
125t/3200	1250	3200	2600	320	120	370	7.5	3250*1550*2500
125t/4000	1250	4000	3100	320	120	370	7.5	4050*1500*2500
160t/3200	1600	3200	2510	320	200	450	11	3250*1700*2800
160t/4000	1600	4000	3040	320	200	450	11	4050*1700*2800
160t/5000	1600	5000	3800	320	200	450	11	5050*1900*3100
160t/6000	1600	6000	4600	320	200	450	11	6050*1900*3100
200t/3200	2000	3200	2510	320	200	450	15	3250*1950*2800
200t/4000	2000	4000	3040	320	200	450	15	4050*1950*2800
200t/5000	2000	5000	3800	320	200	450	15	5050*1950*3000
200t/6000	2000	6000	5000	320	200	450	15	6050*1950*3300
250t/3200	2500	3200	2510	400	250	560	18.5	3250*2000*3200
250t/4000	2500	4000	3040	400	250	560	18.5	4050*2000*3400
250t/5000	2500	5000	3800	400	250	560	18.5	5050*2000*3400
250t/6000	2500	6000	5000	400	250	560	18.5	6050*2000*3300
