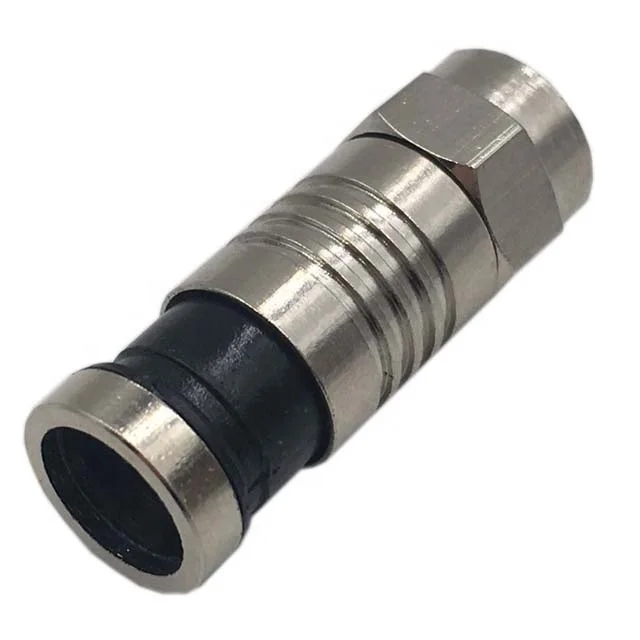

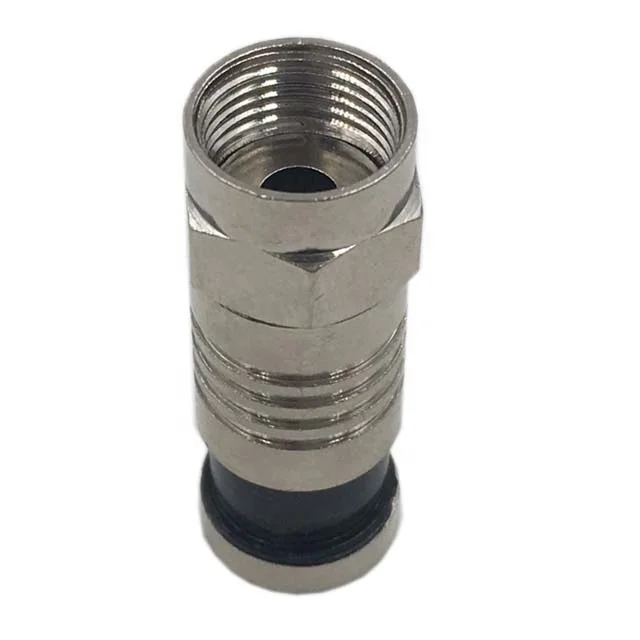

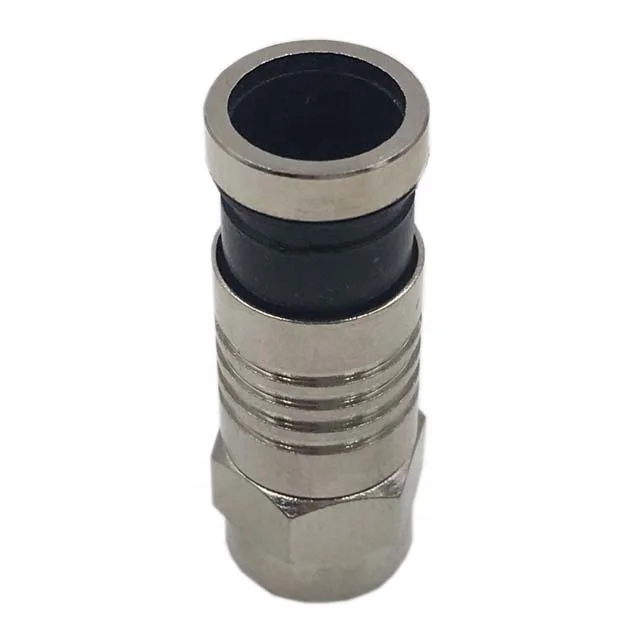

RG6 / RG59 brass zinc coaxial RF compression F connector
- Category: >>>
- Supplier: Zhenjiang Xinhuafeng Electronics Co. Ltd.
Share on (60311738848):
Product Overview
Description
Product Description
high quality brass male RG6 rg59 compression f connector use for 75Ω cable assign system,especially CATV,broadcast television netword.It can already be used for having impedance to mate the occasion required,can be used in not mating the occasion too.It is joined,inserts helping jointly that its charac-teristic is whorl,the price is suitable.
F type joining devices can exchange and use with the similar products in the world.
| Temp.range: | -40~+60°C | Insulation resistance: | ≥ 1000 MΩ |
| Impedance : | 75Ω | Withstand voltage at sea level : | 750V |
| Frequency range: | 0~1GHz | Working voltage : | 170V max |
| Center conductor withdrawal force: | ≥0.49N | VSWR : | Straight ≤1.2 Angle≤1.3 |
| Contact resistance: | center conductor ≤6mΩ , outer conductor ≤1mΩ | Durability : | 500 cycles |
Temp.range : -40~+60°C
Impedance : 75Ω
Frequency range: 0~1GHz
Center conductor withdrawal force ≥0.49N
Contact resistance: center conductor ≤6mΩ , outer conductor ≤1mΩ
Insulation resistance ≥ 1000 MΩ
Withstand voltage at sea level : 750V
Working voltage : 170V max
VSWR : Straight ≤1.2 Angle≤1.3
Durability : 500 cycles
FAQ
1. How about your lead time?
A: it depends on order quantity. Usually 15-45 days.
2.How can we get a sample.
A: Free sample, Freight collected by your side.
3.How to contact us?
A: Just send us enquiry online via Alibaba. Our worker will reply you in 24 hours.
Company Information
ZHENJIANG XINHUAFENG ELECTRONICS CO., LTD was established in 1992. We are a reliable manufacturer and exporter of various coaxial connectors and many other electronic products.
