Welcome Wholesales sheet metal bending machine with press brake cnc
- Category: >>>
- Supplier: Maanshan Fangwei Press Brake Tooling Co. Ltd.
Share on (60311854960):
Product Overview
Description
Product Description

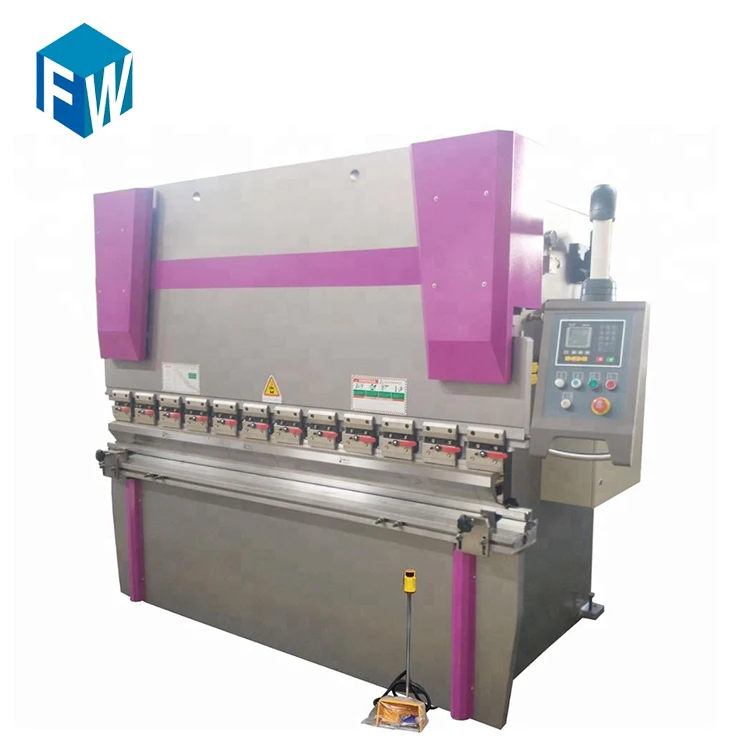

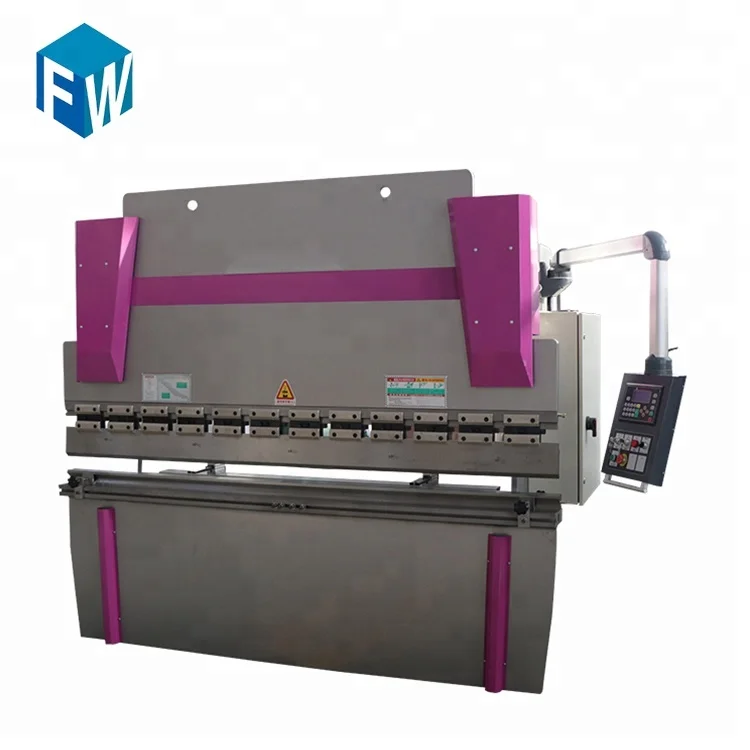

Welcome Wholesales sheet metal bending cutting machine with press brake cnc
| Model |
Nominal Force |
Worktable Length |
Poles Distance |
Throat Depth |
Slider Travel |
Max Open |
Power |
Dimension |
| TYPE | KN | (mm) | (mm) | (mm) | (mm) | (mm) | kw | L*W*H(mm) |
| 40t/2200 | 400 | 2200 | 1850 | 230 | 100 | 320 | 5.5 | 2250*1200*1910 |
| 40t/2500 | 400 | 2500 | 2030 | 230 | 100 | 320 | 5.5 | 2550*1200*1910 |
| 50t/2500 | 500 | 2500 | 1970 | 230 | 100 | 320 | 5.5 | 2550*1210*2000 |
| 63t/2500 | 630 | 2500 | 1970 | 250 | 100 | 320 | 5.5 | 2550*1300*2210 |
| 63t/3200 | 630 | 3200 | 2500 | 250 | 100 | 320 | 5.5 | 3250*1300*2210 |
| 80t/2500 | 800 | 2500 | 1970 | 250 | 100 | 340 | 7.5 | 2550*1450*2300 |
| 80t/3200 | 800 | 3200 | 2500 | 250 | 100 | 340 | 7.5 | 3250*1450*2300 |
| 80t/4000 | 800 | 4000 | 3100 | 250 | 100 | 340 | 7.5 | 4050*1450*2400 |
| 100t/2500 | 1000 | 2500 | 2000 | 320 | 120 | 370 | 7.5 | 2550*1550*2500 |
| 100t/3200 | 1000 | 3200 | 2600 | 320 | 120 | 370 | 7.5 | 3250*1550*2500 |
| 100t/4000 | 1000 | 4000 | 3100 | 320 | 120 | 370 | 7.5 | 4050*1550*2500 |
| 125t/3200 | 1250 | 3200 | 2600 | 320 | 120 | 370 | 7.5 | 3250*1550*2500 |
| 125t/4000 | 1250 | 4000 | 3100 | 320 | 120 | 370 | 7.5 | 4050*1500*2500 |
| 160t/3200 | 1600 | 3200 | 2510 | 320 | 200 | 450 | 11 | 3250*1700*2800 |
| 160t/4000 | 1600 | 4000 | 3040 | 320 | 200 | 450 | 11 | 4050*1700*2800 |
| 160t/5000 | 1600 | 5000 | 3800 | 320 | 200 | 450 | 11 | 5050*1900*3100 |
| 160t/6000 | 1600 | 6000 | 4600 | 320 | 200 | 450 | 11 | 6050*1900*3100 |
| 200t/3200 | 2000 | 3200 | 2510 | 320 | 200 | 450 | 15 | 3250*1950*2800 |
| 200t/4000 | 2000 | 4000 | 3040 | 320 | 200 | 450 | 15 | 4050*1950*2800 |
| 200t/5000 | 2000 | 5000 | 3800 | 320 | 200 | 450 | 15 | 5050*1950*3000 |
| 200t/6000 | 2000 | 6000 | 5000 | 320 | 200 | 450 | 15 | 6050*1950*3300 |
| 250t/3200 | 2500 | 3200 | 2510 | 400 | 250 | 560 | 18.5 | 3250*2000*3200 |
| 250t/4000 | 2500 | 4000 | 3040 | 400 | 250 | 560 | 18.5 | 4050*2000*3400 |
| 250t/5000 | 2500 | 5000 | 3800 | 400 | 250 | 560 | 18.5 | 5050*2000*3400 |
| 250t/6000 | 2500 | 6000 | 5000 | 400 | 250 | 560 | 18.5 | 6050*2000*3300 |
