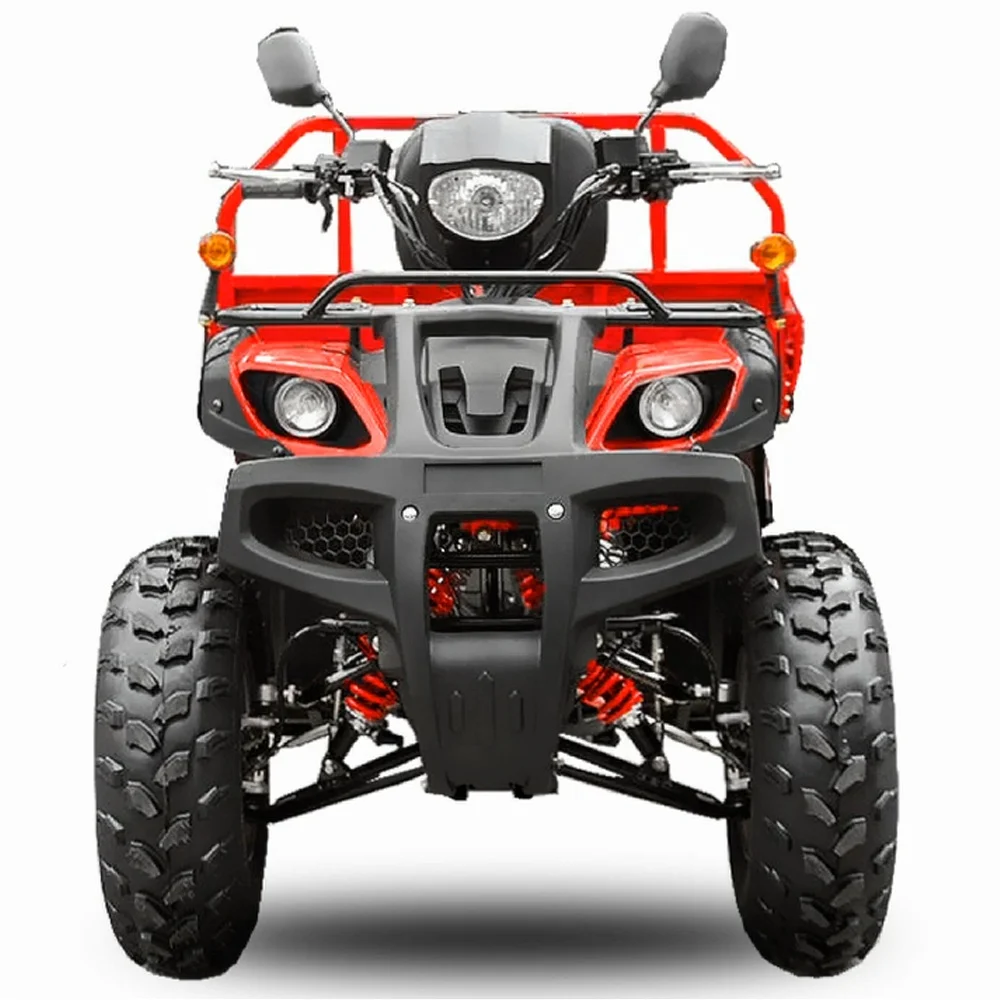

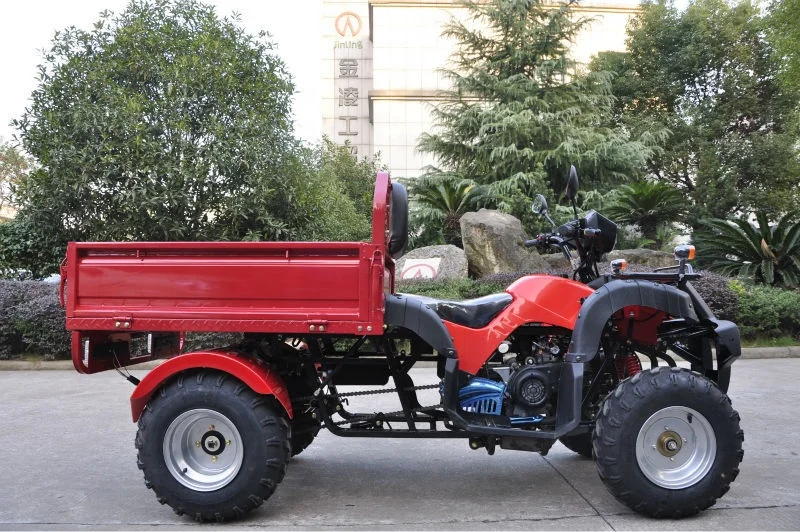

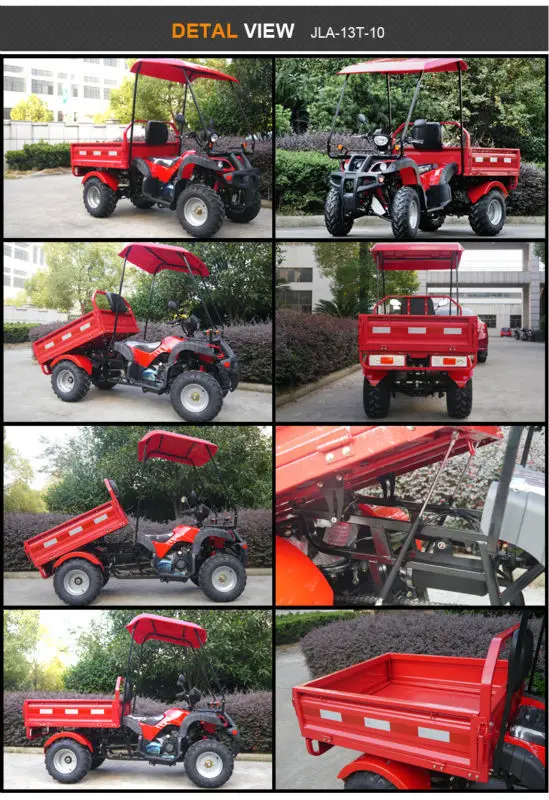

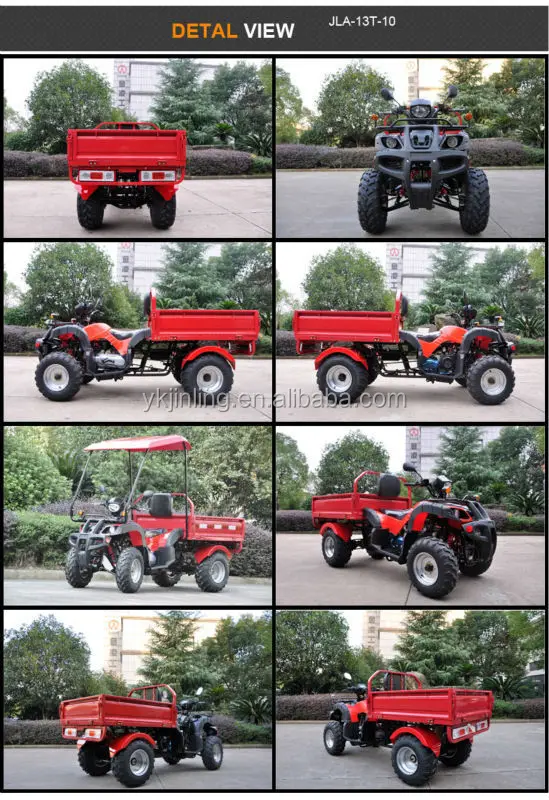

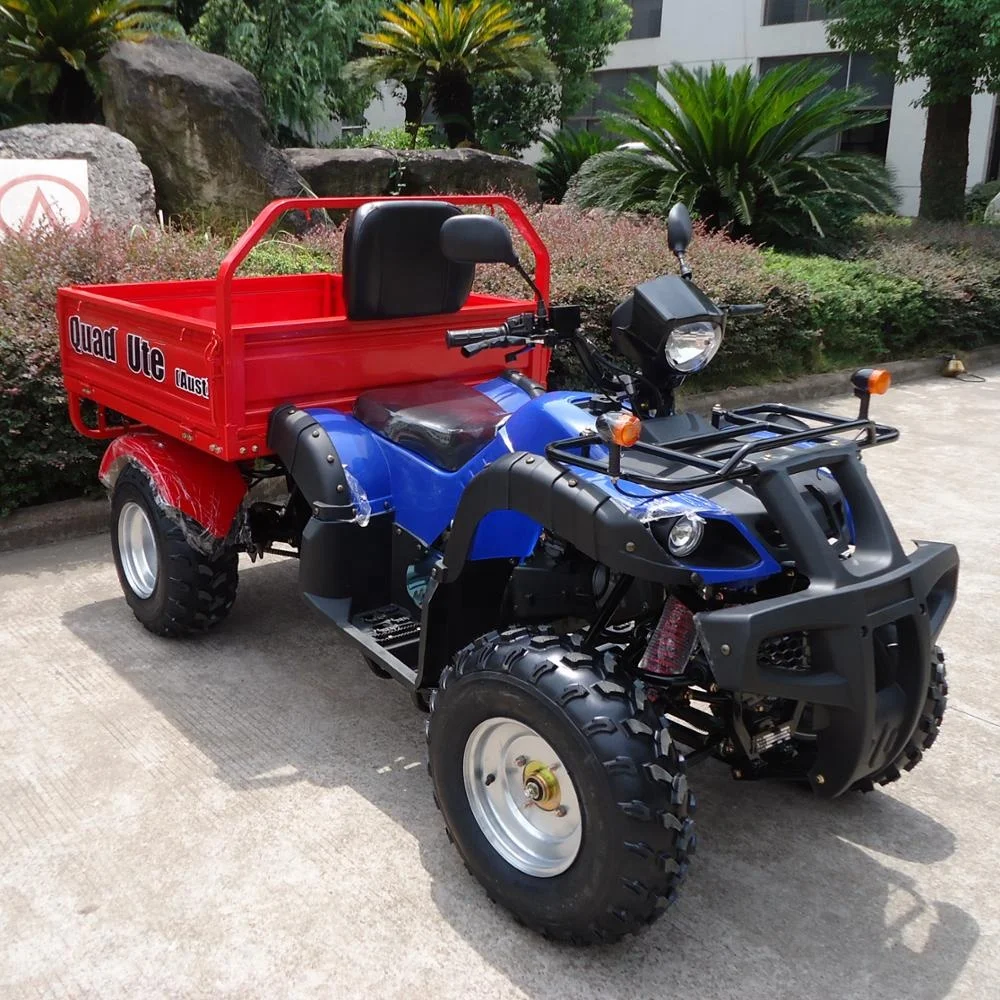

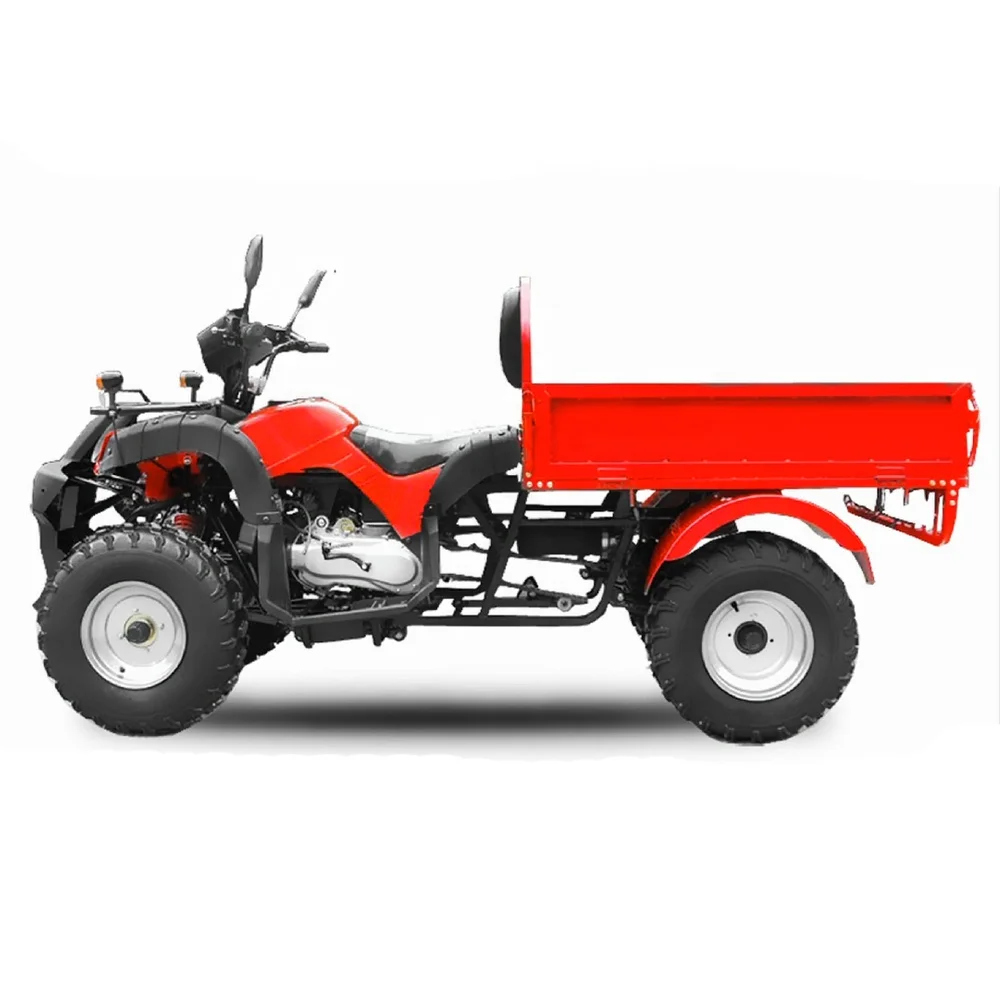

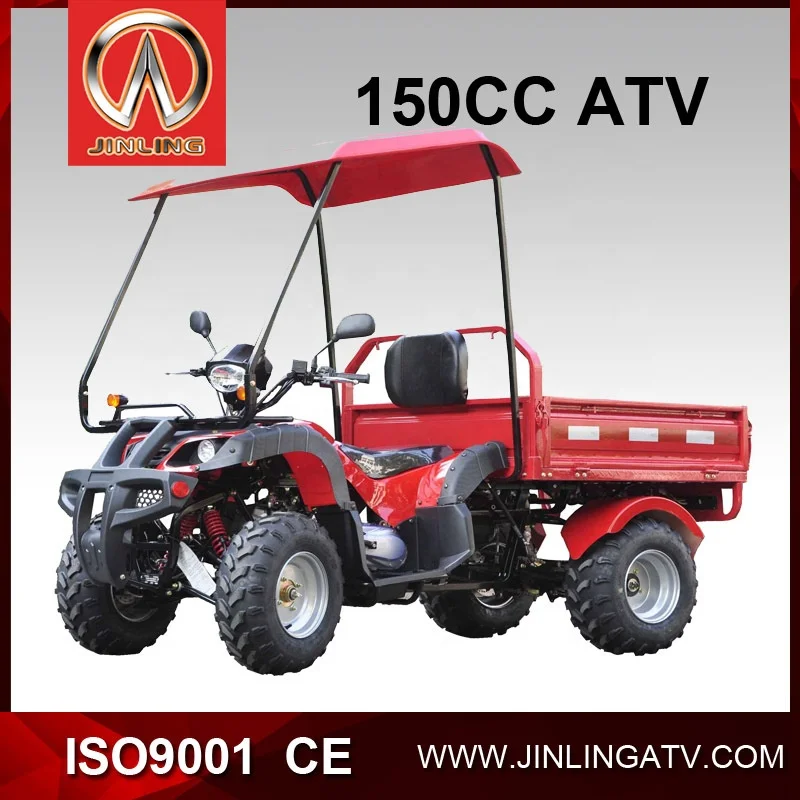

EEC Tilting Farm ATV EEC Farm ATV For Sale
- Category: ATVs & UTVs >>>
- Supplier: Yongkang Jinling Vehicle Co. Ltd.
Share on (60312082417):
Product Overview
Description
EEC Tilting ATV Farm ATV Loading ATV,EEC Farm ATV For Sale
Product Description
| IDENTIFICATION | |
| 1.Model No. | JLA-13T-10-10C-150 |
| 2.Warranty | one year for engine, 6months for other parts |
| 3.Model No. in EEC certifcate | |
| ENGINE | |
| 4.Cylinder | Single |
| 5.Cooled System | Air |
| 6.Engine Stroke | 4 Stroke |
| 7.Bore*Stroke(mm) | 57.4×57.8mm |
| 8.Displacement(ml) | 149.6(150cc) |
| 9.Max.power(kw/rpm) | 7.0kw/7500rpm |
| 10.Max.torque(n.m/rpm) | 8.3N.m/5000rpm |
| 11.Ignition Type | CDI |
| TRANSMISSION | |
| 12.Transmission Type | CVT F-N-R,Reverse gear |
| 13.Primary Drive(Rear Wheel) | Shaft |
| 14.Reverse | Yes |
| 15.Max Speed(km/h) | >50 |
| WHEEL | |
| 16.Front wheel | 21x7-10 |
| 17.Rear wheel | 20x10-10 |
| SUSPENSION | |
| 18.Front Suspension | Double A-Swing Arm |
| 19.Rear Suspension | Swing Arm |
| BRAKE SYSTEM | |
| 20.Front brake | Drum |
| 21.Rear brake | Disc |
| 22.Braking distance | 8m(30km/h) |
| TECHINCAL SPECIFICATIONS | |
| 23.Product Dimensions(mm) | 2530x1075x1120 |
| 24.Ground Clearance(mm) | 220 |
| 25.Wheelbase(mm) | 1580 |
| 26.Mini Turning Radius(mm) | 2800mm |
| 27..gross weight(kg) | 245 |
| 28. net weight(kgs) | 215 |
| 29.Fuel Capacity(L) | 8 L |
| 30.Fuel consumption | 4.0L/100KM |
| SEAT | |
| 31.Seat Height(mm) | 70 |
| 32.Number of Seats | 1 |
| COLOR | |
| 33.Standard Color | Red/Yellow/Blue/Green/Black/White |
| 34.Optional Color | Green camo,Yellow camo,Snow Camo,Metallic,Carbon |
| LOADING | |
| 35.Packing Size(mm) | 1960x900x710 (Steel frame inside,carton outside) |
| 36.Quantity | 20FT:18PCS, 40HQ:36PCS |
