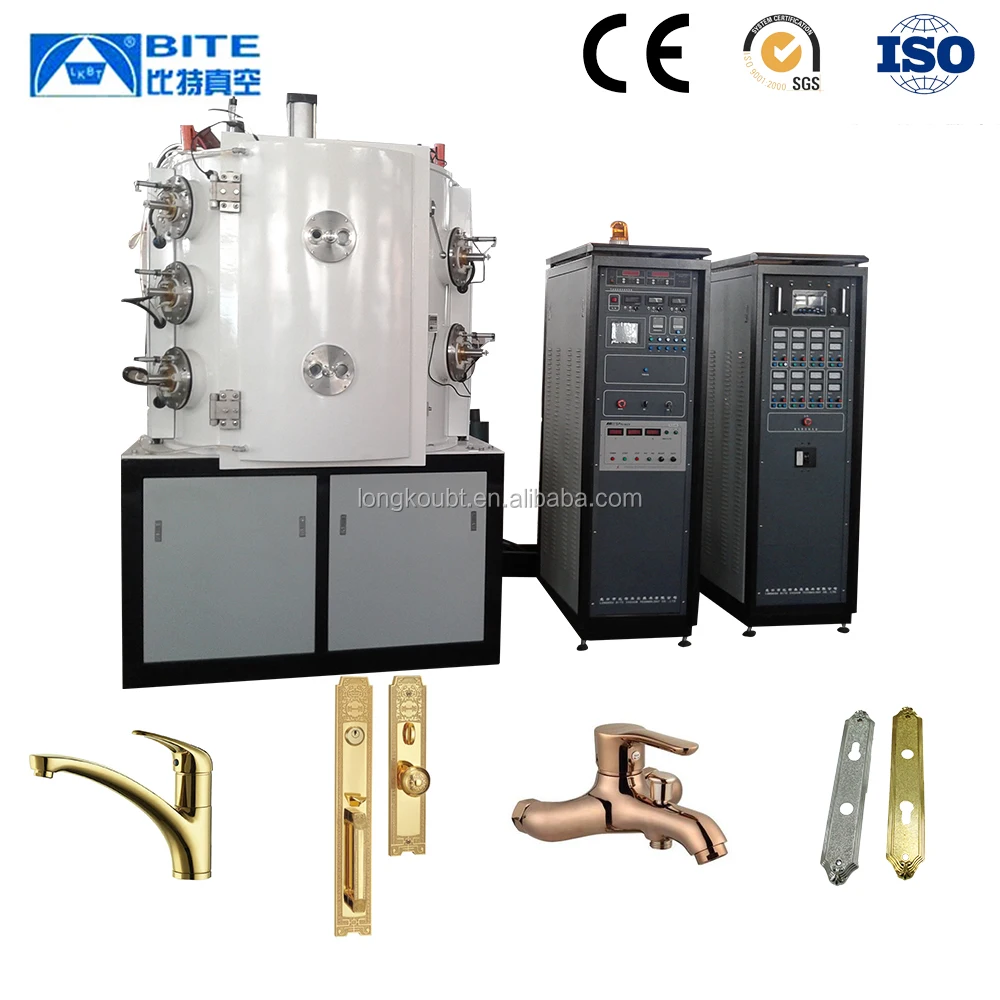

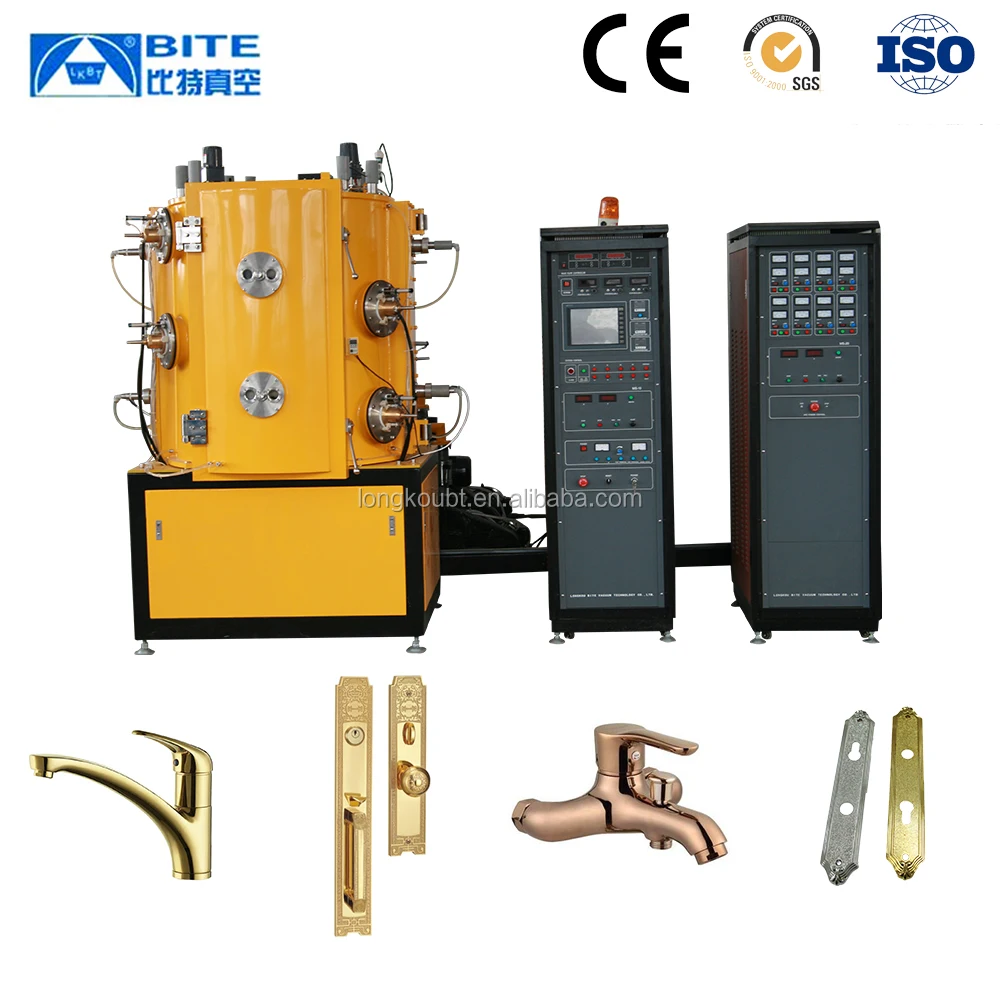

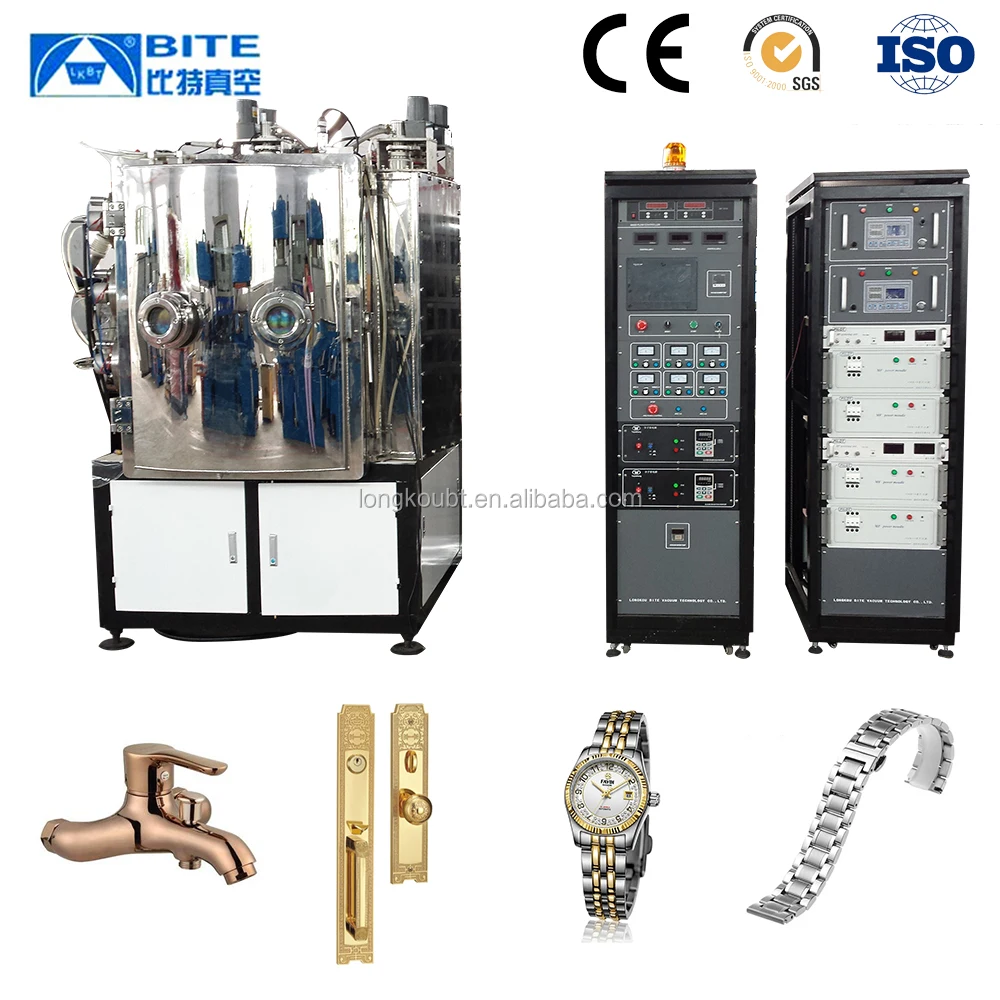

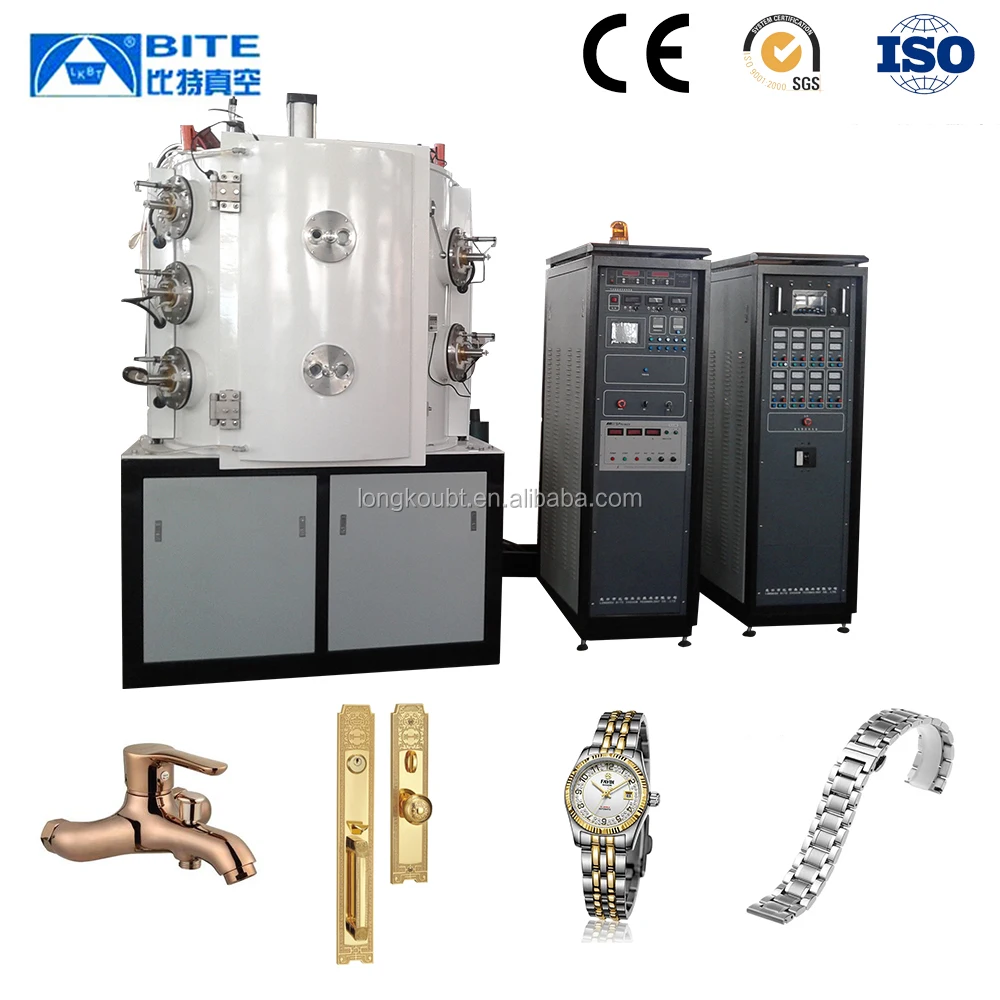

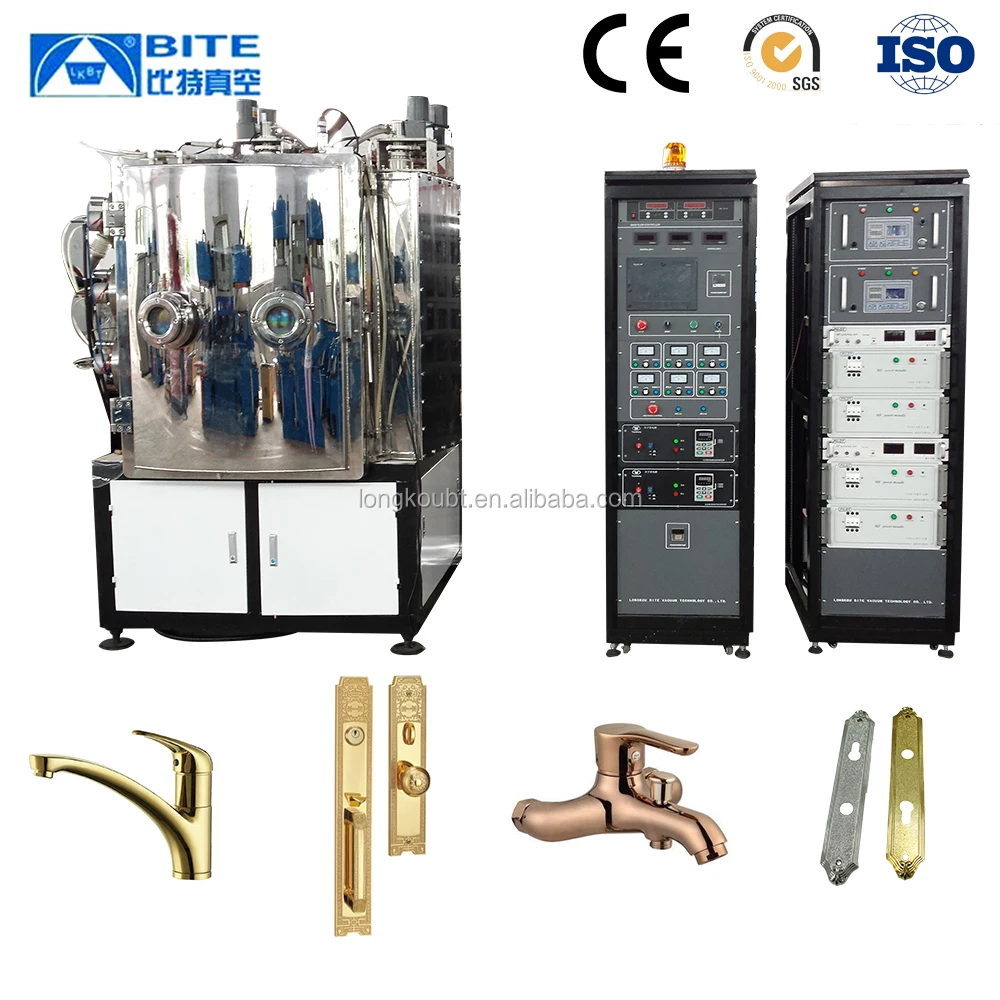

PVD Multi arc Plasma Roots Pump Vacuum Gold Coating Machine/Jewelery Gold Chain Vacuum Magnetron Sputtering Coating Machine

Product Overview

Description









Jewelery Gold Vacuum Magnetron Sputtering Coating Machine

1 jewelry gold  vacuum coting  technology is an environment friendly method of surface treatment that can obtain metal film (Al, Ti, Zr, Cr, etc.) under vacuum ambient.

2TiN, TiC, multilayer film, compound film and other ceramic membrane layers can protect the surface of metal from wearing, high temperature, corrosion, oxidation, radiation

3 jewelry gold coating machine with the excellent performance of electric/magnetic conduction, insulation and decorative effects, to better the product quality, prolong the lifespan of the products, save energy and gain more outstanding technological and economic benefits.

4 PVD  plating film is anti- exfoiliation, oxidation, or color fading.

5 The surface is easy to clean and hard to form dirty stains.

6 This plating technology is very low-cost, and can be applied to metal, stainless steel, glass, ceramics, etc.

7 Main plating colors include: golden, brown, bronze, grey, black, and rainbow colors etc.



Features:

multiarc ion coating equipment is a kind of ion plating equipment with high efficient, harmless, no pollution, have fast deposition speed, high ionization rate, big ion energy, simple operation, low cost, large production etc. This equipment uses the surface nitridation of titanium doped gold technology, form the ion gold film, good abrasion resistance, widely used in all kinds of high-grade decoration film.



Function: principle of vacuum arc ion is self-sustaining cold cathode arc bright discharge combined with pulse technology and magnetron sputtering deposition, make particle refinement, the performance of the film was improved. It can make coating on metal product surface and can be coated in non-metal product surface product, can be deposited metal film, titanium nitride, titanium carbide, zirconium nitride, chromium nitride, and titanium, nickel, chromium, copper, etc. compound film, multilayer super hard, titanium nitride mixed with gold film and alloy film, and can complete all the machining process in a very short time, is a kind of efficient multi-functional coating device



Application:

widely used in tool, die super hard coatings, golf, tabulation, hotel supplies, sanitary ware, lamps and lanterns, glasses frames, hardware locks, watch parts, hinges, hardware and other surface treatment.



Our vacuum coating equipment  have acquired the TUV certification



	Parameters	Model No.	Quantity
The structure of the vacuum chamber	Vertical front door , Double or cooling tank cooling
dimension of vacuum chamber	900×1000		1
pumping speed	1×105Pa~3×10-3Pa≤15min
limit vacuum	≤8×10-4Pa
system form a complete set	Maintaining the pump	2X-15	1
	Mechanical pump	2X-70	1
	Diffusion pump	KT-500	1
	roots-type pump	ZJP-300
workpiece system	Rotation of the planet forms(8 roating shaft, since the amount)		8
heating methods	Edge installation of stainless steel heating tube		4
ion bombardment	20KW inverter bias	PLS-20KW	1
Arc target	40-200A adjustable	TIG-250	3
magnetron target amount	one plane target or Cylindrical target		2
Magnetron power	30KW IF power	MF-30KW	1
working methods	PLC semi-auto control or PC+PLC auto control
working gas	Ar N2 O2
total power	40KW
compress air	0.4~0.8MPa
water-cooling system	hydraulic pressure/water temperature:≤25°C/≥0.25MPa(user provide for himself)

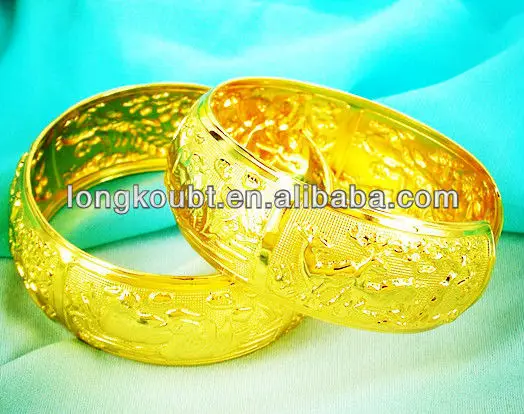

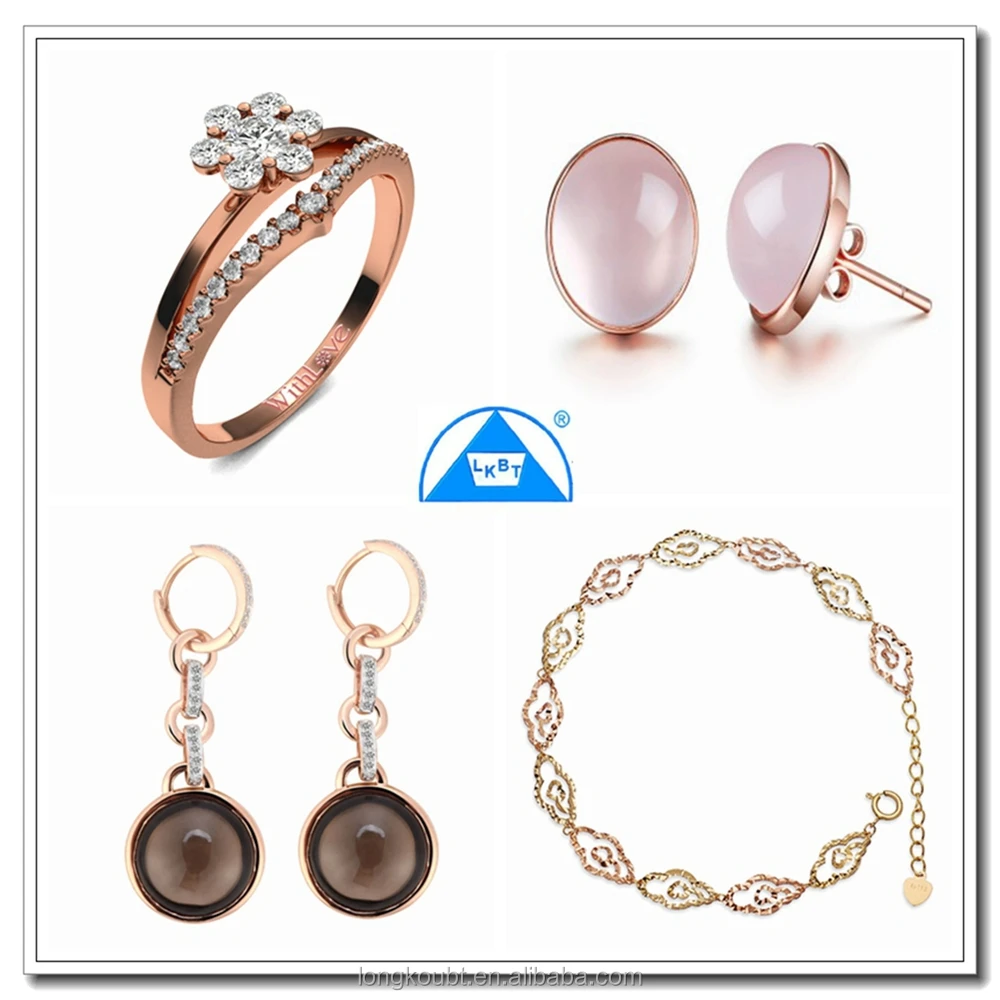

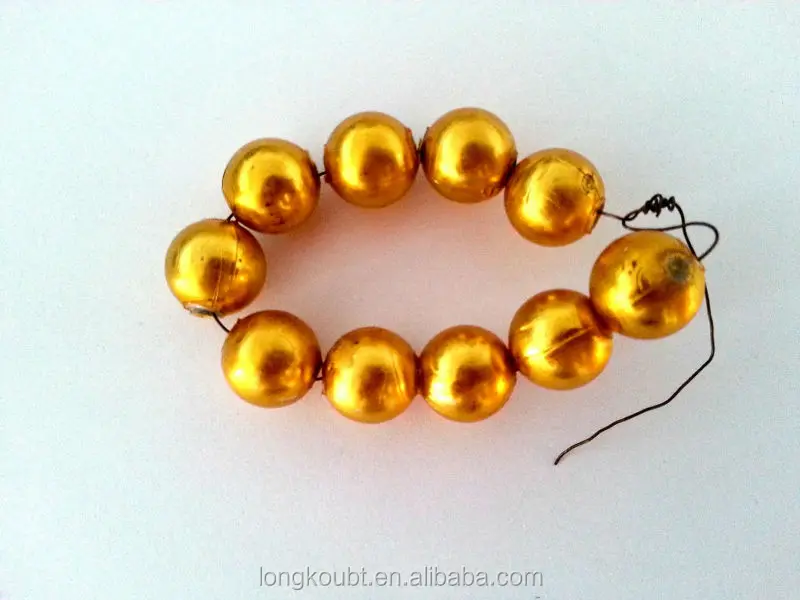

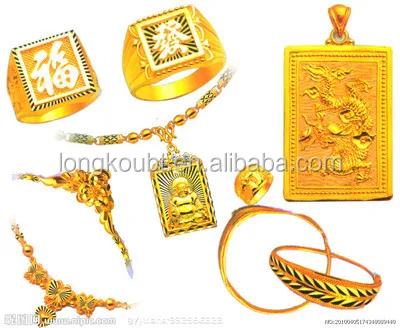

Fine Finshed Sample







We can also finish to coat:

Bright and firm finish

Anti-corrosion and oxidation













Introduction  For PVD vacuum coating/plating equipment

 pvd vacuum plating equipment by touch screen and PLC control, multi arc magnetron coating technology with computer, equipped with automatic shifting vacuum gauge, flow controller, bias power supply, automatic temperature control inverter arc power, side mounted type heating pipe, computer PID. In addition, widely used in plating titanium nitride, titanium carbide, zirconium nitride, chromium nitride and titanium, nickel, chromium, copper, gold and silver, is a multifunctional equipment decoration industry much needed. Ion film plating using the equipment, good wear resistance, high ionization rate, fast deposition speed, stable performance, color diversity.

At present, can be plated film color is golden yellow, Coffee color, bronze, gray, black, blue, rose and seven color and so on, to have the film adhesion, the density, from the characteristics, complexity and color consistency and good and, due to the use of the process of coating is a physical method of up-to-date, no "three wastes" emissions, has shown strong vitality and market competitiveness.



♥ ♥ ♥ ♥   Packing/Loding/Shipping ♥ ♥ ♥ ♥

Professional packaging for export in case damage duiring shiping

On time delivery

Wooden packing, Carton packing or customized
