75 Ohm BNC Connector Crimp Jack for RG59





1. ISO 9001 & IATF 16949 certified


2. RoHS & REACH compliance


3. Made in Taiwan








Features:



  1. Bayonet coupling, small size and low cost.

  2. 50Ω and 75Ω are available and intermateable

  3. Various options for different applications


Applications:



  1. Antennas

  2. Broadcast

  3. Radios

  4. Telecom


Electronical Specifications












































Impedance50Ω75Ω
Frequency Range0-4 GHz0-2 GHz
Working Voltage500 VRMS max. at sea level500 VRMS max. at sea level
Dielectric Withstanding Voltage1500 VRMS min. at sea level1500 VRMS min. at sea level
VSWRStraight: 1.3 max.,  R/A: 1.5 max.Straight: 1.3 max.,  R/A: 1.5 max.
Contact ResistanceCenter Contact: 3 milliohm Max.Center Contact: 3 milliohm Max.
Outer Contact: 2 milliohm Max.Outer Contact: 2 milliohm Max.
Insulator Resistance5000 megaohms min.5000 megaohms min.







Material Specifications









































Parts NameMaterialFinish
Center ContactMaleBrass3u" Gold or Silver per requirement
FemaleBeCu or P. Bronze3u" Gold or Silver per requirement
Body, Metal PartsBrassNickel
InsulatorsPTFE, POM, PBTNone
Clamp GasketsSilicone rubberNone
Crimp FerrulesAnnealed copperNickle or Silver per requirement

Note: Other Material/Finish is available on request





0Aa





Factory





ISO9001





TS16949


BNC Connector

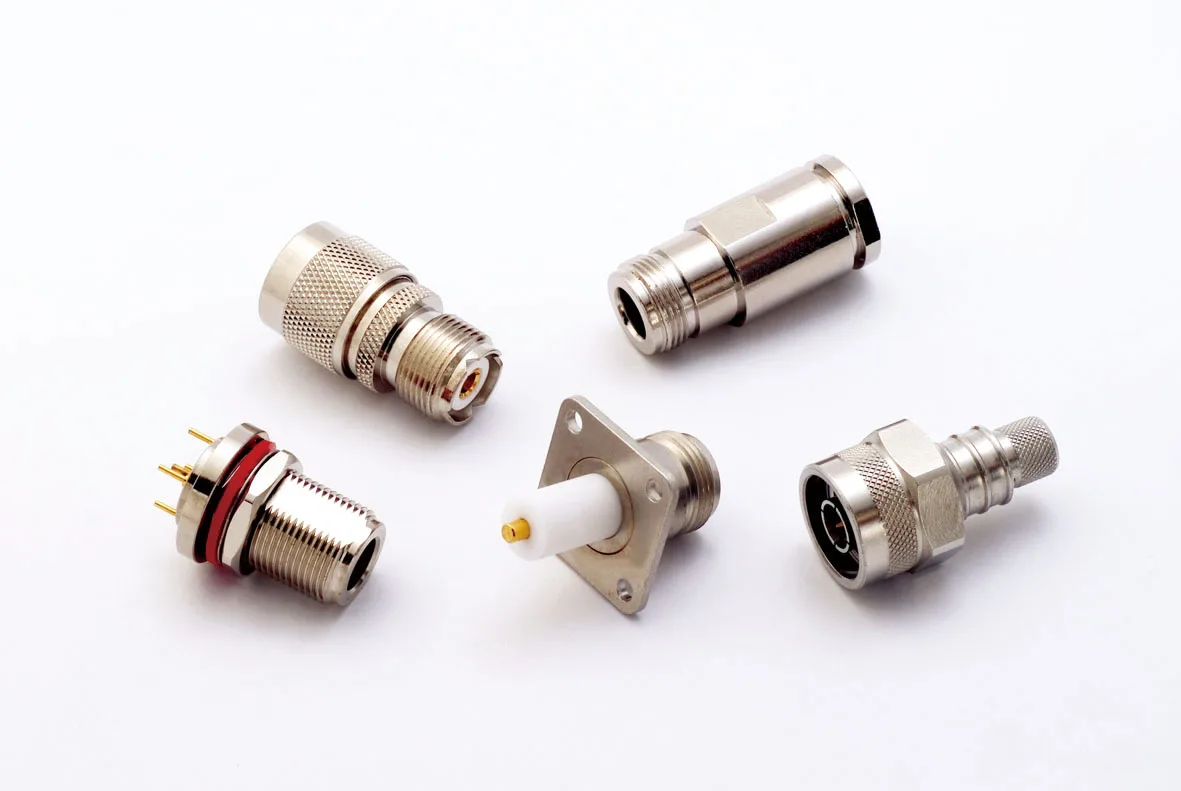

n connector
