High strength perforated gypsum board for acoustic ceiling and wall panels plasterboard
- Category: >>>
- Supplier: Jiangyin Dego Building Materials Co. Ltd.Jiangyin Ltd.
Share on (60312446664):
Product Overview
Description

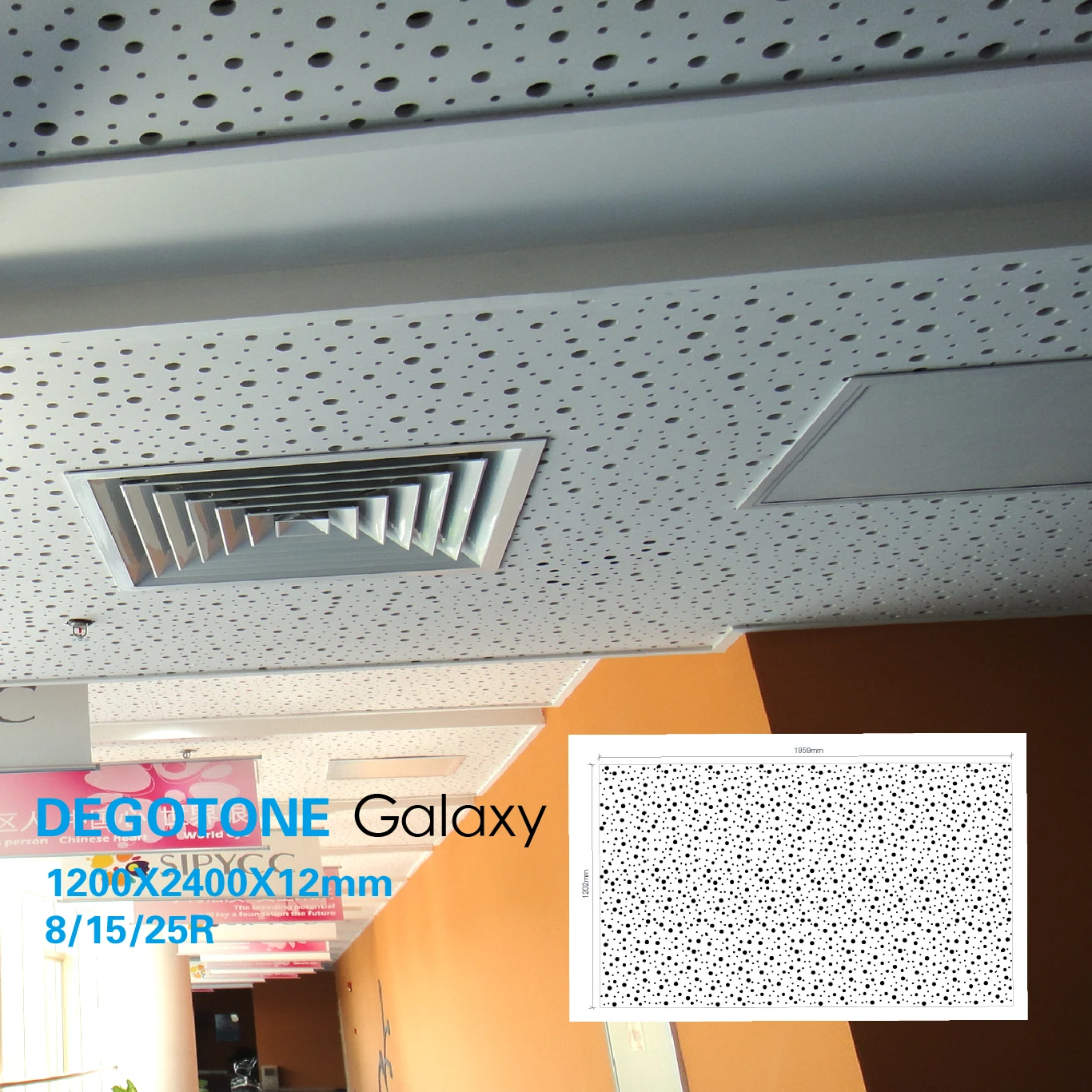

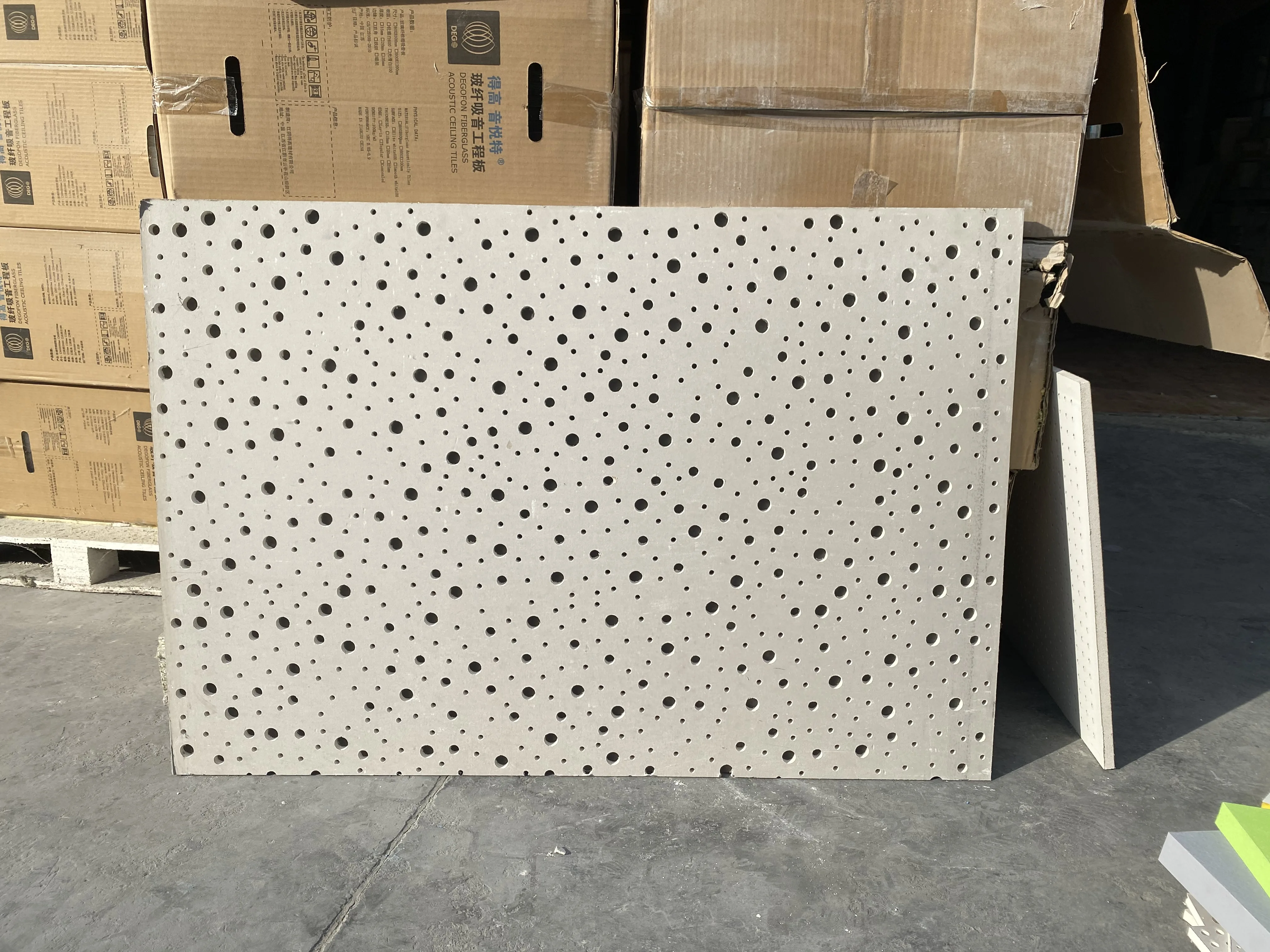

Degotone Galaxy (8-15-20 Super)
An irregular scattered pattern consisting of 8mm, 15mm and 20mm round perforations, providing a 10% open area. Supplied with a white orblack acoustic fabric backing.

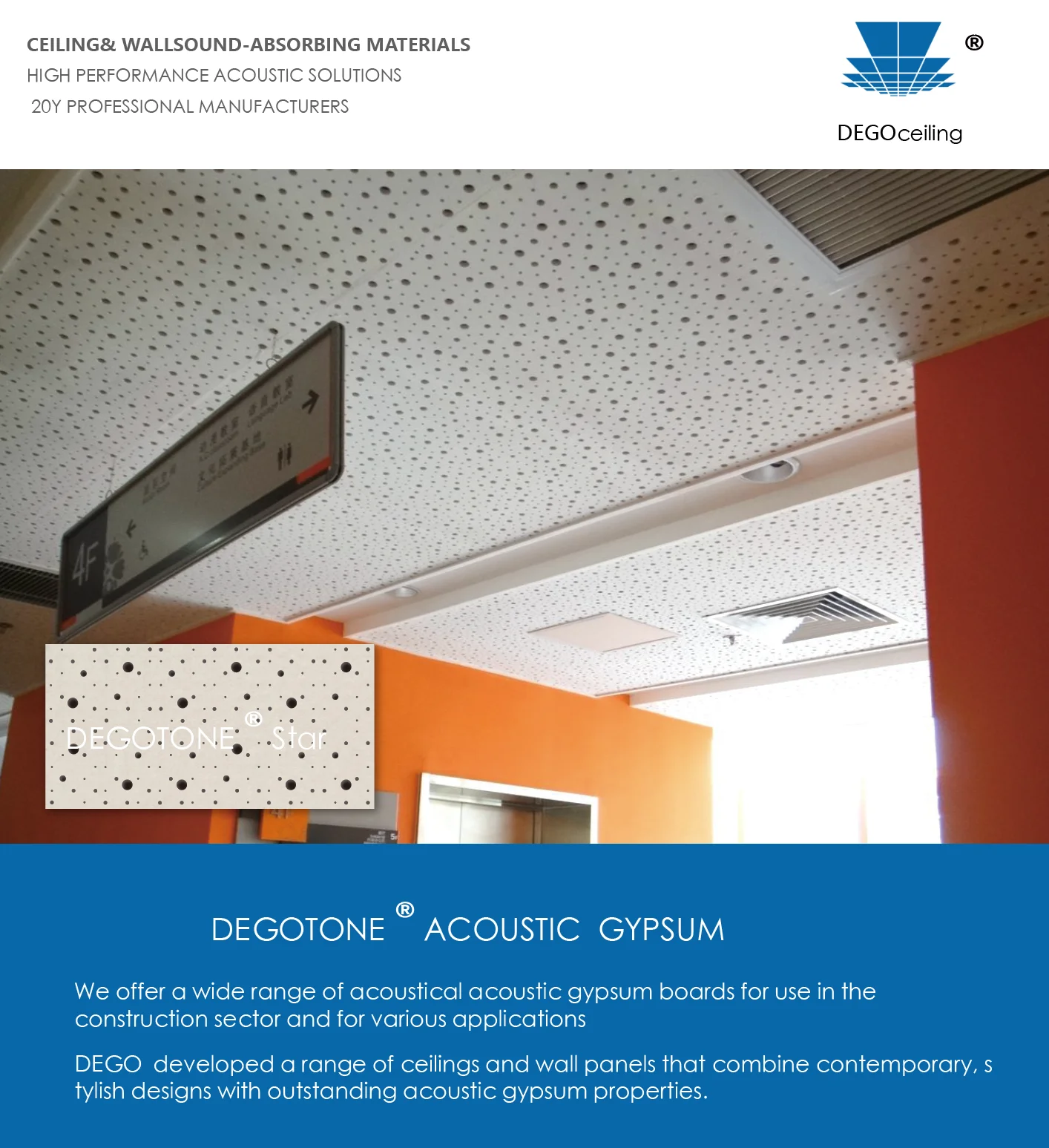

DEGOTONE boards bring a feeling of
space to offices, shops, restaurants and other buildings where acoustic ambience is important. Geometric design perforated gypsumboards with an integral sound absorbent tissue backing. Provide jointless finish ready for decoration on site.

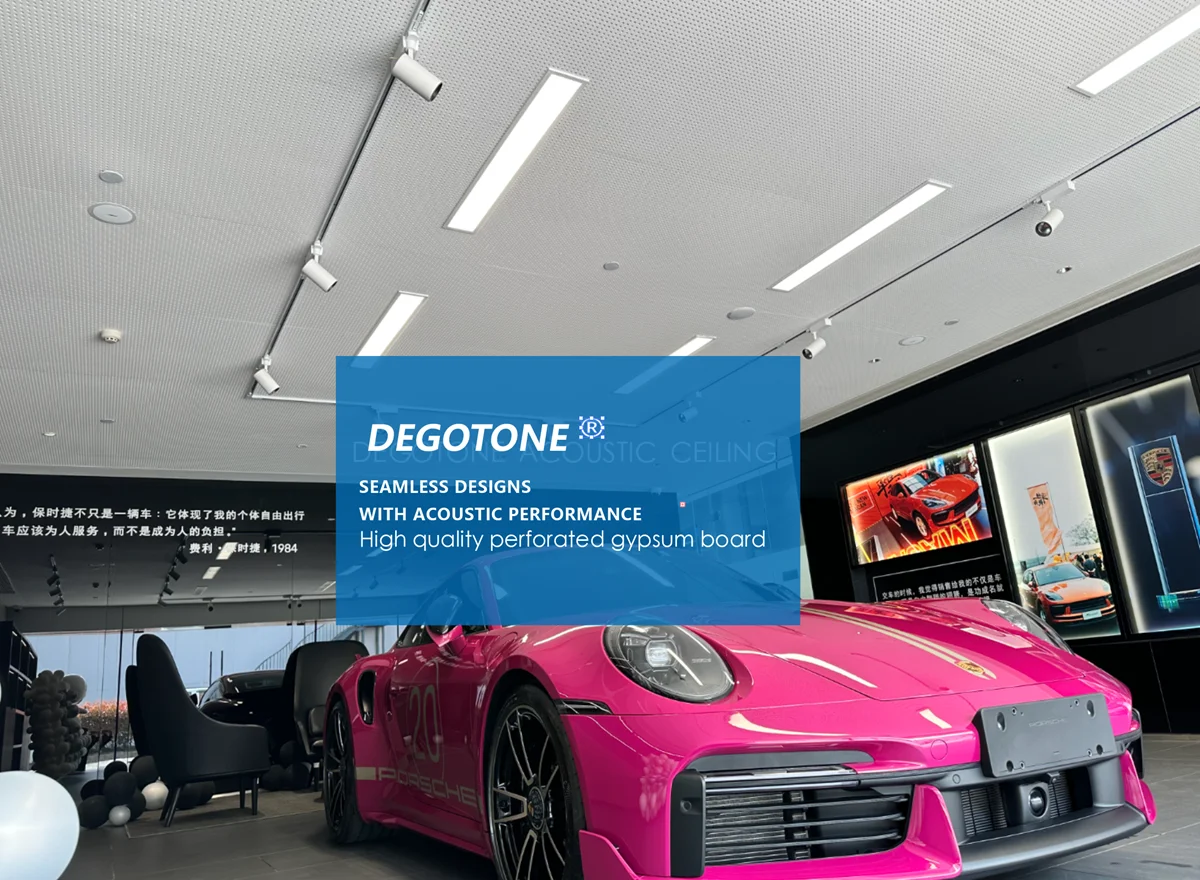

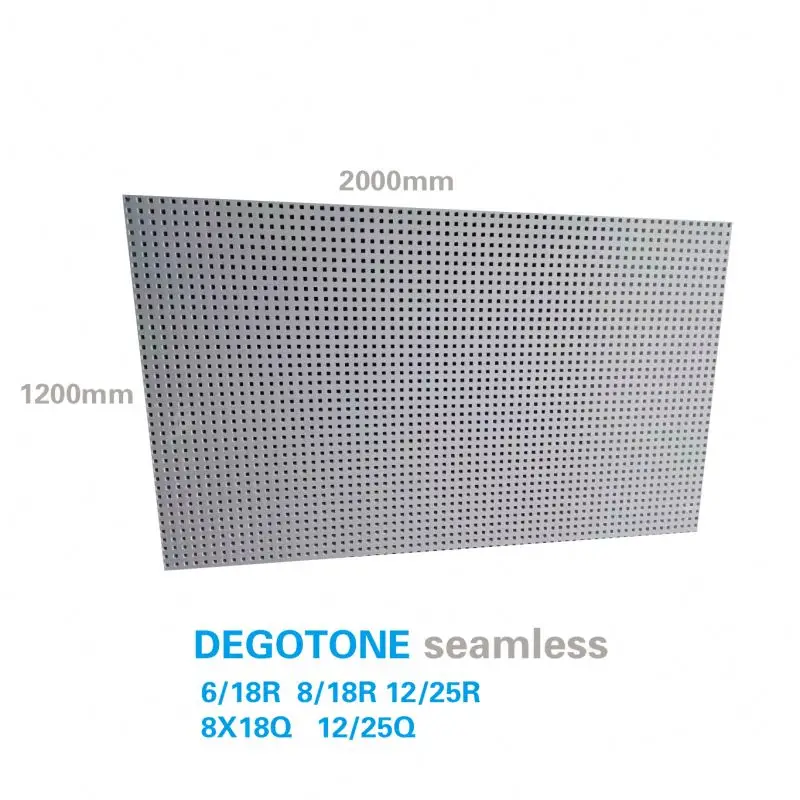

Degotone Seamless
DEGO perforated plasterboard is a superior and modernacoustic solution that delivers a monolithic design due to its
edge to edge pattern layouts. The DEGOTONE range combines functionality and aesthetics in the modern design of ceilings.Integrating lighting, ventilation systems, loudspeakers and such is straightforward and simple. Due to the variety of perforationsizes and patterns, board dimensions vary slightly but are nominally 1200mm x 2000mm x 12.5mm
edge to edge pattern layouts. The DEGOTONE range combines functionality and aesthetics in the modern design of ceilings.Integrating lighting, ventilation systems, loudspeakers and such is straightforward and simple. Due to the variety of perforationsizes and patterns, board dimensions vary slightly but are nominally 1200mm x 2000mm x 12.5mm

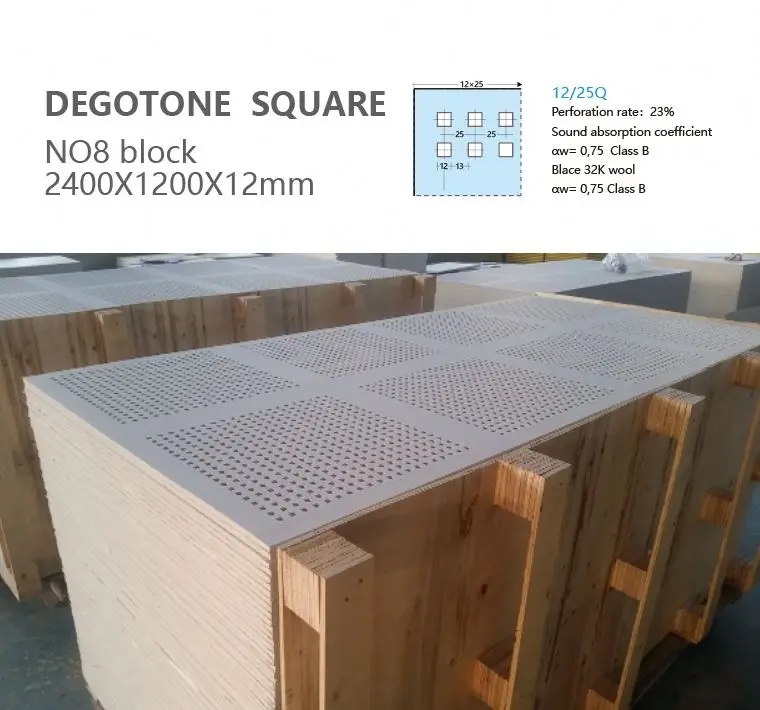

Square Q2000
Size:2000X1200X12.5mm
Hole :8X8 square CC 18mm
Hole :8X8 square CC 18mm
Perforation rate：18%
Sound absorption
αw= 0,65 Class D
Fire ：A2
Material: | High-strength plasterboard Gypsumboard | ||||||
Surface: | Ivory white （No paint） | ||||||
Color | White | ||||||
Hole | Round 6 812 15mm，squarel 8x8 10x10 12 x 12 mm. Micro M 3 x 3 mm | ||||||
Sizs： | 1200*2400mm，2000*12OOmm ceiling tiles 600X600mm | ||||||
Thickness | 12.5mm | ||||||
Weight | 7.7kg/m2 | ||||||
Edge | Square ,Tegular | ||||||
Perforation rate | 9-21.3% | ||||||
Back | 45g/m2 Sound absorption fabric | ||||||
Fireproof class | A2 -s1d0 ,China | ||||||
Acoustic performance | αwup to 0.65 - NRC up to 0.65 - Dncwup to 39dB | ||||||
Moisture resistance | RH70 | ||||||
Suspension system | Ceiling grid (Ceiling T bar) | ||||||

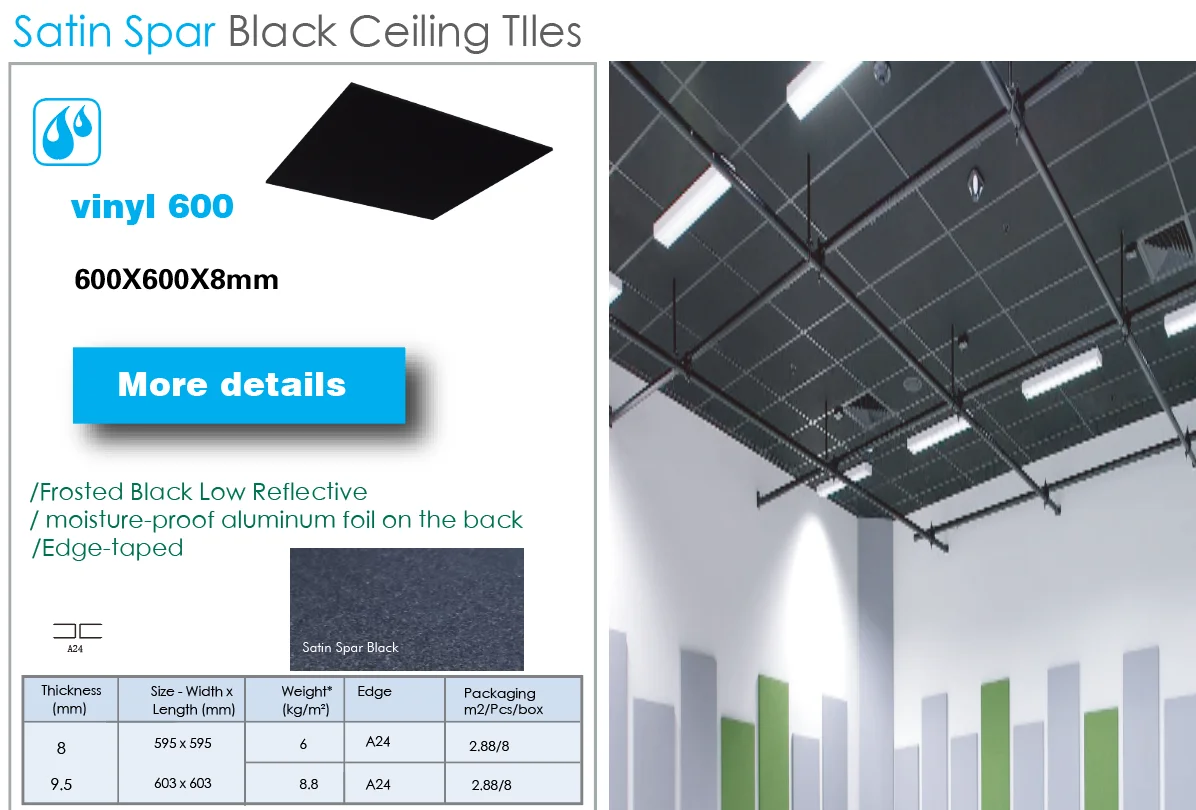

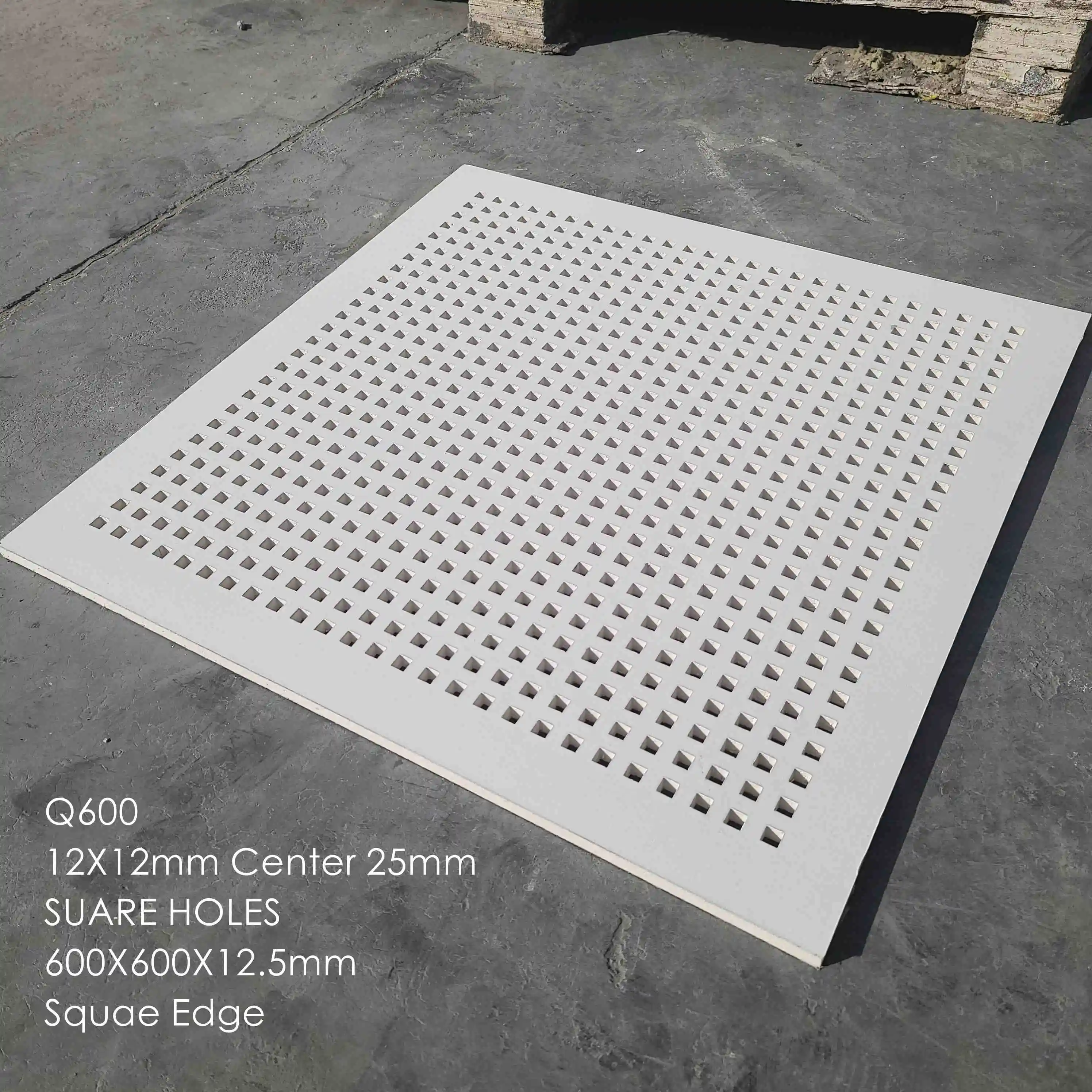

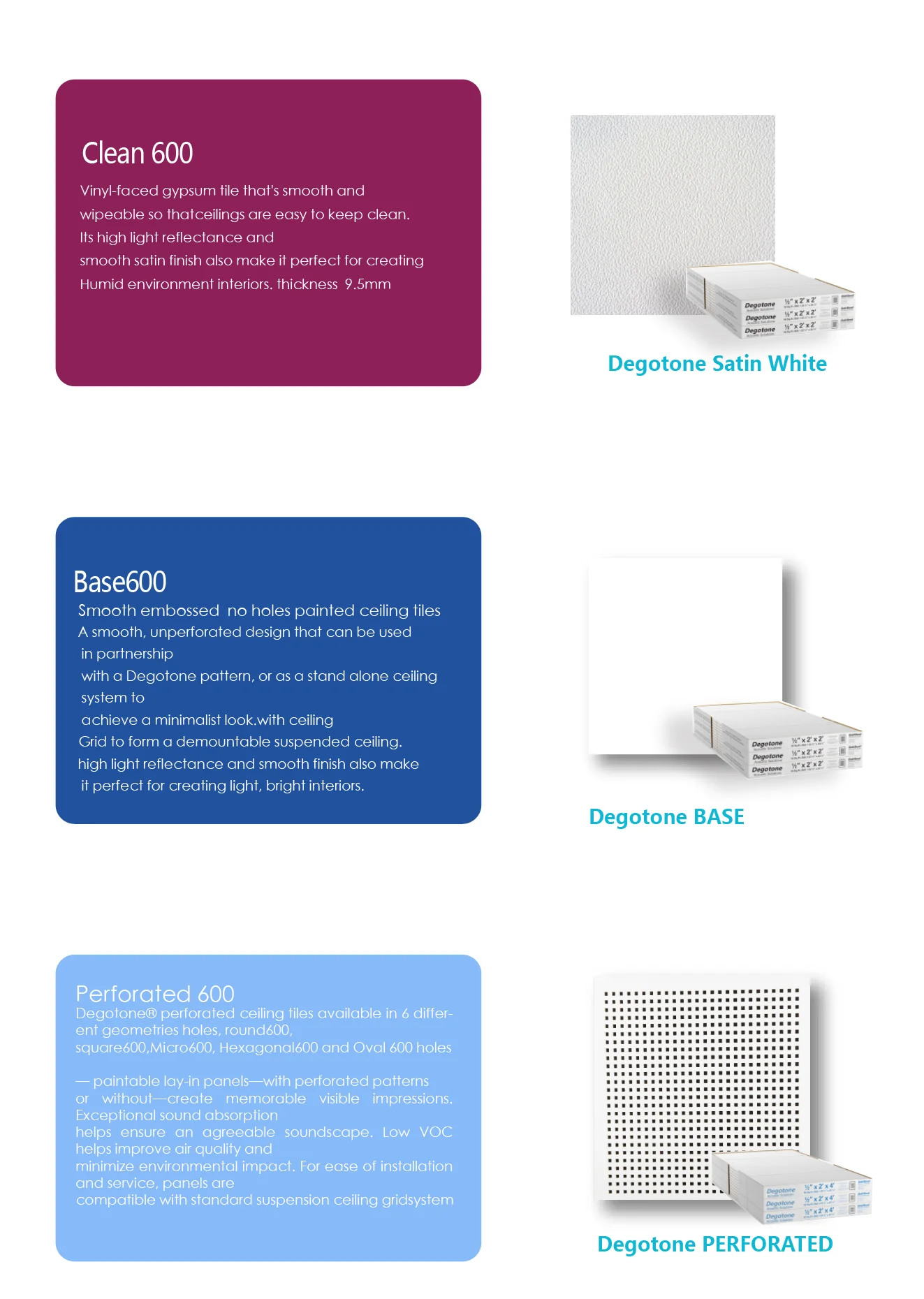

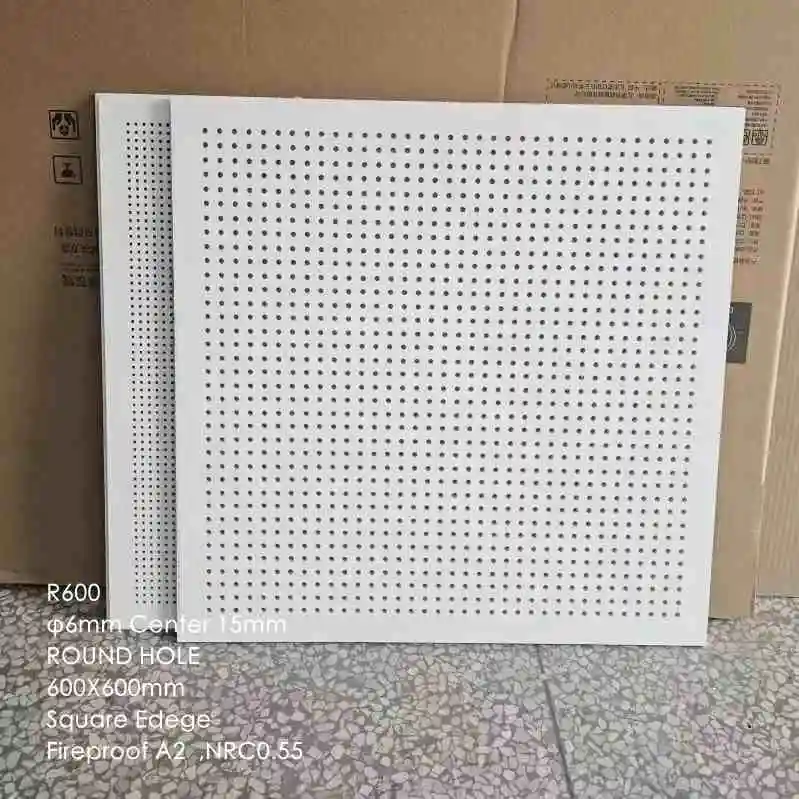

DEGOTONE TILES （600X600mm）
A range of ceilings and wall panels that combine modern and stylish design with outstanding acoustic properties, factory finished, perforated and non-perforated, removable modular ceilings, right angle A24 and T5 edges

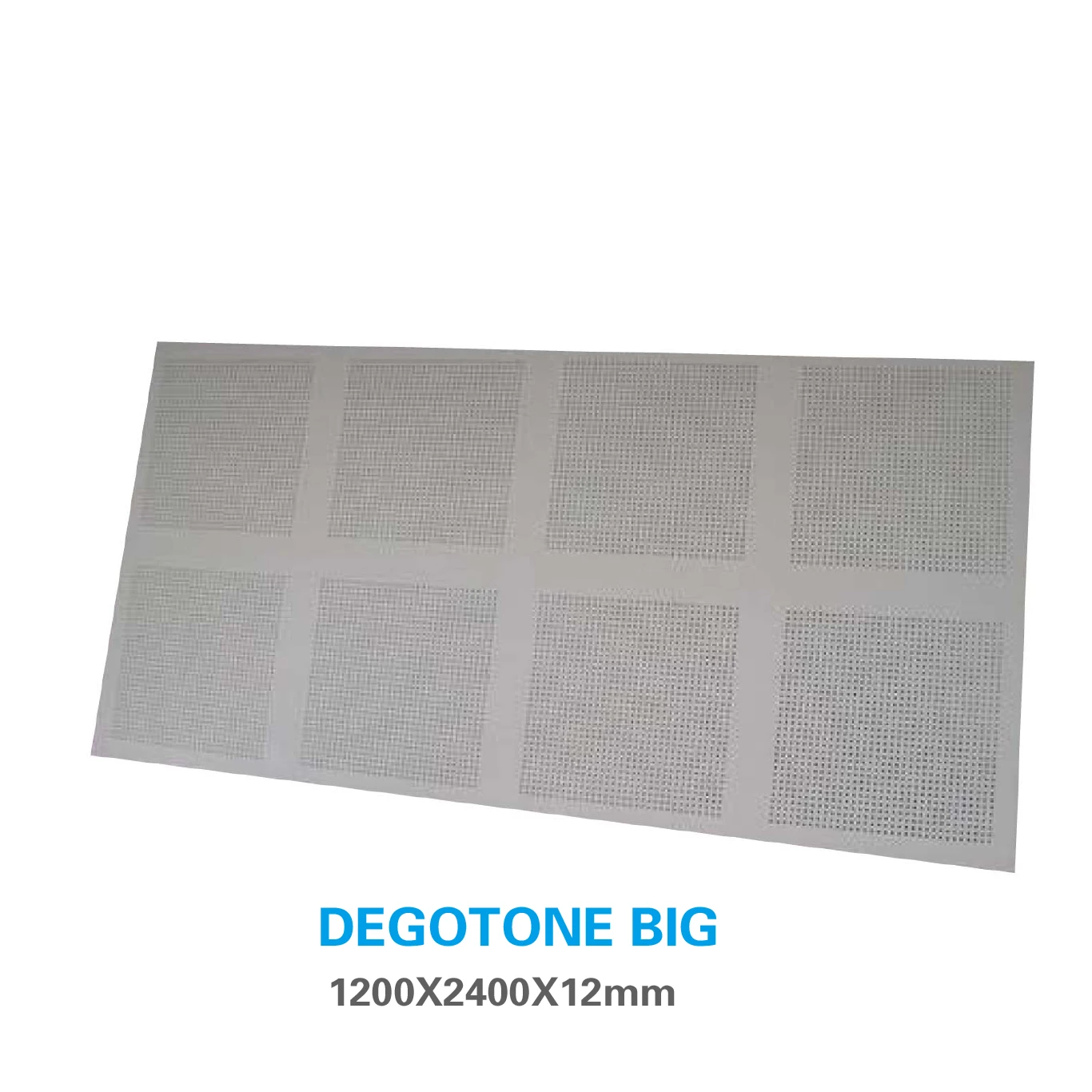

MORE DEGOTONE GYPSUM PRODUCTS

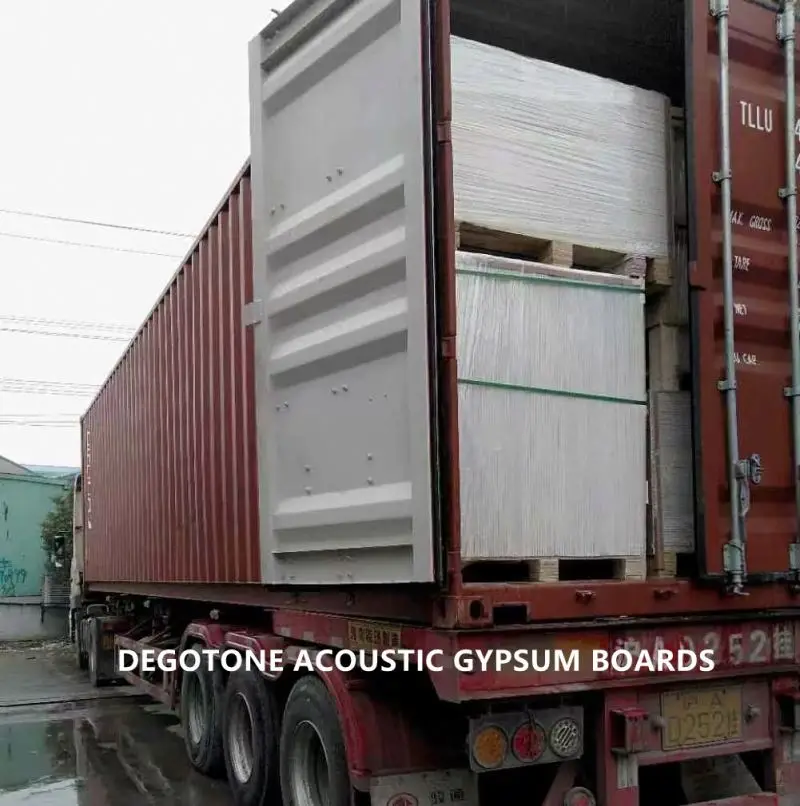

Loading and packing
DEGOCEILING FACTORY
DEGO develops, manufactures and markets acoustic panels baffles and ceiling tiles systems.20 years of experience in many projects through architects, designers, agents, OEMs of famous brand companies
Our acoustic products cover glass fiber, rock wool, mineral wool, gypsum materials .
Customized surface textures, colors, shapes and modular standard products ，High quality products to serve many customers
We offer a wide range of acoustic ceilings for all purposes. Explore our comprehensive product systems.
Customized surface textures, colors, shapes and modular standard products ，High quality products to serve many customers
We offer a wide range of acoustic ceilings for all purposes. Explore our comprehensive product systems.
