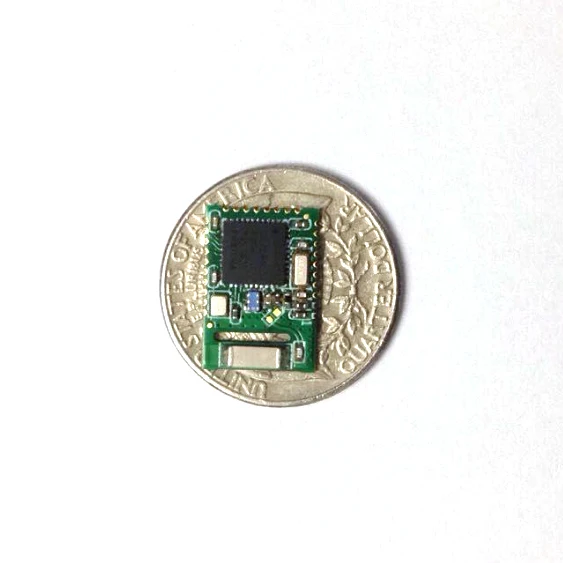

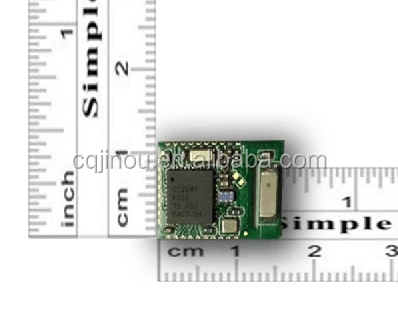

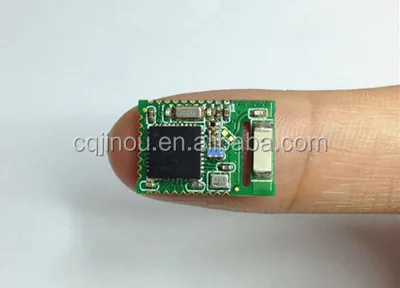

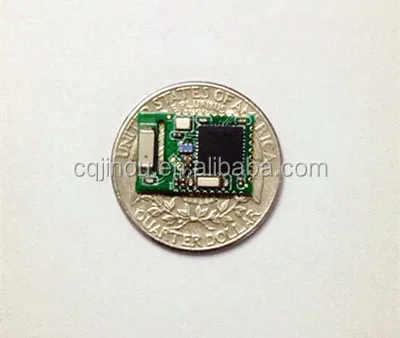

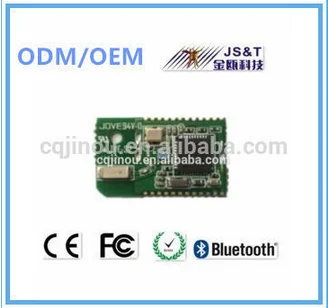

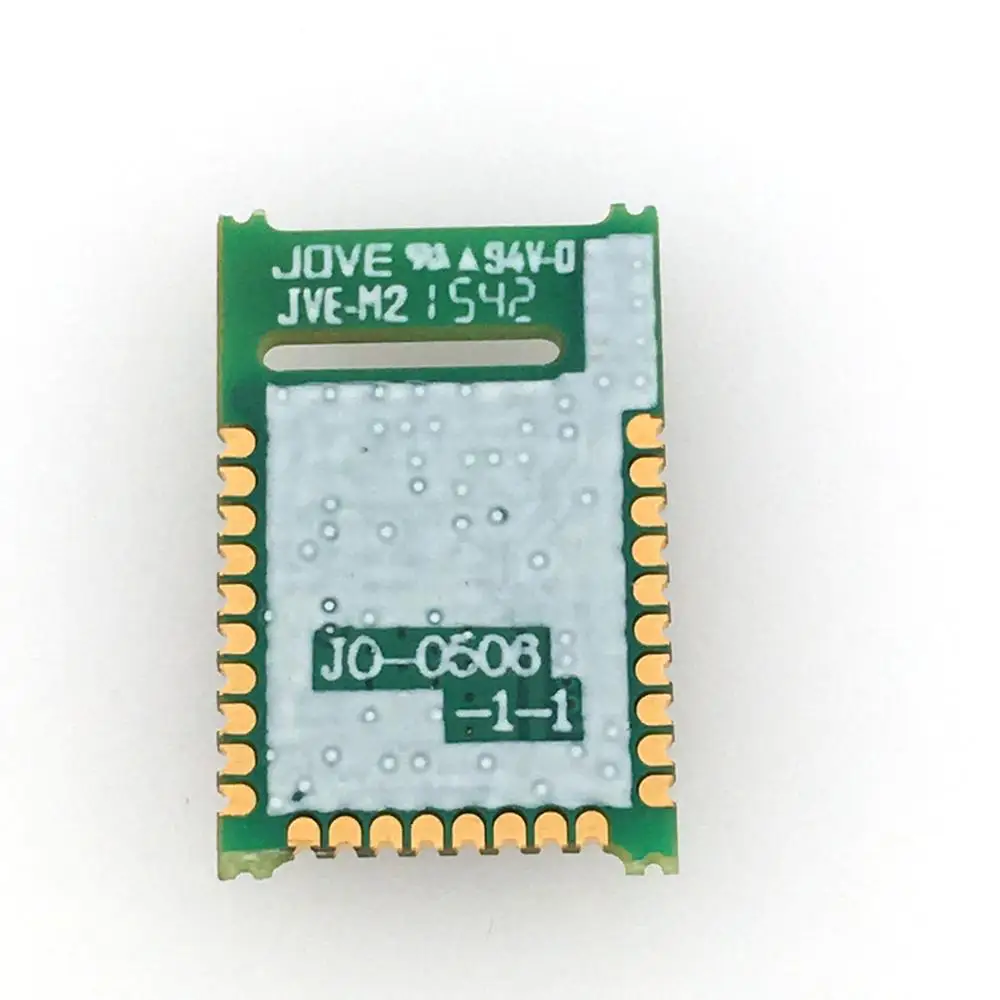

2018 JINOU Newest 4.0 BLE Bluetooth Module CC2540/2541
- Category: >>>
- Supplier: Chongqing Jinou Science And Technology Development Co. Ltd.
Share on (60312481330):
Product Overview
Description
High Quality Bluetooth 4.0 Module of Low Power BLE
(Bluetooth Smart)
Highlight
1. Excellent stability in data communication.
2. High anti-interference performance
3. Bluetooth BLE 4.0[Bluetooth Smart]

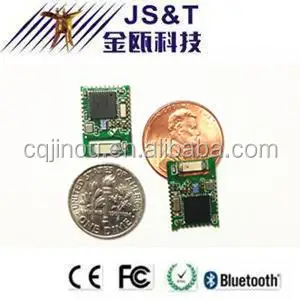

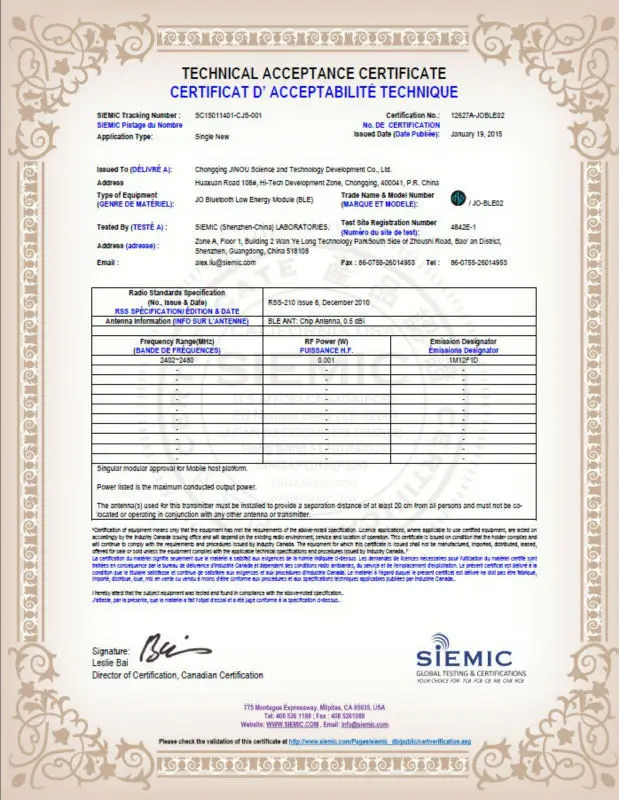

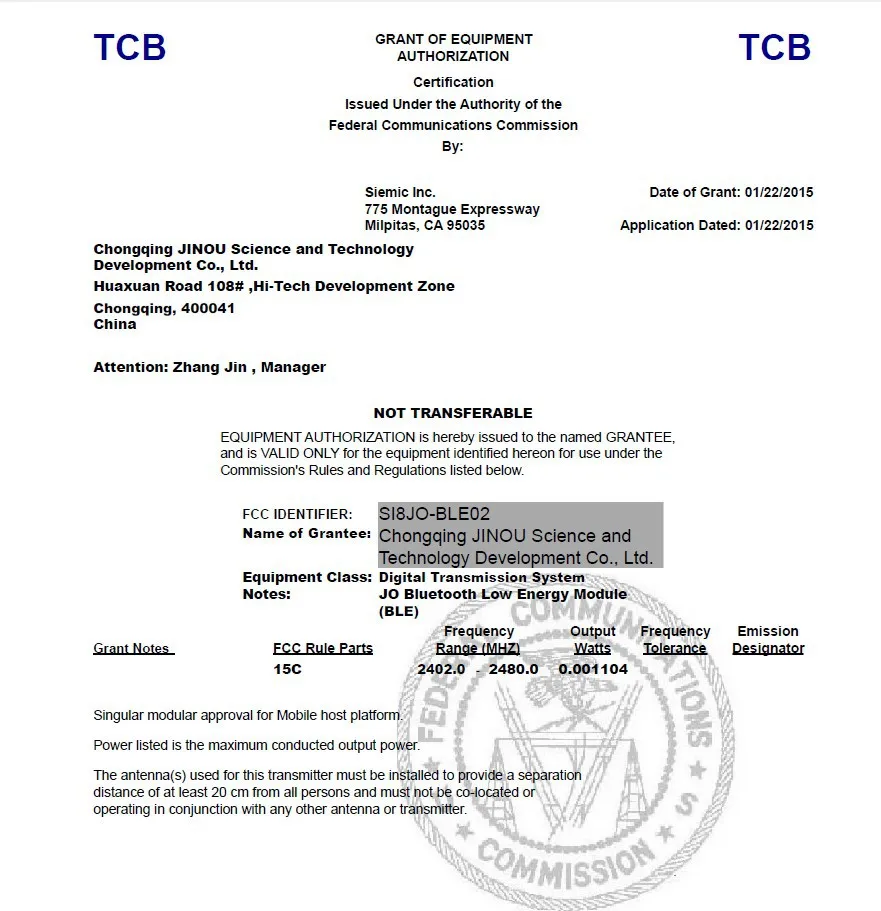

FCC and IC certificates:
Specification

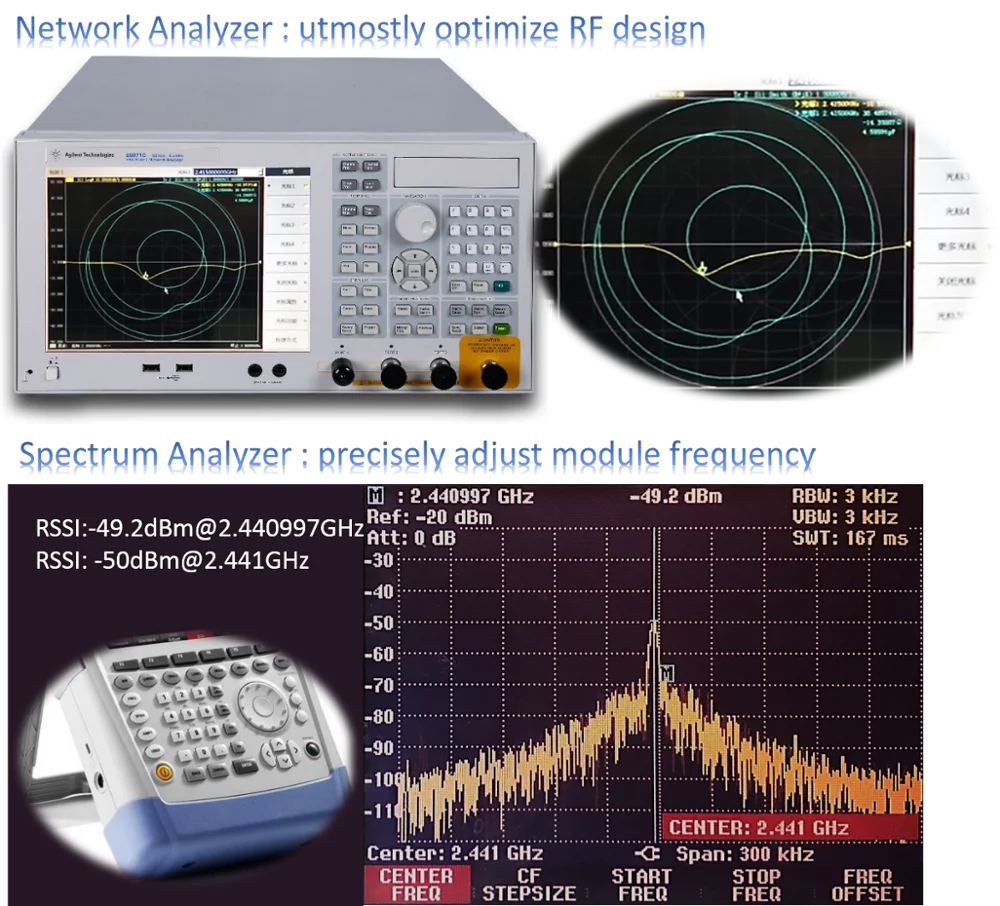

our test
Specification
1) Bluetooth Specification: BLE 4.0(Bluetooth Smart)
2) Working Voltage: 2.7V-3.6V, suggest 3.3V.
3) Average Working Current: 0.1mA
4) Standby static current:0.4uA
5) Maximum transmission rate : send/receive-1.8Kbytes/s
6) Defaut Baud Rate: 9600,you can set new baud rate by youself
7) Effective Distance: 10-50m
8) Working Frequency: ISM 2.400~2.483MHz
9) Spread Spectrum: FHSS
10) Working Temperature:-40℃~+85℃
11) Security Authentication:AES 128-bit
Features
Features:
1. Support Central/ Peripheral
2. Point-to-point connetion, point-to-multipoint connection
3. Support firmware online update
4. Built-in antenna working distance: max 50m
5. Automatically energy saving, supporting Bluetooth BLE(Bluetooth Smart)
6. Enable users to set the baud rate(1200-115200);
Modify displaying name; set master/slave mode( Central/ Peripheral ) ;
Set energy saving paramenters, etc.
7. RSSI output and carrier detecting
8. Support multiple profiles, i.e. LL,SMP,L2CAP,ATT,GAP,GATT.
Applications
Applications
Health care product (heart rate, pulse, etc.)
Motion wireless sensor (passometer, etc)
Digital product
Mobile phone wireless accessory
Wireless sensor.
Wireless-Control-Port device (Bluetooth keyboard, mouse, controller, etc.)
Wireless Alerter (Bluetooth anti-lost)
Packaging & Delivery
| Packaging Details: | Carton Module Tray: 40 pcs/tray |
| Delivery Detail: | sample: 1-2 days |
Company Information
Chongqing Jinou Science & Technology Development CO., Ltd is established in September 2000. We focus on Bluetooth Technology as a leader in China for 14 years. Jinou Bluetooth Technology Research Institute shoulders R & D task for our customers and help them keep top position in their field needless to mention some of them even went IPO.
Our engineers has published more than 10 works in Bluetooth technology , such as Bluetooth Technology, Bluetooth Protocol and Source Code Analysis, Wireless Local Area Network, Wireless Network Security, IPTV and Its Solution, Zigbee Technology and Cases Analyses, ULP Bluetooth Technology Specification Analyses, etc.. In addition, they also present more than 80 Disquisitions and more than 60 patents.
In recent years, Jinou has partnerships with Mediacom,Gamestop, Microsoft, ARM, Invengo, HUAWEI,POTEVIO, Southsurvey, Chongqing CHANGAN, Hanwei, SNBC, Newland Group, Hi Target, CMCC, China UNICOM, CQTV, IT University of Copenhagen, Peking University, Tsinghua University, Chongqing University, Chongqing University of Posts and Telecommunication etc..
Some of our products like Smart Socket[Bluetooth/ WiFi/ infrared], Bluetooth headphones, Bluetooth Smart Controller, Fly Mouse, Bluetooth Locks, Bluetooth Medical Module, Wearable Bluetooth Module, Beacon etc., are welcomed by all people around the world except the residents from North pole and South pole.
