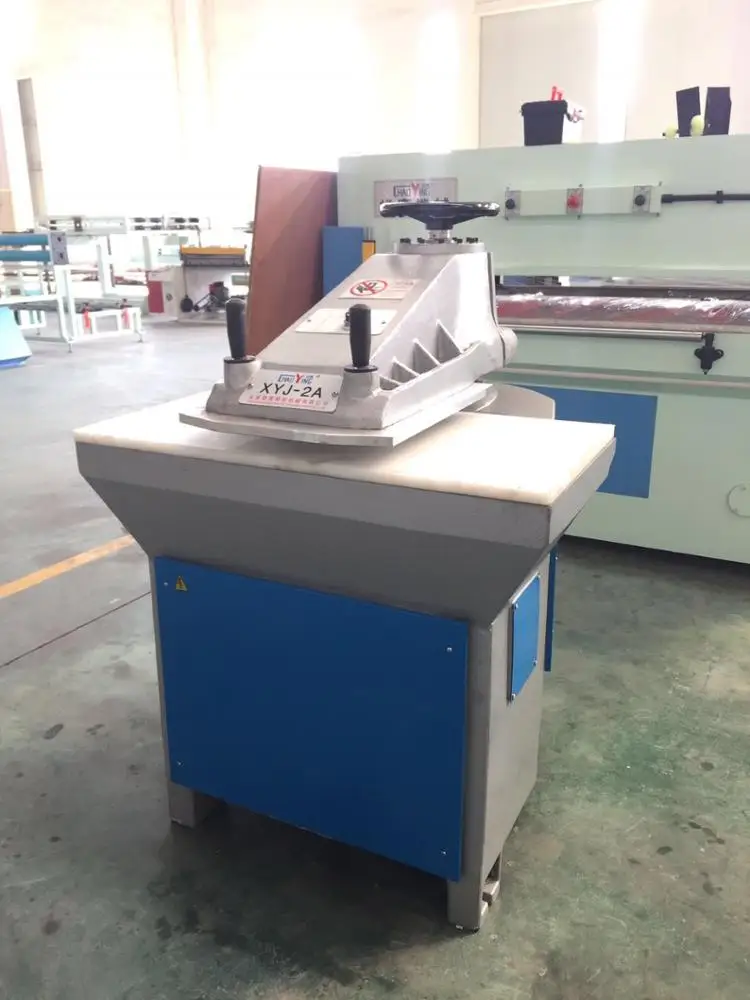

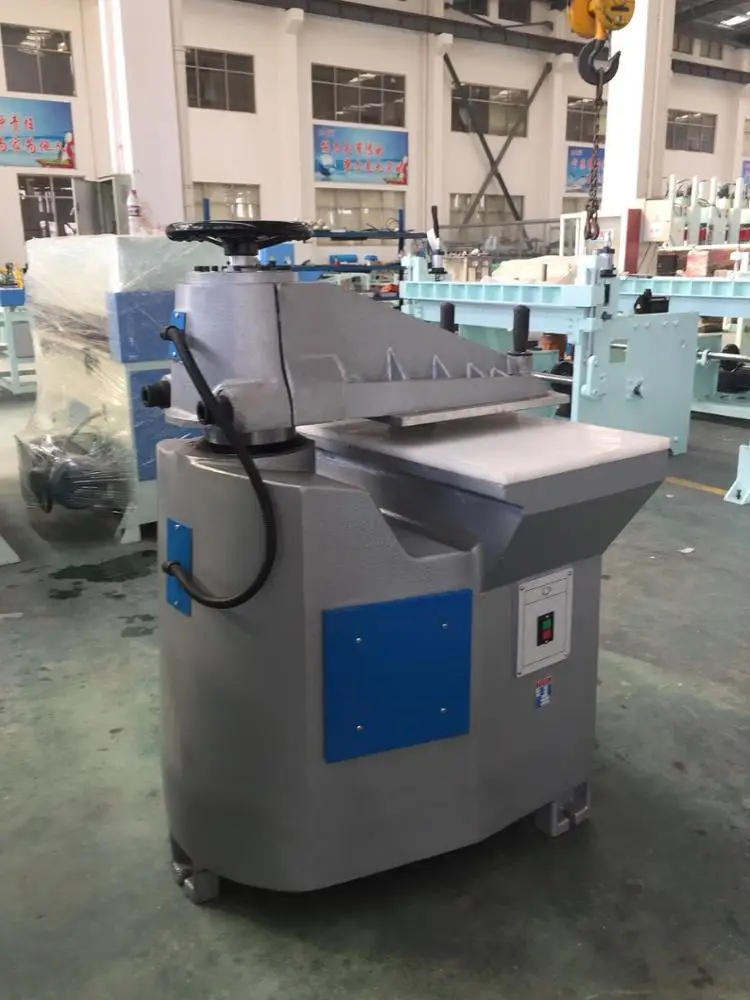

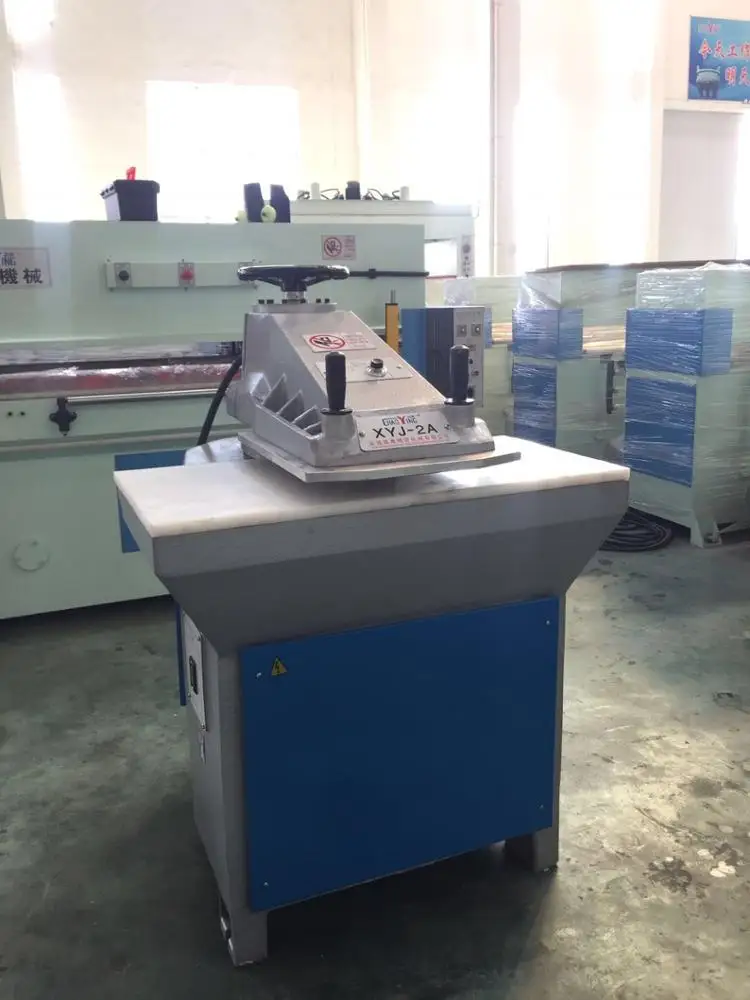

hydraulic swing arm leather cutting machine

Product Overview

Description



hydraulic swing arm leather belt/leather cutting machine

leather cutting machine







The machine is suitable for cutting various materials such as leather, plastic, cloth, leather bags, toys, caps, foam sheets, floor materials, soft wood sheets and etc. by die cutter.





1.The swing arm can sway flexibly with excellent operating visual field, so it is especially suitable for cutting genuine leather materials.



2.The switch for operation with both hands ensures the safety of operators.



3.The column is provided with self-lubricating system without the need of manual lubricating, which enhances the service life of machine.



4.The hydraulic system is operated under the closed environment, so the machine can work under general working conditions.







Maximum cutting force	250kN/25Tons
Travel adjustment range	0-75mm
Range between the working tables	65-150mm
Size of the upper pressing board	450× 500mm
Size of lower worktable	1000× 500mm
Motor power	1.5kW
Overall dimension	1080× 1080× 1600mm
Net weight	1050kgs
Gross weight	1150kgs
Machine Color	grey& red or as optional
Electronic supply	50hz or 60hz , single phase or three phase  220v /380V /440v
Machine logo	CHAOYING or Customized
OEM	Yes
Package	Standard export wooden box





























WHY CHOOSE XIONGYIONG  PRECISION MACHINERY?

1, More than 20 years experience in the field of die cutting machine.

2,Strictly Quality control.

  (Xiongying established our own quality control team compare with other company, every product will be checked again and again before delivery according to SGS standard.)

3, Reasonable price and quick delivery time.

 (We are the directly manufacturer of cutting machine and with full experience, the price is competitive and we have our big factory working house and many experience workers can ensure the delivery time)

4,OEM and ODM service.

(We have OEM for many oversea customers and we have our own ODM team can produce product on your demand accordingly}

5, Professional salesman and good service.

 (All of our foreign sale man have to pass the strictly professional production knowledge training before their start to communicate with customer, and we will reply your inquiring asap no later than 24 Hours.

6,Problem - solving ability.

 Mistake is often happen in the business. Not all the supplier have the problem - solving ability(Someone transfer the responsibility to customer, someone lack the problem - solving ability),Xiongying will take full responsibility of our mistake and pay for our mistake.





The  FAQ:



1,Are you the factory or trading company?

    We are the direct factory.

2, What is your MOQ of your Product?

   Normally our MOQ is 1 set.

3, Do you have any certification on your product?

   We have CE approved for some of our product.

4, What is your main market for the overseas?

    Our mainly exported to USA,Indian,Italy and so on.

5,What is the warranty of your product?

     We have 1 years warranty.



Note: we can produce different types, tons and cutting area of machine according to your demand.
