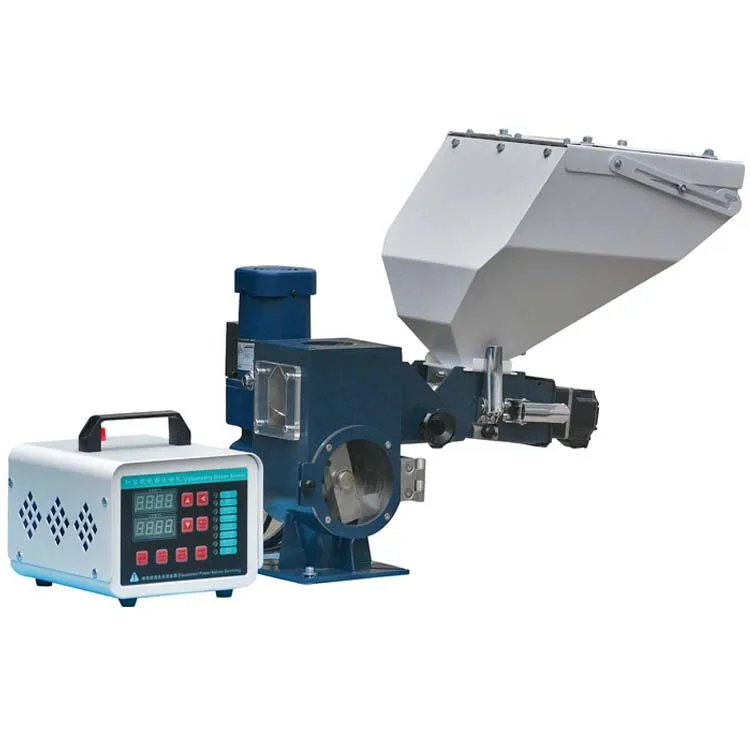

plastic volumetric doser masterbatch for injection molding machine

plastic volumetric doser masterbatch for injection molding machine

Category: Plastic Mixer >>>
Supplier: Guangdong Gainwal Automation Technology Co. Ltd.

Price:RUB 94,772.50

Quantity:

Product Overview

Description

Product Description

Product Application

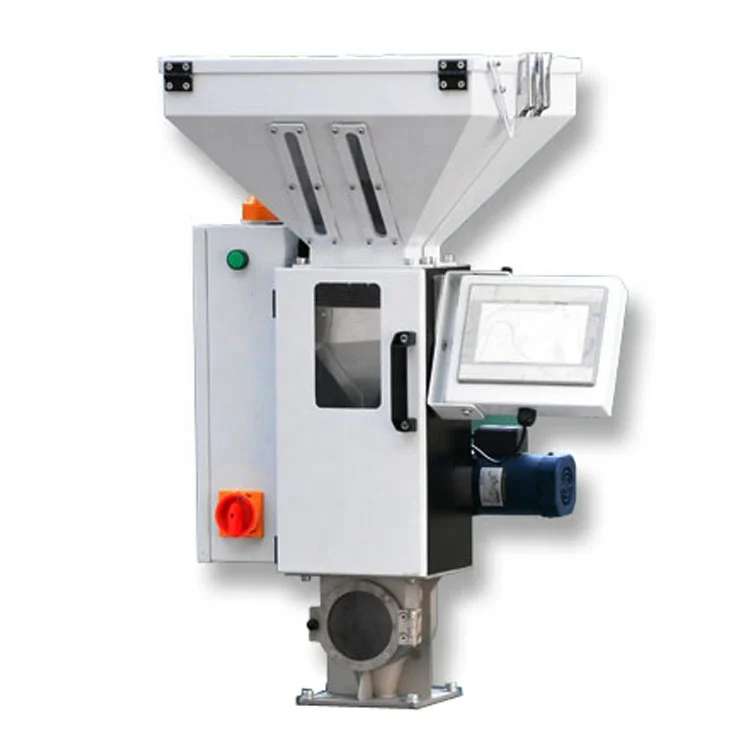

Volumetric Dosers are suitable for auto-proportional mixing of new materials, regrinds, master batch and additives. A DC brushless motor is used in this series. The operator controls the precise dosing screw by setting its rotation speed to extrude materials with an accuracy of ±1%. A gear motor with deceleration ratio of 30:1 is coupled to a dosing screw of 12, 16, 20, 25 or 30mm diameter to give a total of five models with output ranging from 0.1 to 130kg/hr. Double color dosers can be supplied to match with two single color dosers if required by clients.

Main Features

1> Dosing screws are chrome plated for durability.
2> Unit is comprised of standard modules for ease of cleaning, disassembly and interchangeability.
3> External single can be directly interfaced with control box.
4> The current mode can be recorded without interrupted by power failure.
5> Compulsory material cleaning makes it easier to replace masterbatch.

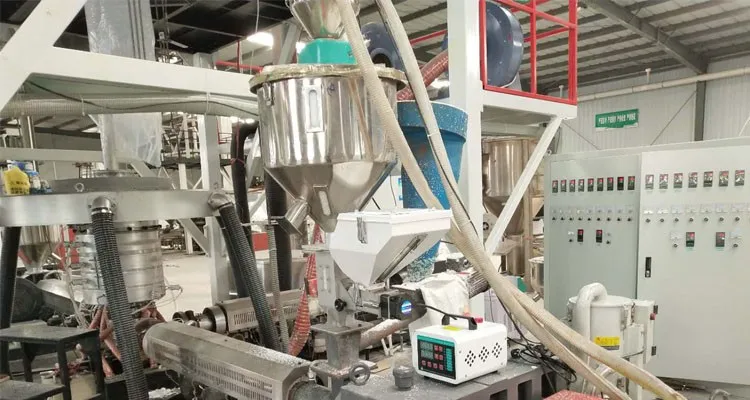

6> Applicable on extrusion machines, just need to make a few wire replacements.
7> Rotating speed can be automatically adjusted according to extruder processing speed, which maintains the fixed proportion of masterbatch.
8> 50 recipes are available for per permanent recording of material discharging time and finished Products weight (for extruder, it is max. throughput per minute).
9> Use brushless DC motor and free from maintenance.
10> Both masterbatch blockage and overload can be detected, then machine will halt and sound an alarm.

Specifications

Working Principle

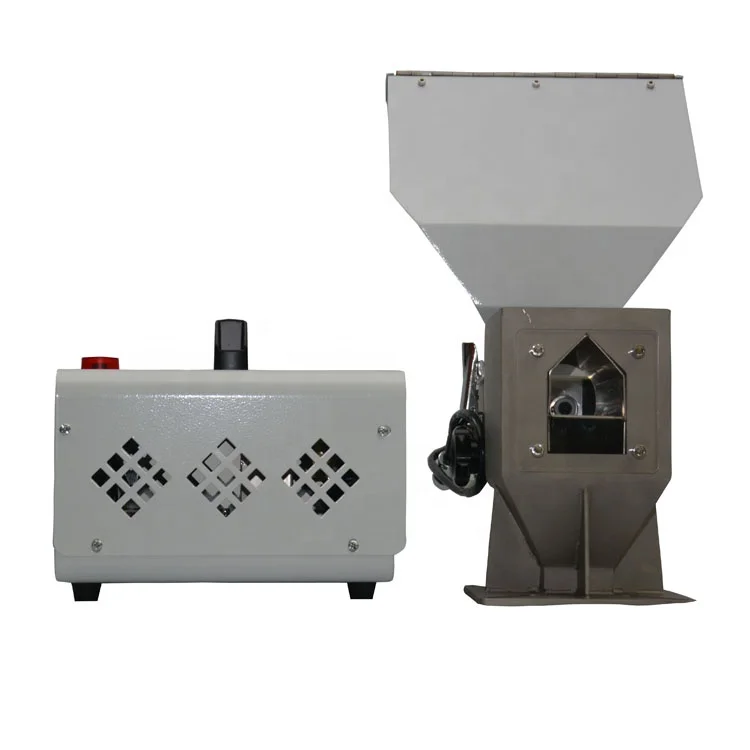

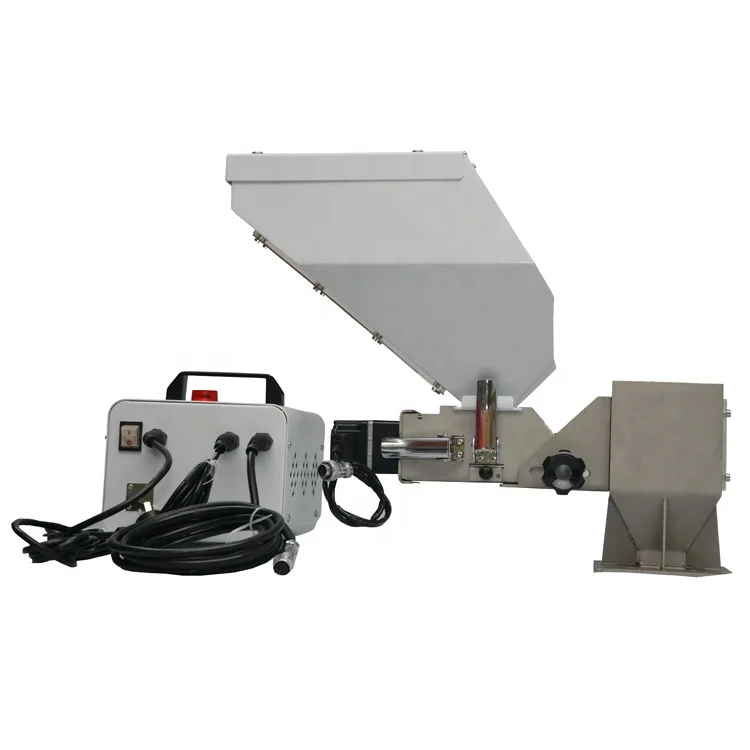

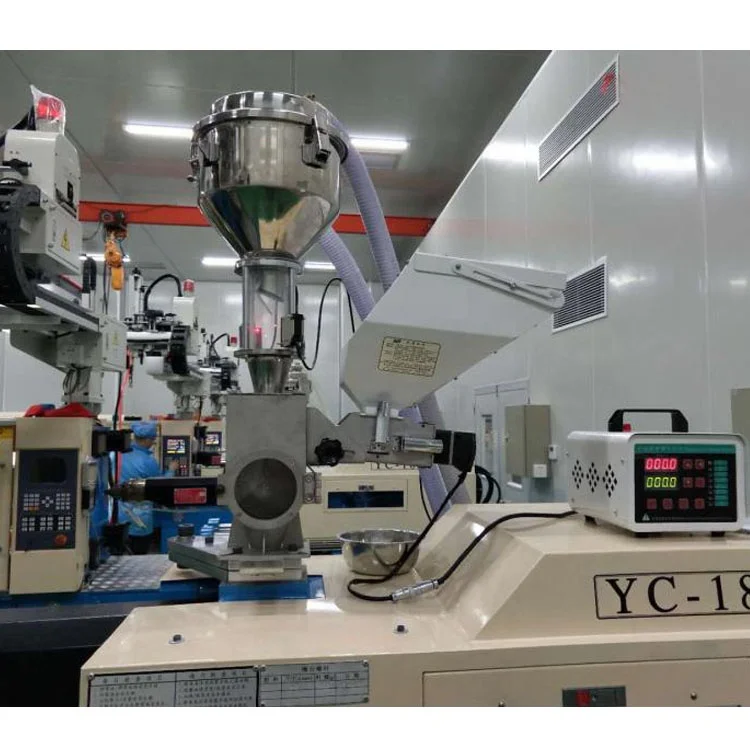

Single Color Unit:

Signals from control cabinet will be sent to motor. Then it begins to work. The rotary force is transferred to the dosing screw through shaft connector. Color additives in hopper will fall into the groove of conveying screw, then be taken to hopper base by rotating action of the screw.

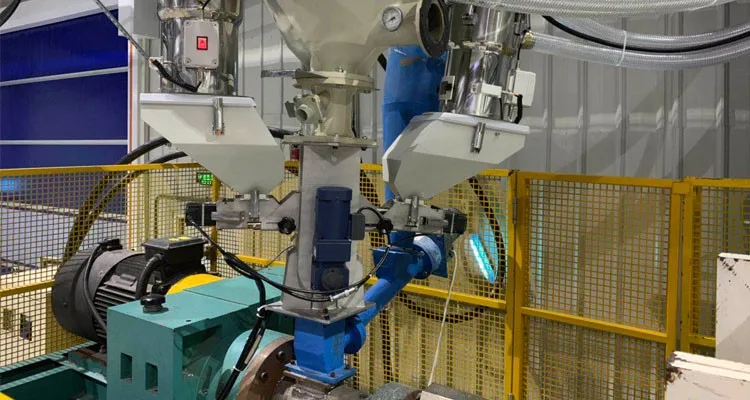

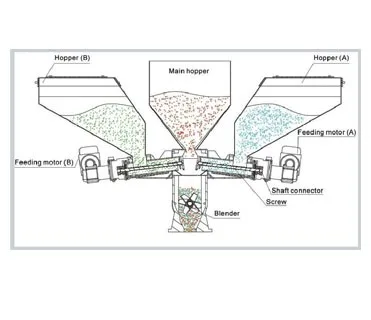

Double Color Unit:

Signals from control cabinet will be sent to motor A/B. Then it begins to work. The rotary force is transferred to the dosing screw through shaft connector. Color additives in hopper A/B will fall into the groove of conveying screw, then be taken to hopper base by rotating action of the screw and to be mixed by mixing system before sending to molding machine.

Detailed Images

Machine Parts

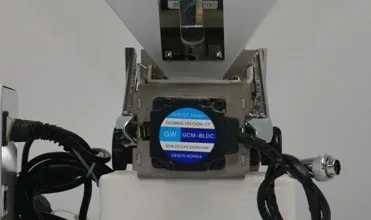

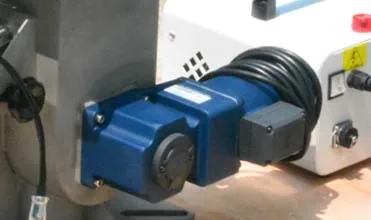

Name: DC brushless motor

Brand: GGM

Original: Korea

Excellent speed stability;

Miniaturization, high torque;

Energ saving;

Long life.

Machine Parts

Name: Mixing motor

Brand: JSCC (German brand)

Original: China

Full copper coil, extremely durable;

Stator friction is small;

Gear set with high torque accuracy;

Motor bracket low power consumption.

Machine Parts

Name: Circuit board
Brand: Lucky
Original: Taiwan
50 recipes are available for per permanent recording of material discharging time and finished Products weight;

Machine Parts

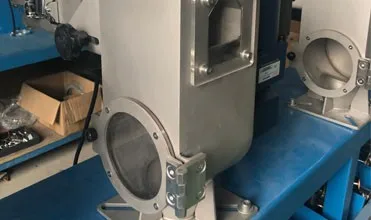

Name: Mixing base
Brand: Gainwal
Original: China
Made of stainless steel, durable;

There is a visual window, You can see the mixing situation.

Packing & Delivery

Packaging
Size	500 (L) * 430 (W) * 500 (H)
Weight	30 kg
Packaging Details	The normal package is carton box(Size: LWH). If you need wood box, that is ok. If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Packaging
Size	600 (L) * 530 (W) * 600 (H)
Weight	45 kg
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
