South Africa Durable 3d Curved anti climb 358 Security Clearvu Fencing
- Category: >>>
- Supplier: Anping County A.S.O Metal Wire Mesh Products Co. Ltd.
Share on (60312666938):
Product Overview
Description
South Africa Durable Curved anti-climb 358 Security Clearvu Fencing
Product Description

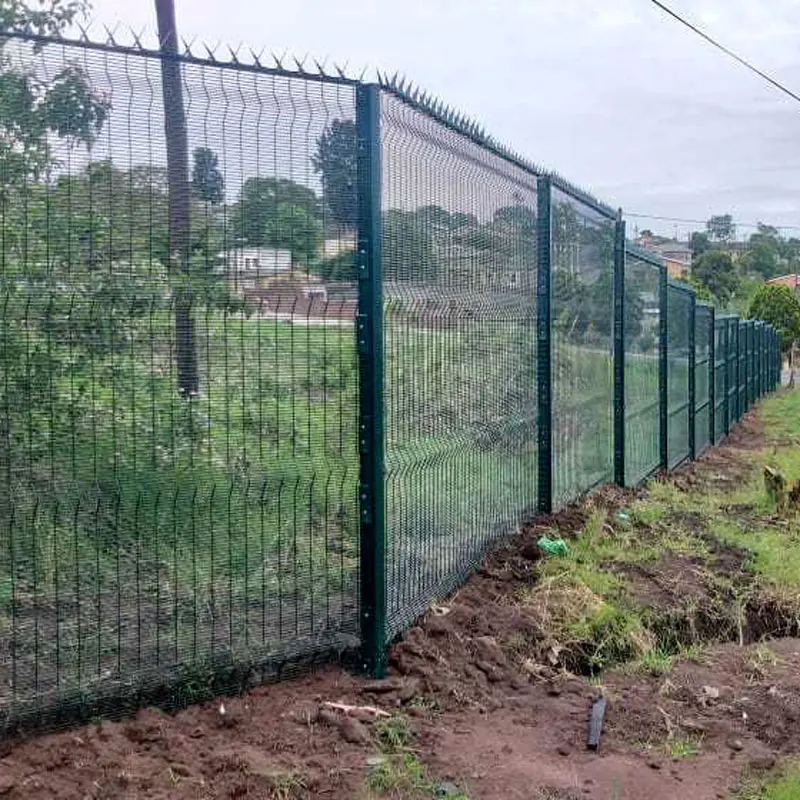

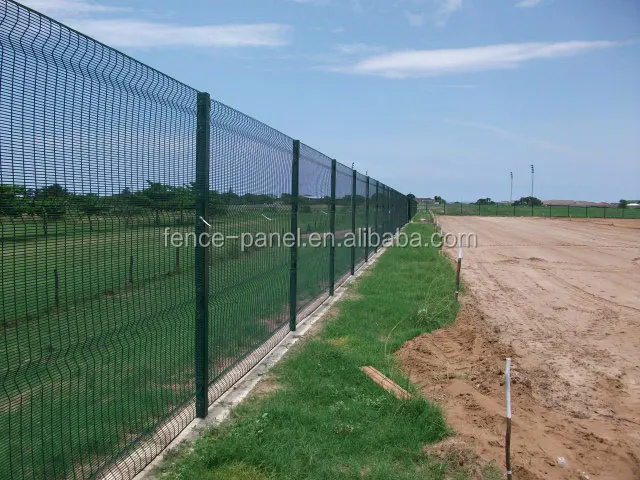

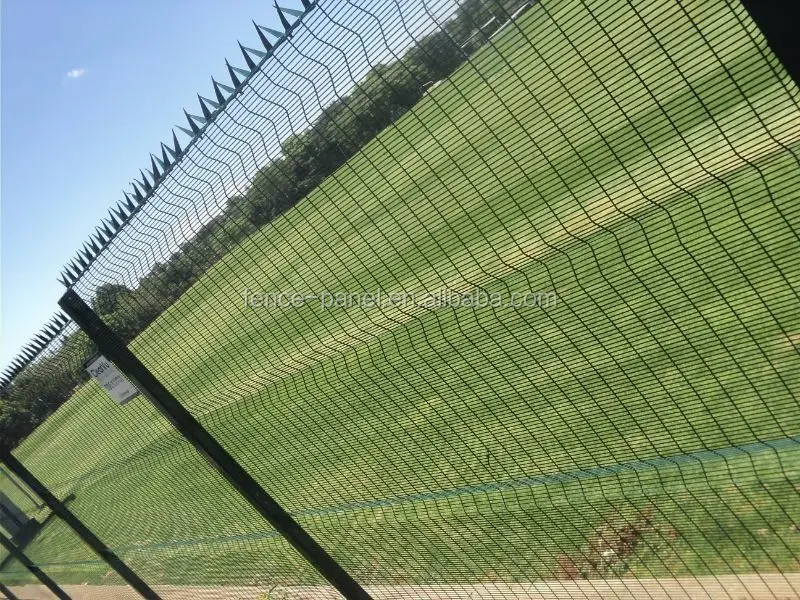

ClearVu Security Fencing
Panel Formation
Panel Width is 3.297m, Height between 1.8m & 2.4m, Coated Wire Diameter 3.5mm and wire with aperture size (centers) @ 76.2mm x 12.7mm.
Panel Formation
Panel reinforced with 4 x 50mm deep V formation horizontal recessed bands, (rigidity).
2 x 75mm 70 flanges along sides (internal fixtures & anti vandal), (allowing for flush post and panel finish, 48 line wire secure connection, Locking Recess mechanism) and 2 x 30 flanges along top and toe (arrow-straight edges, intergraded angle).
Posts
Post shall be 2.4m long Taper Post.
Post width shall be 85mm - tapering to 45mm with a depth of 85mm.
Post shall include ‘Locking Recess Mechanism’ to secure panel edge.
Post shall be sealed with a UV stabalised polymer cap and fitted with a 12mm base pin.
Post Foundation
600mm deep X 400mm square 50 Mpa concrete.
 |  |
 |  |
specifition
| Specification of 358 Security Clearvu Fencing | |||||
| Mesh Opening | Wire Diameter | Panel Height | Panel Width | Post Type | |
| 12.7x76.2mm (0.5'' x 3'') | 3/3.5/4mm | 1.2-6m | 2.0-3.1m | Square Post(SHS) 60x60x2.0/2.5/3.0mm 80x80x2.0/2.5/3.0mm | Rectangular Post(RHS) 40x60x2.0/2.5/3.0mm 40x80x2.0/2.5/3.0mm 60x80x2.0/2.5/3.0mm 80x100x2.0/2.5/3.0mm |
| Surface treatment:hot dipped galvanized, galvanized +powder coated, galvanized +PVC coating. | |||||
| Color:RAL 6005 green, RAL 7016 gray, All RAL color can be customized. | |||||
| Note:The fence can be customized according to your required if above specification is not satisfied with you. | |||||
Production process
spikes:

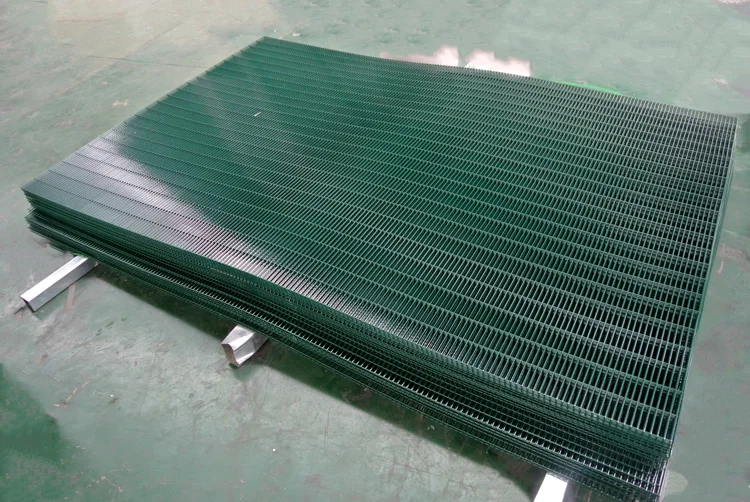

Clearvu Security Fence production:
- material
low carbon steel wire,galvanized wire, hot dipped galvanized wire
- straighten & cut short the wire
- welding
- bending or not
- galvanizing (balck wire need)
- parkerizing
- powder/pvc coating

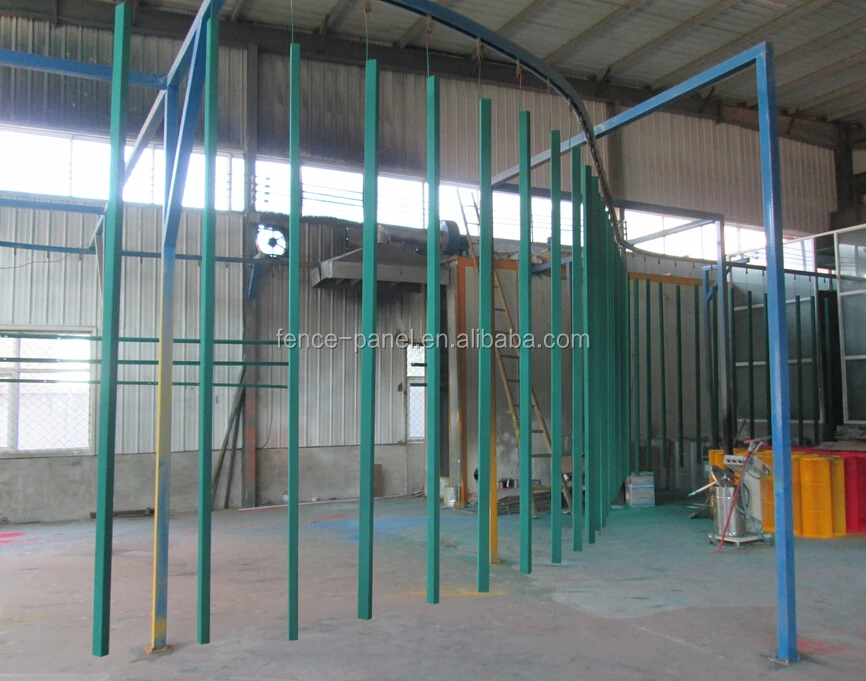

Post process
- material
hot dipped galvanized tube then cuting short
- powder coating
contact me,i am at your service. good price, and good quality

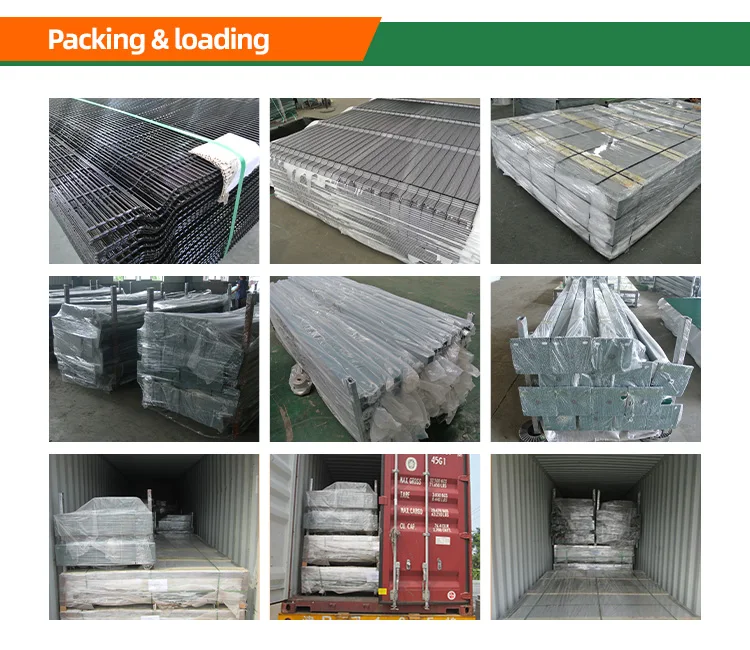

Packaging & Shipping
Vandalism resistance anti-climb 358 security fence clearvu fencing price
it has rubber mat at the bottom of the pallet to avoid the pallet destroyed the panels.
it has 4 metal corners to keep the pallet more strong.
it has metal plate under the plastic bandage to reduce the apressure of fence panels.
wooden plate on top which can protect the fence panels avoid being crushed by other pallets
Company Information
Anping County A.S.O Metal Wire Mesh Products Co., Ltd.
Area: 19980m2
No. of Employees: 120people
Cartographers:5,we can design drawing as clients requirement
Personnel for prepare sample:5
No. of QA/QC Inspector(s): 5 people
Export Markets: Europe, South America, Australia, North America, Asia etc.
Annual Revenue: USD14,724,000
Certificates: BV report, CE certificate, ISO9001 certificate, SGS certificate, IAF certification, etc.
FAQ
-Q-:What makes your fence products different from other company’s?
-A-: ASO fence provide free design service, customization and warranty service, with strictly quality control and very competitive price.
-Q-: Can I get a pcs of your products sample?
A-: Yes, free samples will be provided anytime.
-Q-: What type of materials do you use for fence?
A-: Most of the wire we use is low carbon steel wire. The core wire for razor wire is high tension strength steel wire. Post material is Q235.
-Q-: Will my fence rust, peel, fade or chip?
A-: It shows more details in our warranty policy. If without man-made crash, punch, acid wash, etc, the surface can last for more than 10 years.
-Q-: What are fittings and how are they used?
-A-: We have hundreds of fittings for our fence products. Different type of fence comes with different accessories
-Q-: How do I take care of my new fence?
-A-: Just try to avoid man-made crash, acid, etc.
-Q-: What type of fencing does ASO FENCE offer?
-A-: we are specialized in the production of 2D Fence,3D Fence, 358 Security Fence ,Rolltop Fence,Chain link Fence,Palisade Fence ;Iron Fence;Steel Fence,Temporary Fence series (Temporary Chain Link Fencing, Temporary Welded Mesh Fencing etc) Crowd Control Barrier, Cattle Yard Panel, Pool Fence, Welded wire Mesh, all kinds of wires,barbed wire,Razor Barbed wire,hexagonal wire netting,Gabion mesh,Steel Grating and sound barrier.We have a professional production line of wire mesh fence .
-Q-: What types of payment do you accept?
-A-: We accept T/T(30%/70%), L/C at sight, cash.
