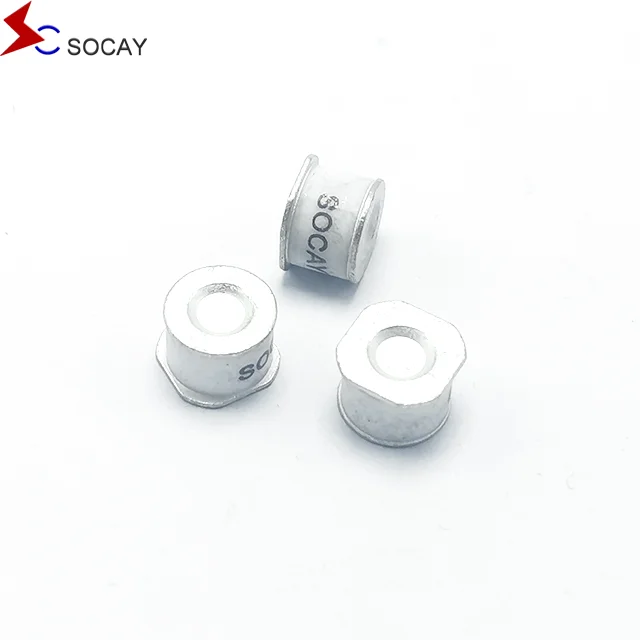

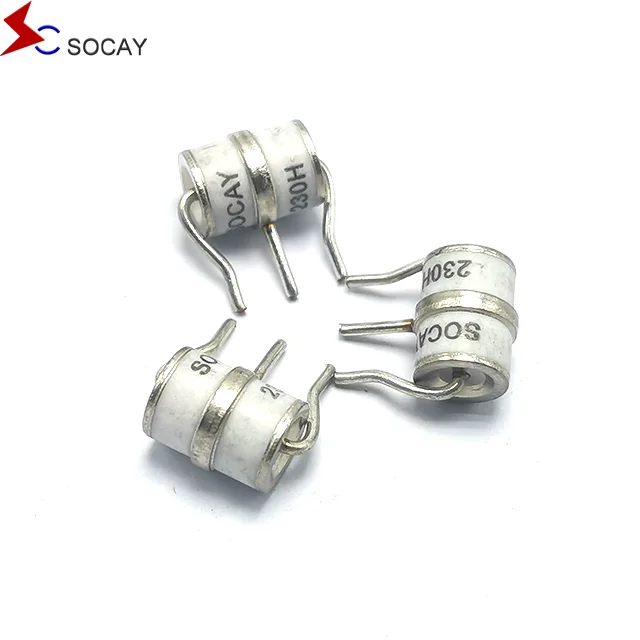

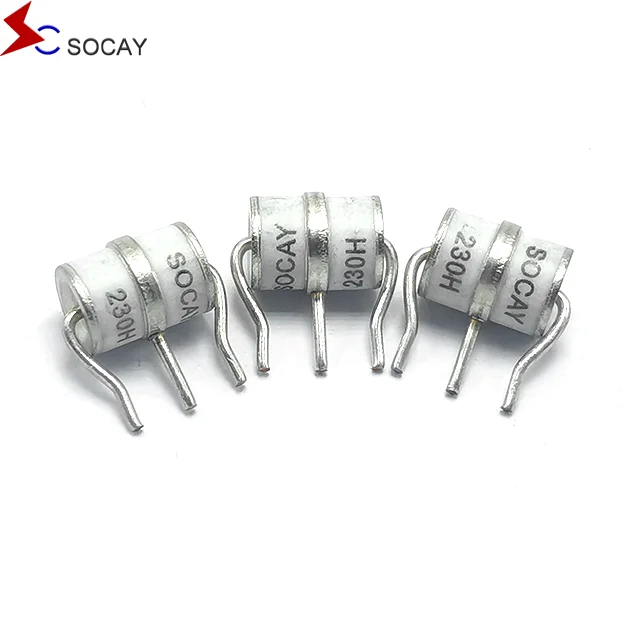

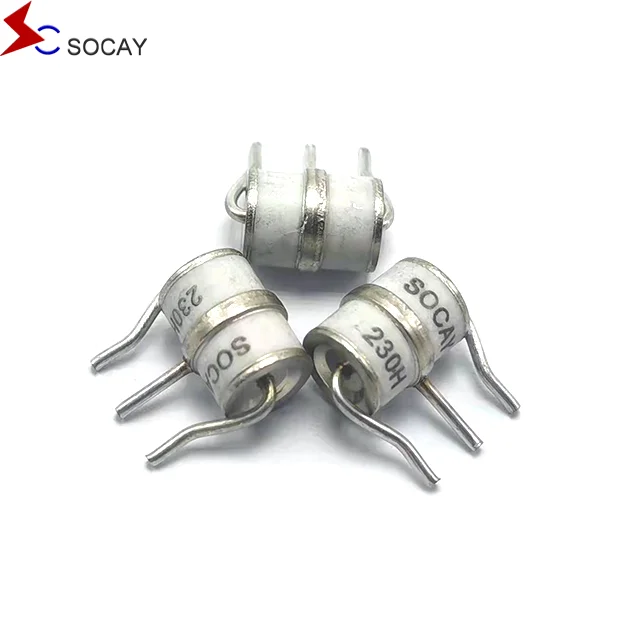

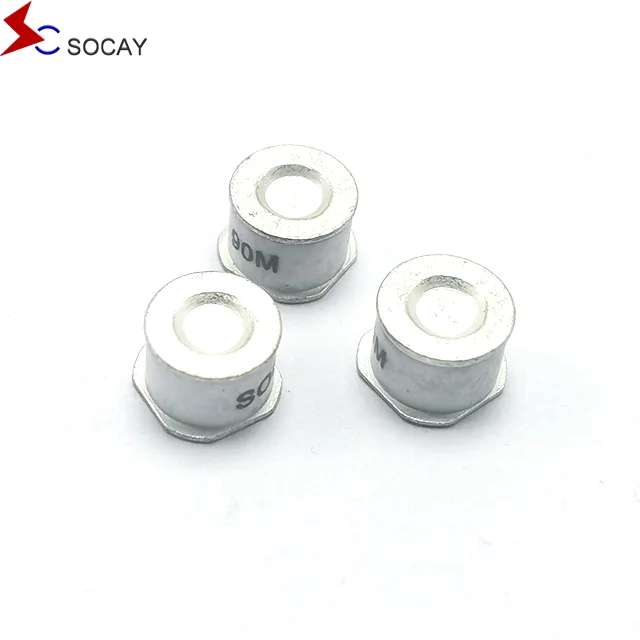

Gas Discharge Tube/arrester/ High Voltage GDT
- Category: >>>
- Supplier: Shenzhen Socay Electronics Co. Ltd.
Share on (60312711288):
Product Overview
Description
Gas Discharge Tube/arrester/ High Voltage GDT
* Communication equipment,CATV equipment,Test equipment
* Data lines,Power supplies,Telecom SLIC protection
* Broadband equipment,ADSL equipment including ADSL2+
* XDSL equipment ,Satellite and CATV equipment
* General telecom equipment
Gas Discharge Tube/arrester/ High Voltage GDT
*Features FOR THE GDT
*RoHS compliant and Lead-free
*Broad voltage range from 450V-620V
*Low capacitance
*RoHS compliant
*Helps provide overvoltage fault protection against
*Non-radioactive materials high energy surges
Features:
--Non-Radioactive
--RoHS compliant
--Low insertion loss
--Excellent response to fast rising transients
--Ultra low capacitance
--2.5KA surge capability tested with 8/20μs pulse as defined by IEC 61000-4-5
Gas Discharge Tube/arrester/ High Voltage GDT
Applications:
--CRT terminals
--CATV equipment
--Antennas
--Power supplies
--Medical electronics
Characteristics:
| Type Number | DC Spark-over Voltage 100v/s (V) | Impulse Spark-over Voltage 100V/S (V) | Impulse Discharge Current 10/1000μs 100A (Times ) | Maximum Capacitance(1MHz) PF | Maximum Discharge Current 8@/20μs (KA) |
| SC3E5-75LM | 75± 20% | <600V | 300 | 1.0 | 10 |
SC3E5-90LM | 90± 20% | <600V | 300 | 1.0 | 10 |
| SC3E5-150LM | 150± 20% | <600V | 300 | 1.0 | 10 |
SC3E5-230LM | 230± 20% | <700V | 300 | 1.0 | 10 |
| SC3E5-250LM | 250± 20% | <700V | 300 | 1.0 | 5 |
| SC3E5-350LM | 350± 20% | <900V | 300 | 1.0 | 5 |
| SC3E5-470LM | 470± 20% | <1000V | 300 | 1.0 | 5 |
| SC2H8-4500L | 4500± 20% | <6000V | 300 | 1.0 | 5 |
| SC2H8-5500L | 5500± 20% | <7000V | 300 | 1.0 | 5 |
