VMC640 vertical cnc machine center for mould

Product Overview

Description

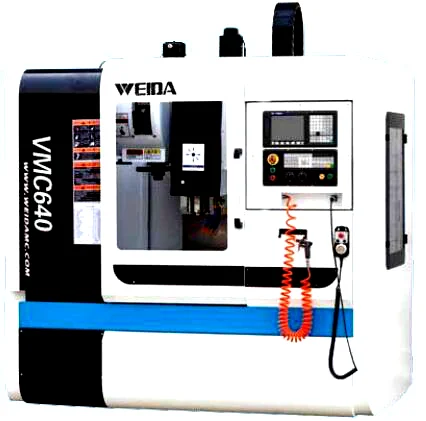

VMC640 vertical cnc machine center for mould





Specification

1.VMC640 vertical cnc machine center is with Taiwan high speed spindle 10000rpm.

2.VMC640 is with linear guideways on X,Y

3.The whole machine is with closed protection and electric cabinet, safe and beautiful.

4. The machine is with taiwan Hiwin ballscrew, NSK bearing.



	unit	VMC640
Table size	mm	920x400
T slot	no	3
Centre distance	mm	120
T-Width	mm	14
Max. load of worktable	kg	300
Longitudinal travel	mm	650
Cross travel	mm	400
Vertical travel	mm	500
spindle nose to table surface	mm	120-620
spidle axis to column surface	mm	475
Spindle  taper		BT40
Speed Range	rpm	40-8000
spindle motor power	kw	5.5(servo)
cuttiing feed  X/Y/Z	mm / min	1-10000
rapid feed  X/Y/Z	m / min	30/30/18
tool magazine capacity	piece	16
tool magazine type		drum-type
Max. tool diameter	mm	Φ80/130
Max. tool length	mm	300
Max. tool weight	kg	8
Tool changing time	s	3/7
positioning accuracy	mm	±0.005/300 JIS
positioning accuracy	mm	±0.003    JIS
air pressure	Mpa	0.5
overall dimensions(LxWxH)	mm	2180x2052x2600
N/W	KG	3200























































































Machine: VMC640 cnc vertical process center

Type of package: Plywood case

Packing dimension:  227x240x232cm    N.W./G.W.: 3200/3400KGS

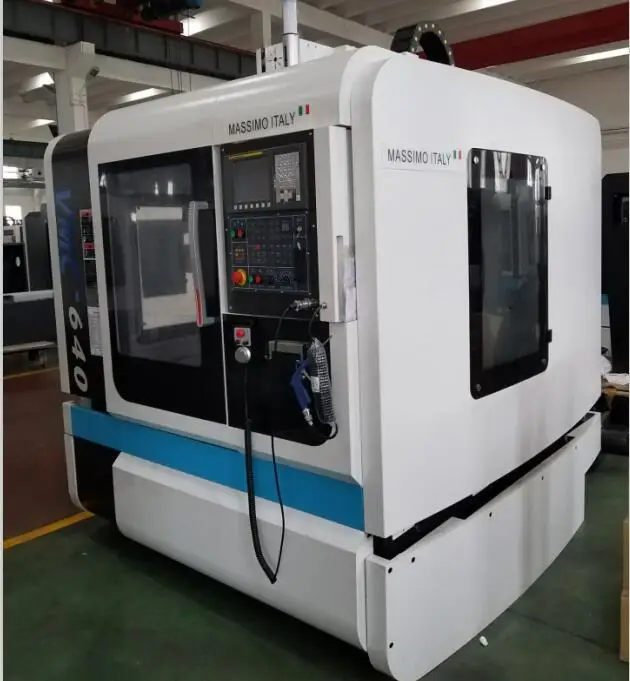

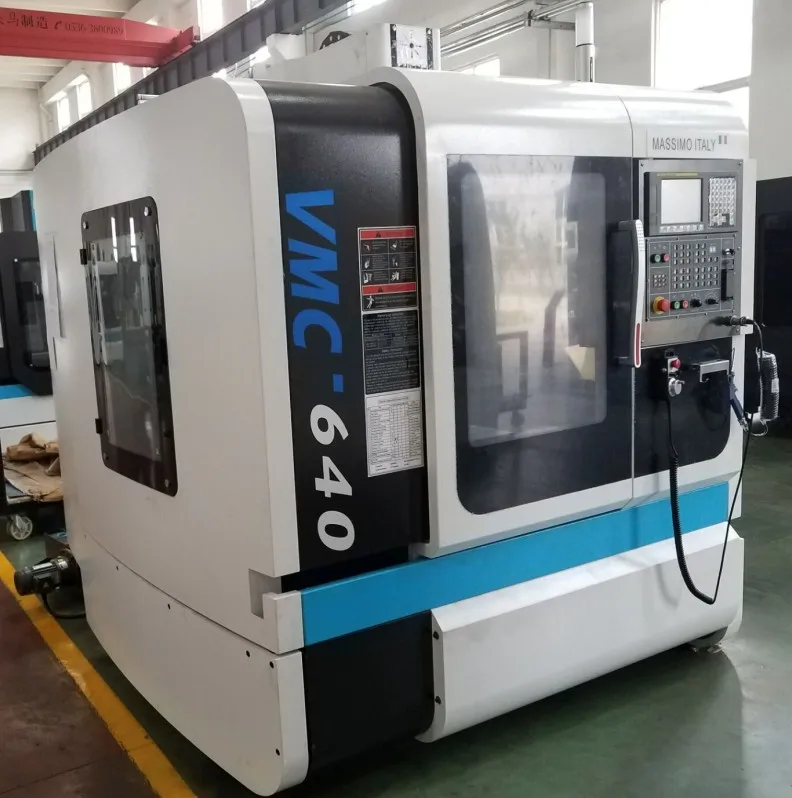

 Machine sample

Mainly used for a variety of complex plane, surface and shell parts processing, for example, all kinds of cams, molds, connecting rods, blades, propellers and boxes and other parts of the milling process, but also can drill, , Etc., for the processing of the box, cavity, mold and other parts, with the specifications of the CNC milling machine and machining center can meet the basic processing requirements.



Optional accessories

The machine can be equipped with many accessories to carry out different works. Mostly, the machine can be equipped with the 4th axis rotary table or dividing head, we can supply China brand and Taiwan brand, it can be equipped with tool setting probe. You can use tool setting probe to measure tool length,diameter etc. And you can also choose screw type chip conveyor or chain type conveyor.

You can choose all the optional accessories according to your demand. If you need any other accessories, we can talk in details, we will try our best to satisfy all your request.

All our machines have been passed CE certification,such as cnc vertical center machine,vertical machining center,drilling machines etc.. Besides, we also have ISO9001 certificate. Our company complys with European standard. We always export our machines to European market,such as Poland, Russia, Italy, Germany,America etc.

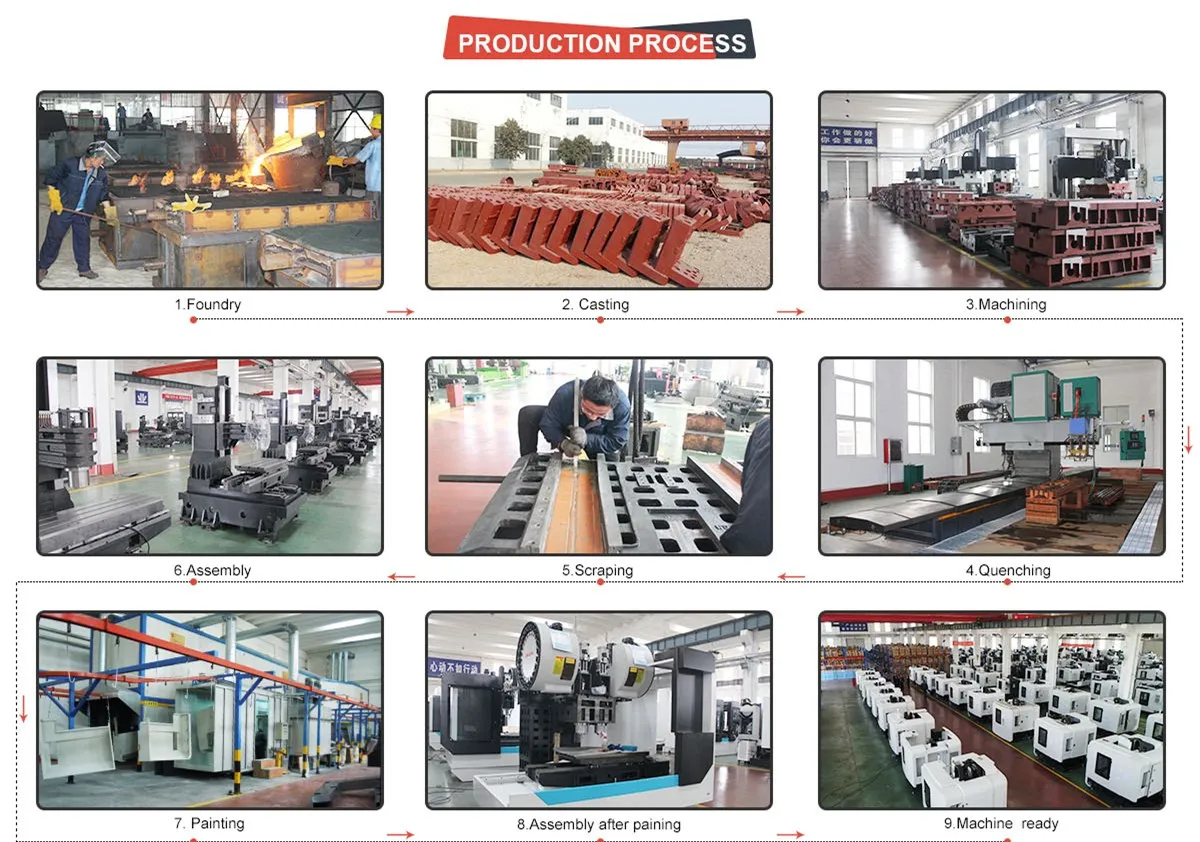

Production process





From the moment we recieve your confirmed order,we will begin to arrange the production. First, we will prepare the castings. We have our own castinng factories,we can make sure its quality.Casting will decide your machine quality. When the castings are ready, we will process it on large equipments, during the period of processing, our purchasing deparment will buy other machines that will be used on the machine, such as spinlde, tool magazine,cnc controller,and maybe some other optional equipments you need.

When all the parts are ready, we begin to assemble it. During assembling, we will test every step to control machine's quality. Large parts and protections will be assembled first, then next is painting. After painting, electrical will be installed, finally, the machine will be assembled well and  tested. We will control each step, so finally, there should be no problem for assembled machine. We will deliver an qualified machine to you.

Processing equipment

We owns more than 632sets of production equipments, some world famous brand like Germany DMG horizontal machining center, Germany Trumpf laser cutting machine and bending machine, America floor tye boring machine, Shanghai cnc gantry guide rail grinding machine, Beijing cnc gantry type boring milling machine and automatic powder coating line .

Besides, Cnc machine tool project laboratory with with advanced testing equipments is built for quality control.



Shandong Weida Heavy Industries co., ltd. is a large scale joint enterprise with the right of import&export.It covers an area 500,000square meters,the building zone is about 350,000square meters,and the total assets is more than RMB500million,

there are 365 engineers and 632sets of production equipment&measuring test instrument in the company.

 We are the biggest manufacturer of machine tools in the south of Shandong Province. Our main products have developed to 8 series:cnc gantry type machining center, vertical/horizontal machining center,cnc vertical process center machine,horizontal boring machine,radial drilling machine,universal knee type milling machine,vertical milling machine,

milling drilling machine,altogether more than 90 specifications.

 We also have passed through ISO9001:2008 certification of CQC,and got CE certificate in 2006.

 Shandong WEIDA heavy industries Co., Ltd.wish to cooperate sincerely with friends at home and abroad to realize mutual development.

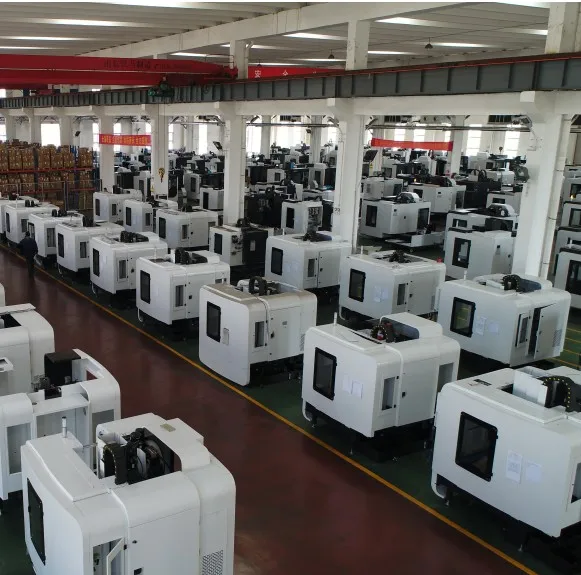

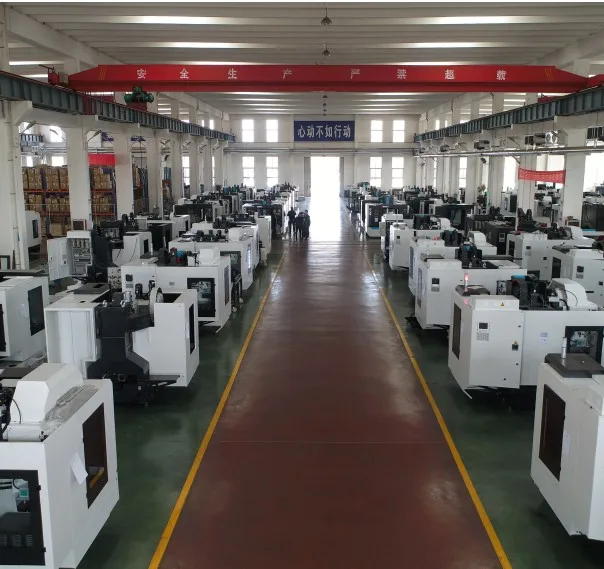

We have different workshops to produce different machines,it mainly includes cnc workshop,milling machine workshop, radial drilling machine workshop,processing department etc.

For cnc workshop as above, we will produce vertical machining center,gantry type machining center,horizontal machining center,cnc vertical center machine etc.. Every year we will produce hundreds of machining centers for abroad customers. Our brand is well-known in many markets. And in every exhibitions in home and abroad, we will avertise them. And we get great effect from exhibition.

 Every year, we will attend many exhitions at home and abroad. At home, we will attend CIMES,CCMT,   CANTON fair etc..At abroad, we will attend EMO held in Hannover or Milano, Metalloobrabotka in Moscow, and other exhibitions,such as Mexico,Turkey,Colombia, Brazil,Indonesia,Thailand, Iran exhibitions etc.

Our machines are sold well and known by many famous customers.

We are always trying our best to exhibit best machine to you. We warm welcome to make business with you if you are willing. We will be your good supplier. Because we have good quality machine and good service.

Every year, there will be many customers from different countries to visit us. Some of them are our regular customers. We meet with each other as good friends and talk about our cooperation for next year. Some customers are our potentional customers, they visit us to see our factory for future cooperation. Everyone will satisfy with our factory after visiting. Because we are a large manufacturer with good reputation. We have the alibity to supply best machines . So we warm welcome for everyone's coming. After visiting, you will trust us.
