Product Overview
Description
Anti-Explosion/Corrosion Waterproof IP68 Special CCTV Cameras Apply in Chemical Factories and Oil Tankers/Station
Product Description
Model: AVS-FBW420IP
Data sheet
| Model | AVS-FBW4201IP |
| Image Sensor | 1/2.5" SONY |
| Main Chipset | IMX222+TI DM365 |
| Effective Pixels | 1080P 2MP (1920X1080) |
| Scanning System | Progressive |
| Infrared LEDs | 4pcs array LED, IR distance 80m |
| Lens | 4mm/6mm/8mm/12mm/16mm Fixed lens ( optional ) |
| Day/Night | Auto(ICR) / Color / B/W |
| Backlight Compensation | BLC /HLC /DWDR |
| White Balance | Auto/Manual |
| Gain Control | Auto/Manual |
| Electronic Shutter Speed | Auto/Manual 1/3(4)~1/10000 |
| Min. Illumination | Color: 0. 001Lux/F1.6, 0Lux/F1.6 (IR on) |
| S/N Ratio | ≥50dB |
| Compression | H.264H/H.264B/H.264/ MJPEG |
| Bit Rate | H.264H: 16K ~ 8192Kbps |
| Network | |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocol | IPv4/IPv6, HTTP, HTTPS, TCP/IP, UDP, UPnP, ICMP, IGMP, RTSP |
| RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS | |
| Compatibility | ONVIF |
| Max. User Access | 20 users |
| Smart Phone | iPhone, iPad, Android, Windows Phone |
| Basic | |
| Atmospheric Pressure | 80KPa~106KPa |
| Ambient Temperature | –25°c~+70°c |
| Relative Humidity | No more than 95% (+25°c) |
| Ex-proof Marking | ExdⅡBT6/DIP A21 TA, T6 |
| Enclosure Protection | IP68 |
| Voltage Input | DC12V/AC220V (optional) |
| Outer Dimension | Φ170mm×290mm |
| Glass | Φ135mm*8mm( thickness ) |
| Net weight | 8.0kg |
| Material | SS304 (chemical factories, outdoors and so on) |
| SS316L(sea environment, oil tankers and so on) | |
| Auto-heated | while it is <1°c(Optional) |
| Installation | All mounting (recommending ZAZ100B bracket) or fixed at pan/tilt. |

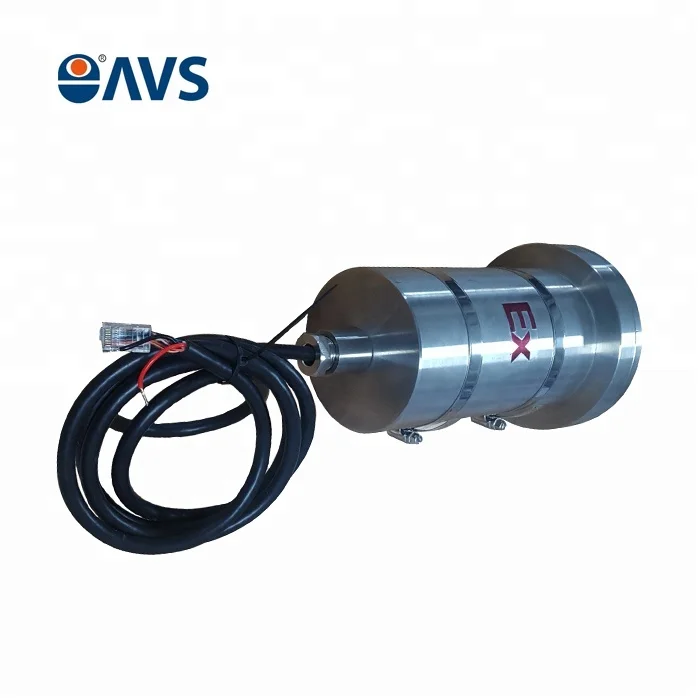

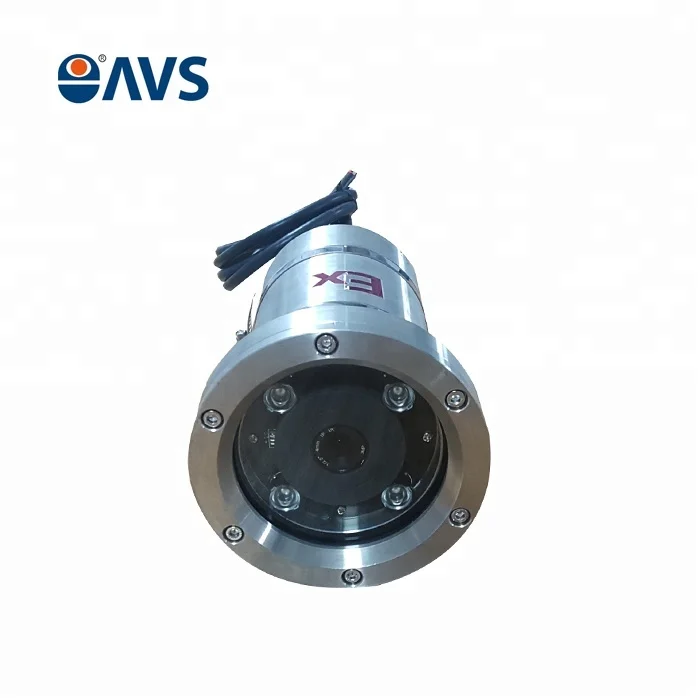

Description of the Anti-Explosion/Corrosion Camera(FBW4201IP)
The FBW4201IP camera housing meets the standard of mechanical and electronic demand of China explosion-proof GB3836-2000. It is used under the explosive gas circumstance of alcohol and Ethylene. The exterior is smooth, compact and easy to transportation.
The FBW4201IP can be settled with fixed lens, which is fit for in the interior. Although it enclosure has no wiper, there is nanometer paint coat on viewing glass. Besides, it can add sun shield as you required. (The modules you can add: camera module, heating module, cooling module, optical fiber module, and power module and so on.)
The enclosure protection is low. Be care of choosing it. It fits to be used under the occasional explosive gas and dust environment.

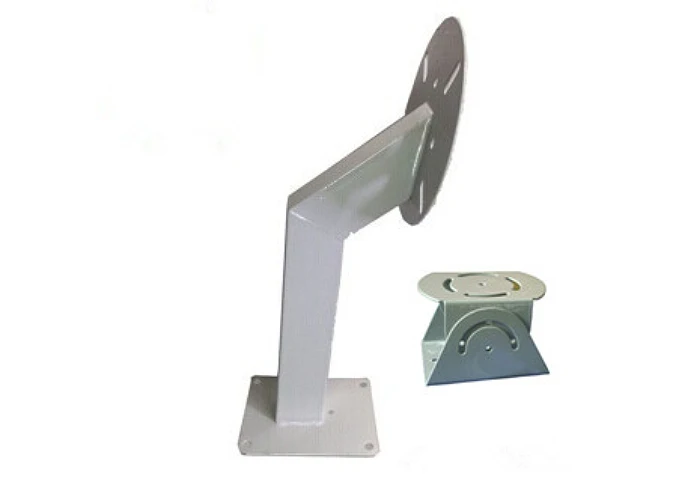

Anti-Explosion/Corrosion Camera Bracket(AVS-FB001)
AVS-FB001 Brackets fixes stand forms through the cold rolling steel plate, having very powerful structure intensity. It is such a heavy stand that it is used in fixing integration supervising system
Material: 304
Load capacity: 80kg

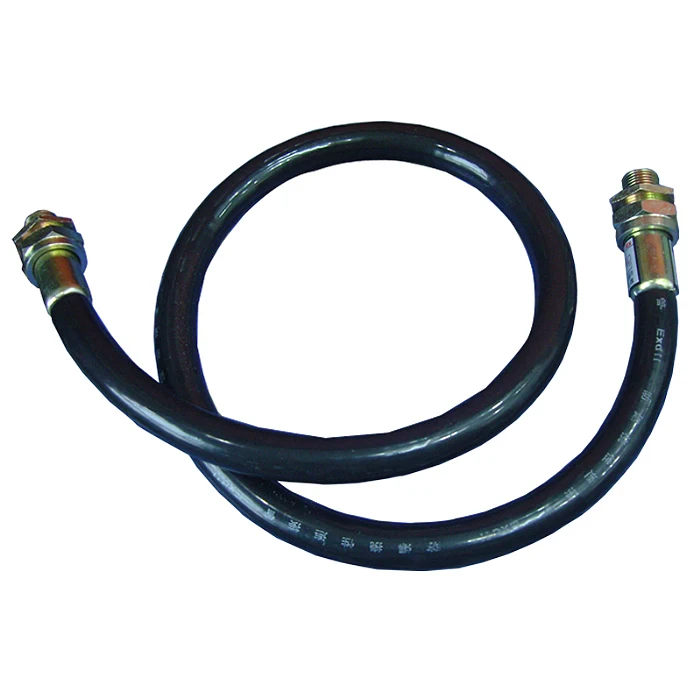

Explosion-proof Flexibility Tube
It chiefly connects explosion-proof pan/tilt; camera, decoder and normal explosion-proof protection cover on-the-spot.
Specification:
Φ15mm×1500mm

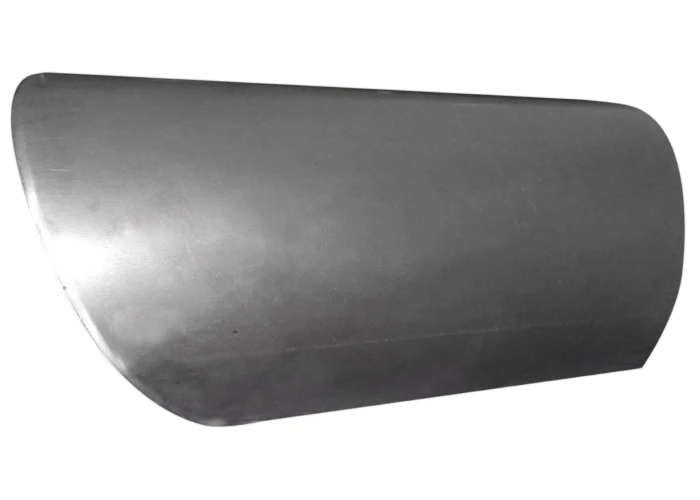

Sun-shield
For reducing the influence from sun and rain
Material: 304
