220V 1kg 2kg Capacity Gold Melting Electrical Industrial Furnace Manufacturer

Gold Melting Electrical Furnace Description

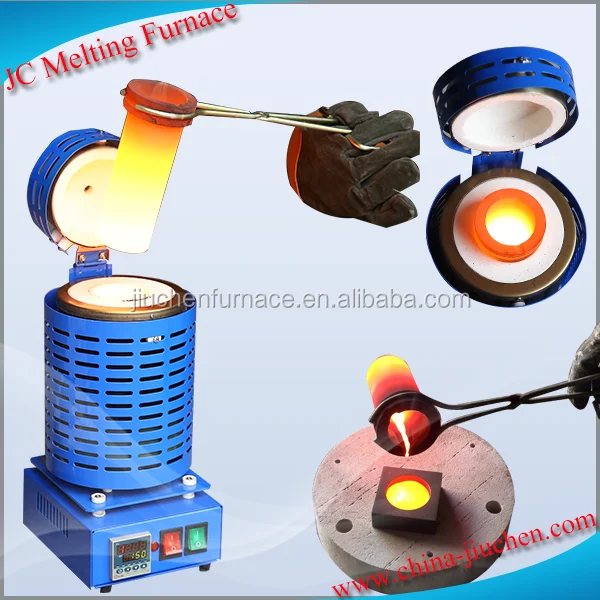

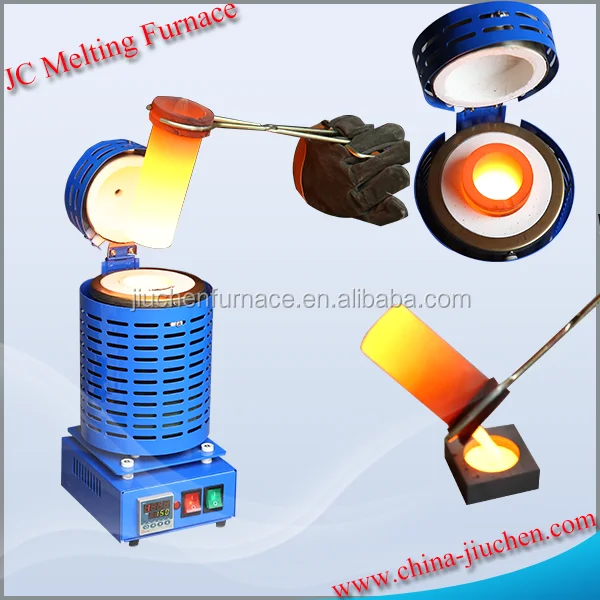

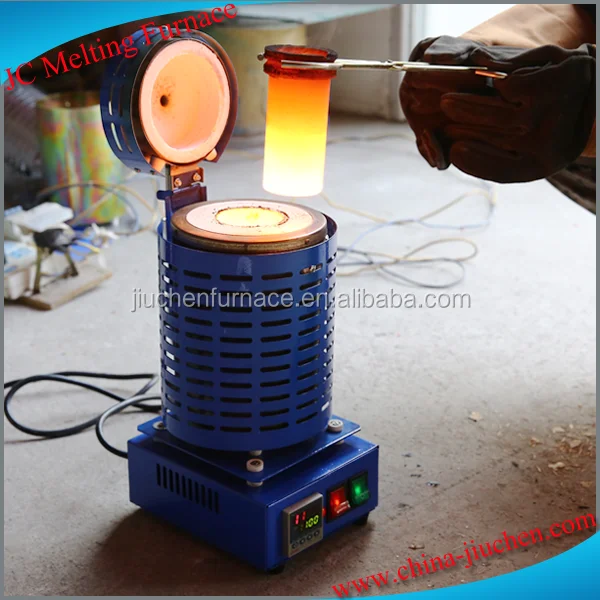

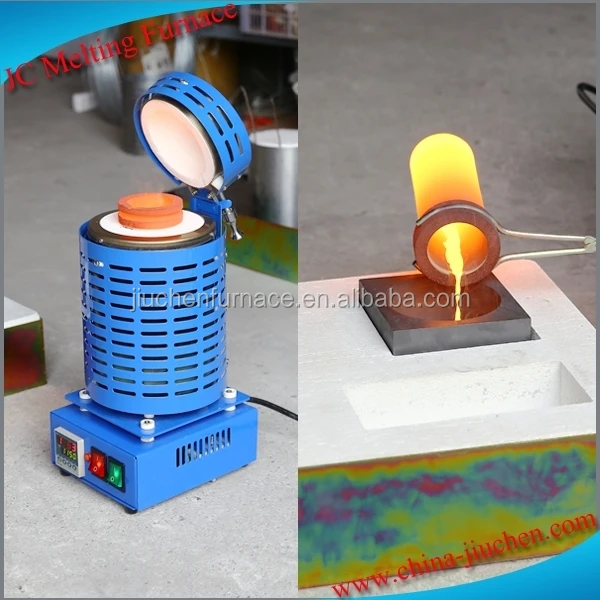

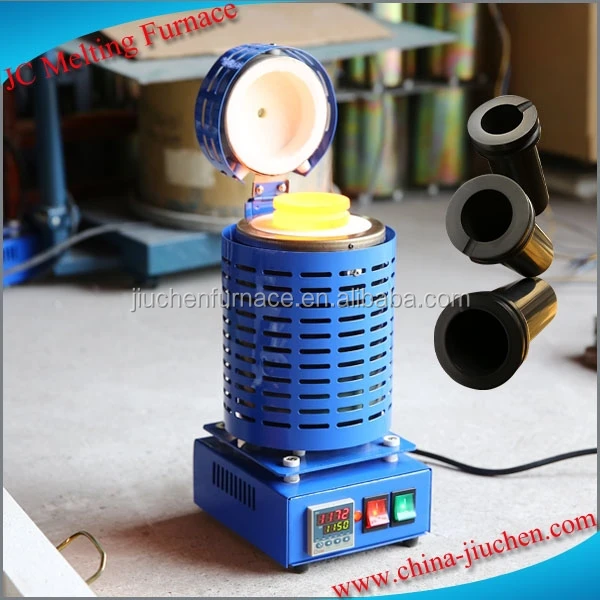

Gold Melting Electrical Furnace Efficiently melt nonferrous alloys for casting and ingot-making with

this furnace. Allows you to lift and pour in one smooth motion with fewer spills and far less heat loss with

the tilt-pour feature. The graphite crucible is protected from exposure to oxygen while hot and will last

longer. Features a grooved graphite crucible designed for easy removal from the furnace with tongs

(included). Includes power cord.
Brushed steel and powder-coated steel housing ensures long shop life.
LED display with digital readout allows precise temp. control to 2102°F (1,150°C).
Insulated lid holds heat in and keeps oxygen out for a cleaner melt.

1kg Metal Melting Furnace.jpg

Jewellery furnace.jpg

Gold Melting Electrical Furnace Breif Instruction

Use

Removable crucible furnace for melting or maintaining melted state of non-ferrous metals.Handling the crucible with tongs.

Construction

Access to crucible from top,manual cover closing

Insulation

Multilayer insulation with double thickness of ceramic fiber

Electricity

Single-phase 220VAC,1500W,50Hz,220V different plugs is optional

Heating

Silicon Carbide chamber with no crack,no distortion,comparied with other traditional ceramic fiber chamber and quartz chamber

Working temp

2192F (1200C) Temperature controlled with an accurate digital thermostat

Melting Speed

(Model JC-K-220-2) 15-20mins heat up to 1200 Degrees Celsius

25-30Mins(JC-K-220-1) heat up to 1200 Degrees Celsius

Standard Delivered with

1x1kg crucible,1xcrucible tongs,1xinsluation glasses,1xgloves





Electric Gold Melting Furnace (2).jpg

Furnace for melting gold.jpgJC Furnace Size.jpgDifference Feature JIUCHEN with Other Similar Furnace

Items

     JC Electric Furnace

   Other Similar Furnace

           Furnace chamber

Adopts new advanced SIC material with no crack no distortion under normal temp 1-1200 Degrees Celsius,which prevents disadvantage of short work life with tranditional ceramic fiber, quartz chambers.

Traditional chamber material:ceramic fiber, quartz with easy crack and distort after use 2-3 times,which easily lead to short circuit and reduce work life.

Heating Coil

Material: Fe-Cr-Ni alloys   Limited test temp up to 1600°C,make sure long continues continuous work time under normal 1200°C,which effectly extend furnace work life

Easy to crack after use 2-3times and lead to be out of work,it is very complicated process if replace coil singly,also many end users unable to replace it successfully by themselves.

Heating Speed

JC-K-220-1(220V 1Kw)  25-30Mins

JC-K-220-2(220V 1.5Kw)

15-20Mins

25-45mins:

Reheat:15-30mins

Then need 10-15mins to complete finish the melting.

Working temp

1-1200  Degrees Celsius

1-1150  Degrees Celsius

Gold Melting Electrical Furnace Warranty &Instruction

Warranty:One year for temperature controller including temp display,Relay,etc.

Six month for heating elements including chamer,heating coil etc.

1.Connecting switch power supply,electricity,light switch is,
2.temperature controller with the digital furnace is slowly rising,

3. in the process of operation,the furnace temperature degrees will spread,user shall not move and

   collision,avoid scald and damage,

4.When the temperature reached gold and gold rains melting point,user according to demand will continue to increase.When the maximum temperature reached 1,150 degrees,it will stop work or in cooling condition,
5.be sure to disconnect the power supply,then use to operate, professional pliers to ensure their safety

220V Gold Melting Equipment.jpgGold Melting Furnace Operation.jpg

About US

Zibo JC Eco-Tech Co.,Ltd. is a specialized manufacturer of Small Electric Melting Furnace,the main

products are Small type K furnaces,Medium S types capacity 10kg-50kg ,various sizes and shapes can be customized.

Small Gold Furnace has been obtained CE Certificate& 2 national patents.It is widely used in Jewelry industry,

metallurgy,chemical,ceramics industries,chemical industry,laboratories and other research institutes.

We are committed to offer excellent products and best services to you. Welcome to join us!
