DK7732C CT wire cut edm suzhou baoma
- Category: >>>
- Supplier: Suzhou Baoma Numerical Control Equipment Co. Ltd.
Share on (60313357938):
Product Overview
Description
Professional supplier wire cut/wire cut machine/cnc wire cut edm dk series/DK7732C-C
edm wire-cut edm / wire cut edm-suzhou baoma DK7732C-C
Product Description
cnc EDM wire cutting machine DK7732C-C
a)Max cutting speed:250mm2/min
b)Low consumption:wire diameter wears off 0.001mm/400000mm2
New machinery-Wise CNC medium speed wire cutting machine/electric discharge machine/edm wire cutting machine price/DK7732C-C
NEW designed Machine! Best Performance in China!
Max cutting speed 250mm2/min Each 400, 000mm2 wear 0.01mm wire.
1. Basic accessories of controller BMW-5000 model with New High frequency Power supply.
2. Double Direction Servo wire tension system
3. With BMXP software, which run base on Window XP, can use Autocad directly
4. EMERSON inverter (U. S. A)
5. Linear Guide way from PMI
6. LCD monitor
7. Industrial computer
8. Central lubricate system
9. CE certificate from England.
New machinery-Wise CNC medium speed wire cutting machine/electric discharge machine/edm wire cutting machine price/DK7732C-C
1. The casting for the main machine bed, using high rigid HT250, which made by a famous Japanese manufacturer. Integrated structure design, all casting parts are made with the procedure of resin-send and twice heat treatment to improve the max load weight and keep a good precision for long time and avoid the distortion.
3. The controller equipped the BMXP Intelligent software, which integrates the program and control and based on Windows XP. This new designed BMXP software is the unique software for WEDM running on the condition of windows XP.
4. Using the PCI slot controller card and the High-tech Industrial computer, which greatly enhanced the stability of control and greatly reduced the computer the failure rate
5. To achieve a fast and convenient computer communication network, through network technology, graphics, data and program transmission, can be directly controlled by the technical design department since the first establishment of a program
6. Embedded Control system can be connected with many design software smoothly.
7. The search function of mechanical origin enable the transmission screw pitch compensation, in order to greatly improve the positioning accuracy, especially in Servo control system.
8. The control parameters of pulse power is directly by the software, in order to not only improve anti-jamming capability in pulse power output, but also increase the roughness of work piece.
9. Variety of pulse power can be chosen, which is suited for a number of processing conditions to improve the cutting ability of the high precision parts.
10. With a large database storage capacity, which accumulated from many experiences. User can choose the suitable parameter according to deferent working conditions. Users can adjust machining parameters to establish a database at any time according to their own experience
11. Three layer filters can prolong the using life of the working solution and improve the finishing, with BAOMA series working solution can achieve a better performance and PRO-environment.
12. Can be equipped with the close-loop control system, use the MITSUBISHI, YASKAWA servo control system and servo motors.
13. The wire moving is controlled by EMERSON transducer, which adopts unlimited adjustment.
14. The processing components involve godet mechanism, the best roughness Ra≤ 1.5μ M (the finishing can be improved greatly by using the BM working solution)
15. Customrized extra-big machine can be manufactured in our company.
Main performance indexes and technical requirements
1, BMXP software Functions:
(1)Coordinate system: Absolute coordinate, incremental coordinate (relative coordinate)
(2)Functions of coordinate transforming, zooming in and zooming out, rotating and tracking display in real time(3)Functions of interpolation of straight line and circular arc
(4)Function of taper processing
(5)Function of processing different top and bottom abnormities parts
(6)Auto-handle for short circuit and wire-break
(7)Functions of memorizing when power was cut and auto-stop after processing
(8)Functions of auto edge-touching position and auto center finding
(9)Function of auto-adding transitional arc (Arbitrary angle)
(10)Function o Functions of menu technology and auto-programming ward
(11)Functions of menu technology and auto-programming
(12)AUTOCAD can be used to program directly in the software.
4. Axis processing
(2)Running environment
(A)Temperature: 5-40 degree
Relative humidity: 40%~80%
1, BMXP software Functions:
(1)Coordinate system: Absolute coordinate, incremental coordinate (relative coordinate)
(2)Functions of coordinate transforming, zooming in and zooming out, rotating and tracking display in real time(3)Functions of interpolation of straight line and circular arc
(3)Function of taper processing
(4)Function of processing different top and bottom abnormities parts
(5)Auto-handle for short circuit and wire-break
(6)Functions of memorizing when power was cut and auto-stop after processing
(7)Functions of auto edge-touching position and auto center finding
(8)Function of auto-adding transitional arc (Arbitrary angle)
(9)Function o Functions of menu technology and auto-programming ward
(10)Functions of menu technology and auto-programming
(11)AUTOCAD can be used to program directly in the software.
New machinery-Wise CNC medium speed wire cutting machine/electric discharge machine/edm wire cutting machine price/DK7732C-C
| CNC Wire Cut EDM [DK7732C] | Unit | DK7732C-C | |
| Worktable size (L× W) | mm | 635× 420 | |
| Table travel(X× Y) | mm | 320× 400 | |
| Max. workpiece thickness | mm | 300 | |
| Max. taper angle/plate thickness | degree/mm | ± 3° /100 | |
| Max. machining speed | mm² /min | 120 | |
| Precision | Octagon | mm | ≤ 0.012 |
| taper | mm | ≤ 0.04 | |
| Max. working current | A | 8 | |
| Roughness, three cutting | μ m | ≤ 1.2 | |
| Wire diameter | mm | 0.15~0.2 | |
| Wire travelling speed | m/min | 5~11 | |
| Load of table | Kg | 400 | |
| Working solution | working solution new GP working solution | ||
| Working reservoir capacity | L | 56 | |
| Power supply | 3N-380V/50Hz Customrized | ||
| Power consumption | KVA | 3 | |
| Wire guide frame | Adjustable | ||
| Machine dimensions(L× W× H) | mm | 1450× 1000× 1550 | |
| Package dimensions(L× W× H) | mm | 1800× 1400× 1800 | |
| Machine weight | Kg | 1700 | |
| Controller type | BMW-5000 | ||

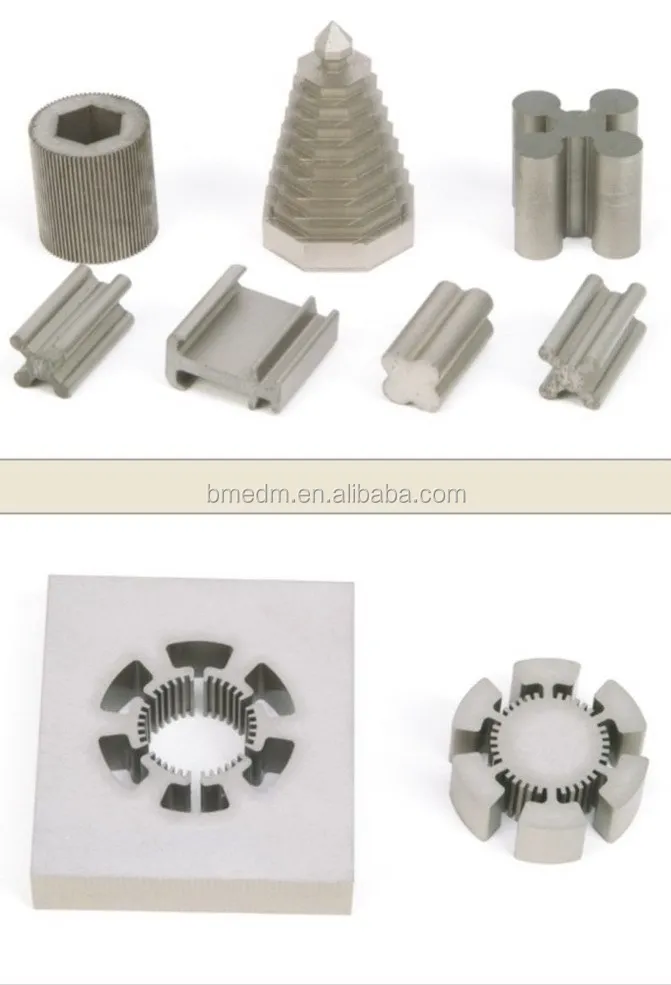

Detailed Images
Control System | |
|
|
Pump and Tool Box | |
|
|
Packaging & Shipping
| Packaging Detail: | Packing Box: Standard plywood packing. 40'HP Container: Can install 4 sets DK7732C-CH Fumigation Certificate: No need (plywood packing, not wood packing) |
| Delivery Detail: | within 30 days after getting your down payment |
PACKING: | |
|
|
Certifications
ISO14001:2004
GB/T 24001-2004
ISO9001:2008
GB/T 19001-2008
CE CERTIFICATE:
Trade Shows
OUR WORLD EXPOSITION
EGYPT:
BRAZIL:
BEI JING:
INDIA:
After-Sales Service
- First Time on site service for training and installing for free, but all travel cost and accomodation should be paid by customers
- One Year guarantee for accessories except the consumable parts,life long maintenance
- Favorable price for spare parts and accessories in future
- Cost free for training and lunch in our company. But travel expenses should be on clients account.
- after service
- If there is any problem with the machine, we will try to solve the problem by email or Tel Promptly, at the same time ,we will record your description about the problem and prepare the service on site
- Our company will supply free service if the machine broken within the guarantee period, but the travel cost and the accomdation should be paid by customer
- Life long service with charge.
Training items
- We have professional teachers, equipment and site to draw out training plans for Clients
- Training time: around 5-10days
- The training site: training department or workshop
- Training People: 2-3 operators from clients company.
- The content of training:
- Learn how to use the software
- Basic Operation and attention of machines
- Maintaining the machines
- Attending the test in each period

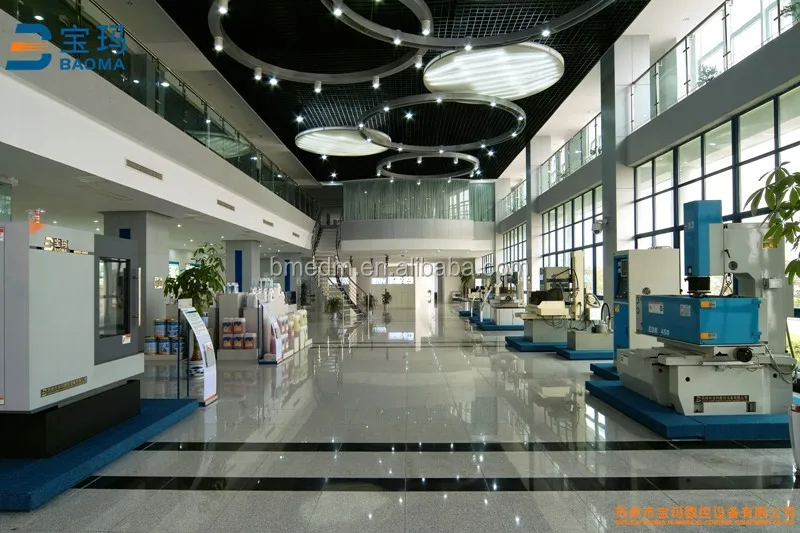

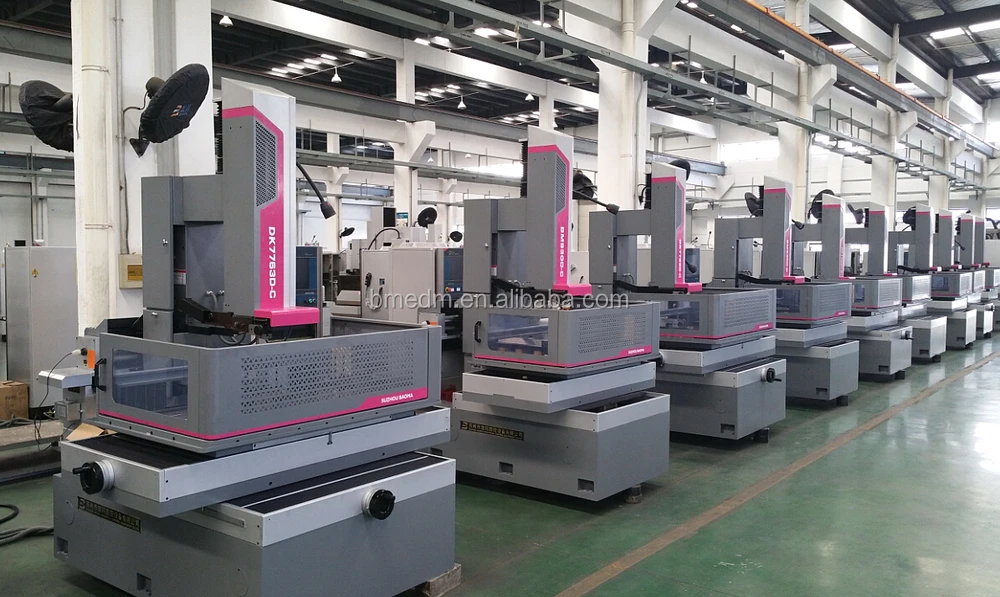

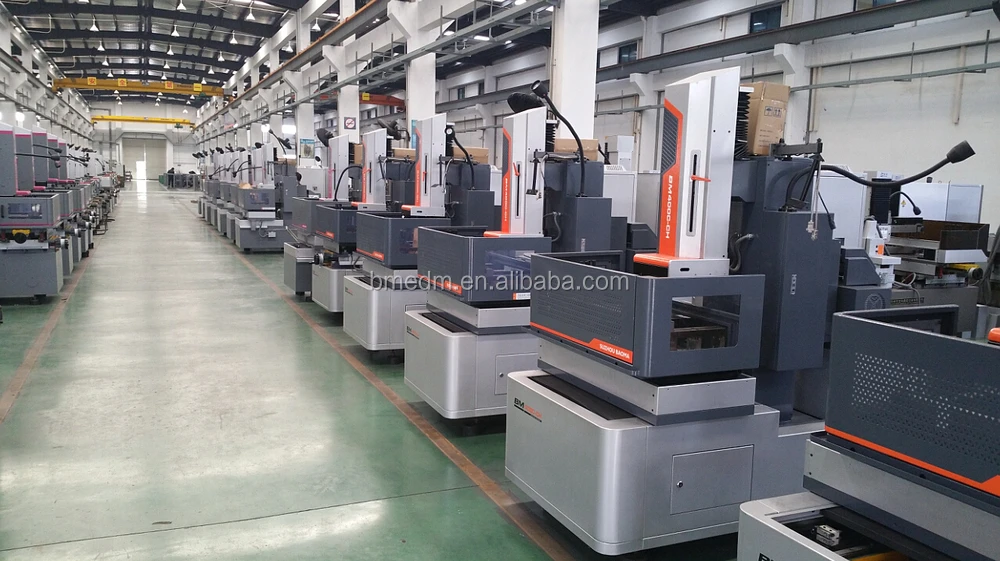

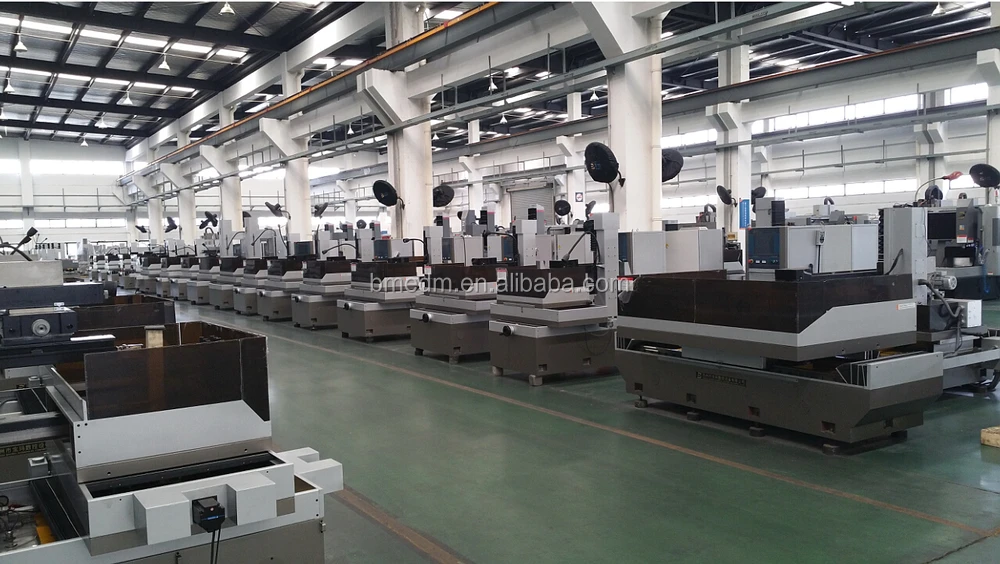

Company Information
Baoma group | |
| Under the leadership of our general manager Mr. Shao Jianjun, the company has gained two systems ----ISO9001:2000 Quality System Certification and ISO14001:1996 Environmental System Certification, which is seldom acquired by other companies in the same field, and export quality authentication. Baoma is professionally engaged in developing, producing and selling CNC&EDM machines, under the slogan of "facing future, initiating creation", concentrated on organizing and fostering a high efficient team who holds independent developing capability, successively won five national patents and two golden prizes, and awarded "reliable products of national consumer" by central authority and "satisfied enterprise of products quality after-sale service" several years. | |
FAQ
Main Factors of Bad Smooth(Finishing)
Please check the following factors one by one, Copy to Word and write down your real situation, then send to us.
1. Quality of workpiece:
the material quality is good or not? Does it contain some impurity or rust? These impurities may effect the electrical discharging, leading to the bad roughness. Please cut the workpiece that we sent together with the machine or the standard mould steel(like Cr12)( Your feedback: )
2. Working solution:
What kind of the working solution does the customer use? Soap or our BM-4? We suggest use BM-4 with right mixture rate with demineralized water (1:20 to25). During the machine’s working, please make sure the coolant covers the running. ( Your feedback: )
3. Pulleys:
Please check and make sure all of pulleys work in good condition. Please replace them with new good quality ones if the old ones are broken or in case of that the workpiece roughness is bad. (The method to check the pulley: hold one end of the pulley, and rotate the other end to check if it runs smoothly.) ( Your feedback: )
4. Molybdenum wire.
Please change the wire frequently (normally 4-5 days), and tension the new wire with suitable pulling force. ( Your feedback: )
5. The distance between the up and down arms (wire shelf):
If the workpiece is not too high, please try your best to reduce the distance by lowering the up arm. Because the wire may quake a little during the cutting if the distance is too big. And the quaking wire can affect the roughness of workpiece too. ( Your feedback: )
6. The electrical blocks.
Please check if the block is broken with the wire. If you find some small gap on it, please change the blocks too. ( Your feedback: )
7. The parameters.
We have to set the suitable parameters according to the material of workpiece, the height of workpiece, and the requirements about the roughness and cutting speed. There are three main parameters: Pon, Poff, and IP.
(1)Pon: It is the time of the electricity pulse discharging and it mainly affects the particles on the cutting surface. When Pon is bigger, the discharging current is bigger, the cutting speed is faster, but the roughness is worse;
(2)Poff: It is the rest time between the two pulses discharging and it mainly affects the time for the coolant to flush the chips in the cutting path. When Poff is bigger, the flushing chips time is longer, so the roughness is better and the cutting speed is lower.
(3)IP. It is the pulse discharging power and it mainly affects the wire wastage. When IP is bigger, the cutting speed is higher, the roughness is worse and the wire wastage is bigger.
Take cutting Cr12 (40mm thickness) as an example, if we want to get a better roughness with one time cutting, we normally set the parameters as follows: Pon: 8; Poff: 30; IP:3 Votage: low; Wire: 0; limited speed: 300;
If we want to get a good precision, we set parameters as follows: Pon: 20; Poff: 10; IP:3 Votage: low; Wire: 0; limited speed: 300;
You can also try to cut the workpiece with three times cutting with the following parameter:
Pon Poff IP Wire Voltage V-F Speed
1st 45 8 4 0 low o 300
2nd 7 7 3 1 low 0 200
3rd: 2 5 2 2 low 0 200
(Your feedback: )
8. Wire drum,
please check if the wire drum tremble or not during the machine working. This condition may lead to the bad roughness too. Please check it with a dial indicator during the rotating(the difference should be less than0.02mm)Refer to the picture G6 in the attachment. ( Your feedback: )
