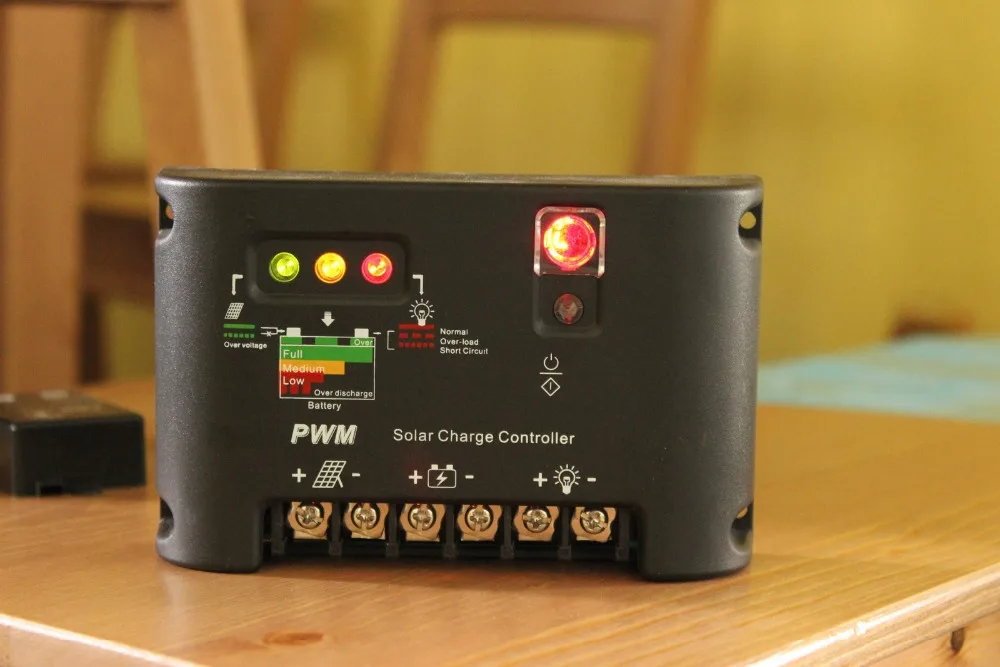

12V 24V 10A PWM Solar Charge Controller Lighting and Time Control for Solar System
- Category: >>>
- Supplier: Shenzhen Sunsun Solarenergy Limited
Share on (60313368615):
Product Overview
Description
Product Information

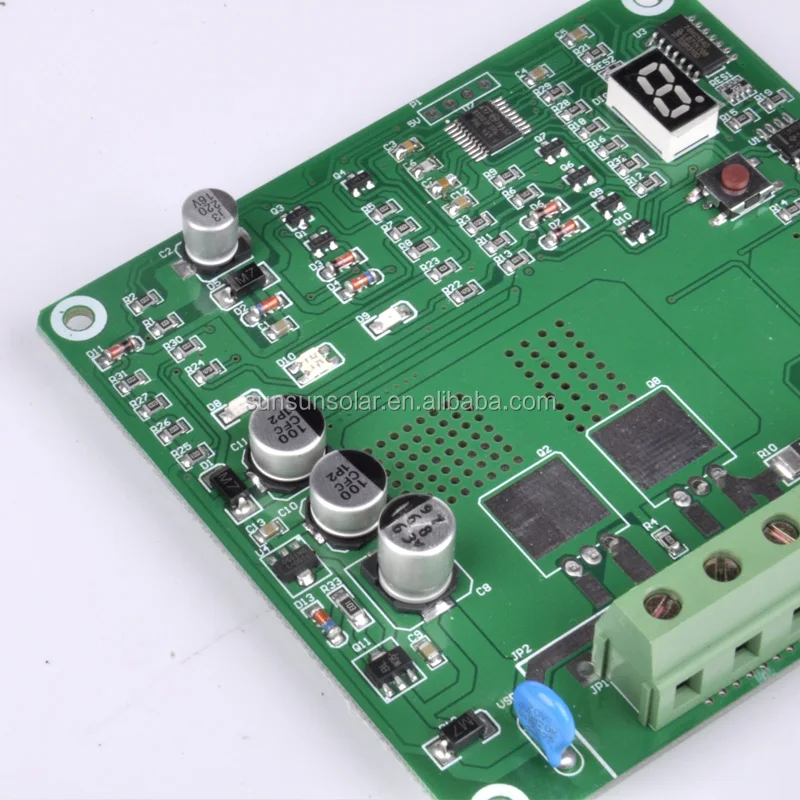

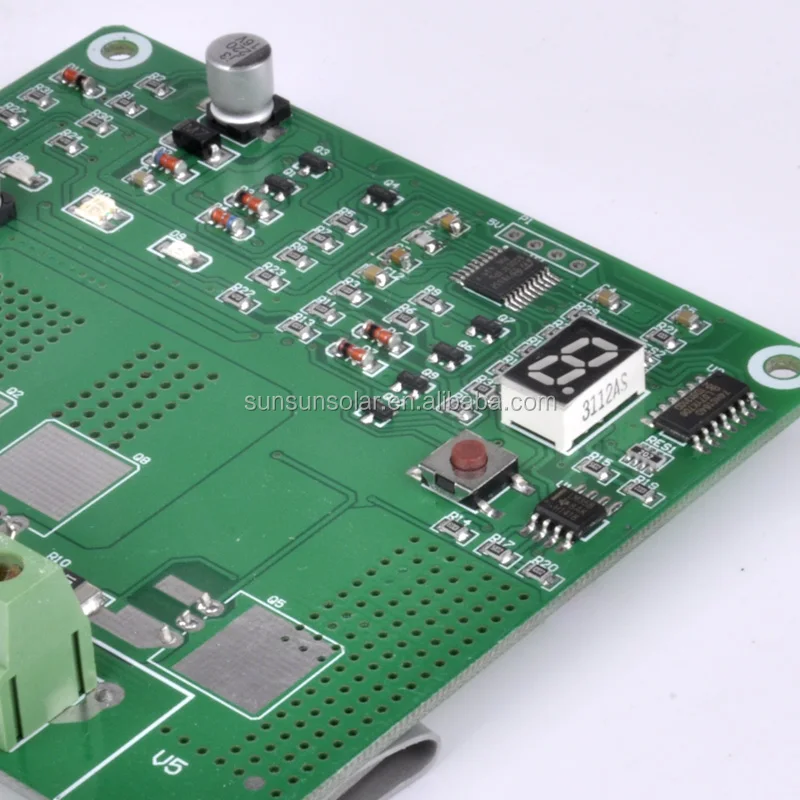

1.Build-in industrial micro controller.

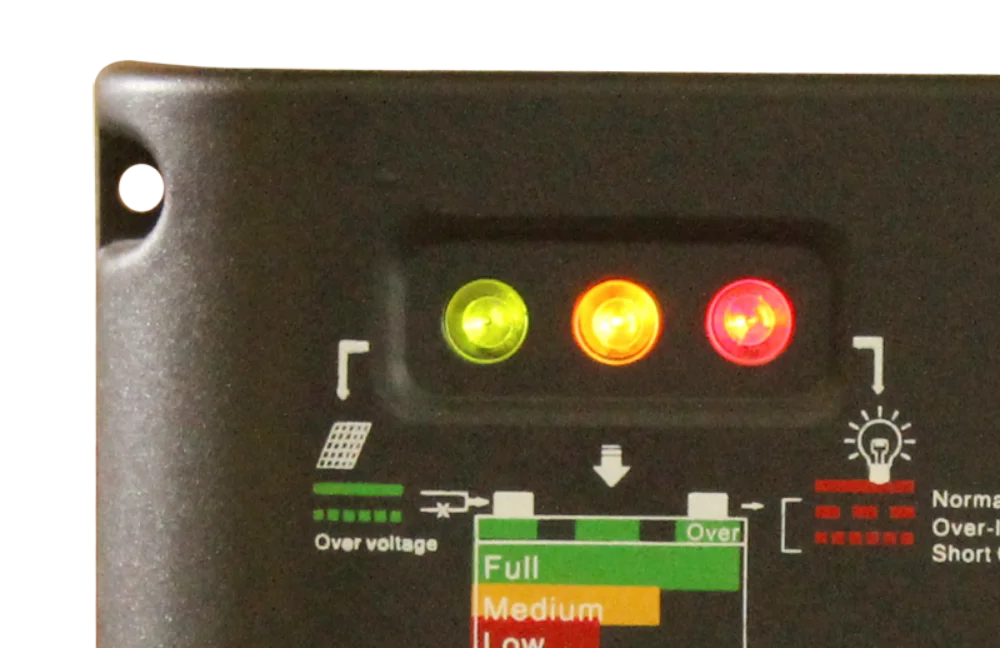

2.One-key setting,digital display,auto memory function.
3.Fully 4-stage PWM charge management.
4.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.
5.Dual mosfet Reverse current protection ,low heat production.
2.One-key setting,digital display,auto memory function.
3.Fully 4-stage PWM charge management.
4.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.
5.Dual mosfet Reverse current protection ,low heat production.
MODEL/SS | 1205N | 1210N | 1215N | 1220N | |||
Batt voltage | 12V/24V auto adapt | ||||||
Charge current | 5A | 10A | 15A | 20A | |||
Discharge current | 5A | 10A | 15A | 20A | |||
Max Solar input | 41V | ||||||
Charge drop | <0.2V | ||||||
Discharge drop | <0.25V | ||||||
Equalization | 14.8V | ||||||
Bulk | 14.5V | ||||||
Acceptance | 14.2V PWM | ||||||
Float | 13.8V | ||||||
Charge reconnect | 13.0V | ||||||
Discharge stop | 11.2V | ||||||
Discharge reconnect | 12.6V | ||||||
Self-consume | <10mA | ||||||
Voltage of open light | Solar panel 8V(delay 10s) | ||||||
Voltage of close light | Solar panel 8V(delay 60s) | ||||||
Temperature compensation | N/C | ||||||
Operating temperature | -35~+60 ℃ | ||||||

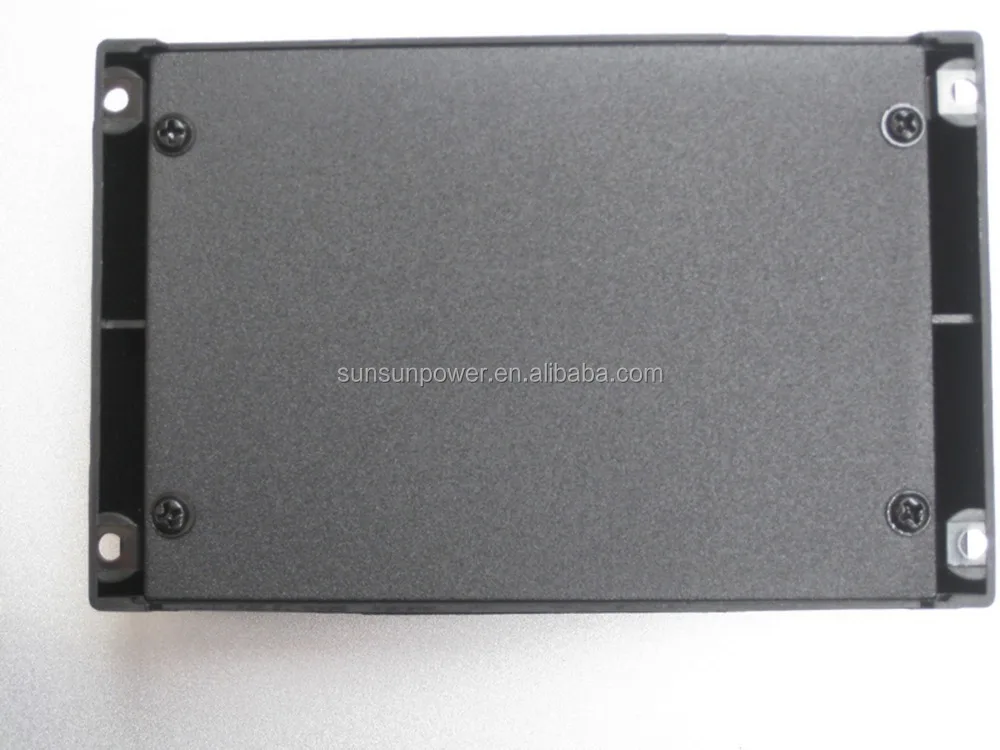

Size/Weight | 125*90*28mm /180g | ||||||
