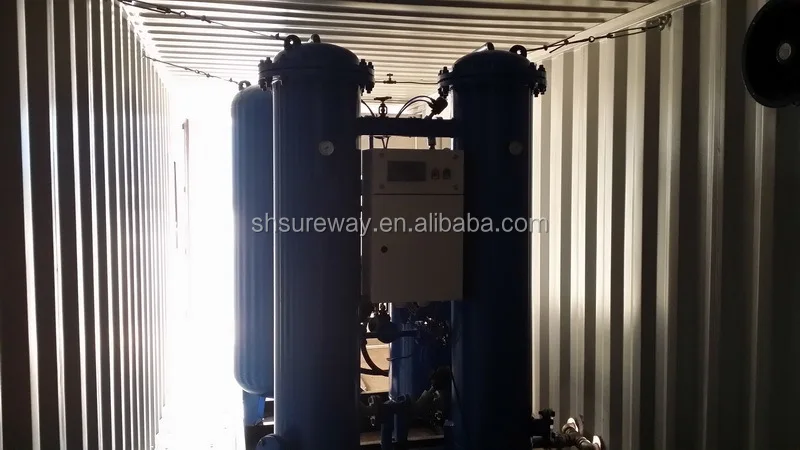

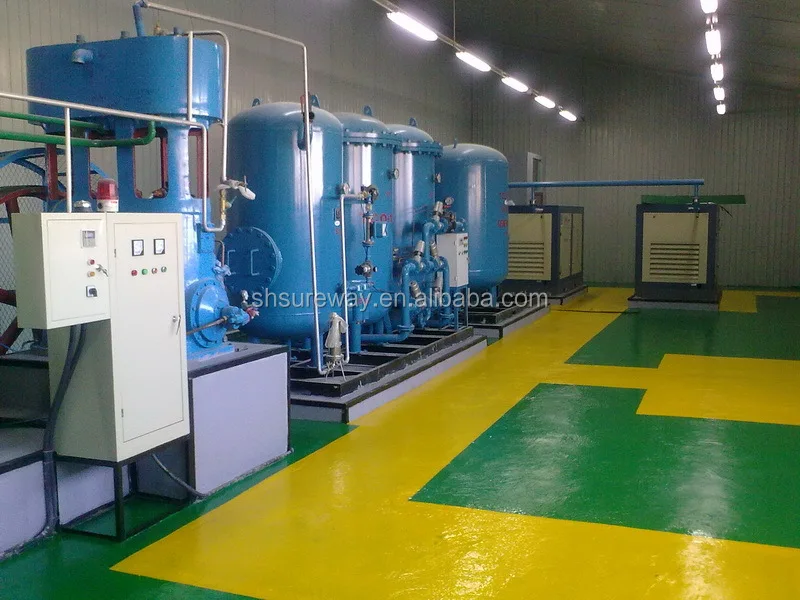

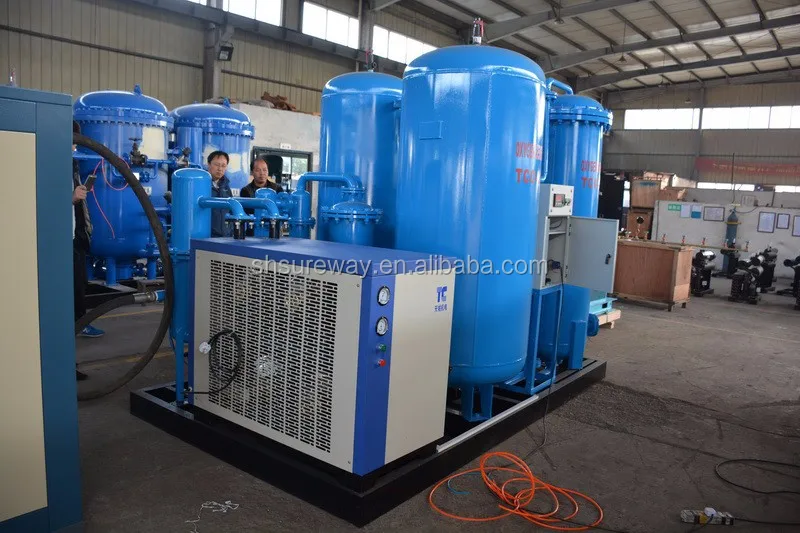

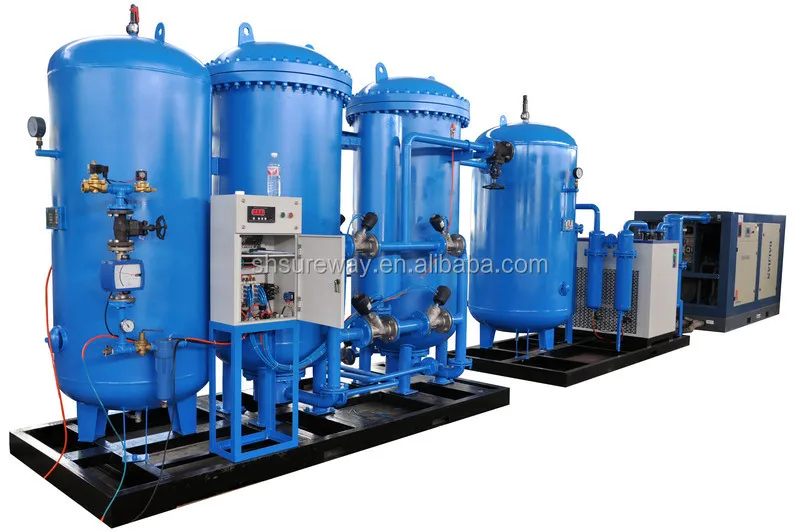

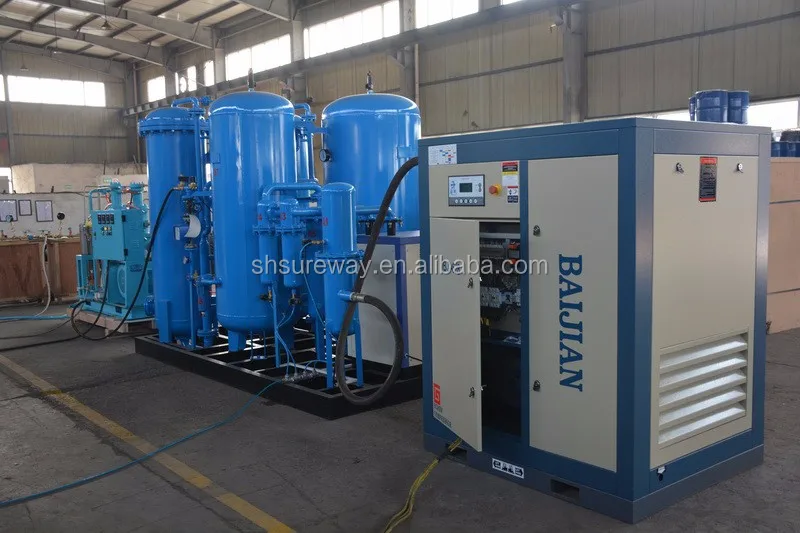

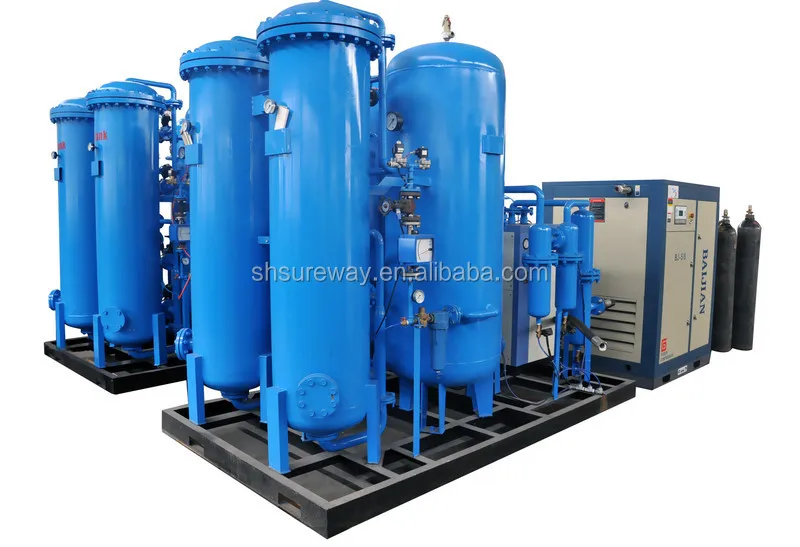

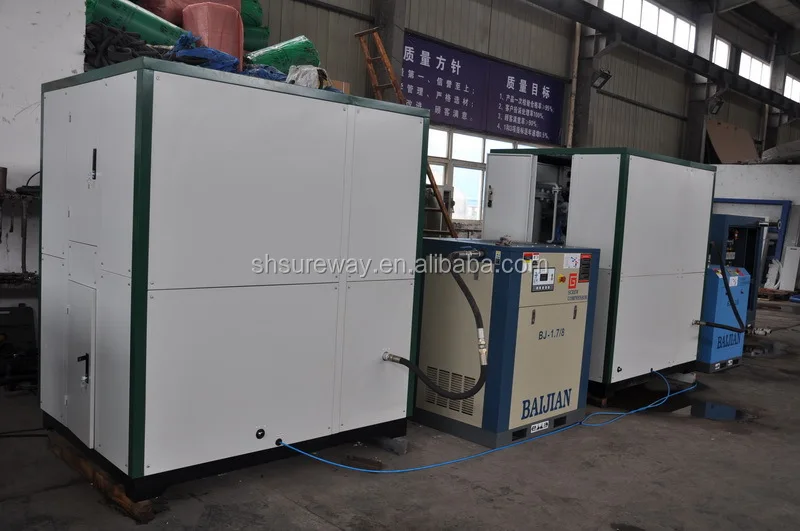

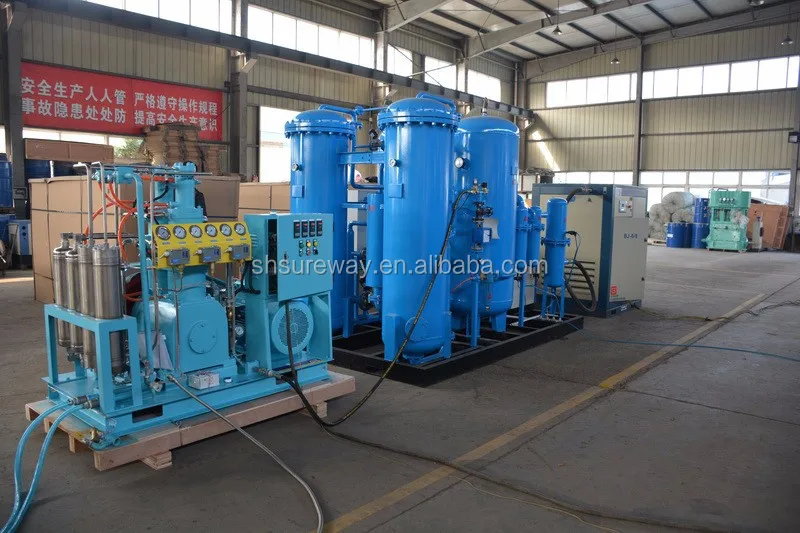

Portable Oxygen Cylinders Filling Station/PSA Oxygen Generator

 It uses air as raw material to make O₂ under room temperature, which is convenient, stable and low investment.

Specification

Capacity: 1~200Nm³/h

Purity: 93±3%

Outlet Pressure: 0.1~0.4Mpa adjustable

Dew Point: ≤-40°C

Principles:

It uses zeolite molecular sieve as sorbent, produces oxygen by making use of the PSA principle. Under certain pressure, zeolite molecular sieve has different oxygen/nitrogen adsorption capacity, i.e. much more nitrogen adsorption capacity than oxygen adsorption capacity. PLC controls pneumatic valve open/close to realize two adsorption towers' alternate adsorption and desorption as per pressure change, carries out oxygen/nitrogen separation and produces oxygen with desired purity.

      PSA Oxygen Generator Specification

1. Ferrous metallurgy: For electric furnace steel making, blast furnace iron making, cupola oxygen blasting and heating and cutting, etc.
2. Non-ferrous metal refinery: It can improve productivity and reduce energy cost, also protect our environment.
3. Water process: For oxygen aeration active mud process, reaeration of surface water, fish farming, industrial oxidation process, humid oxygenation.
4. Others: Chemical industry production, solid garbage burning, concrete production, glass manufacturing...etc.
5. Customized equipment with pressure high up to 100bar, 120bar, 150bar, 200bar and 250 bar are available for cylinder filling.
6. Medical-grade O₂ gas can be obtained by equipping extra purifying device for removing bacteria, dust and odor.

1. Small size equipment loading by containers;
2. Big size equipment in bulk or wooden box.

1. Turn-key project, or EPC service;
2. Engineers available to service oversea;
3. One year spare parts for main equipment;
4. Lifelong technical consultation and support.

Any certificate customer wants.

12 months after successful commissioning or 18 months after delivery.

1. Please provide oxygen capacity, oxygen purity, outlet pressure, voltage, frequency, and phase if you need the quotation.
2. Payment terms: 30% down payment by TT inadvance, 70% balance by TT before delivery or by L/C at sight.
