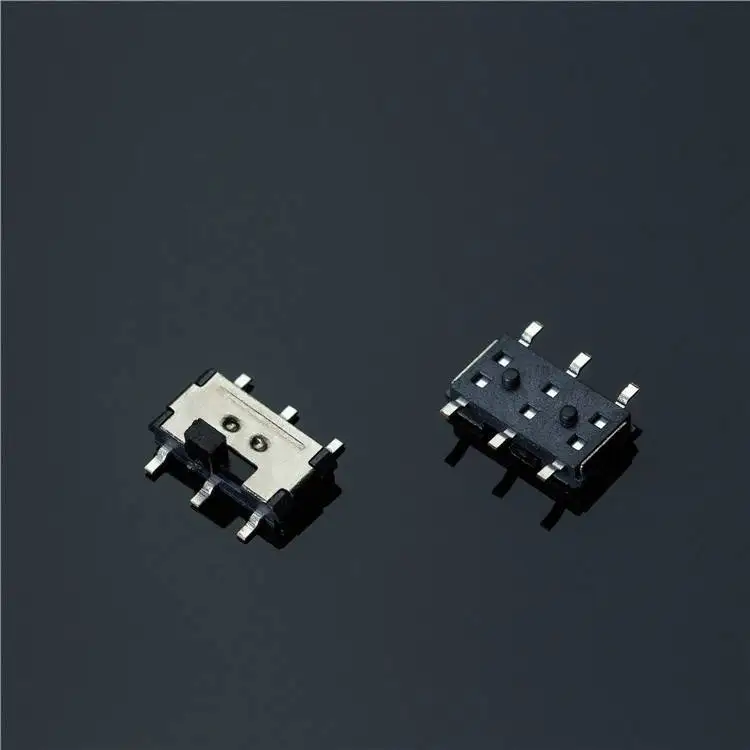

Miniature Slide switch 2 steps operating functions switch 6 pins slide switch SMT LY SS08
Miniature Slide switch 2 steps operating functions switch 6 pins slide switch SMT LY-SS08
Miniature Slide switch 2 steps operating functions switch 6 pins slide switch SMT LY-SS08
Miniature Slide switch 2 steps operating functions switch 6 pins slide switch SMT LY-SS08
Miniature Slide switch 2 steps operating functions switch 6 pins slide switch SMT LY-SS08

Miniature Slide switch 2 steps operating functions switch 6 pins slide switch SMT LY SS08

Share on (60313504086):


Price:

Quantity:


Product Overview

Description





Rated Current
50mA MAX
Rated Voltage
DC 12V
Contact Resistance
≤80mΩ
Insulation Resistance
≥100mΩ
Comressive Strength
AC250V  50Hz/1 min
Operating Force
200±50gf
Mechanical Life
10000 cycles min
Operaating Stroke
1.5±0.1mm
Temperature Range
-10℃~60℃
