sub plate split core current transformer SCT065B 1000A/5A
- Category: >>>
- Supplier: Beijing Yaohua Dechang Electronic Co. Ltd.
Share on (60313604770):
Product Overview
Description
Product Description
Product Description

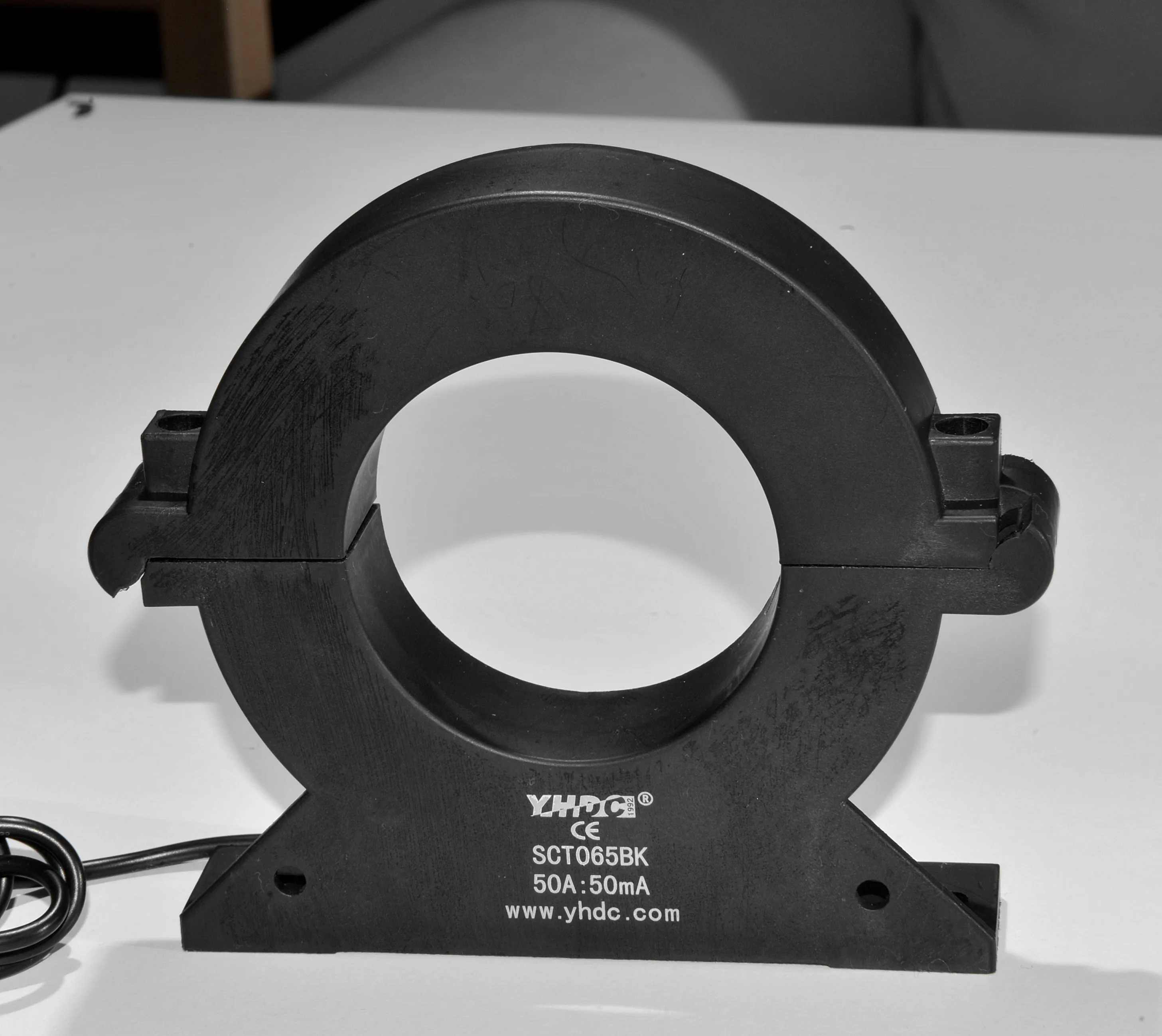

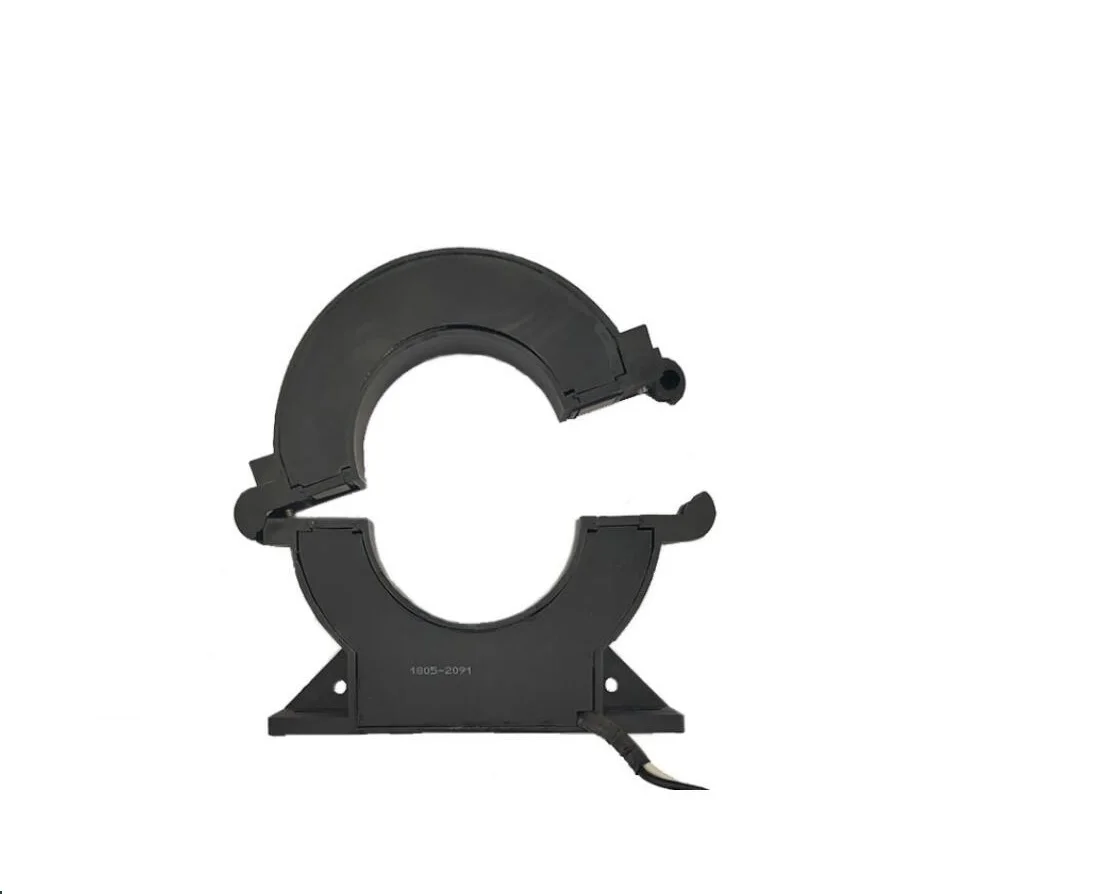

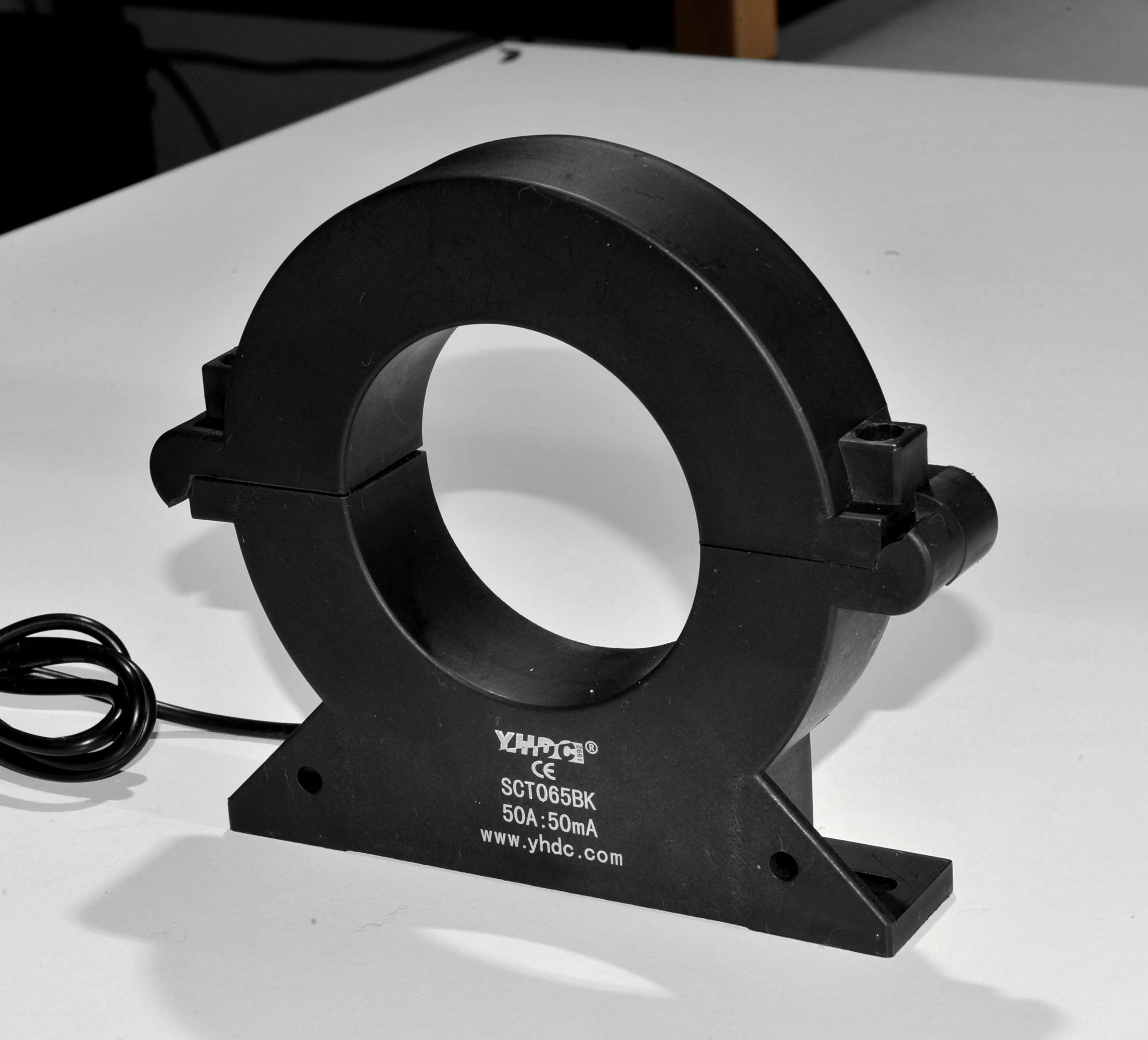

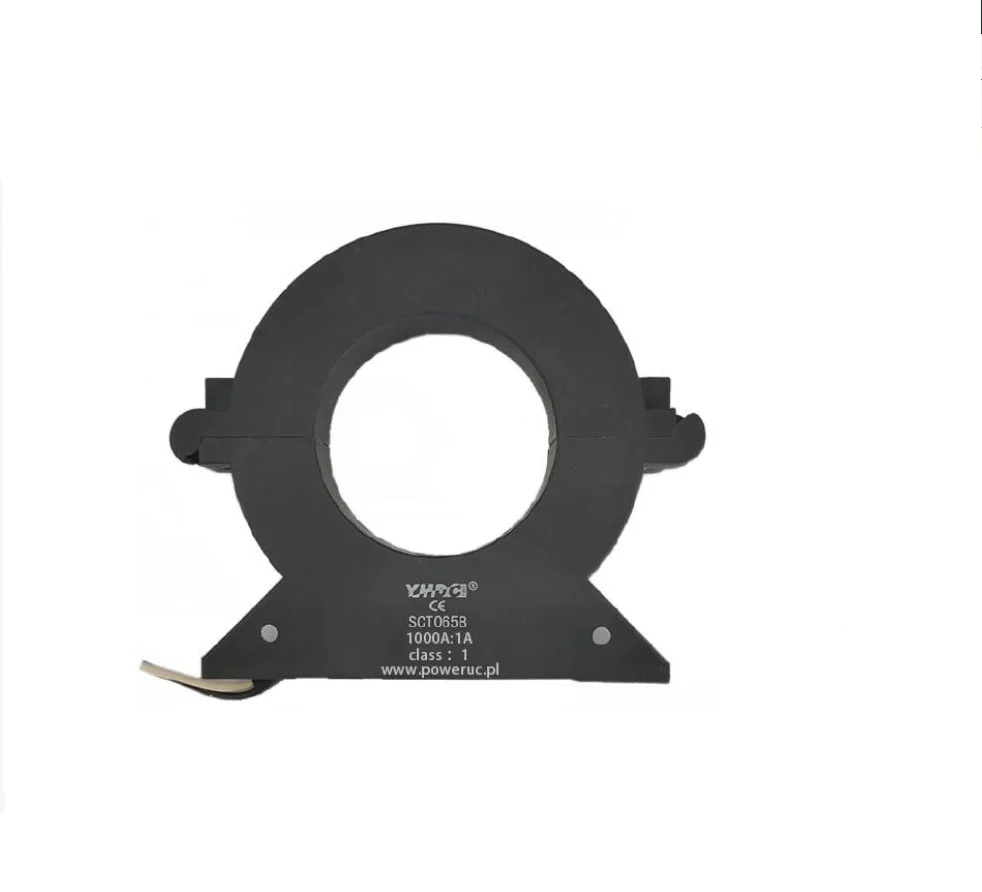

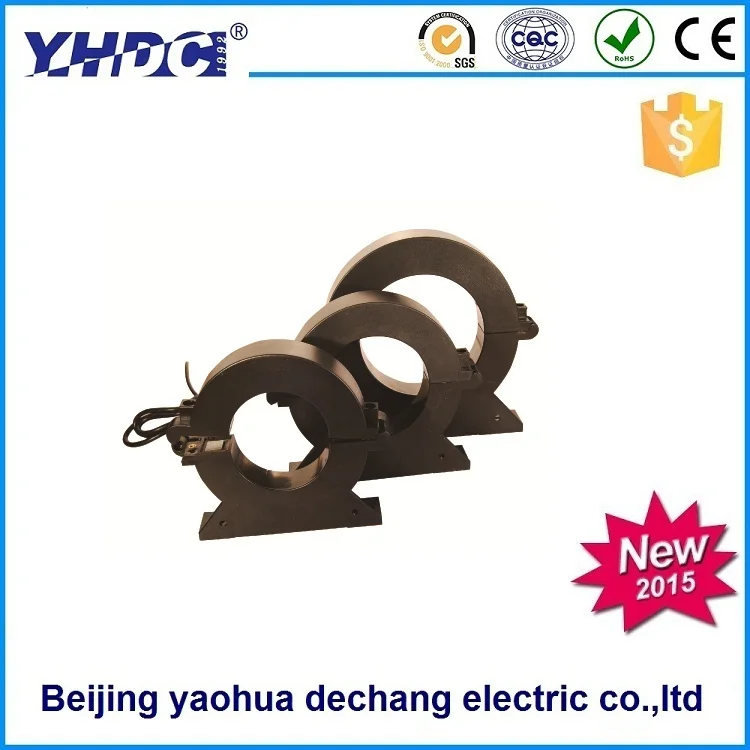

Split core current transformer
Brand : YHDC Model : SCT065B
Input current: 100A-1200A AC
Output current/voltage: 1A/5A/0.333V AC
Cable output
Hole diameter : 65mm
Accuracy : 0.5%/1.0%/3%
Price is for accuracy 1.0% 1000A/5A, if you need another specification or accuracy, please find us for price
Model | SCT065B |
Opening diameter(mm) | 65 |
Work frequency | 50Hz-60Hz |
Rated input current | 50A-1200A AC |
Linearity | ±3%/1%/0.5% |
Output type | cable |
Output current/voltage | 0.333V/1A/5A |
Dielectric strength (AC/1min) | 3500V |
Signal leading-out mode | cable output |
Mounting mode | Sub plate |
Material of iron core | Silicon steel sheet |
Weight | 550g |

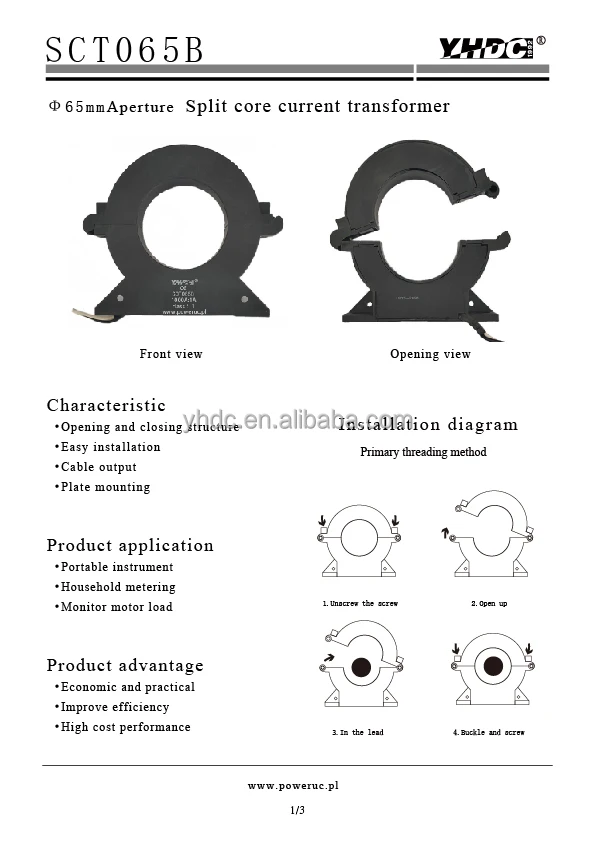

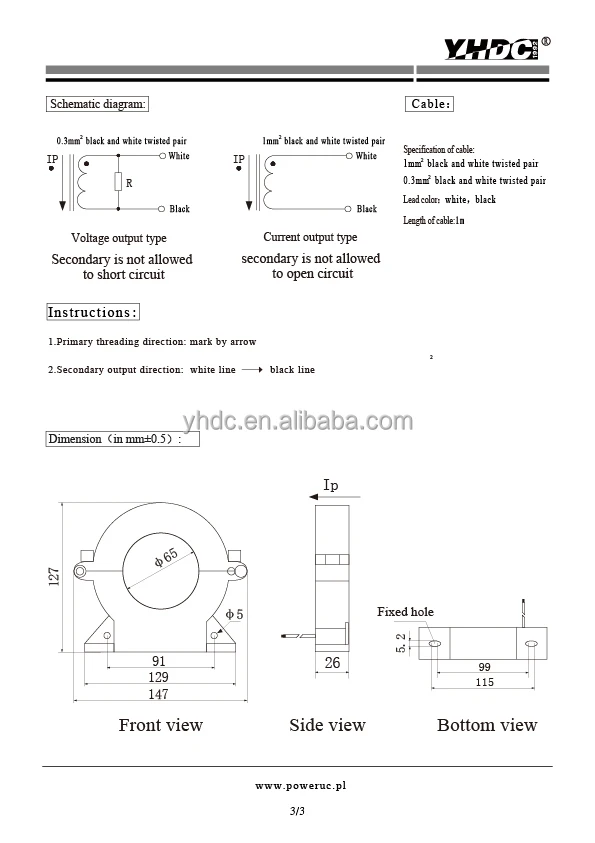

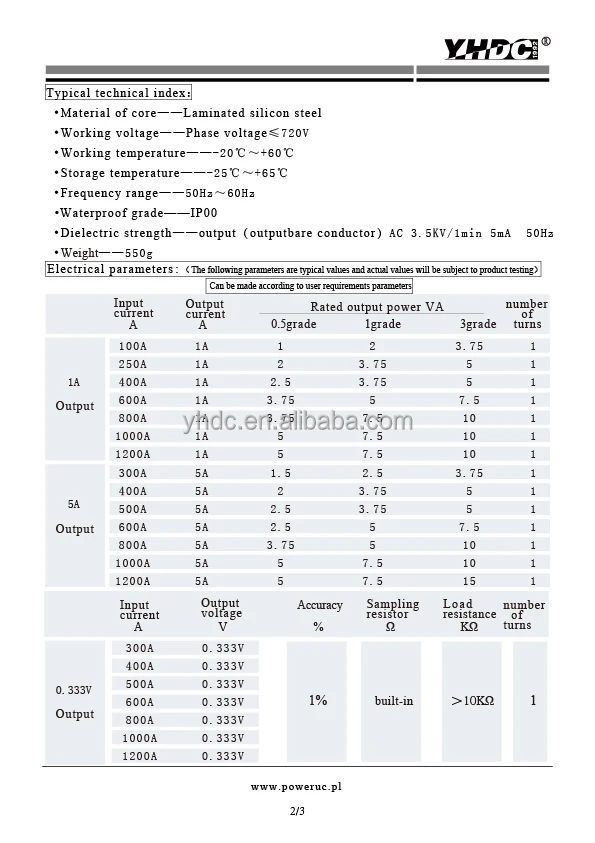

Detailed Images
Detailed Images
Company Information
Q: Do you provide samples? Can the product be customized?
A: Yes.
Q: How long is your delivery time?
A: 5-7 working days .
Q:Are you trading company or manufacturer?
A:We are factory.
Q:How can I place an order?
A: You can contact us by email about your order details, or place order online directly.
