Product Overview

Description

Prestressed Concrete H Beam Molding Machine Price



Product description

1.  Extensive use of hard wear-resistant alloy of the precast concrete buildings concrete fence post mould/concrete pole mould.

2.  To use the best vibrator and reducer of the precast concrete buildings concrete fence post mould/concrete pole mould.

3.  Precast concrete pole column extruder machine works on long-line table; use the flat pushing work method to form the concrete purline/column, 60% steel material will be saved which compared with traditional revolving die method.

4.  Efficiency can be improved 3 to 5 times compared with conical die method, the machine is easy for operation and convenient for maintenance, the products made by the machine are in good quality, smooth surface and accurate size.



Machine specifications (Your beam sizes can be customized)

Model No.	No. of holes	Diameter of wires	Electric motor power	Vibrator motor power	Total power	Molding speed(m/min)	Overall dimension	Weight
150x150x2	2	3-5mm	4kw	1.5kw	5.5kw	1.3-1.5	2200X760X850mm	810kg
180x240x2	2	3-5mm	5.5kw	2.2kw	7.7kw	1.3-1.5	2250×900×900mm	1300kg
170x200x2	2	3-5mm	5.5kw	2.2kw	7.7kw	1.3-1.5	2250×900X900mm	1300kg
180x280x2	2	3-5mm	5.5kw	3kw	8.5kw	1.3-1.5	2250×1150×900mm	1400kg

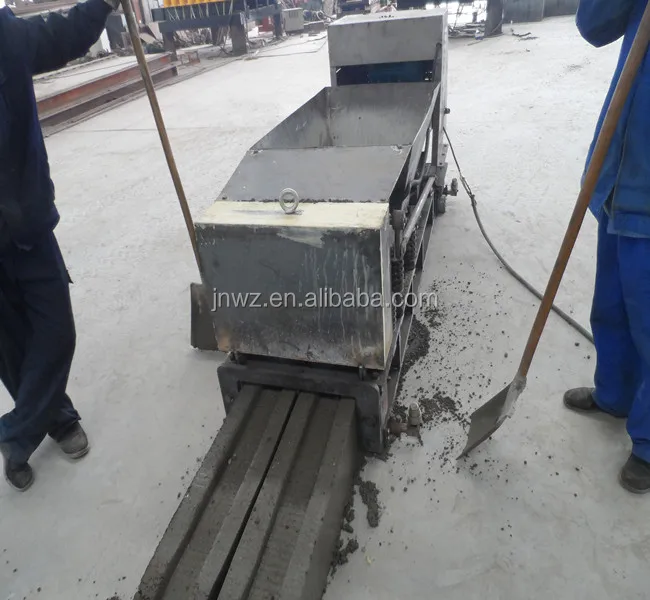

H beam machine test and production

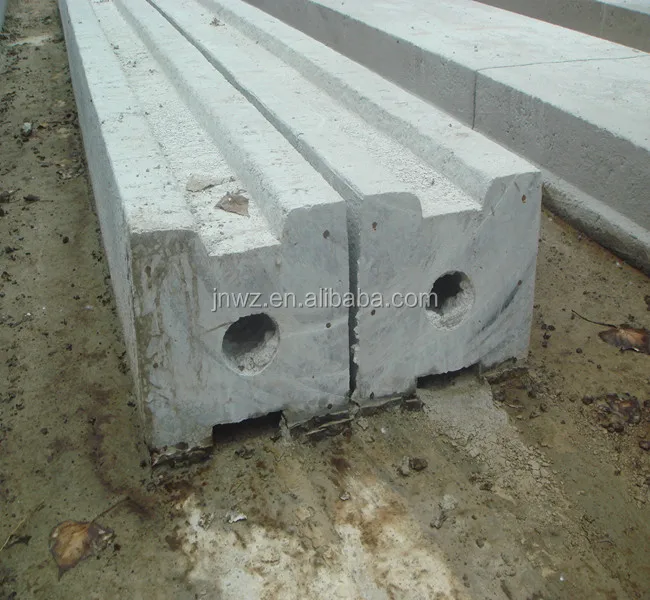

Finished H beam from client

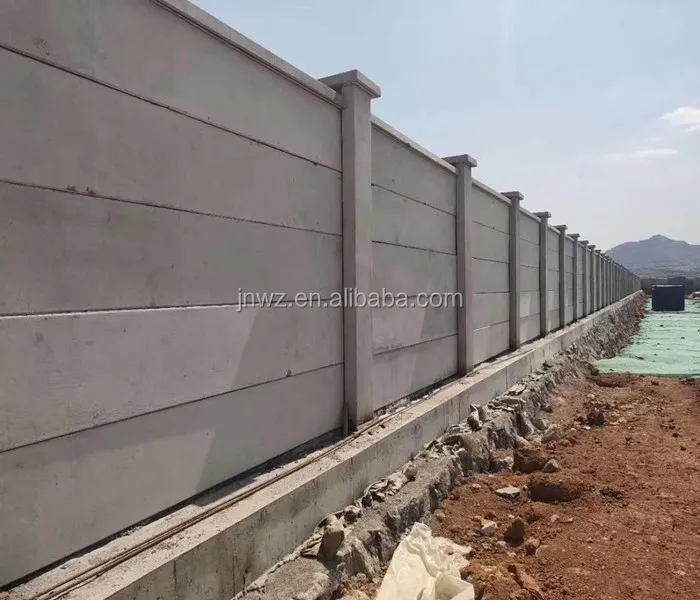

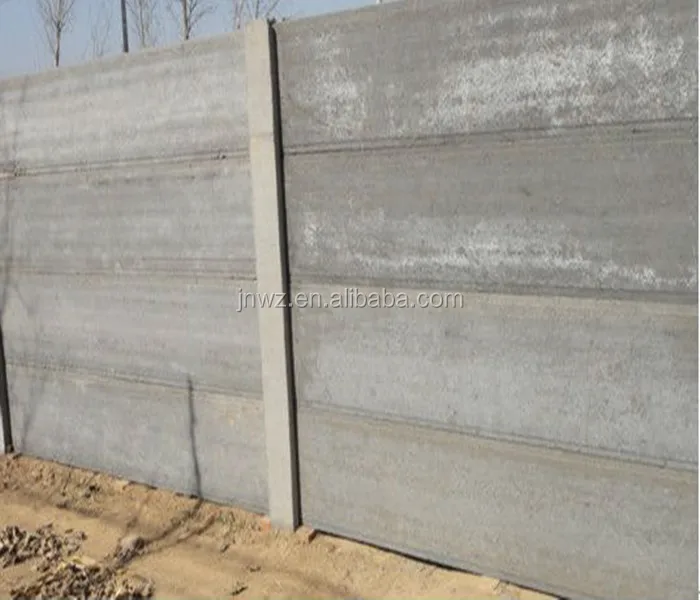

Concrete H beam used for fence wall

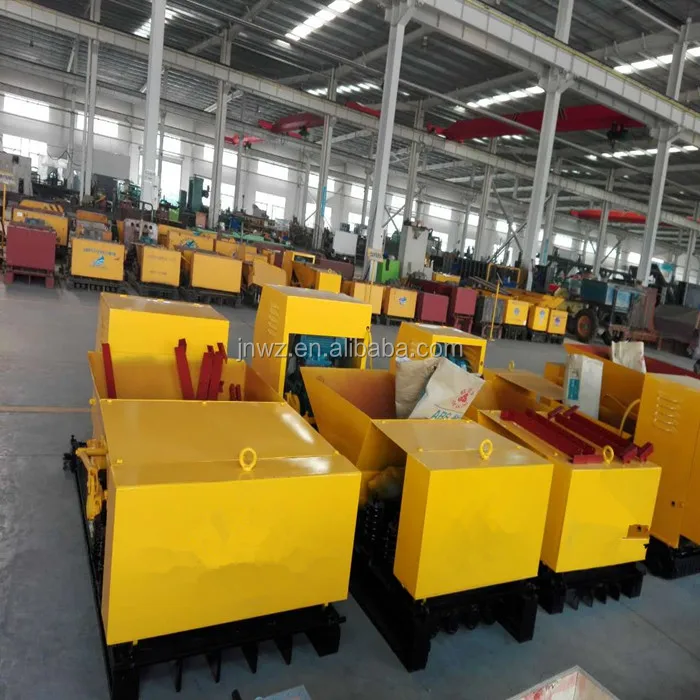

Our Company





Packaging & Shipping





Clients visit our factory





Our Services

1. We supply technical support and can send our engineer to help client to install the machine.

2. We supply one year warranty for the whole machine.

3. We supply free quick wear parts and free training to end-users.

4. We supply low cost continual maintenance when warranty is expired.
