Photoelectric speed sensor / contact 2 in 1 tachometer DT2236B digital laser universal RPM meter surface Speed Tester auto range
- Category: >>>
- Supplier: Yueqing Jingda Instrument Factory
Share on (60314428451):
Product Overview
Description
Product Description
Photoelectric speed sensor / contact 2 in 1 tachometer DT2236B digital laser universal RPM meter surface Speed Tester auto range
Specification |
|
Model | DT2236B |
Measuring Range | Photo Tach: 2.5 to 99999 RPM Contact Tach: 0.5 to 19999 RPM Surface Speed (m/min.): 0.05 to 1999 (m/min.) |
Resolution | Photo Tach: 0.1 RPM (2.5 to 999.9 RPM), 1 RPM (over 1000 RPM) Contact Tach: 0.1 RPM (0.5 to 999.9 RPM), 1 RPM (over 1000 RPM) Surface Speed (m/min.): 0.01m/min. (0.05 to 99.99m/min.), 0.1m/min. (over 100m/min.) |
Accuracy | ±(0.05%+1 digit) |
Sampling Time | 0.8 sec. (over 60 RPM) |
Test Range Select | Automatic |
Memory | Max. value, Min. Value, Last value |
Detecting Distance | 50 to 500mm/2 to 20 inch (Photo) |
Time Base | Quartz crystal |
Circuit | Exclusive one-chip of microcomputer LSI circuit |
Battery | 4/1.5V AAA (UM-3) |
Power Consumption | Approx 50mA (operation) |
Operation Temp | 0 to 50℃ (32 to 122F) |
Size | 215*65*38mm |
Weight | 300g (including battery) |

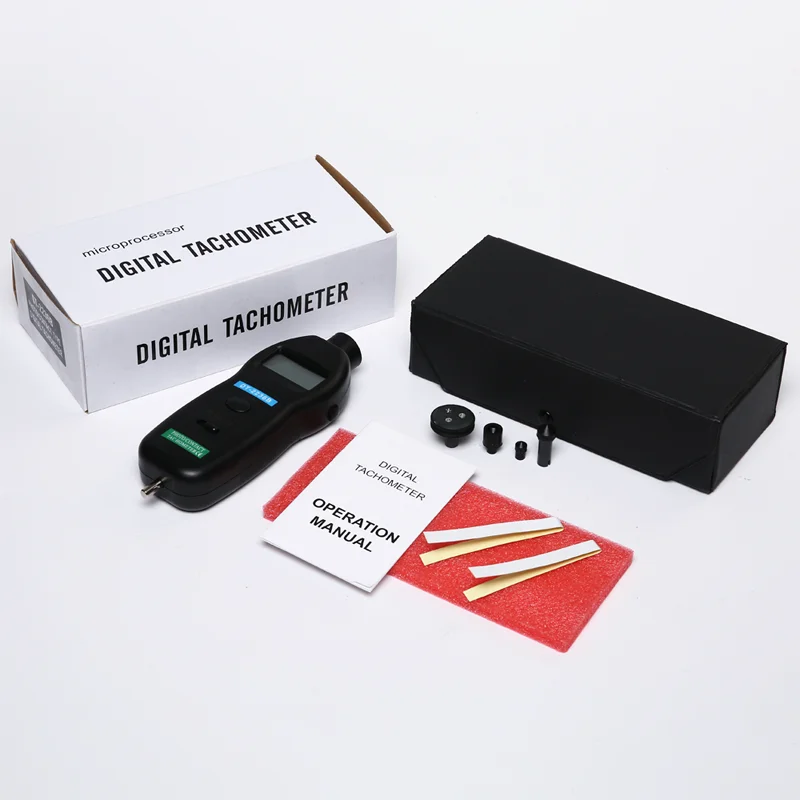

Accessories | Carrying case, Reflecting tape, Operation manual, Contact speed measurement fitting, Contact rotational speed measurement fitting |
