industrial microwave magnetron lg 2m278 24ascm
- Category: >>>
- Supplier: Hnnan Xinhang Microwave Technology Limited Company
Share on (60314640692):
Product Overview
Description

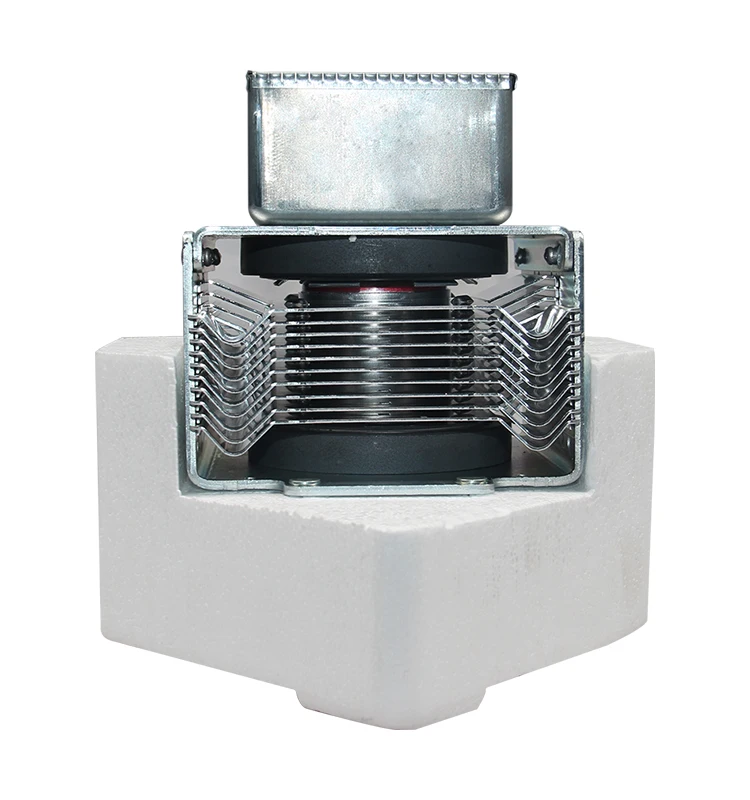

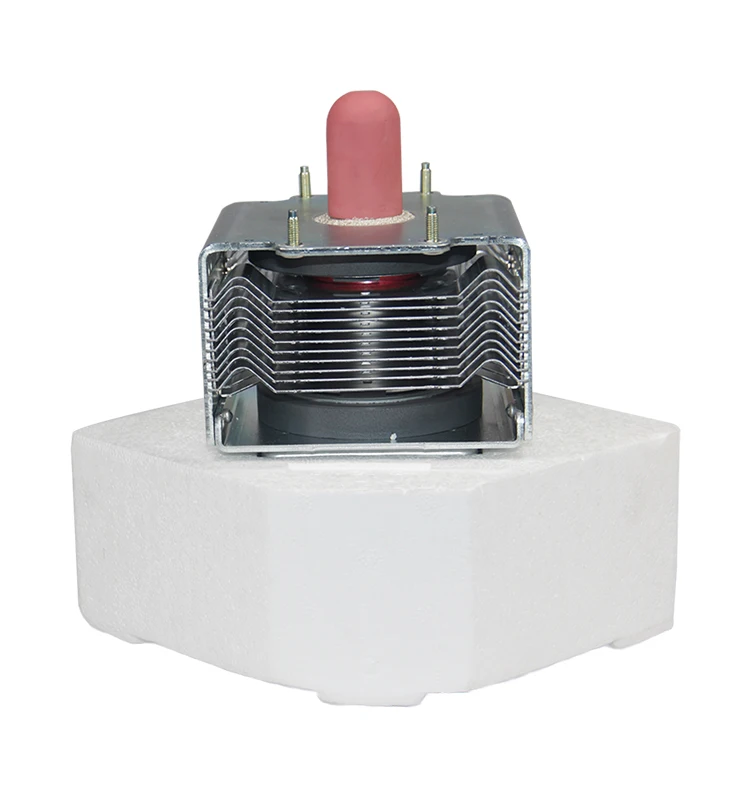

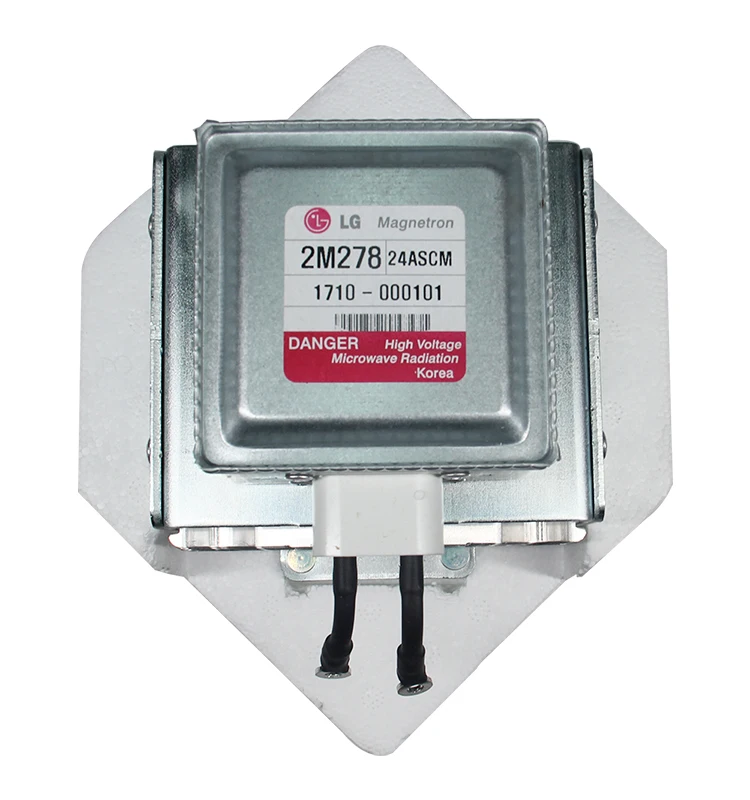

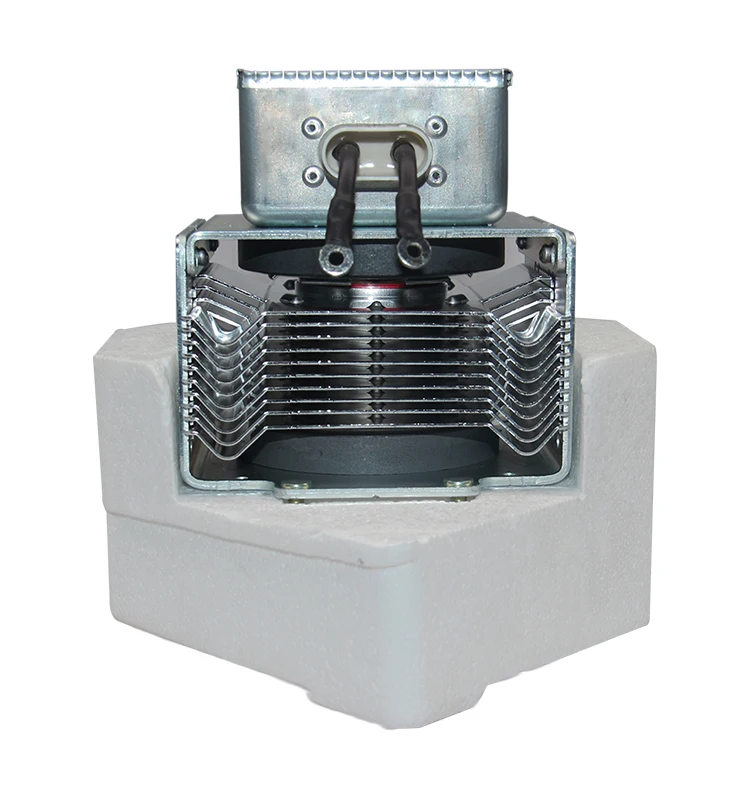

industrial microwave magnetron lg 2m278--24ascm
Product Principle:
Magnetron microwave system is one of the most widely crossed-field oscillating tube, share common features "M" type device: big power, high efficiency, low voltage, small size and low cost.
Product Specifications:
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Filament voltage: 4.3V;
The average anode current: 730mA;
Filament current: 19.5A;
Frequency: 2455MHZ;
Output Power: 2000W;
Apply fixed hole center distance:48mm * 115mm
Dimensions: 118mm*100mm*180mm
Weight: 2.29kg
Magnetron life under normal operating conditions shall be for the duration of 2000 hours.
Because working conditions under the
magnetron magnetron life will be on the impact of the user to ensure adequate security conditions, such as the direction of air flow, power on / off, etc.
Company Information
Henan Xinhang Microwave Technology Co., Ltd. Main products including Microwave components and Microwave equipments.
We can supply the total set microwave componets i ncluding the microwave magnetron,power supply,waveguide,magnetron cooling fan,etc.
About the microwave equipments,we mainly supply the commercial and industrial microwave oven with a power no less than 2KW,and the cutomize sevice is available.
Focus on the microwave field,we have a first-class technical team,especially last year we were rated as a high-tech enterprise by the government.
Contact
1, Our working time: 8:30am to 5:30pm of Chinese time. But you can feel free to send message to us at any time, we will reply as soon as possible.
2,All inquiries will be replied within 24 hours, if we can’t reply in time, will inform you the cause within 24 hours, so please send us your inquiry.
