LZ series straight line wire drawing machine steel/iron wire drawing machine

Product Overview

Description





LZ series straight line wire drawing machine steel/iron wire drawing machine





1. Technical parameters of LZ5/900:

Max inlet diameter: 12mm

Outlet diameter: 6mm

Number of block(drum): 5

Capstan(drum) diameter: 900mm

Speed: 180m/min(normal speed)

Motor power(single block): 45 Kw



2. Description of LZ Seried straight line wire drawing machine:

Max inlet dia:16mm.

Min outlet dia:0.7mm
Capstan dia:350~1200mm



The straight line drawing machine applies advanced international technology, with digestion and absorption, the drawing machine is applicable for high intensity and performance demand. It mainly applied for the production of steel curtain wire, tyre steel wire, steel wire for rope, spring steel wire, stainless steel wire, gas welding wire, arc welding wire, etc. The capstan diameter of the series products is φ350-φ1200mm with maximum inlet diameter of φ14mm and minimum outlet diameter of 0.7mm.

Main Technical Parameters:

Items	Unit	LZ9-12/1200	LZ10/800	LZ9/700	LZ10/560	LZ10/400
Capstan diameter	mm	900	800	700	560	400
Draw time	time	9-12	10	9	10	10
Inlet diameter	mm	Φ14-8	Φ10-8	Φ8-6.5	Φ6.5-5.5	Φ14-8
Outlet diameter	mm	Φ5-3	Φ4-3	Φ3-2.5	Φ2-1.8	Φ1-0.8
Speed	m/min	300	360	480	720	840
Tensile strength	Mpa	≤1300	≤1300	≤1300	≤1300	≤1300
Total compressibility	%	87.24-85.94	84-85.94	85.94-85.21	90.53-89.29	87.24-84
Average compressibility	%	20.48-19.58	18.42-19.58	19.58-19.13	21.00-20.02	18.61-16.74
Single motor power	Kw	110-90	90-55	75-55	37-22	15-7.5

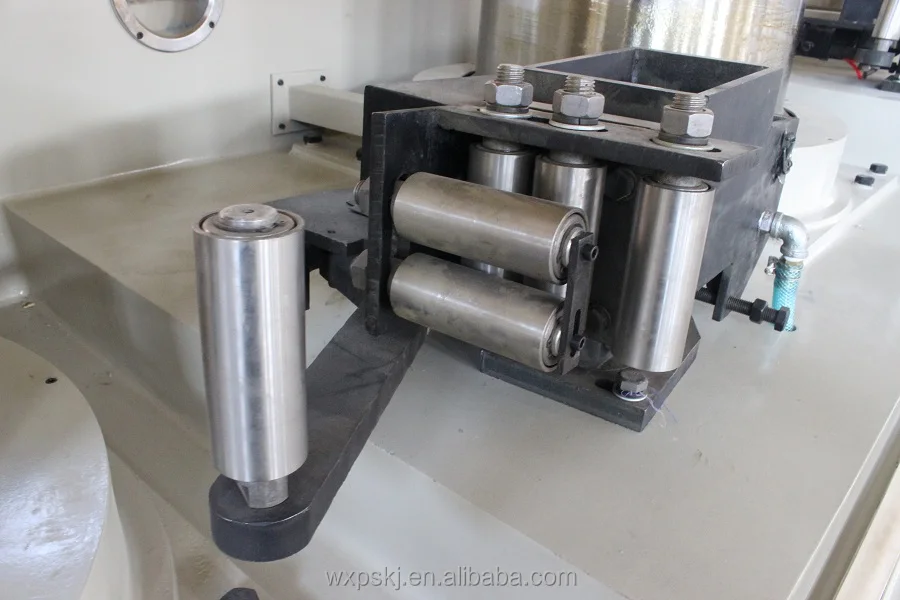

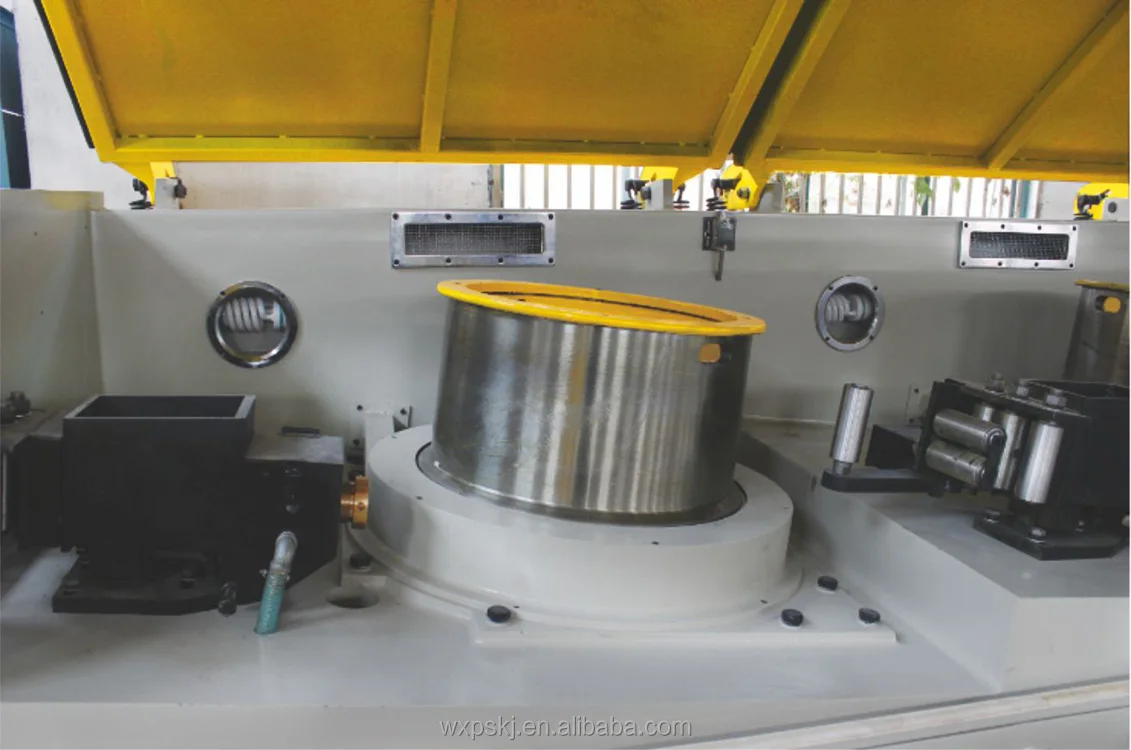

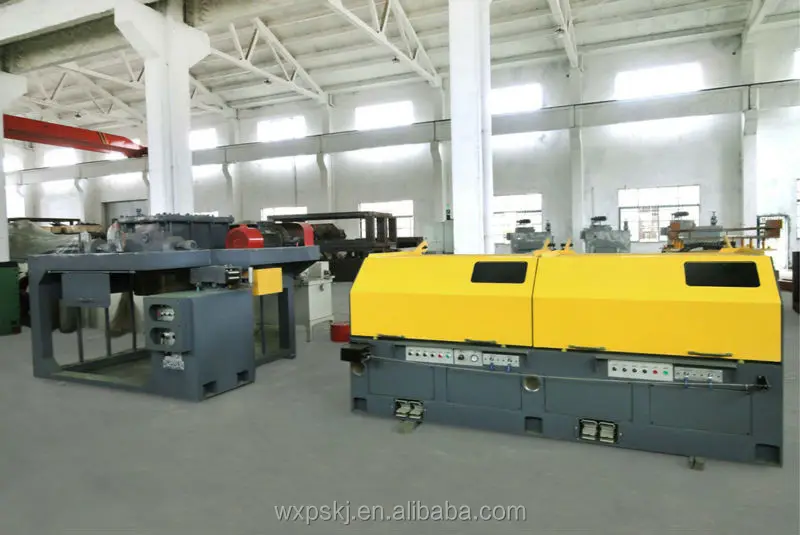

3. Pictures of machines:











4. Products scope:





  High/medium/Low carbon steel wire, Stainless steel wire, Aluminum wire, Galvanzing wire, black wire, mig wire, spring wire, binding wire, fibre steel, nail wire, bolt and nut wire, etc.



5. Wuxi Pingsheng company profile:

1. We have gotten ISO9001:2008 standard and certificate

2. Company established year: 1985

3. Company location: Wuxi city, 125km away from Shanghai

4. FOB port: Shanghai

5. Business type: Manufacturer

6. Number of employees: 100-200

7. Welcome to visit us, we will pick you up at Shanghai airport or other place near Wuxi

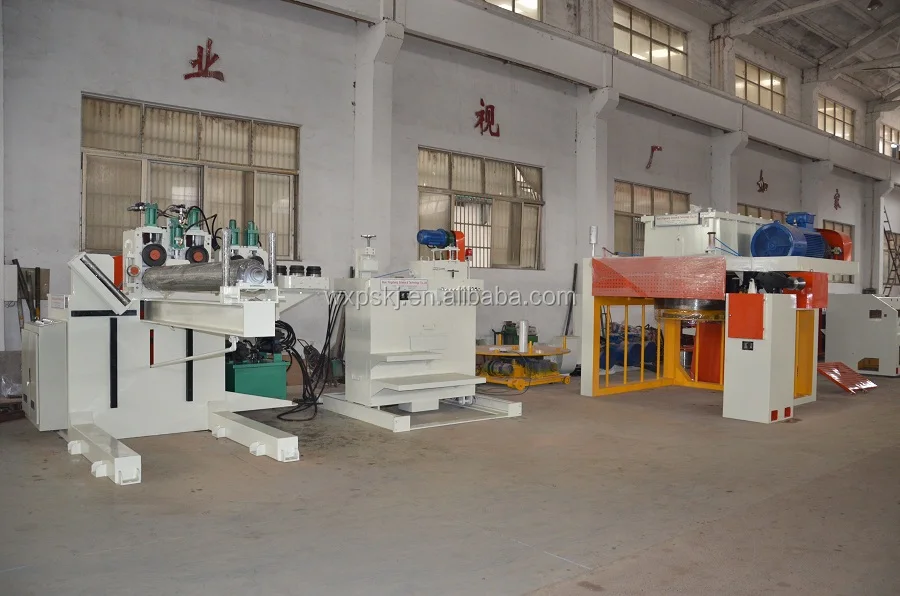

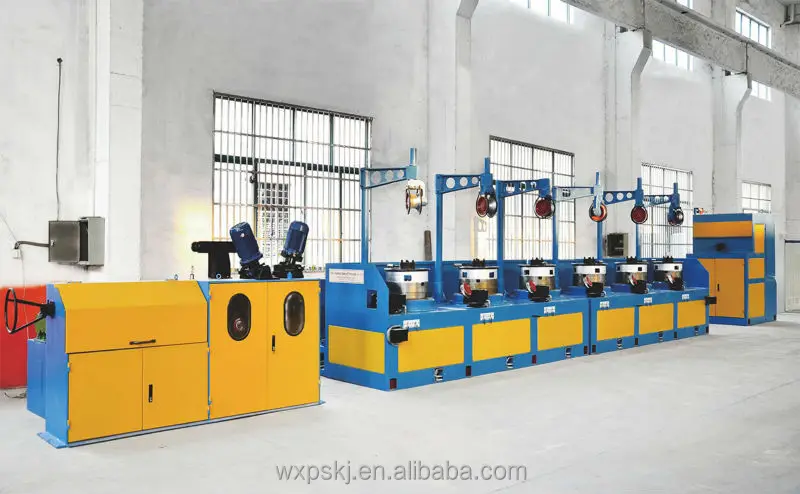

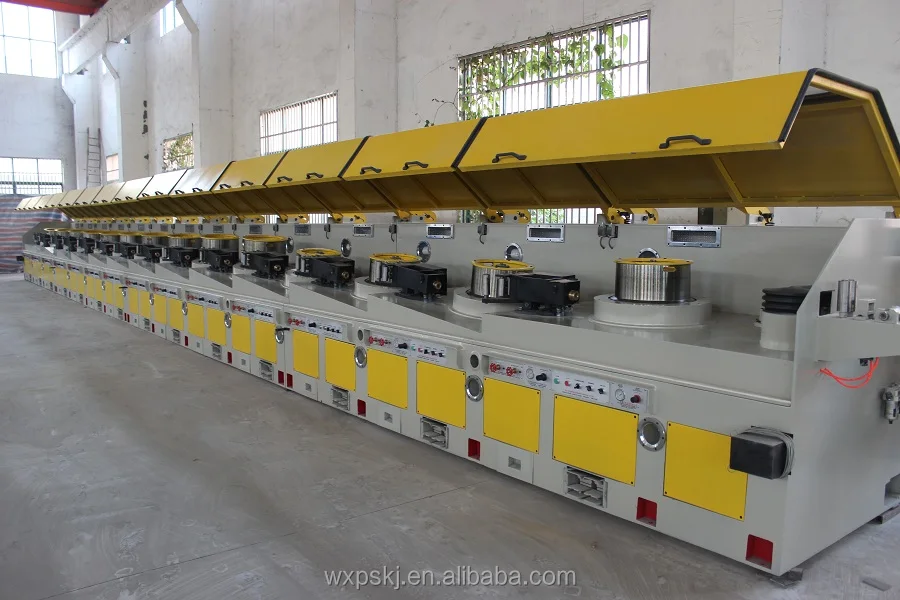

6. Ralated machine photos:
