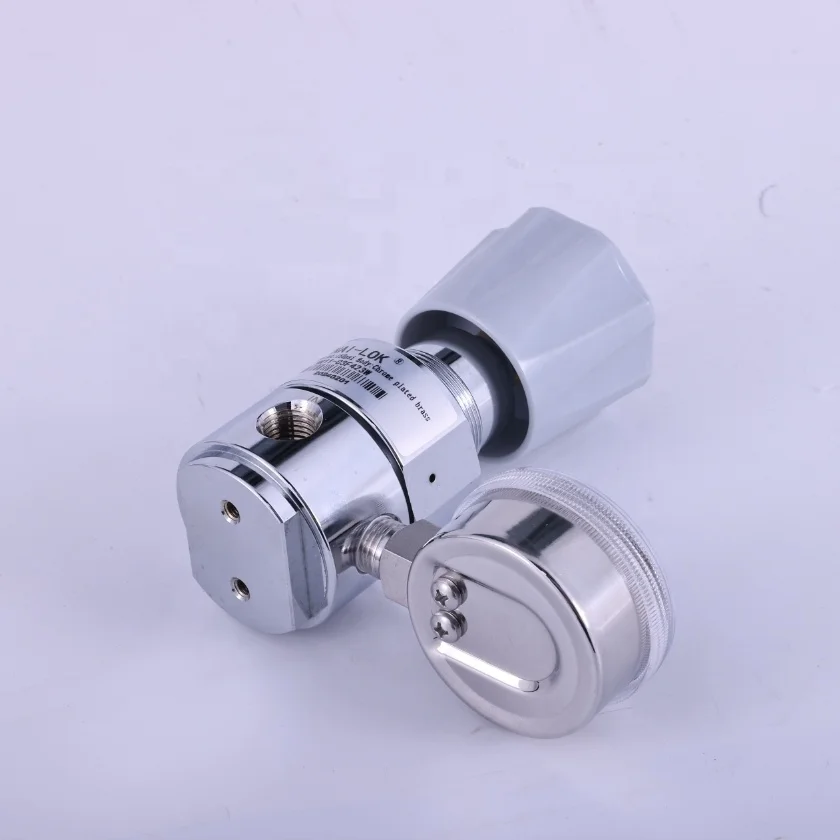

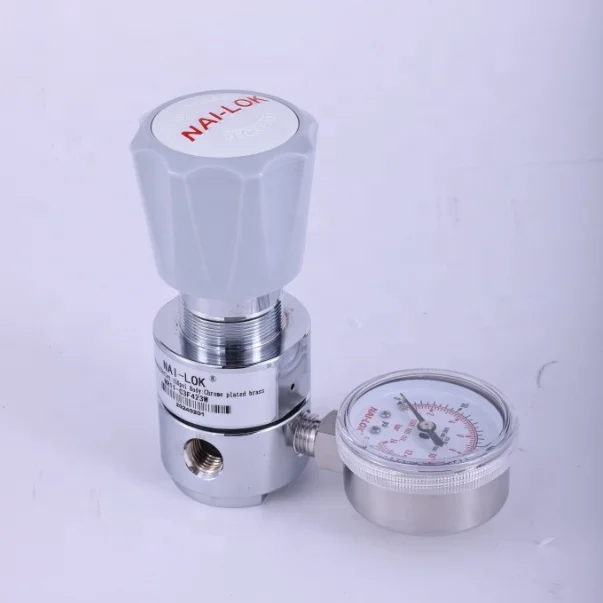

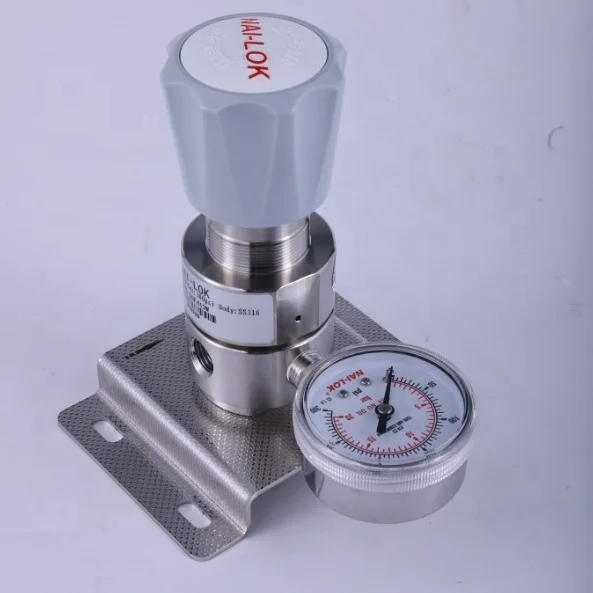

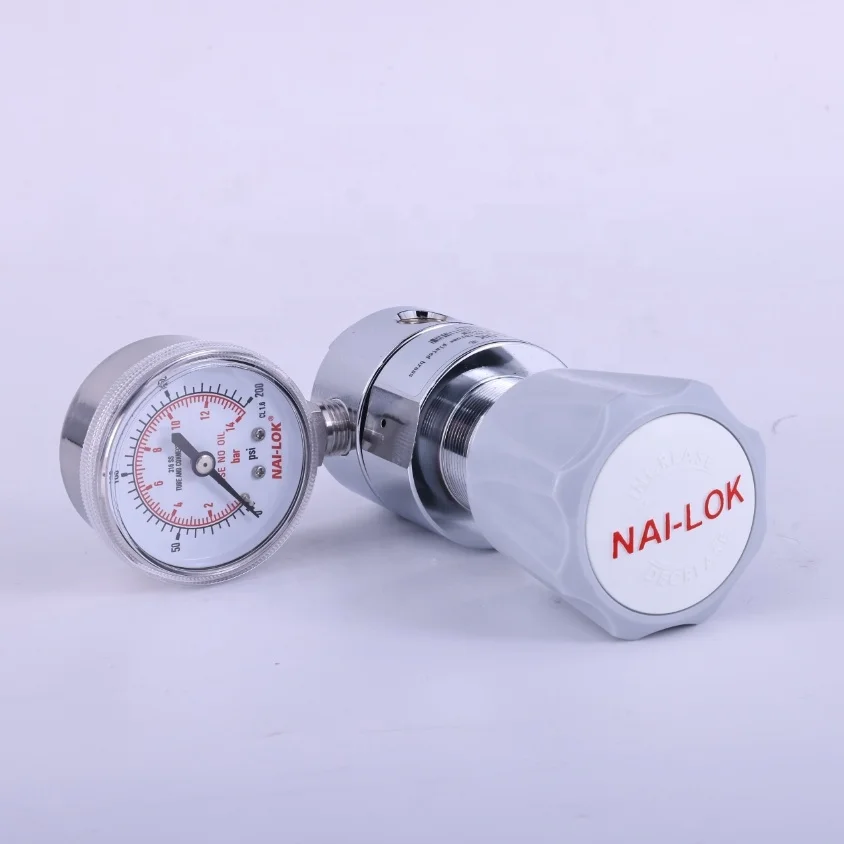

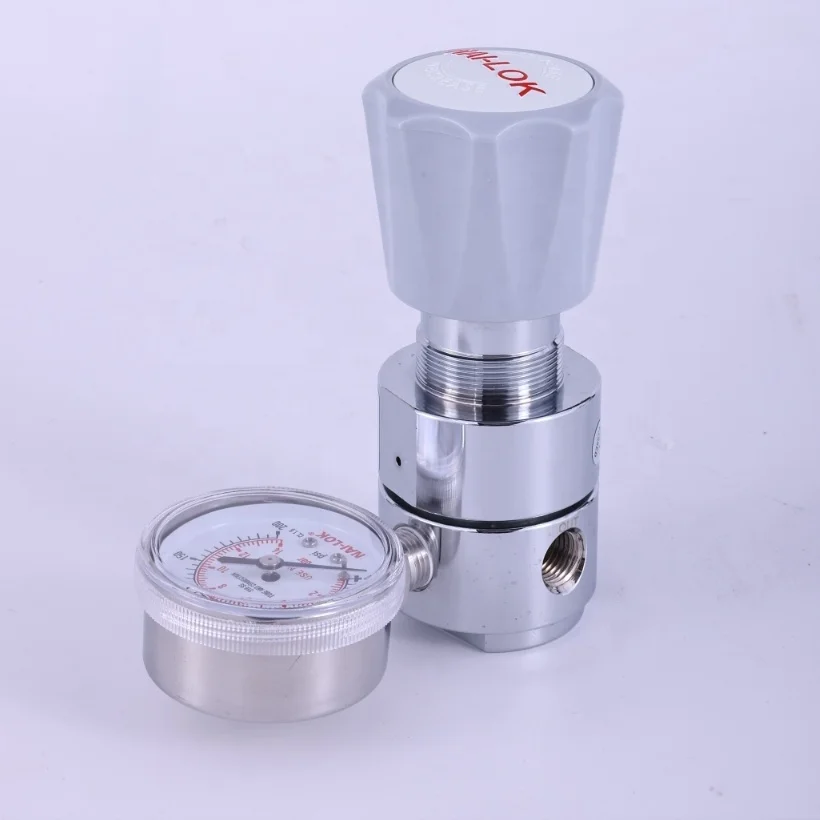

NAI LOK Gas Laboratory High Pressure 3500psi 1/4' FNPT Hydrogen Gas Cylinder Pressure Regulator With Two Gauges
- Category: >>>
- Supplier: Shanghai Yiwei Flow Control Technology Co. Ltd.
Share on (60314717693):
Product Overview
Description
Product Description
Product Name | NR11 series pressure regulator |
Maximun Inlet Pressure | 400,3500 psig(27.6, 241 bar) |
Outlet Pressure Ranges | 0-25,0-50,0-100,0-250,0-300 psig(0-1.7, 0-3.4, 0-6.9, 0-17.2, 0-20.7 bar) |
Design Proof Pressure | 150% maximum rated pressure |
Leakage | Internal: Bubble-tight External:Design ro meet≤2×10-8atm cc/sec He |
Operating Temperature | -40℉ to 165℉/-40℃ to 74℃ |
Flow Capactiy | 3500 psig/241 bar Inlet:CV=0.06 400 psig/27.6 bar Inlet:CV=0.15 |
Maximum Operating Torque | 30 in-lbs/3.4N•m |

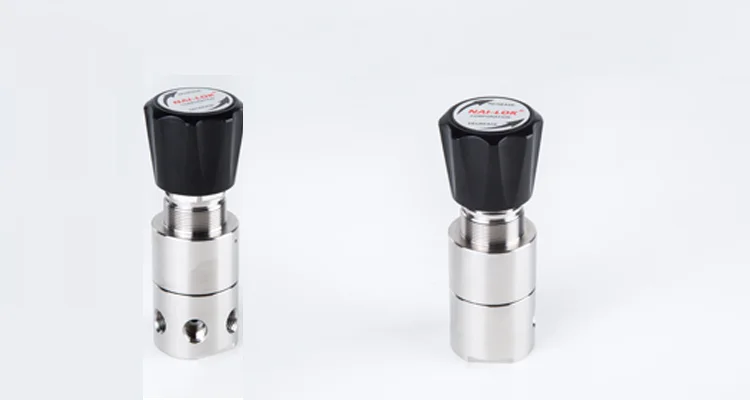

Products Show
Ordering Information
Basic Series | Body Material | Outlet Pressure | Inlet pressure | Port Type | |||
NR11 | 6-316 Stainless Steel | 0 - 0-20psig 0-1.4bar | 1 - 3500psig 241bar | 3 - 3 ports | |||
1 - 0-50psig 0-3.4bar | 2 - 400psig 27.6bar | 4 - 4 ports | |||||
2 - 0-100psig 0-6.9bar | |||||||
3 - 0-150psig 0 - 10.3bar | |||||||
5 - 0-250psig 0-17.2bar | |||||||
D - 0-300psig 0 -20.7bar (Dome Load only) | |||||||
Series | NR11-6-1-1-4 | ||||||
Related Products
NAI-LOK Product Line
NAI-LOK is the leader in flow control technology fields of manufacturers.
We started this business since 2001.
Our products are mainly devided into instrument and ultra high purity products.
Website: www.nai-lok.com.cn
NAI-LOK is the leader in flow control technology fields of manufacturers.
We started this business since 2001.
Our products are mainly devided into instrument and ultra high purity products.
Website: www.nai-lok.com.cn
Hot sale products:
gas pressure regulator, pipe fittings, ball valve, safety relief valve, non return valve, needle valve, diaphragm valve, pneumatic valve, cylinder valve, stainless steel hose, stainless steel tube, VCR valve, back fire relief valve, double ferrule fittings, cylinder connector, sample cylinder, panel regulator.
gas pressure regulator, pipe fittings, ball valve, safety relief valve, non return valve, needle valve, diaphragm valve, pneumatic valve, cylinder valve, stainless steel hose, stainless steel tube, VCR valve, back fire relief valve, double ferrule fittings, cylinder connector, sample cylinder, panel regulator.
Our Quality
Strict test standards
Strictly according to International standards.
100% factory test
1. leakage test
2. pressure test
Customized products
We have a good research and development team with rich experience.
Packing & Delivery
Packing Details : Wooden Case, Carton Box
Delivery Details : 1-2 days after payment for small order
1. Special logistics packaging
2. Sea or Air
3. Global Express
Our Company
NAI-LOK
NAI-LOK offers a comprehensive range of regulators,valves and changeover systems that are ideal for analyzer and GC sample systems and other petro-chemical applications,we can offer a variety of gas pressure regulator valves for accurate readings and settings of lab gas pressures. All valves are suitable for use on high purity gas systems, including oxygen, air, argon, carbon dioxide, helium, nitrogen, and nitrous oxide. All fittings are cleaned, degreased and packed for pure gas service, as well as fully assembled and tested prior to shipment. Many models feature metal sealed diaphragms and minimal wetted soft goods and which means cleaner sample delivery to the analyzer.Our convoluted diaphragms provide excellent sensitivity,accuracy and stable pressure control. Our products has been certified by DNV . Welcome to make your enquires to us !
