PABX telephone switching system with 32 extensions
US $193.00-$215.00
Grandstream UCM6510 PSTN analog telephone IP PBX
- Category: PBX >>>
- Supplier: Combasst Industry Development (Shanghai) Co. Limited
Share on (60314758543):
Product Overview
Description

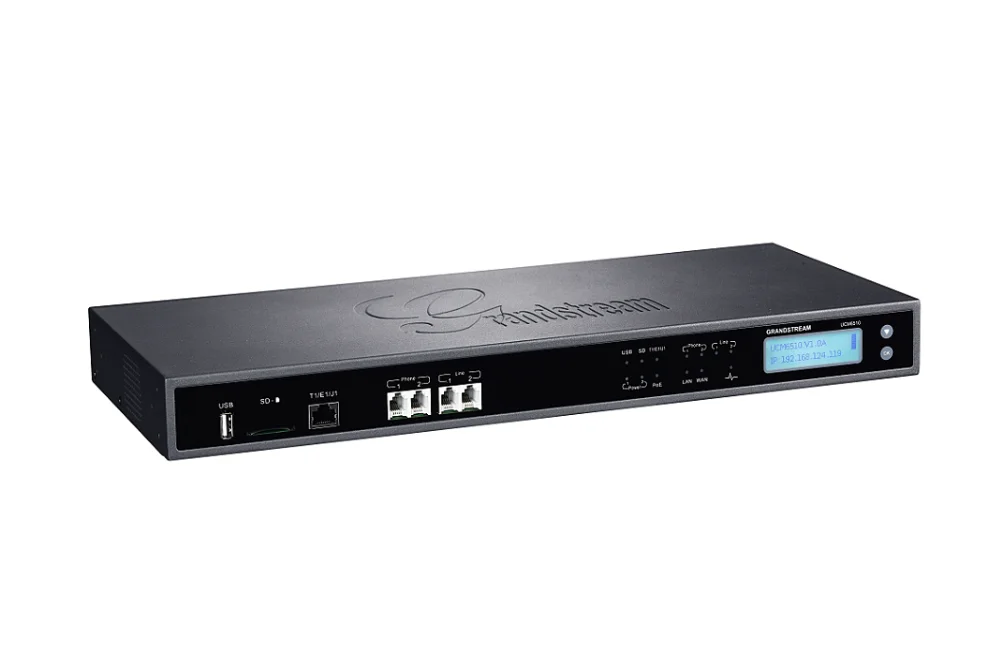

Grandstream UCM6510 PSTN analog telephone IP PBX
Product Overview
The UCM6510 is an innovative IP PBX appliance for E1/T1/J1 networks that brings enterprise-grade Unified Communications and security protection to enterprises, small-to-medium businesses (SMBs), retail environments and residential settings in an easy-to-manage fashion. Powered by an advanced hardware platform and revolutionary software functionalities, the UCM6510 offers a breakthrough turnkey solution for converged voice, video, data, fax, security surveillance, and mobility applications out of the box without any extra license fees or recurring costs.
Prodcut Appearance
Product Feature
- 1GHz quad-core Cortex A9 application processor, large memory (1GB DDR3 RAM, 32GB Flash) and dedicated high performance multi-core DSP array for advanced voice processing
- 1 integrated T1/E1/J1 interface, 2 PSTN trunk FXO ports, 2 analog telephone/Fax FXS ports with lifeline capability in case of power outage and unlimited SIP trunk accounts.
- Hardware DSP based 128ms-tail-length carrier-grade line echo cancellation (LEC), hardware based caller ID/call progress tone and smart automated impendance matching for various countries
- Gigabit network port(s) with integrated PoE, USB, SD card; integrated NAT router with advanced QoS support
- Integrates with our FREE mobile app, Grandstream Wave, allowing users to access their SIP account(s) with their Android device from anywhere in the world (via WiFi or cellular data network)
Specification
Interfaces | |
Analog Telephone FXS Ports | 2 RJ11 ports (both with lifeline capability in case of power outage) |
PSTN Line FXO Ports | 2 RJ11 ports (both with lifeline capability in case of power outage) |
T1/E1/J1 Interface | 1 RJ45 port |
Network Interfaces | Dual Gigabit ports (switched or routed) with PoE; |
NAT Router | Yes (user configurable) |
Peripheral Ports | USB, SD |
LED Indicators | Power 1/2, PoE, USB, SD, T1/E1/J1, FXS 1/2, FXO 1/2, LAN, WAN, Cluster Heartbeat |
| LCD Display | 128x32 dot matrix graphic LCD with DOWN and OK buttons |
Reset Switch | Yes, long press for factory reset and short press for reboot |
Voice/Video Capabilities | |
Voice-over-Packet Capabilities | LEC with NLP Packetized Voice Protocol Unit, 128ms-tail-length carrier grade Line Echo Cancellation, |
Voice and Fax Codecs | G.711 A-law/U-law, G.722, G.723.1 5.3K/6.3K, G.726, G.729A/B, iLBC, GSM, AAL2-G.726-32, ADPCM; T.38 |
Video Codecs | H.264, H.263, H263+ |
QoS | Layer 3 QoS, Layer 2 QoS |
Signaling & Control | |
DTMF Methods | In Audio, RFC2833, and SIP INFO |
Digital Signaling | PRI, SS7, MFC/R2, RBS (pending) |
Provisioning Protocol & | TFTP/HTTP/HTTPS, auto-discovery & auto-provisioning of Grandstream IP endpoints via ZeroConfig (DHCP Option 66/multicast SIP SUBSCRIBE/mDNS), eventlist between local and remote trunks |
| Network Protocols | TCP/UDP/IP, RTP/RTCP, ICMP, ARP, DNS, DDNS, DHCP, NTP, TFTP, SSH, HTTP/HTTPS, PPPoE, SIP (RFC3261), STUN, SRTP, TLS, LDAP, HDLC, HDLC-ETH, PPP, Frame Relay (pending) |
Disconnect Methods | Call Progress Tone, Polarity Reversal, Hook Flash Timing, Loop Current Disconnect, Busy Tone |
Security | |
| Media Encryption | SRTP, TLS, HTTPS, SSH |
Advanced Defense | Fail2ban, alert events, Whitelist, Blacklist, strong password based access control |
Physical | |
Universal Power Supply | Input: 100 ~ 240VAC, 50/60Hz; Output: DC+12V, 1.5A; |
| Physical | Unit Weight: 2.165 kg; Package Weight: 3.012 kg |
Dimensions | 440mm(L) x 185mm(W) x 44mm(H) |
Environmental | Operating: 32 - 113ºF / 0 ~ 45ºC, Humidity 10 - 90% (non-condensing) |
Mounting | Rack mount & Desktop |
Additional Features | |
Multi-Language Support | English/Simplified Chinese/Traditional Chinese/Spanish/French/Portuguese/German/Russian/Italian/Polish/Czech |
Caller ID | Bellcore/Telcordia, ETSI-FSK, ETSI-DTMF, SIN 227 – BT, NTT Japan (pending) |
Polarity Reversal/Wink | Yes, with enable/disable option upon call establishment and termination |
Call Center | Multiple configurable call queues, automatic call distribution (ACD) based on agent skills/availability/work-load, in-queue announcement |
Customizable Auto Attendant | Up to 5 layers of IVR (Interactive Voice Response) |
Maximum Call Capacity | Up to 2000 registered SIP endpoints, up to 200 concurrent calls |
Conference Bridges | Up to 8 bridges, up to 64 simultaneous conference attendees |
Call Features | Call park, call forward, call transfer, DND, DISA, ring group, pickup group, blacklist, paging/intercom etc. |
Compliance | FCC: Part 15 (CFR 47) Class B, Part 68 |
Trade Information
1) Payment Terms: T/T ,Paypal, Western Union in advance
2) Port: Shanghai
3) Shipment: Express, Air, Sea
4) Express Option:DHL,TNT,UPS,FEDEX etc.
After-Sales Service
1) We can provide detail documents and remote help for device installation and configuration.
2) Warranty: 1 year. ( After the quality guarantee period began to charge appropriate maintenance service fee.)
3) Our company promises goods enjoy full return due to quality problem since goods delivered within 7 days or 15 days , returned goods must keep original state and it’s accessories are complete.
