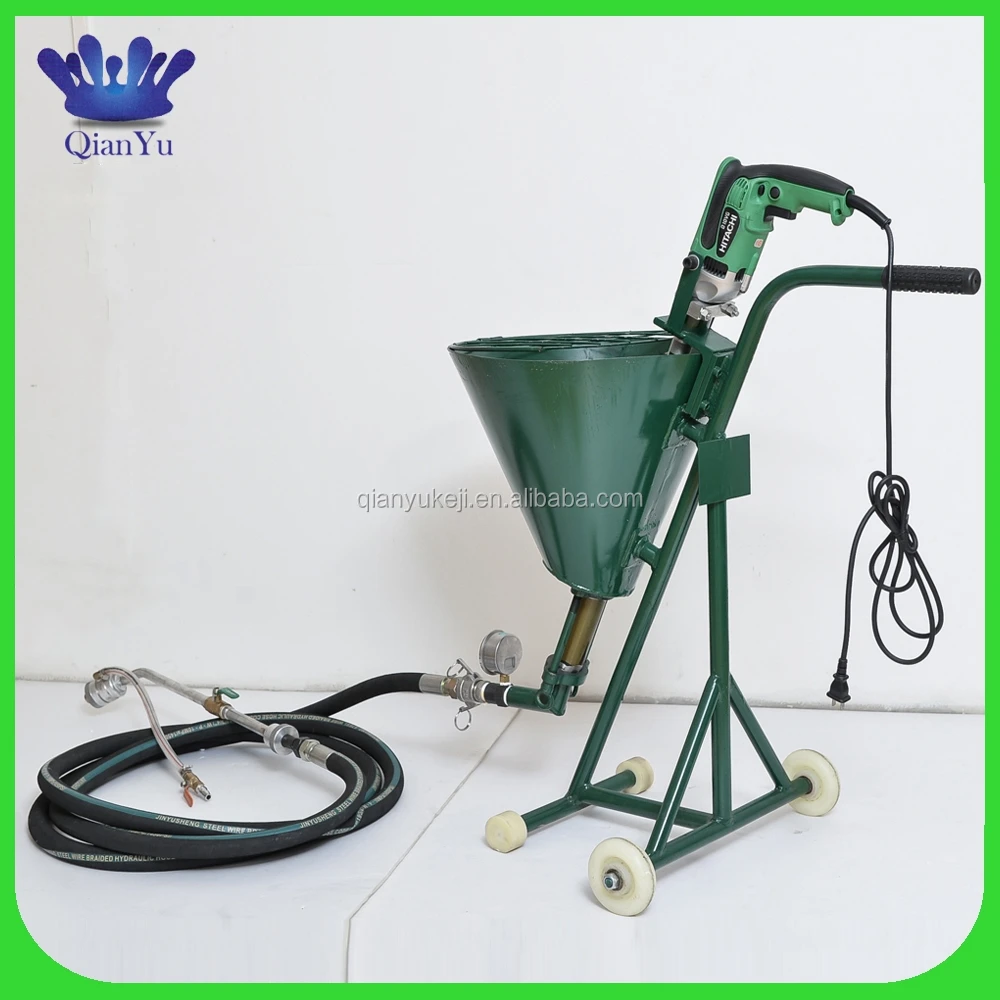

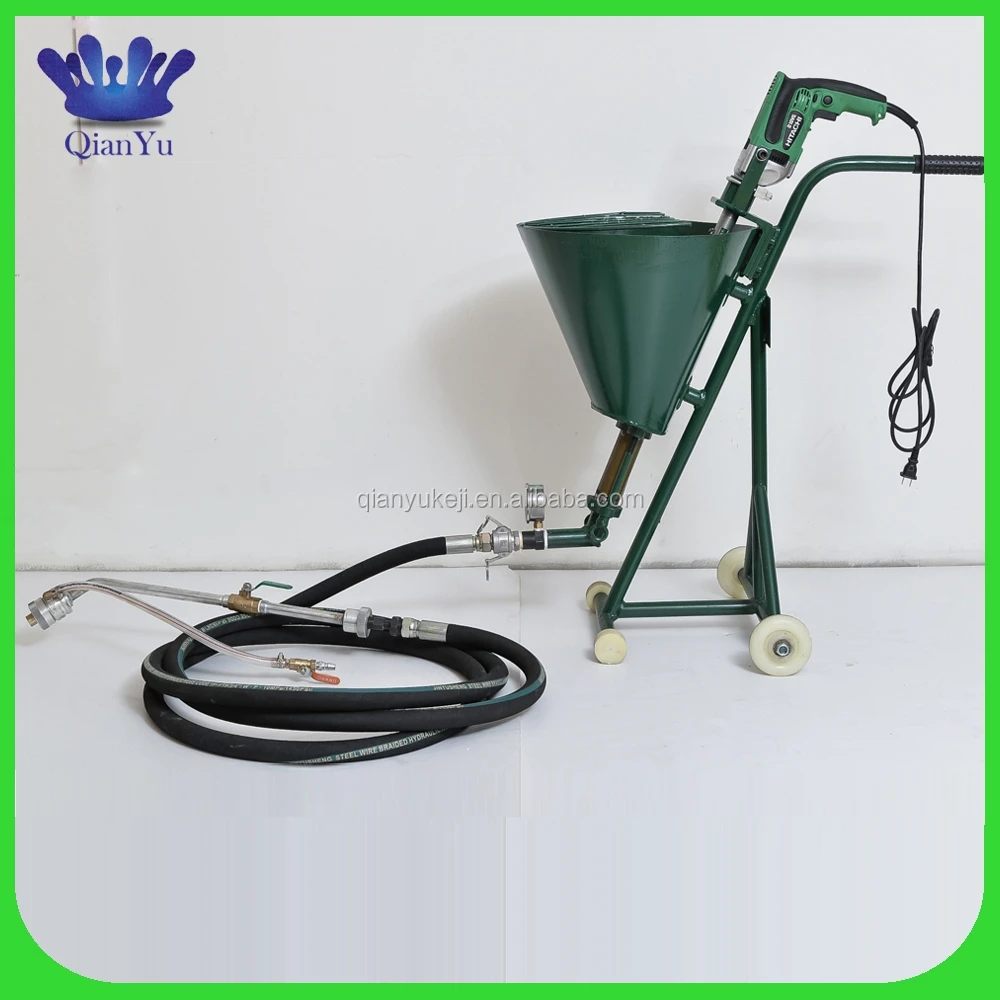

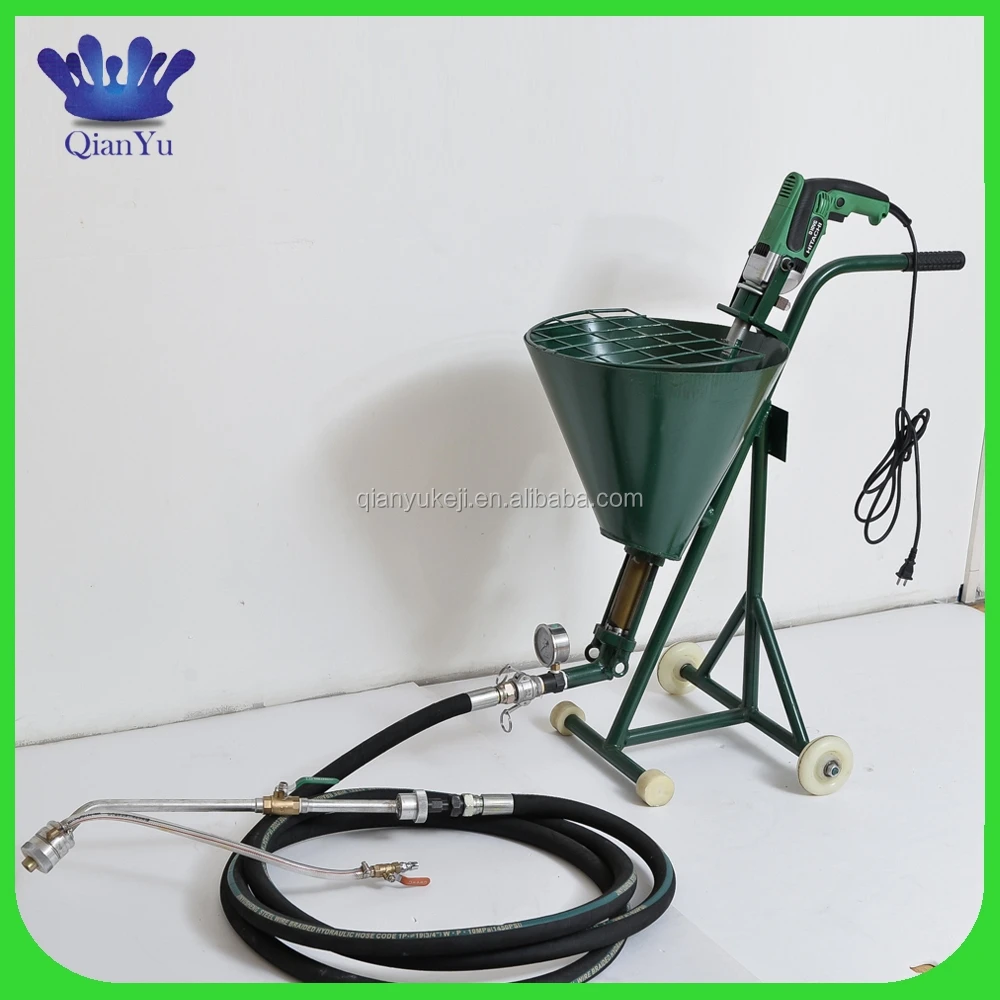

Professional cement mortar spraying machine with worm pump

Product Overview

Description

1. High efficiency: flow up to 5-10 kilograms per minute, outlet pressure 20 to 35 kg.
2. The light volume: overall only 11 kg, easy to carry.
3. Easy operation , not easy to damage.
4. Spraying can choose by a circular or fan nozzle construction, Suggestions (circular spray wall body, fan-shaped spray smallpox).
5. Voltage 220 v.

Technical data:



Power	Flow	Granular material	Speed	Pressure	Weight(KG)	Length(mm)	Width(mm)	Height(mm)
800w/220v	1-10L(1/min)	Less than 2mm	0-1200(RPM)	20kg	11	700	400	850



Applications:

Suitable for indoor and outdoor spraying, cement mortar spraying, dry powder mortar spraying, putty powder spraying, waterproofing material and waterproofing surface spraying, ceiling spraying, wall spraying, coating/painting spraying, gardening, relief effect coating, art and craft spraying, emulsion paint, stone-like paint, manmade rock, carving and sculpture spraying, damping material spraying and other projects.

• Before starting, add fresh water into the hopper and regulate the speed to the middle-high speed in order to achieve the effect of wetting pipe, only a short running and then draining the water.
• Putting the even material stirred into the hopper, and then locking pulp exit of main machine and the pipe & nozzle.
•  Before spraying, filling the pressure of air compressor to 8kg (matched air compressor 0.26-0.36m) and then connected to the nozzle.
• After connecting to power, putting the gunpoint aiming the hopper, adjusting the air pressure and the speed until achieving the best state of fogging, shutting down the machine but non-stop wind.
•  After the accurate Debug, immediately move the nozzle and spray jets to the construction site work.
•  During the construction process, the pipe is filled with paints, not suitable for parking too long. If the power is failure, you should immediately dismantle the pipe to clean.
• If filling pressure in the pipe, before dismantling & cleaning, you must put the cloth on it to protect your eyes, avoiding injury.
• If starting the machine fails, first check whether the fire drills is broken or not and should replace it immediately.
• Cleaning the body during the working or completion, making sure wetting the electric drill & box, avoiding damage.
• After completion of working, must clean up the hoppers, pipes, nozzles, and rotary joints so as to work tomorrow
• If detecting the exit of paint is weak power after a long time to work, you have to replace the pressure pump.
• If it suddenly appears without feeding material in the work, while motor is still working, it proves that the nozzle has been plugged. You should immediately stop working and clean the nozzle, and then continue to work.
• Nozzle is damageable (including the pressure pump). The standard nozzle pore is 4mm. When the fogging of nozzle is not satisfactory, you should immediately replace the nozzle.



1. The construction site must wear protective equipment (such as gloves, masks, goggles, safety helmet)

2. Water and electricity should be provided on site.

3. The hand shall not be in the hopper when driving.

4. The construction site should be safe, covered and smooth.

5. Machinery and circuit should avoid to expose in wet and open place.
