High quality corrugated cold roll forming machine 2 rib mimi cold rolling mill Skype evazhao06
Whats app 0086 15617575581
Brief introduction of 2 rib mimi cold rolling mill
2 rib mimi cold rolling mill is main part of 2 ribbed cold rolling automatic production line.
Through solid midfrequency heating, tensile strength of rebar can reach standard 400Mpa, 500Mpa and 600Mpa.
Main technology parameter of 2 rib mimi cold rolling mill
No | Name | Unit | Power | Weight |
1 | Feeding Materials shaft | 1 | / | 200kg |
2 | Scaling and strength relieving machine | 1 | 2.2kw | 1300kg |
3 | Φ228 rolling mill | 1 | 90kw | 6500kg |
4 | Straighten machine | 1 | 15kw | 1800kg |
5 | Fly shear | 1 | 7.5kw | 1500kg |
6 | Automatic materials shaft | 1 | 2.2kw | 300kg |
7 | Jointing machine | 1 | 3kw | 60kg |
8 | electric control box | 1 |
| 150kg |
9 | Pneumatic Rebar bunding machine | 1 | Air pressure:0.42-0.6Mpa | 5kg |
10 | Steel strips (two coils) | 1 |
| 70kg/coil |
Total |
|
| 120kw | 12,555kg |

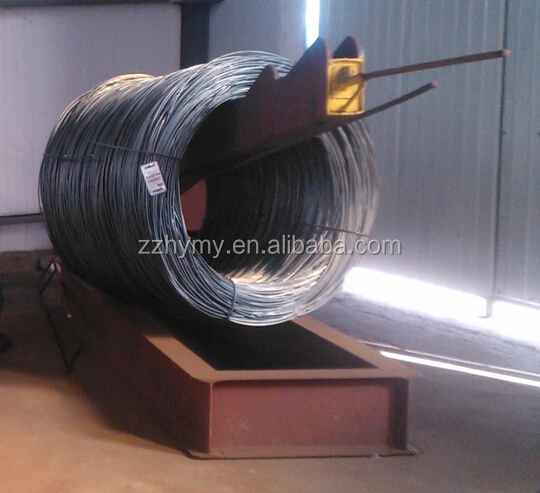

Materials shaft
Function: Ready for raw materials.
Weight: 200kg
Materials: Middle carbon steel

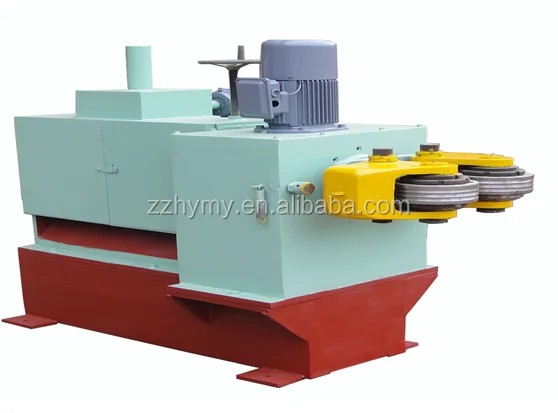

Scaling and strength relieving machine
Function: The two machine is for reducing the rust on the wire rod, make wire rod more
smoothly, the relieving machine will let wire rod more strength, anti-pulling.
Weight: 1300kg

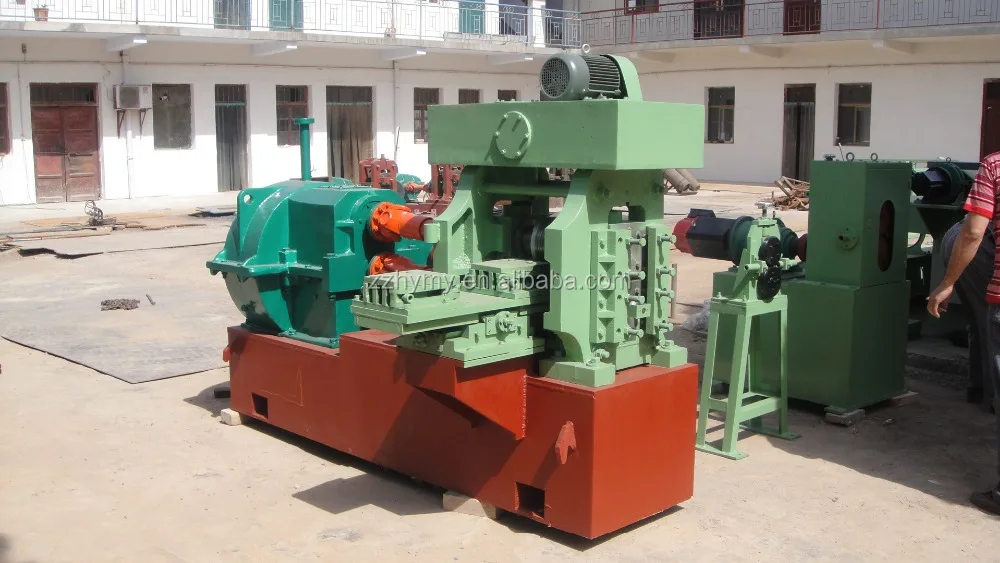

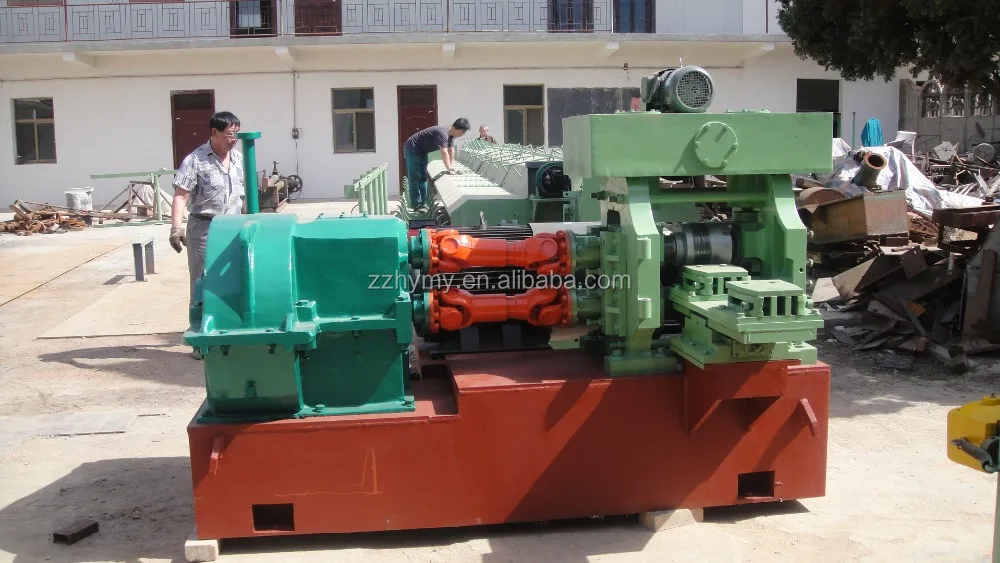

Φ285 Rolling mill
Function: Make two ribbed bar from wire rod, max working speed: 3m/s.
Mainly including the following parts alloy rollers, gear box reducer, frequency motor.
Rolling size: 6-12mm Weight: 6500kg

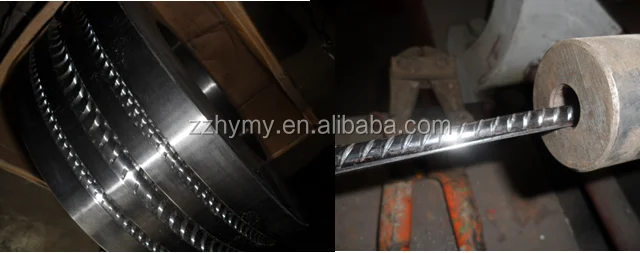

Rollers
High-quality hard alloys, has advantage of smooth transmission, wear-resistant and durable.
The life of rollers could process 3000ton steel, then maintain, and reuse it again.

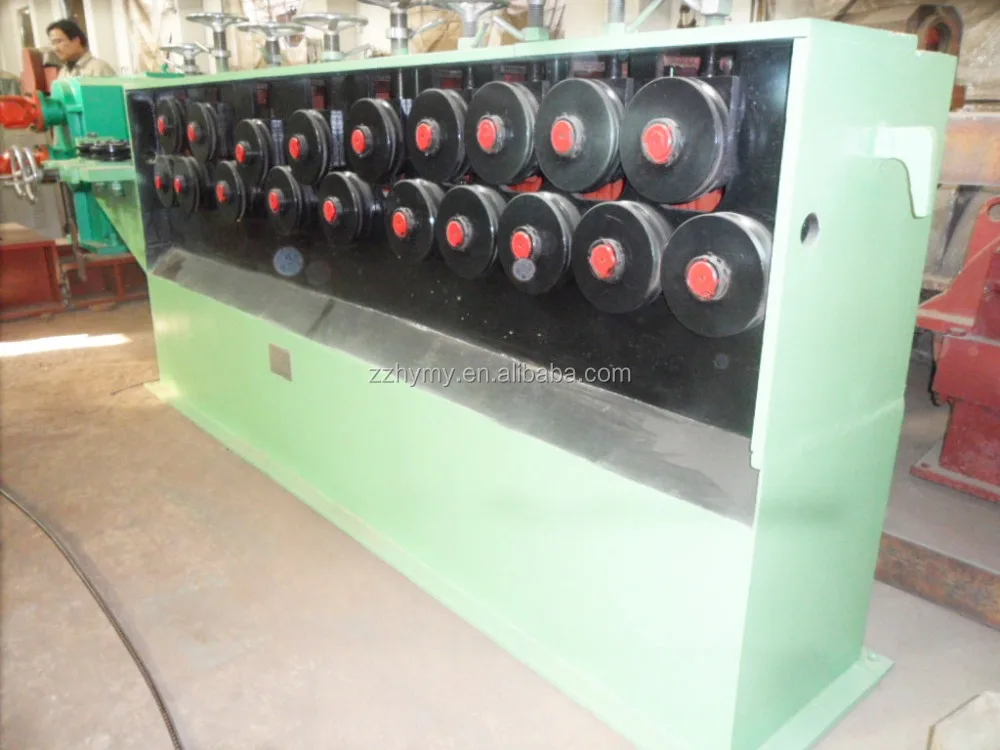

Straighten machine
Function: After rolling, the rebar will go through the straighten machine, make the wire rod into
rebar. It is consisted some wheels inside. There are 25pcs rollers in total.
Power: 15kw
Weight: 1800kg
Fly shear
Fuction: It is for cutting rebar after making rebar.
Cutting speed: 3m/s
Cutting error: 3mm
Cutting scope: 8-16mm
Capacity: 20-100ton/h
Power: 7.5kw
Including the sensor

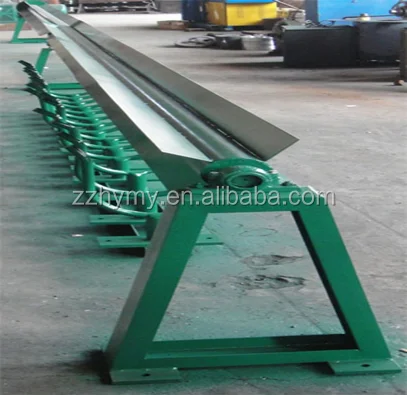

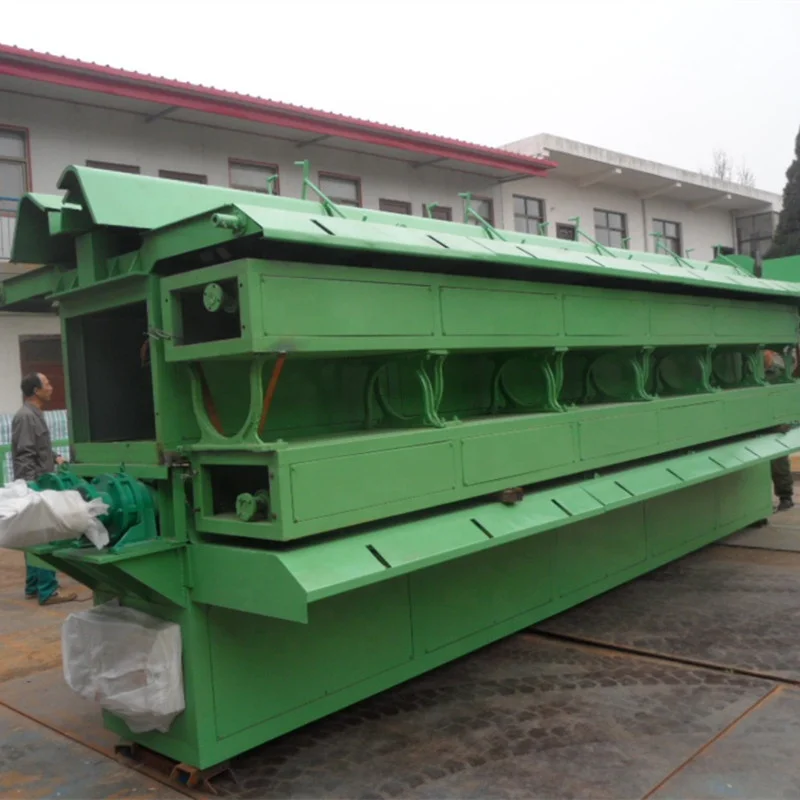

Automatic materials shaft
Function: It is mainly for collecting rebar; utomatic collecting way, save labor; improve working
efficiency.
Size: 12m*1.2m*0.8m
Weight: 300kg

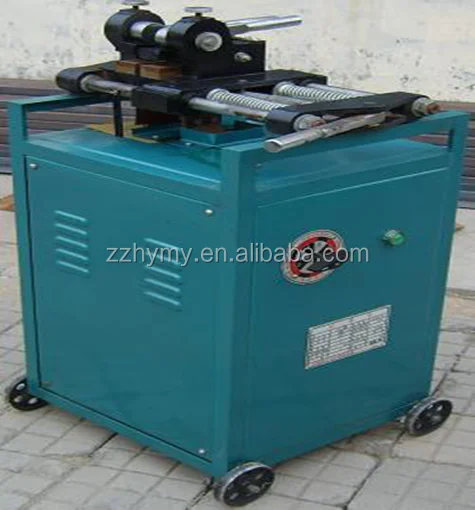

Jointing machine
Jointing machine is mainly for joining the two wire rod end together.

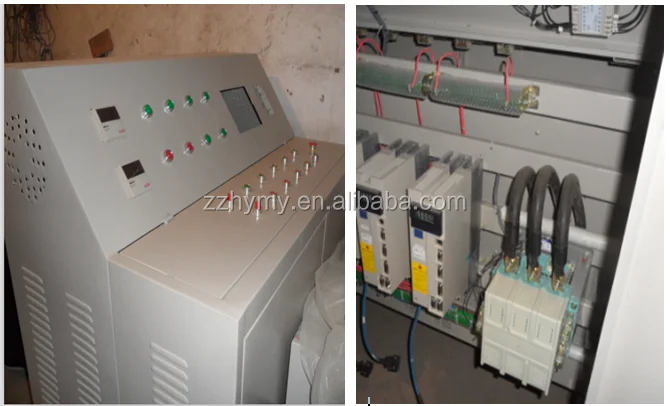

Electric box
Electric box for controlling whole system

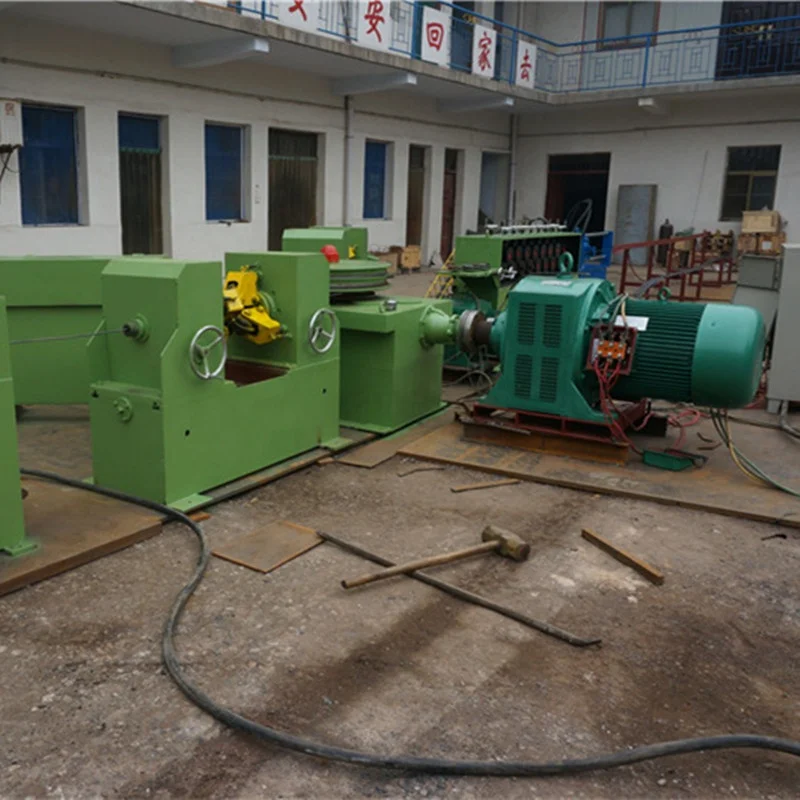

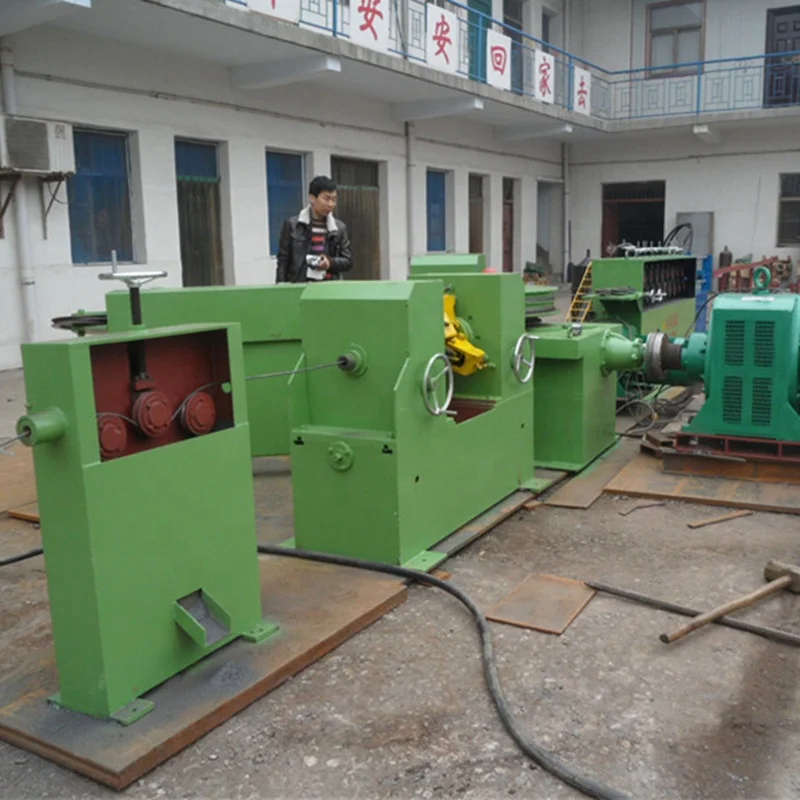

Whole line thumbnail as below

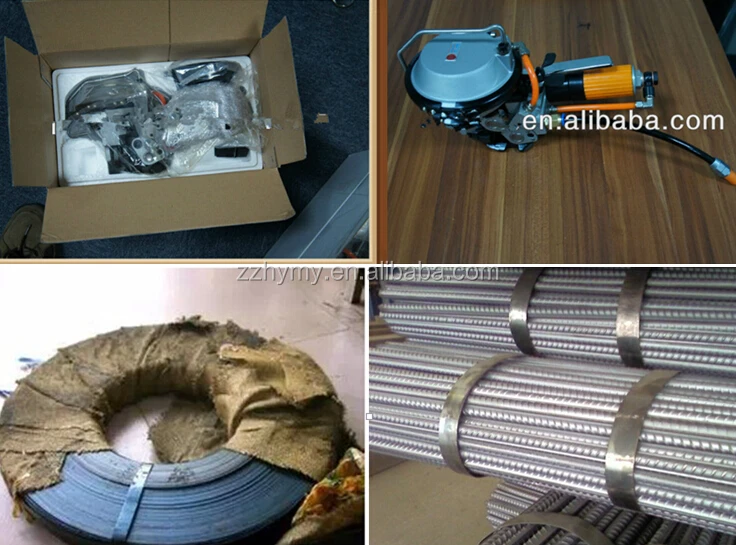

Pneumatic rebar bunding machine
Model No: A480
Strip materials: steel
Strip width: 14/16mm
Strip thickness: 0.38-0.8mm
Weight: 5kg
Air pressure: 0.42-0.6Mpa
Tensioning speed: 0.5m/min
Steel strips
Strips width: 16mm Thickness: 0.36mm Weight: 70kg/coil

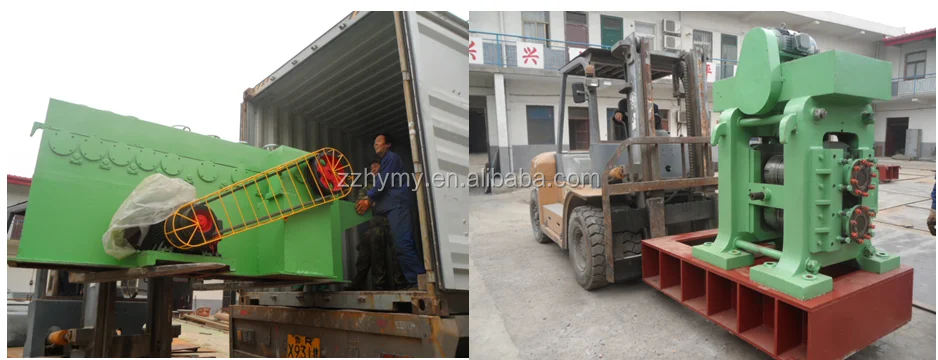

Packing and shipping for 2 rib mimi cold rolling mill
Wooden case for 2 rib mimi cold rolling mill

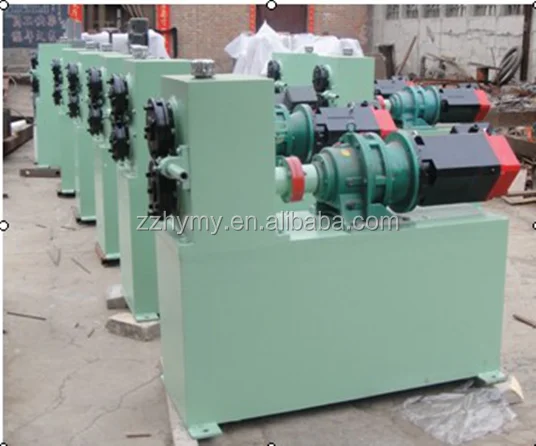

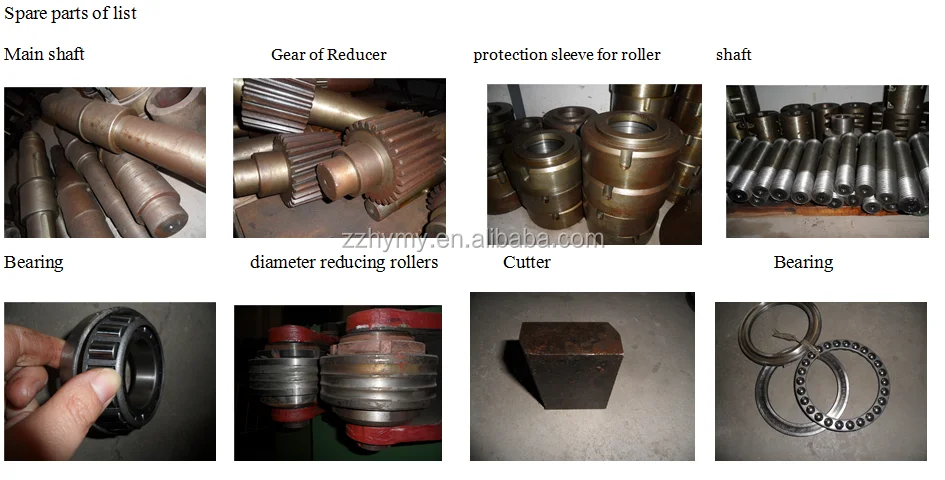

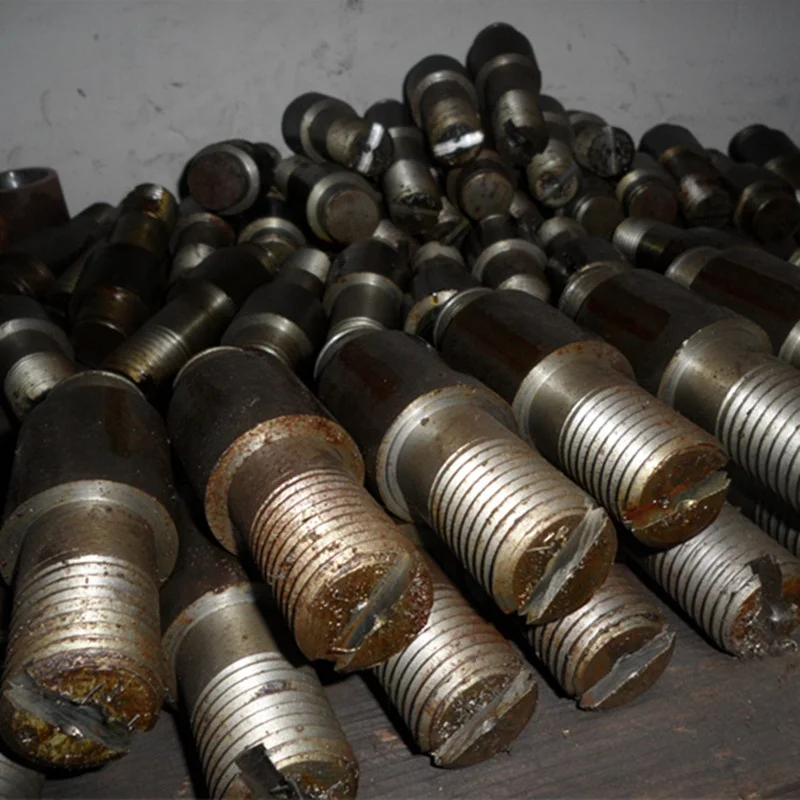

Main spare parts of 2 rib mimi cold rolling mill
FAQ
Q: How many types 2 rib mimi cold rolling mill do you have?
A: We have two main types
1.Three ribs cold rolling mill
2.Two ribs cold rolling mill
Two ribs cold rolling mill is more expensive than three ribs.
Q: How about the capacity for 2 rib mimi cold rolling mill?
A: Capacity:55T ---62T(10hours as one shift), when input size is 10mm.
Q: How many size for 2 rib mimi cold rolling mill?
A: Because we have two types for 2 rib mimi cold rolling mill
Machine type 285 Input scope: 8-16mm Output scope: 7-15mm
Machine type 228 Input scope: 6-12mm Output scope: 5-11mm
Our services for 2 rib mimi cold rolling mill
We will send our engineer to customer area for installing and trainning. But customer should undertake their salary. Welcome to visit our factory, we will pick up you at our nearest airport and provide our best service.
