AA size lithium thionyl chloride battery ER14500 3.6V 2400mAh battery with pin

Product Overview

Description

AA size lithium thionyl chloride battery ER14500 3.6V 2400mAh battery with pin



1.Type: Lithium thionyl chloride battery

2.Model:ER14505

3.Voltage:3.6V,Capacity:2400mAh

4.SGS&ISO9001 approved manufacturer



Bitmap	Howell Energy Co.,Ltd
	HW-ER 14505 3.6V 2400mAh battery specification
Model	HW-ER 14505 3.6V 2400mah
Dimension(max)	16.5*50.5mm
Weight	20g
Nominal voltage	3.6V
Nominal capacity	2400mAh
Max continuous discharge current	80mA
Max pluse dishcarge current	240mA
Discharge cut-off voltage	2.0V
Working temperature	-55°C~85°C
Storage temperature	30°C
Storage life	≥10 years
Self discharge rate	<1% per year
Battery structure	Bobbin type
Battery Technology	Lithium thionyl chloride battery / Li-SOCl2 battery







2.Product Features:

1)High and stable operating voltage

2)High minimum voltage during pulsing

3)Low self-discharge rate(less than 1% after 1 year of storage at +25 °C)

4)Stainless steel container

5)Hermetic glass-to-metal sealing

6)Non-flammable electrolyte

7)Non-restricted for transport

8)Compliant with IEC86-4 safety standard and EN50020 intrinsic safety



3.Applications:

Utility metering,alarms and security device,memory back-up,tracking systems,automotive electronics,etc

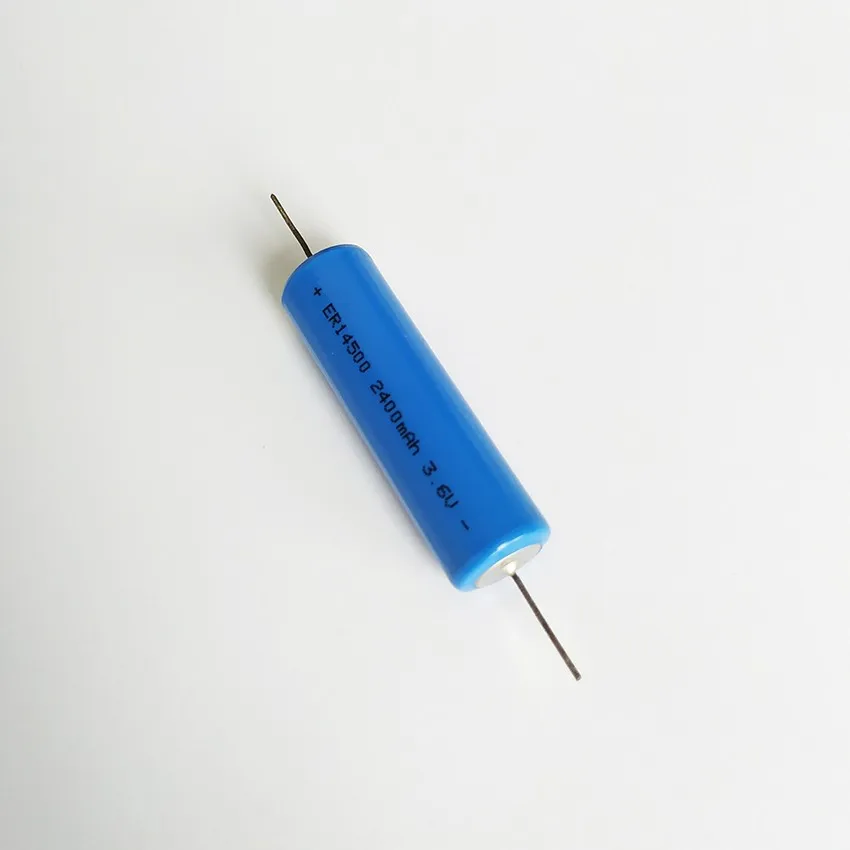

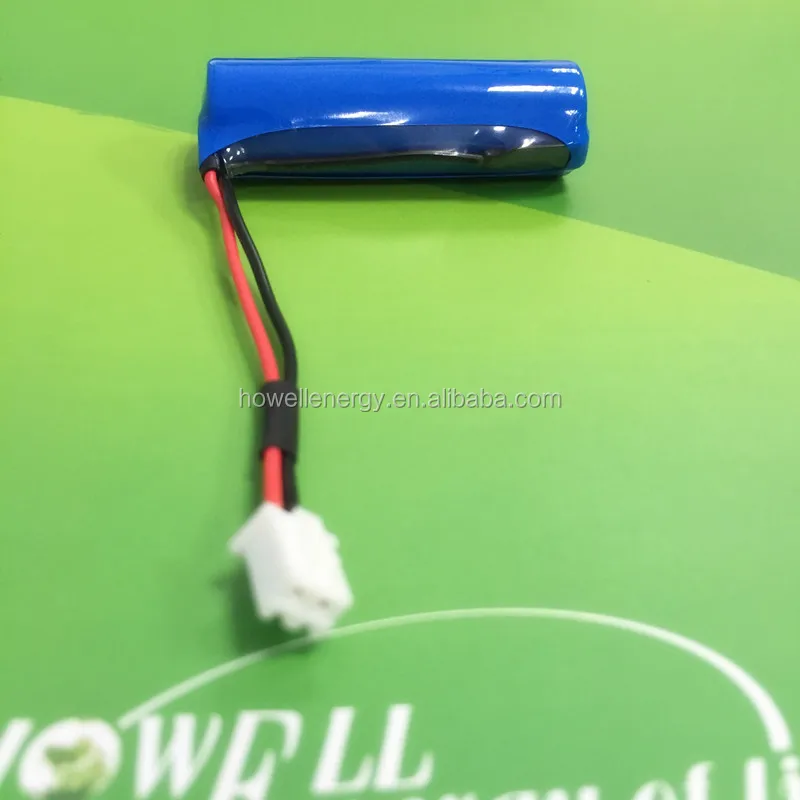

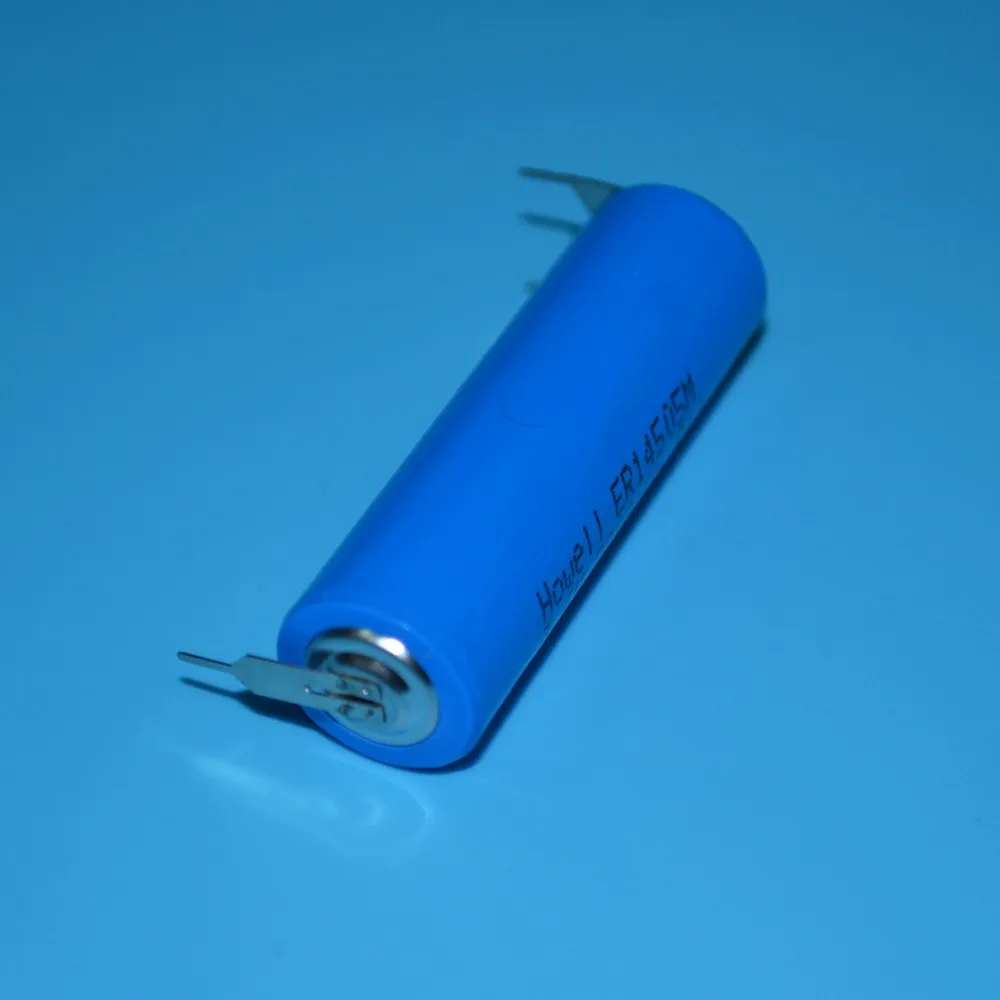

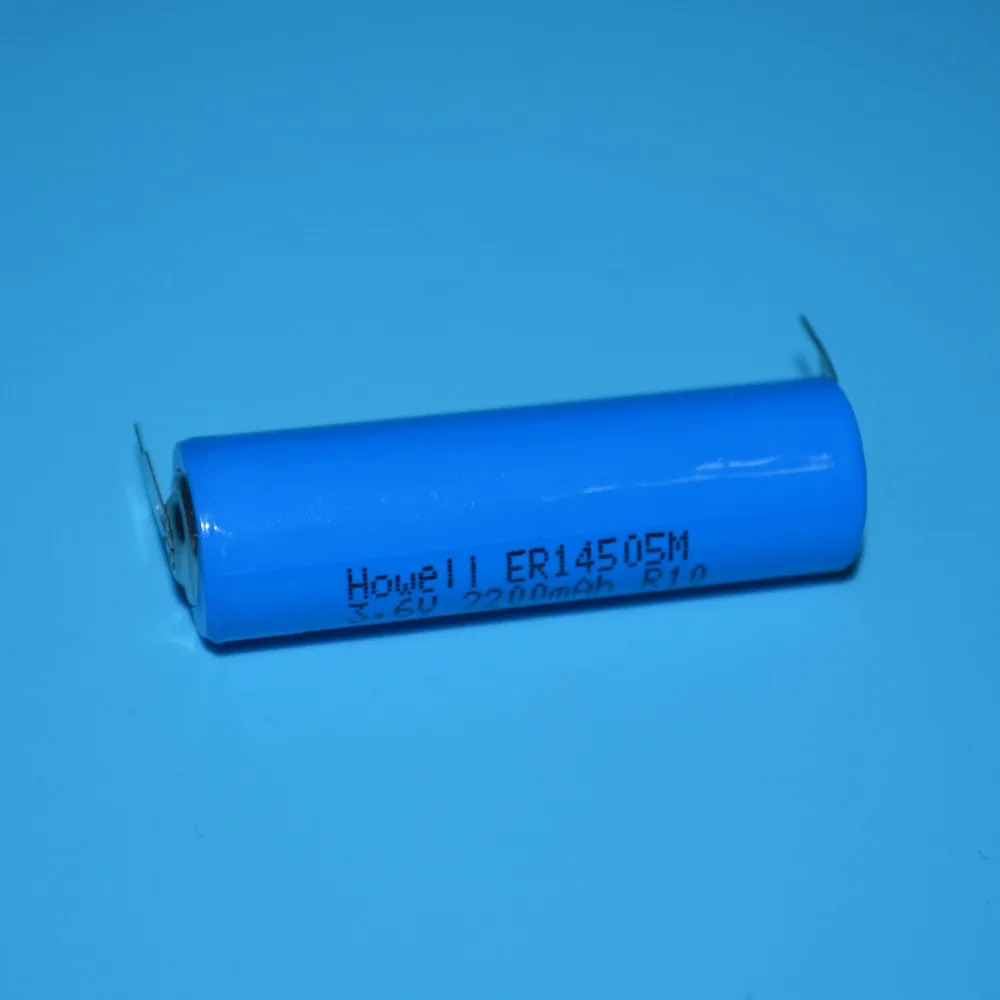

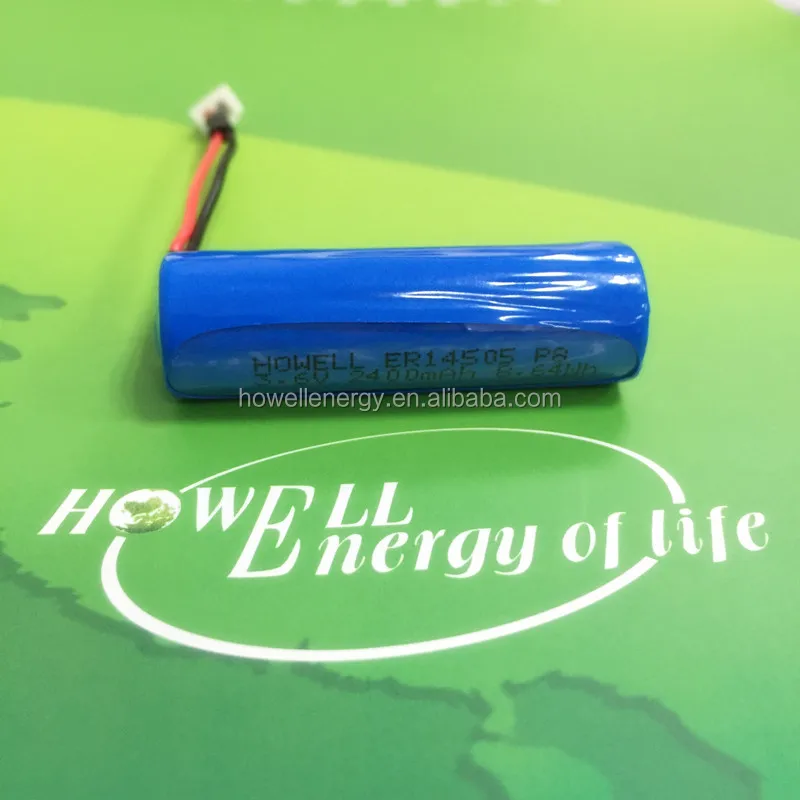

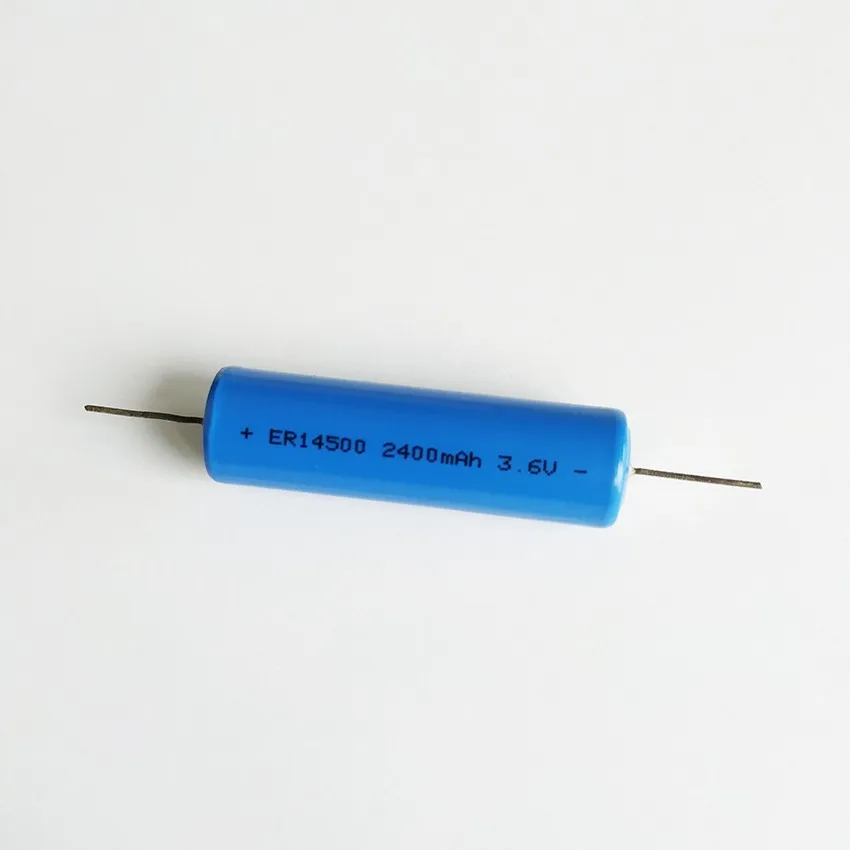

4.Product Picture



Model	Size	Typical voltage	Typical capacity	working current(mA)			Max size(mm)	Weight(g)
		(V)	(mAh)	standard current	continuous current	Pulse current	Diameter*Height
ER13150		3.6V	450mAh	1mA	10mA	30mA	13.5mm*15.5mm	6g
ER14250	1/2AA	3.6V	1200mAh	1mA	20mA	45mA	14.5mm*25.2mm	10g
ER14335	2/3AA	3.6V	1600mAh	1mA	75mA	150mA	14.5mm*33.5mm	12g
ER14505	AA	3.6V	2400mAh	2mA	100mA	200mA	14.5mm*50.5mm	19g
ER17335	2/3A	3.6V	2000mAh	1mA	100mA	200mA	17.0mm*33.5mm	18g
ER17505	A	3.6V	3500mAh	2mA	120mA	200mA	17.0mm*50.5mm	24g
ER18505	A	3.6V	3800mAh	3mA	120mA	200mA	18.5mm*50.5mm	28g
ER26500	C	3.6V	8500mAh	4mA	130mA	300mA	26.2mm*50mm	52g
ER34615	D	3.6V	19000mAh	5mA	200mA	400mA	32.9mm*61.5mm	100g











7.Who have choosen Howell Energy?





Howell Energy Co.,Ltd,leading battery manufacturer since 1999 with CE RoHS UL certificate,providing ER14250 ER14500 ER17505 ER26500 ER34615 etc.

battery cell and battery pack.With over 15 years experience in battery,Howell can supply you satisfied quality products with competitive and reasonable price!

Any interest,please contact me for offer !
